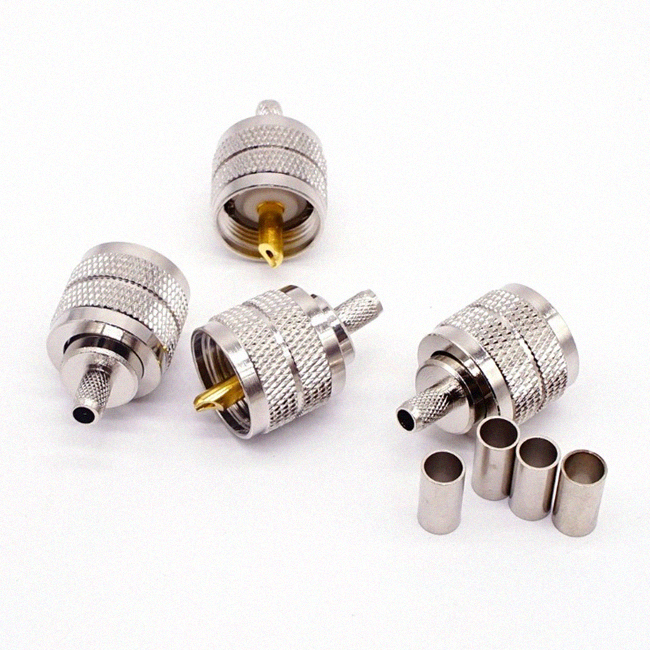

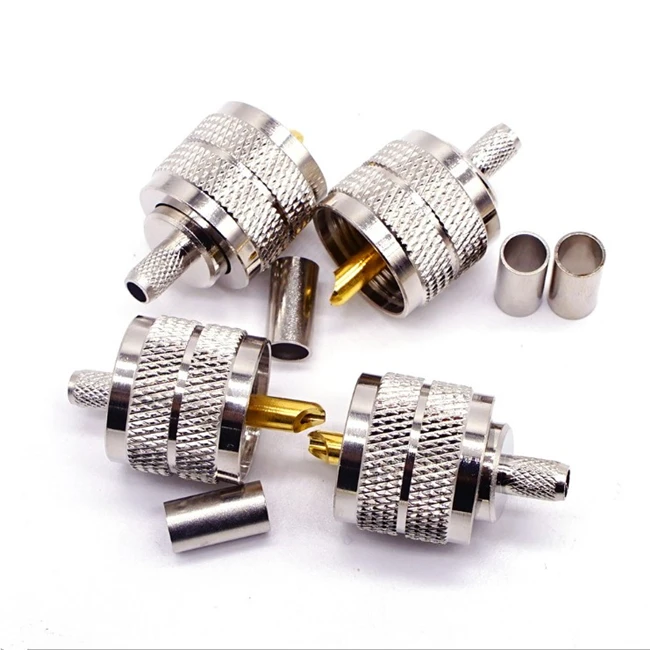

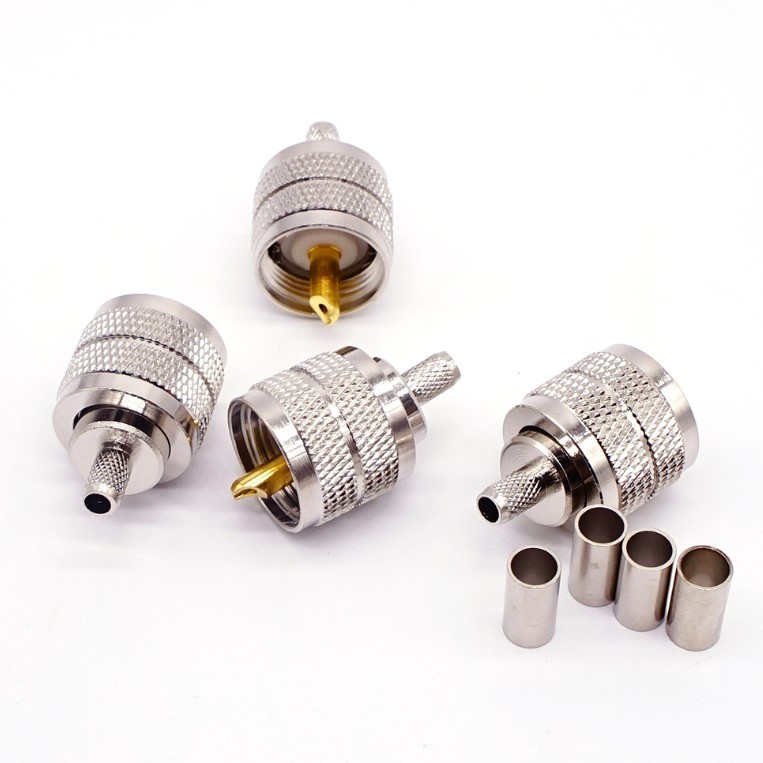

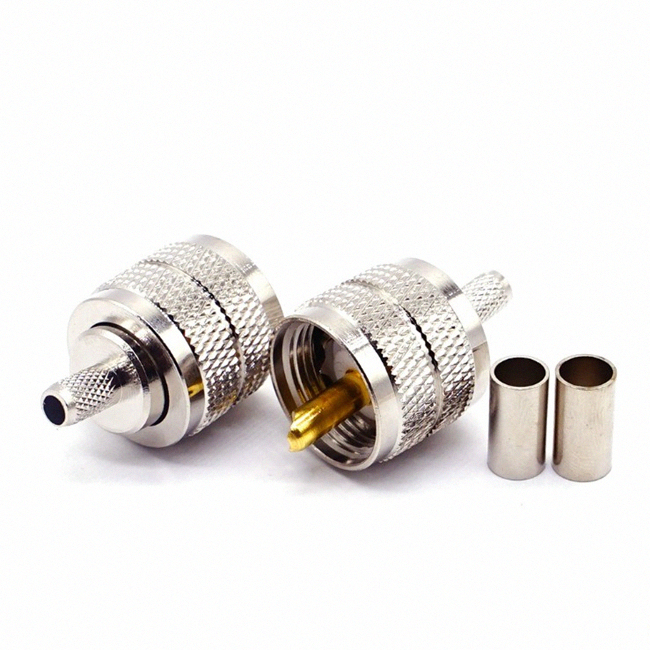

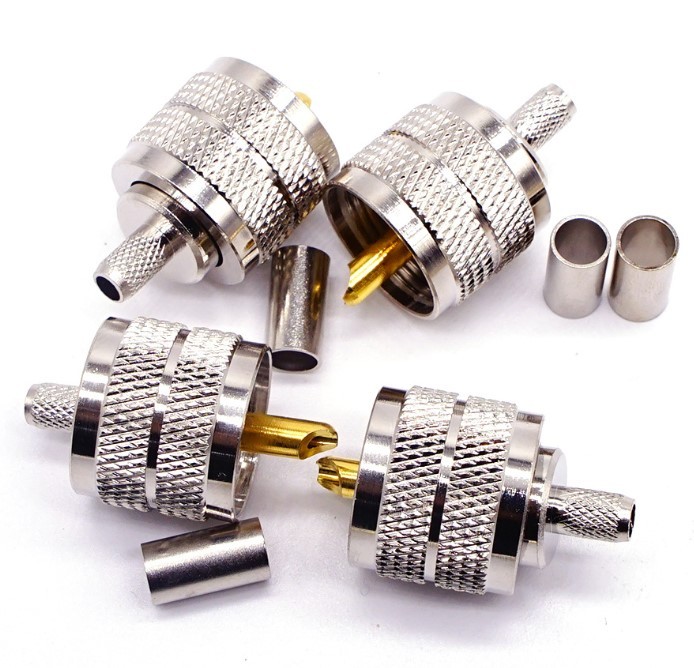

UHF PL259 Male Plug Crimp RF Coaxial Connector for RG58 LMR195 RG142 LMR200 Cable
Overview
TYPE UHF products is one kind of video frequency coaxial connectors with screw coupling and adopt tooth of end gearing. Impedance is not strictly defined, but usually applied at the frequency of 500MHz. This products are very suitable for the civil wave band communication system, closed-circuit television, the car radio device products etc. These connectors have characteristics of reliable connection, good vibration performance, and reasonable price.
|
Product Description
|
|||
|
Electrical
|
|||
|
1
|
Characteristic Impedance
|
50ohm
|
|
|
2
|
Frequency Range
|
DC-3GHz
|
|
|
3
|
VSWR
|
≤1.15(DC-3GHz)
|
|
|
4
|
Dielectric Withstanding Voltage
|
≥ 2500V
|
|
|
5
|
Dielectric Resistance
|
≥5000MΩ
|
|
|
6
|
PIM3
|
≤ -160dBc
|
|
|
Mechanical
|
|||
|
1
|
Durability
|
Mating cycles ≥500
|
|
|
Material and plating
|
|||
|
Description
|
Material
|
Plating
|
|
|
1
|
Body
|
Brass
|
Tri-alloy/Au/Ni
|
|
2
|
Insulator
|
PTFE
|
–
|
|
3
|
Center conductor
|
Brass
|
Ag/Au
|
|
4
|
Gasket
|
Silicon rubber
|
-
|
|
5
|
Other
|
Brass
|
Ni
|
|
Environmental
|
|||
|
1
|
Temperature Range
|
-40℃~+200℃
|
|
|
2
|
Waterproof
|
IP67
|
|
