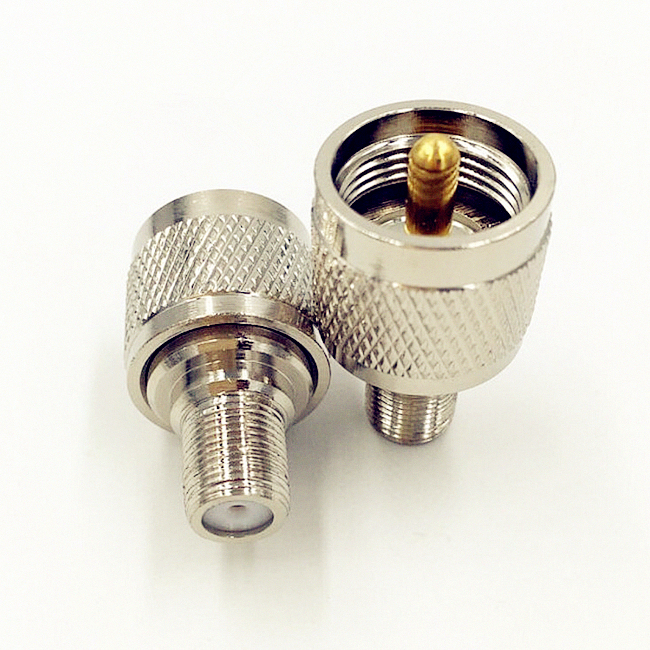

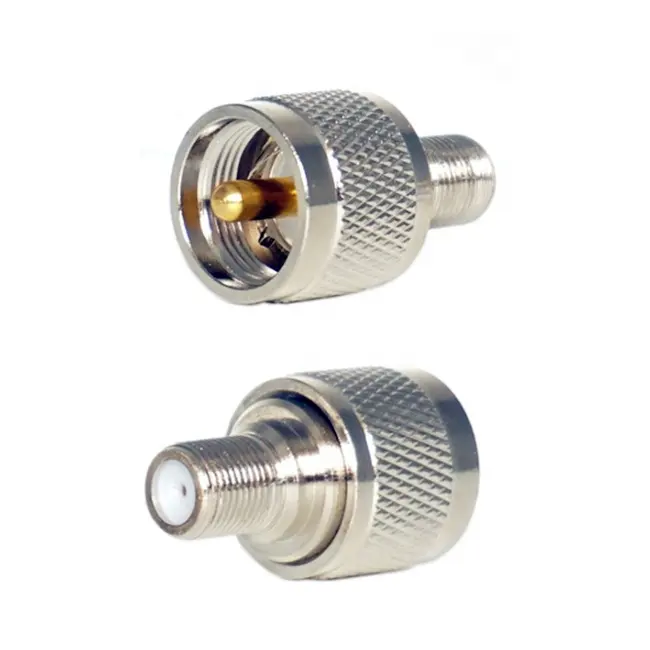

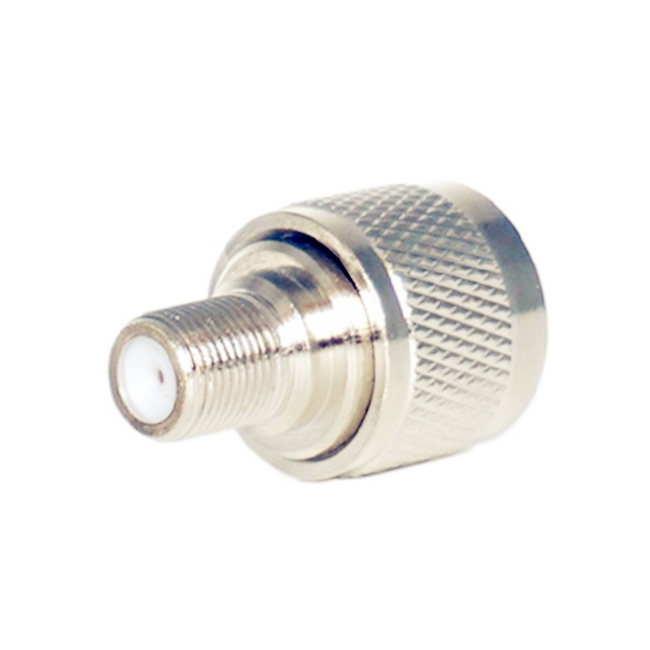

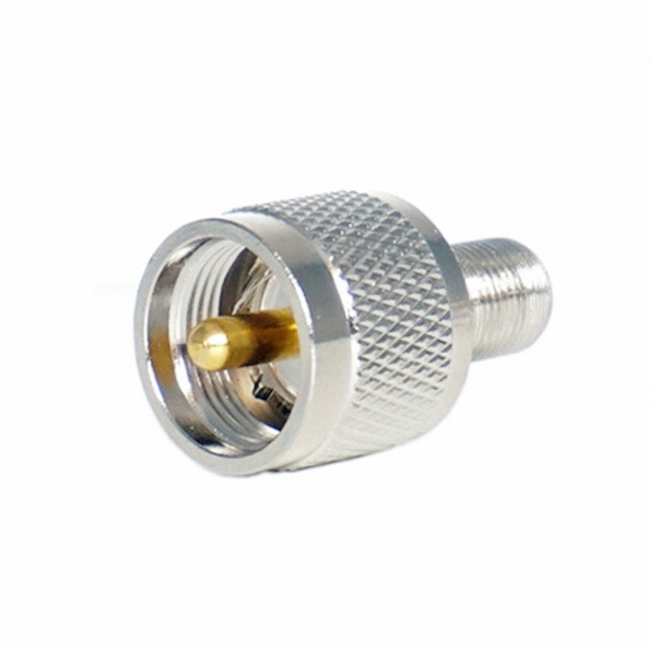

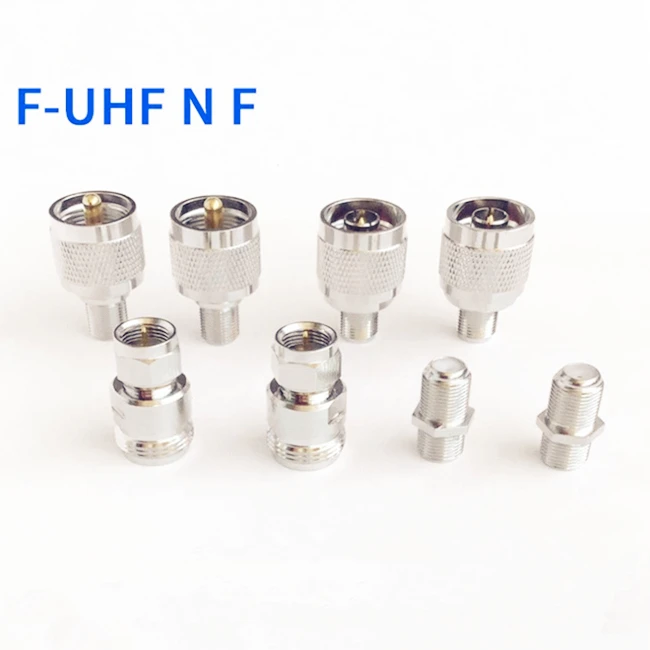

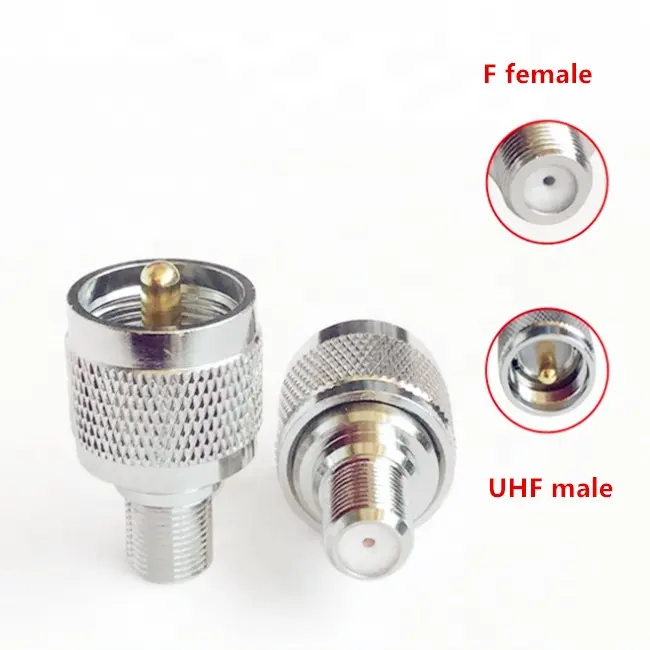

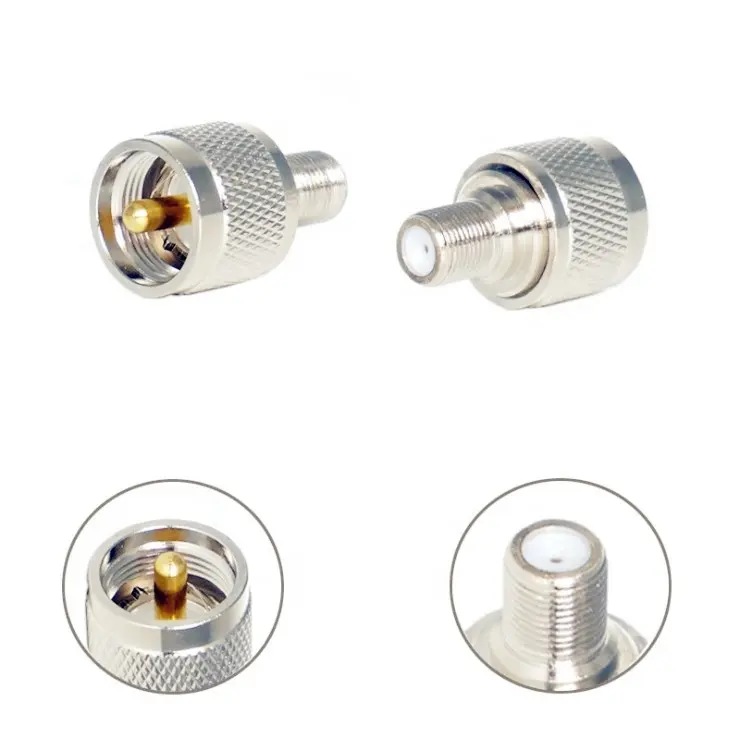

UHF Male PL259 to F Female RF Coaxial Coaxial Connector Straight Adapter
Overview
TYPE UHF products is one kind of video frequency coaxial connectors with screw coupling and adopt tooth of end gearing. Impedance is not strictly defined, but usually applied at the frequency of 500MHz. This products are very suitable for the civil wave band communication system, closed-circuit television, the car radio device products etc. These connectors have characteristics of reliable connection, good vibration performance, and reasonable price.
RF coaxial adaptor has high reliability, strong vibration resistance, mechanical and electrical characteristics of excellent performance. It is widely used in vibration and environment under the condition of radio equipment and instrument , ground launch system, and it can join all kinds of coaxial cables.
|
Temperature range |
-40~+85°C |
|
Vibration |
100m/s2 (10~500Hz) |
|
Impedance |
50 OHM |
|
Frequency Range |
DC – 11GHz |
|
Working Voltage |
2700V max |
|
Break-down Voltage |
4000V rms @ sea level |
|
Contact resistance |
≤0.4 OHM @ inner contact |
|
Average power |
3KW max |
|
Insulation resistance |
≥10000M OHM |
|
VSWR |
≤ 1.10 |
|
Durability (mating) |
≥500 (cycles) |
Material & Plating
|
Body |
Brass |
Nickel plated / Alloy plated |
|
Inner Pin |
Brass |
Gold plated |
|
Resilient Contact |
Beryllium Copper |
Gold plated |
|
Socket Contact |
Beryllium or tin bronze |
Gold plated |
|
Insulator |
PTFE |
|
|
Crimp Ferrule |
Copper alloy |
Nickel / Gold plated |
|
O-ring sealing |
Silicone Rubber |
|
