UHF connectors are sometimes also called Ampheno coaxial connectors. They were designed by Ampheno's designers in the 1930s and used as RF connectors in the radio industry. UHF connectors were originally intended to be video connectors for radar equipment, but later were used in various RF applications. The plug can be called a PL259 coaxial connector, while the socket can be called an SO239 connector. These are their original military part numbers.

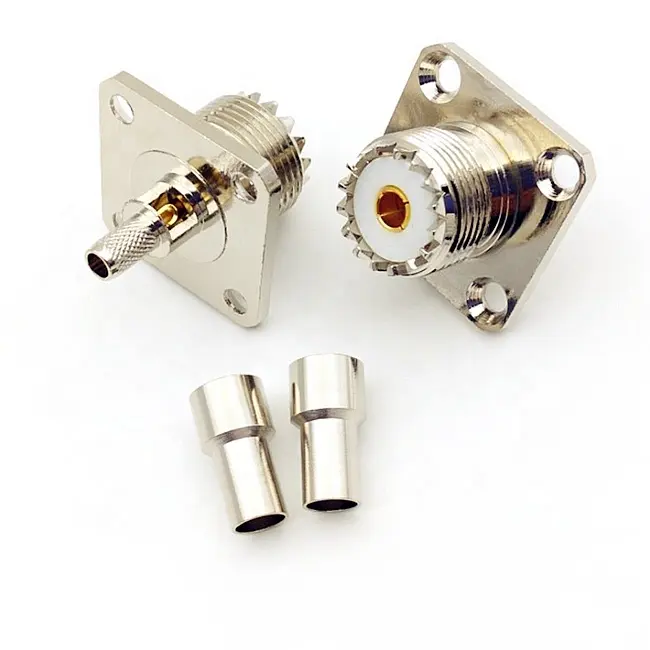

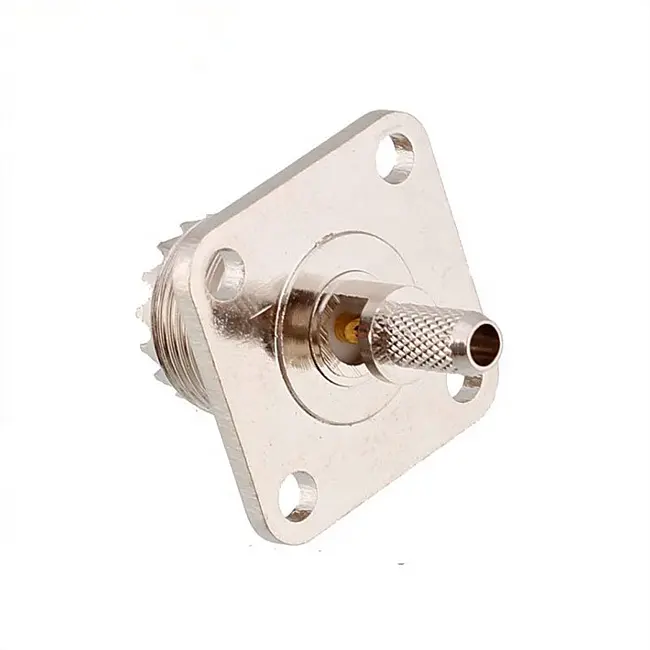

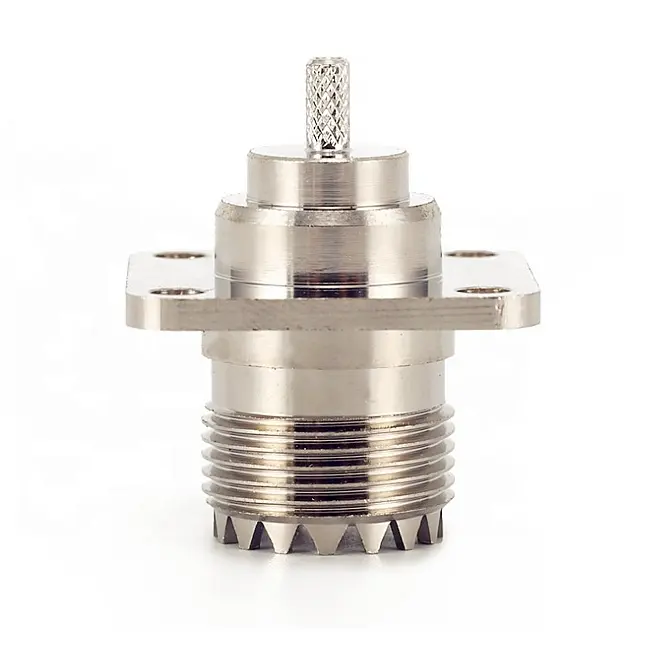

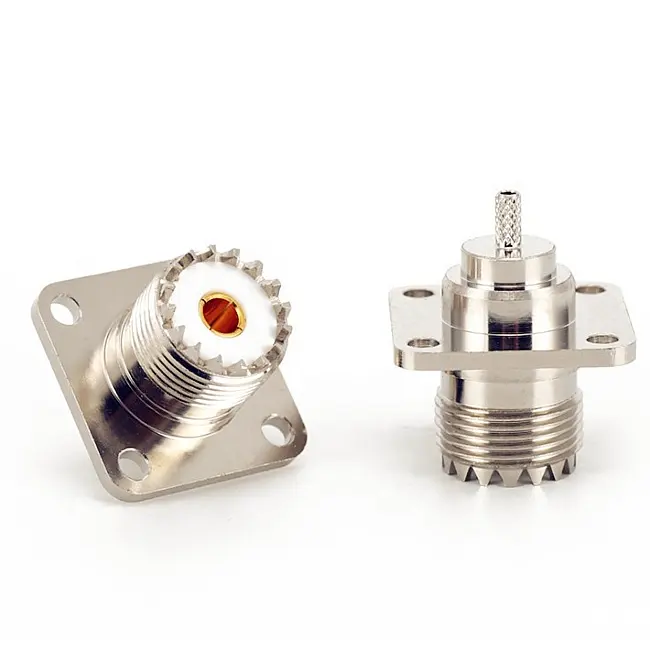

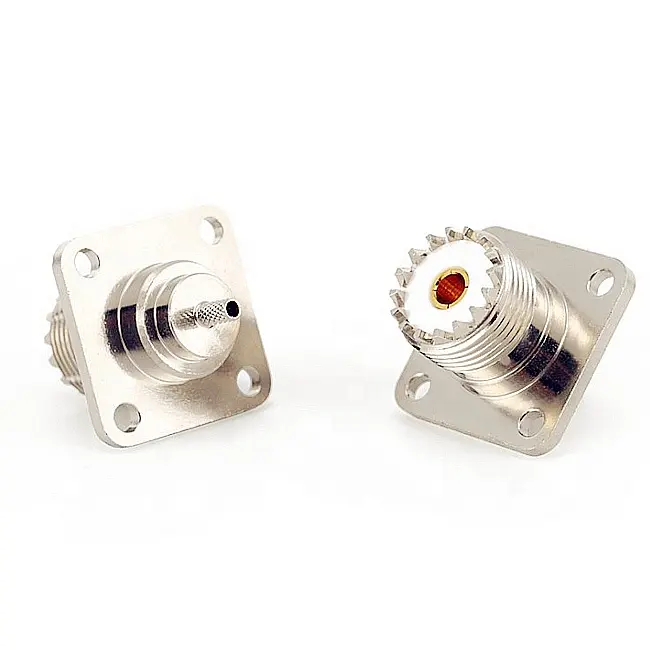

UHF Crimp Type 4 Hole Flange PL259 Female Connector for RG316 RG400 RG174 RG178 Caoxial Cable
Overview
RF coaxial adaptor has high reliability, strong vibration resistance, mechanical and electrical characteristics of excellent performance. It is widely used in vibration and environment under the condition of radio equipment and instrument , ground launch system, and it can join all kinds of coaxial cables.
Electrical Characteristics
|
Specifications
|
||||
|
Major Technical Characteristics
|
||||
|
Temperature Range
|
-55 degree to +150dregree
|
|||
|
Vibration
|
100m/S2 (10 to 500 Hz), 10G
|
|||
|
Impendance
|
50ohm/75ohm
|
|||
|
Frenquency Range
|
DC-3GHZ
|
|||
|
Working Voltage
|
500V r.m.s at sea level
|
|||
|
Workstandinging Voltage
|
1500V r.m.s at sea level
|
|||
|
Center Contact Resistance
|
≤1.5Mohm
|
|||
|
Outer Contact Resistance
|
≤1Mohm
|
|||
|
Insulation Resistance
|
≥5000Mohm
|
|||
|
Center conductor Retention Force
|
≤0.57N
|
|||
|
Insertion Loss
|
≤0.2dB/3Ghz
|
|||
|
VoltaggeStanding Wave Ratio :
|
||||
|
Straight
|
≤1.10+0.02f
|
|||
|
Right Angle
|
≤1.20+0.03f
|
|||
|
Dutability (Mating)
|
≤500(cycles)
|
|||
|
Body
|
Brass/Gold Plated
|
|||
|
Contact
|
Brass/Gold Plated
|
|||
|
Insulator
|
PTFE
|
|||
|
Nut
|
Brass
|
|||
|
Washer
|
Brass
|
|||
