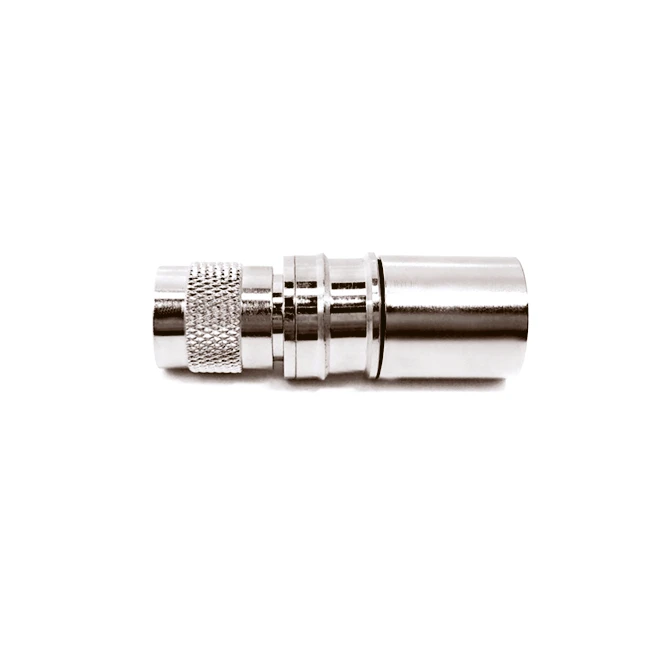

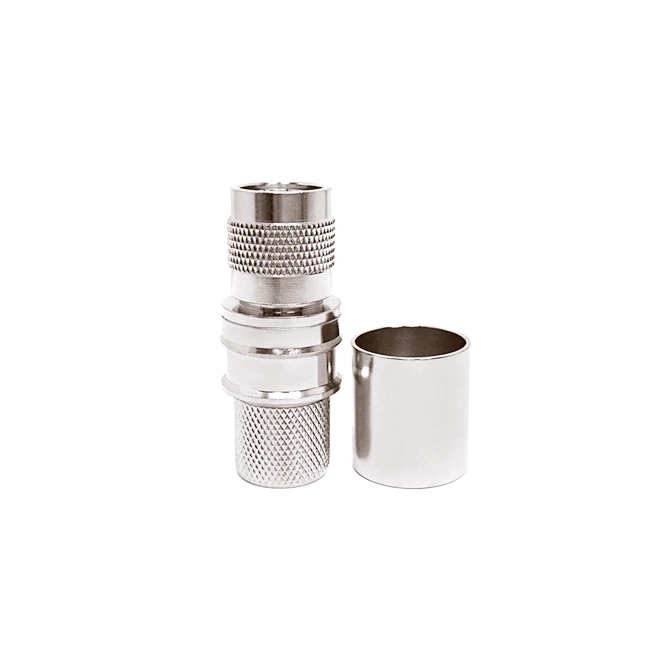

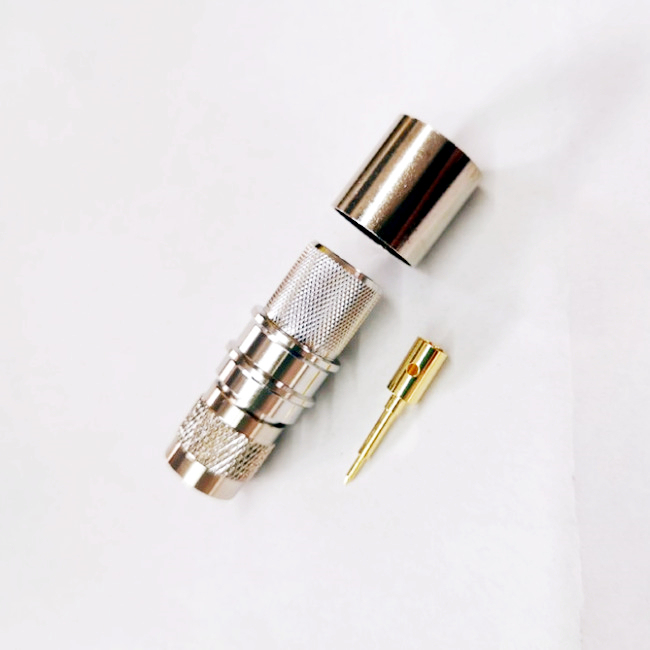

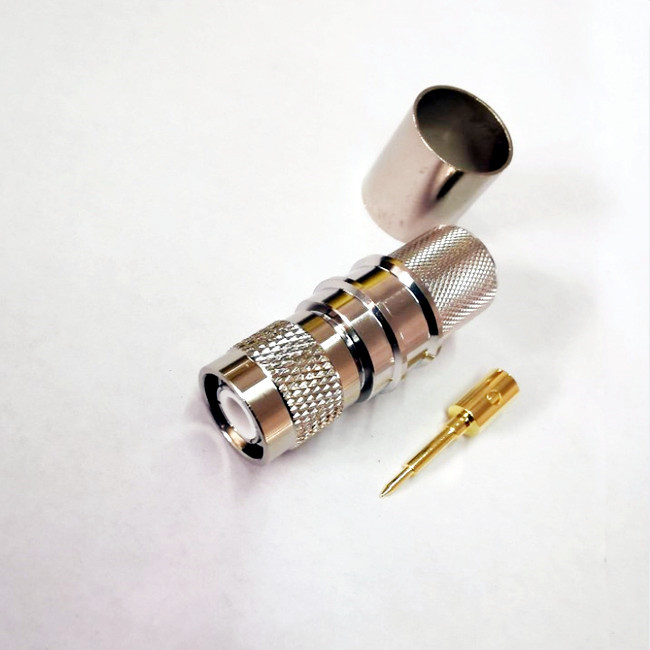

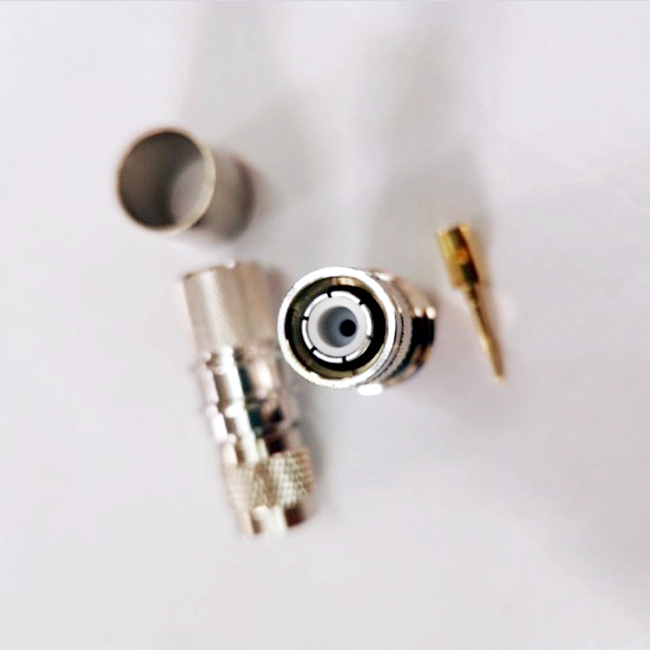

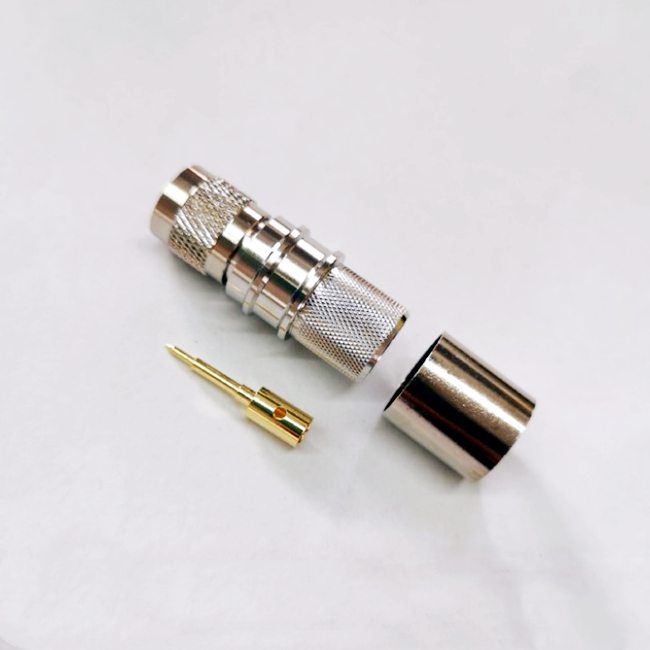

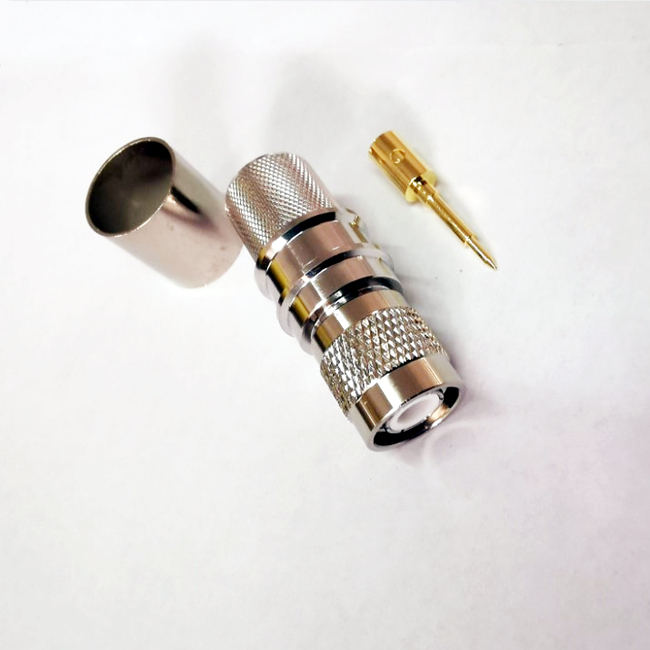

TNC Straight Type Male Crimp RF Connector for LMR600 12D-FB Coaxial Cable

Name: TNC Straight Type Male Crimp RF Connector for LMR600 12D-FB Coaxial Cable
Brand: https://keenantech.net/
SKU: TNC-C-J-12
Availability: InStock
Rating: 5 (1 reviews)

No.TNC-C-J-12

The TNC connector is a coaxial high-frequency connector, also known as the "threaded compression type TNC connector". It adopts a threaded connection method and features high-frequency transmission performance and durability. It is a widely used connector in the RF and communication fields. Similar to BNC and N-type connectors, the TNC connector is more flexible and practical than them, suitable for high-frequency and wideband data transmission. It is mainly used in television, radio, radar, communication and other fields, and is widely used in aviation, military, aerospace and industrial fields.

Description

TNC Straight Type male Crimp RF Connector for LMR600 12D-FB Coaxial Cable

Overview

RF coaxial adaptor has high reliability, strong vibration resistance, mechanical and electrical characteristics of excellent performance. It is widely used in vibration and environment under the condition of radio equipment and instrument , ground launch system, and it can join all kinds of coaxial cables.

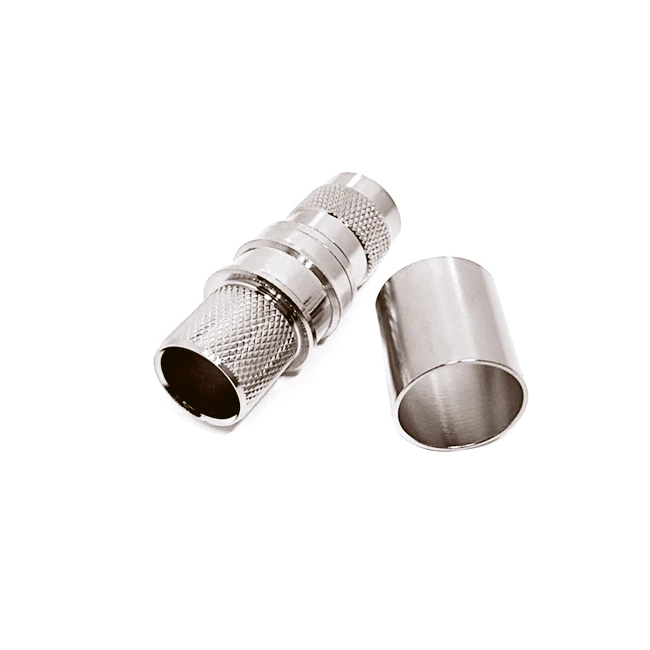

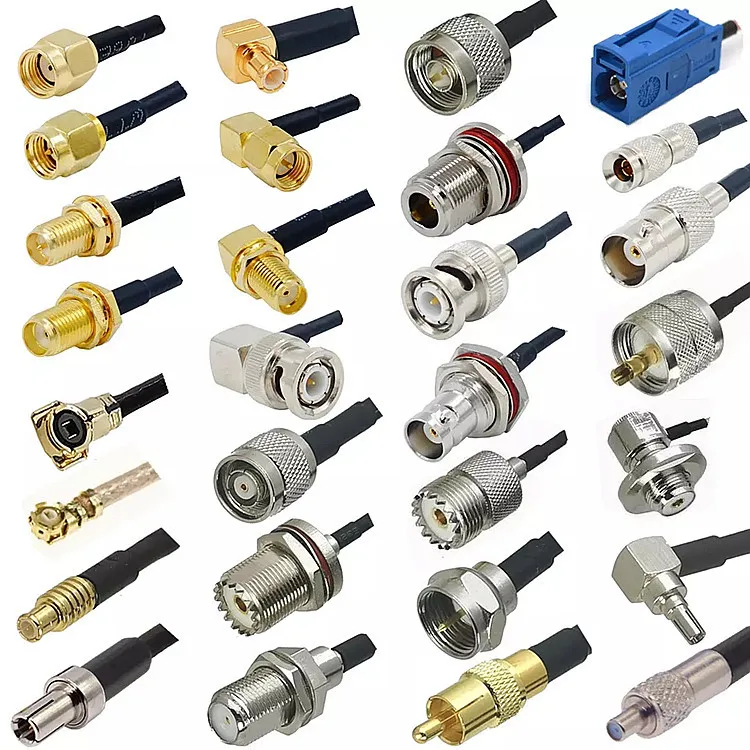

Made in China TNC Straight Type Male Crimp RF Connector for LMR600 12D-FB Coaxial Cable

Electrical Characteristics

Name	TNC connector
Impedance	50Ω/75Ω
Frequency range	0~6GHz
Working Voltage	2700V max
Withstand Voltage	4000V rms
VSWR Straight Rigth Angle	≤ 1.2 ≤ 1.3
Contact resistance -center contact -outer contact	≤5mΩ ≤5mΩ
Insulation resistance	≥10000MΩ
Temperature range	-55°C~+155°C
Durability(matings)	>500

Construction

Piece part	Material	plating
Body	Brass	Nickel plated
Center conductor	Brass or Phosphor Bronze	Gold or silver plated
Crimping suite	Copper alloy	Nickel plated
O-ring sealing	6146 silastic
Insulator	PTFE
