L29 (DIN 7/16) is a threaded RF coaxial connector, belonging to a low intermodulation PIM RF coaxial connector. The standard impedance is 50Ω, and the operating frequency range is DC-7.5GHz. The L29 coaxial connector was first developed in the 1960s. It features ultra-high power capacity and extreme environment tolerance. In low-frequency and high-power scenarios, its reliability and durability far exceed those of N-type and other connectors. It is widely used in antenna systems, main feed cables, and patch cord connections in broadcasting and television, wireless cellular base stations, and microwave communication systems.
L29 (DIN 7/16) is a threaded RF coaxial connector, belonging to a low intermodulation PIM RF coaxial connector. The standard impedance is 50Ω, and the operating frequency range is DC-7.5GHz. The L29 coaxial connector was first developed in the 1960s. It features ultra-high power capacity and extreme environment tolerance. In low-frequency and high-power scenarios, its reliability and durability far exceed those of N-type and other connectors. It is widely used in antenna systems, main feed cables, and patch cord connections in broadcasting and television, wireless cellular base stations, and microwave communication systems.
|

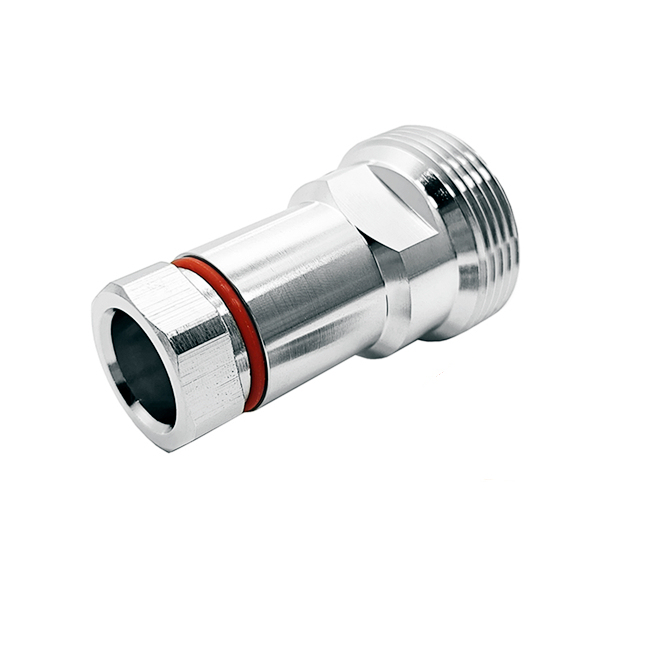

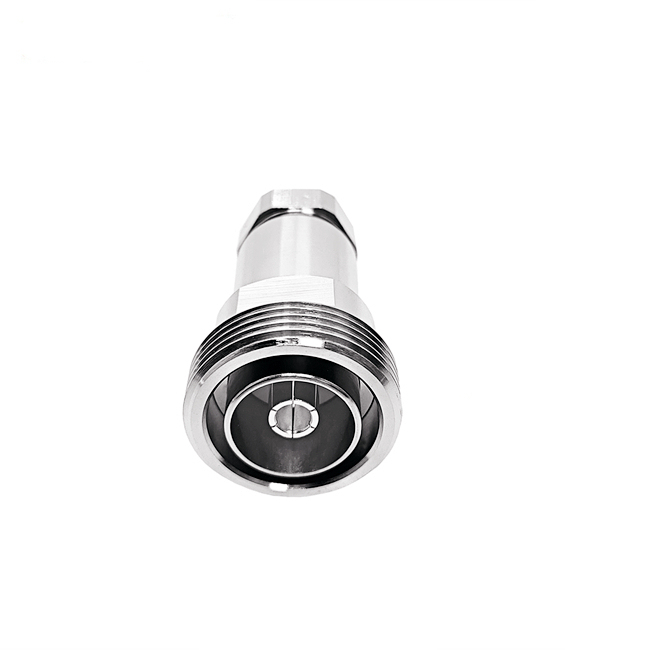

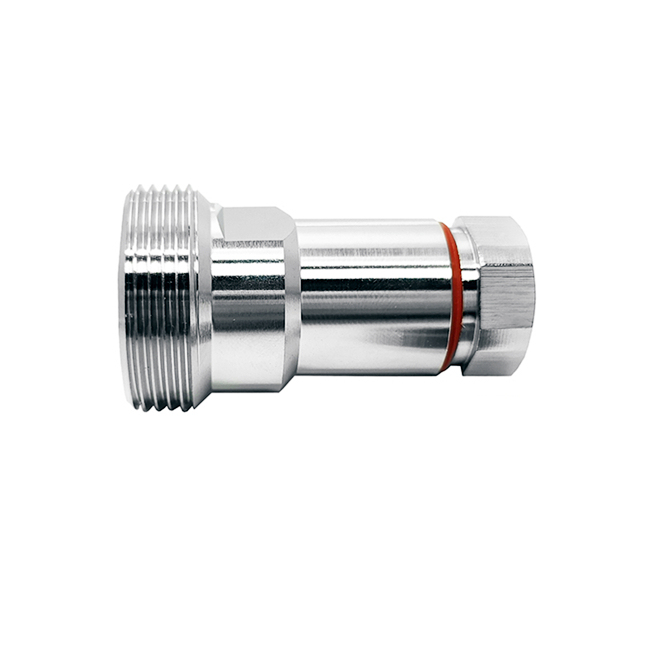

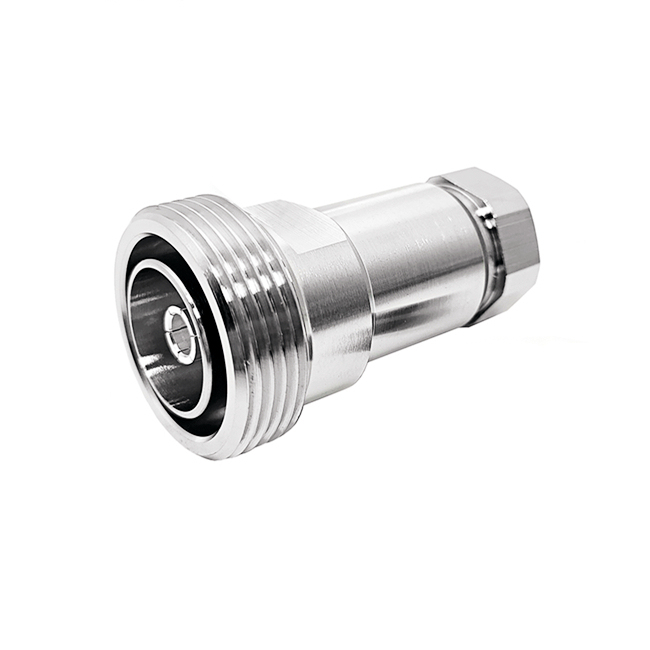

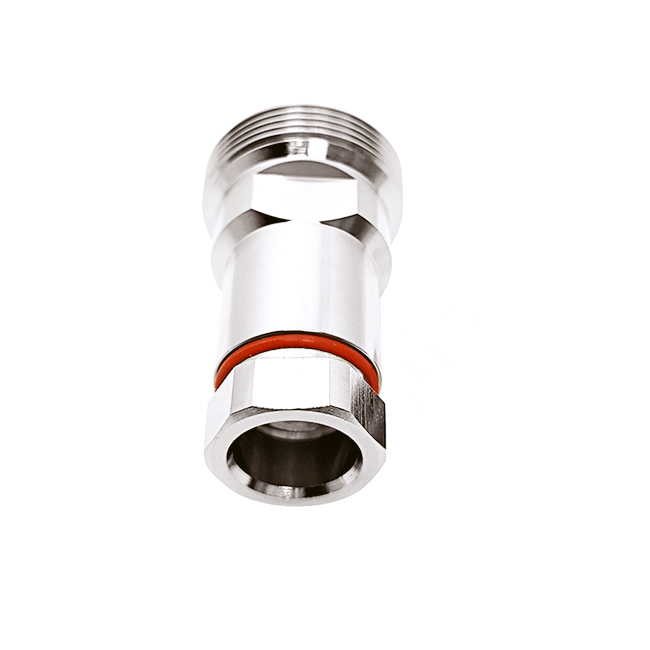

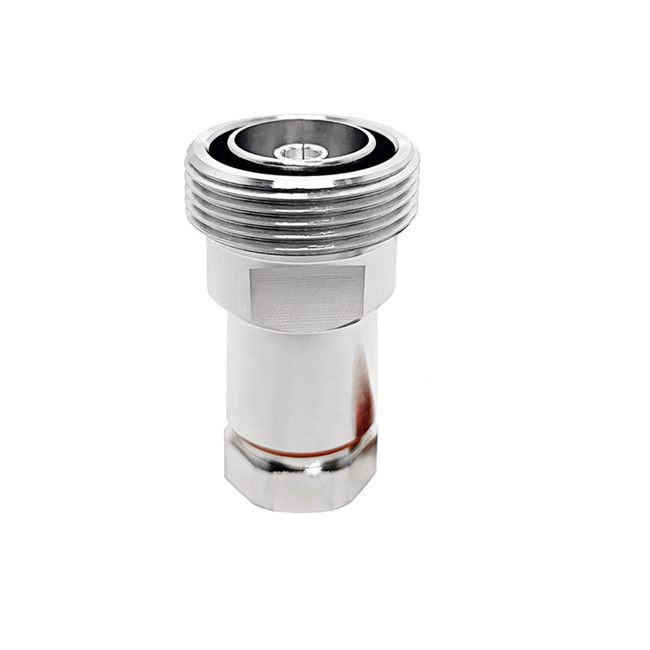

RF DIN 7/16 Female Jack Clamp Type L29 Connector for 1/2'' Superflex Coaxial Cable |
|||
|
Temperature Range |
-55~+155°C (PE Cable -40~+85°C) |
||
|
Impedance |
50Ω |
||
|
VSWR Straight
Right angle |
flex cable ≤ 1.10+0.02f Semi-rigid cable ≤ 1.07+0.018f
flex cable ≤ 1.20+0.03f |
||
|
Frequency Range |
DC – 12.4GHz(0-18GHz) |
||
|
Dielectric withstanding voltage |
1000V rms |
||
|
Working Voltage |
335Vr.m.s at sea level |
||
|
Dielectric Resistance |
≥5000MΩ |
||
|
Durability |
≥ 500(cycles) |
||
|
Body |
Brass |
Nickel plated / Alloy plated |
|
|
Inner Pin |
Brass |
Gold plated |
|
|
Resilient Contact |
Beryllium Copper |
Gold plated |
|
|
Socket Contact |
Beryllium or tin bronze |
Gold plated |
|
|
Insulator |
PTFE |
||
|
Crimp Ferrule |
Copper alloy |
Nickel / Gold plated |
|
|
O-ring sealing |
Silicone Rubber |
||
