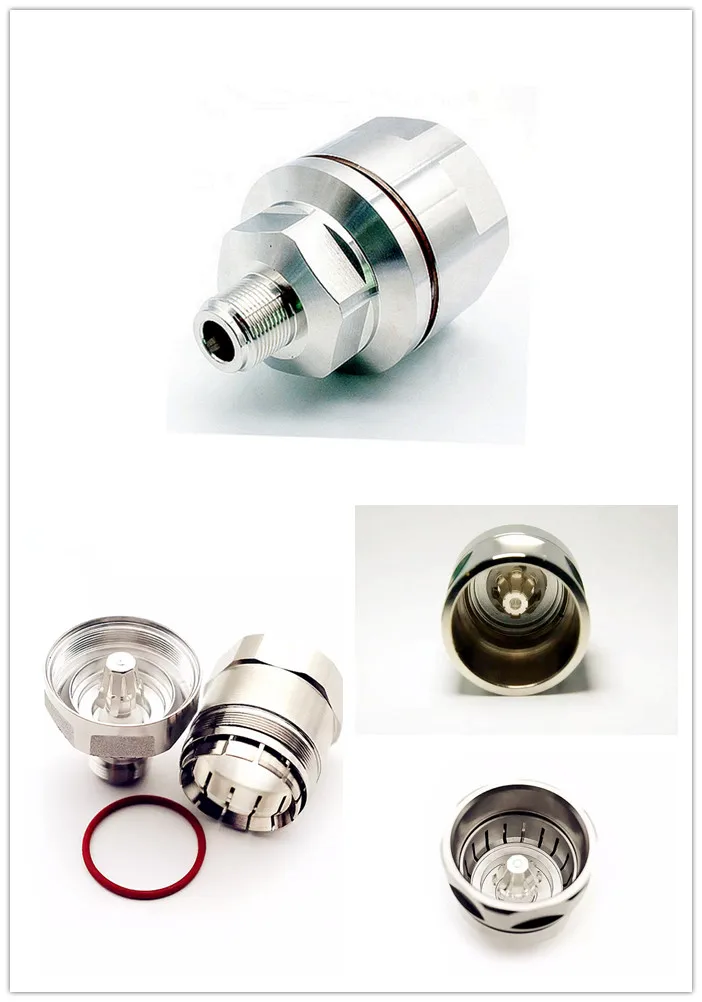

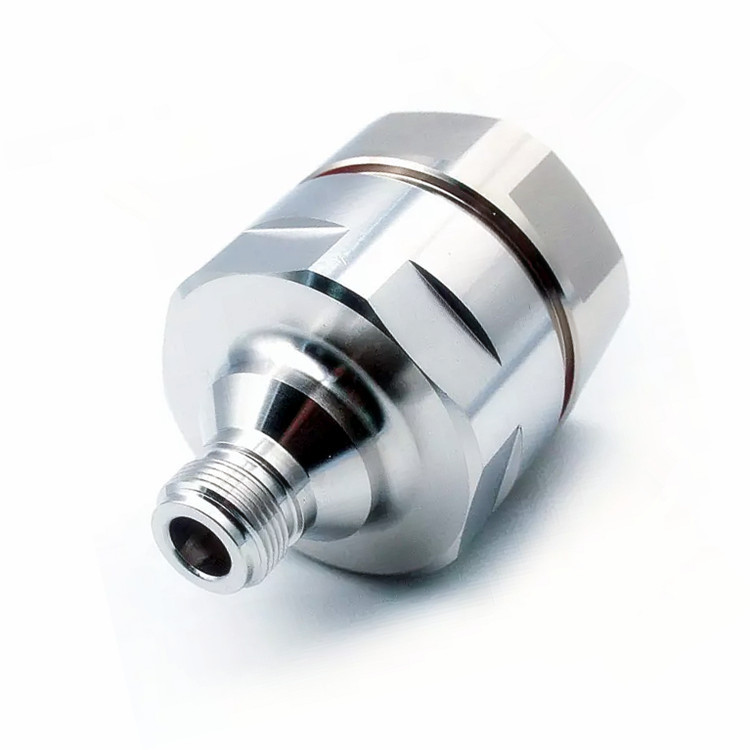

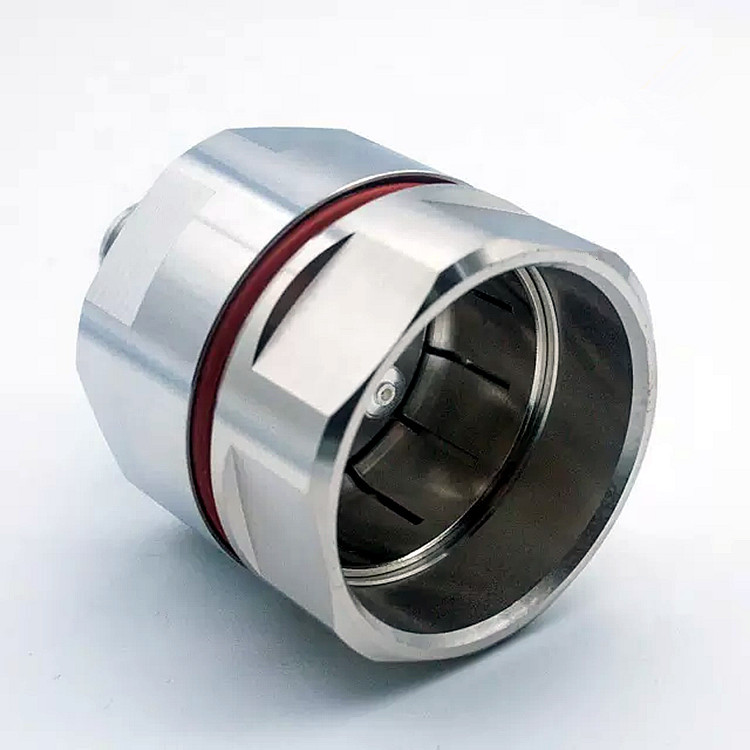

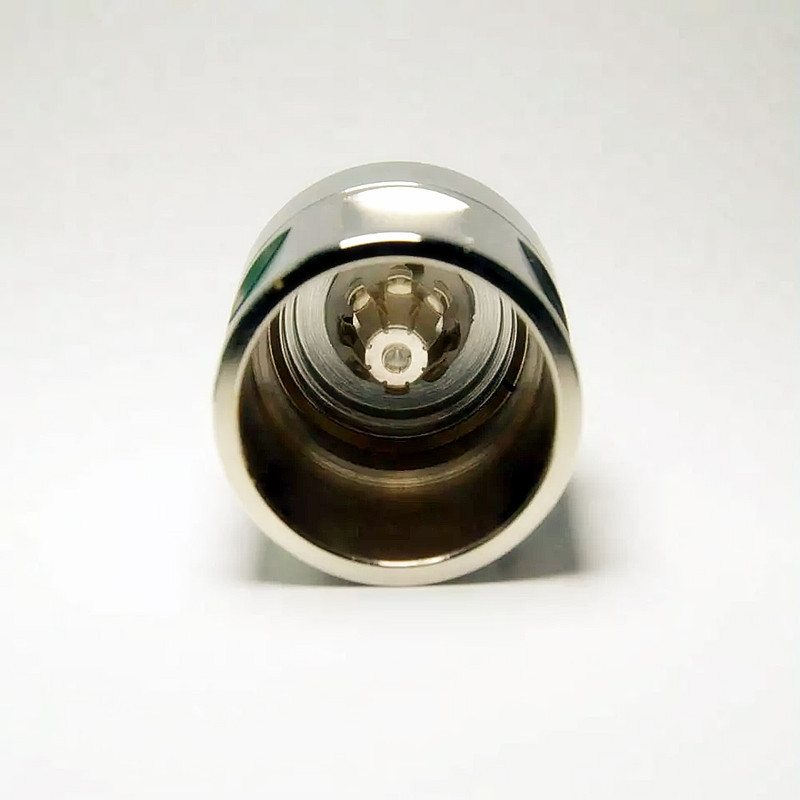

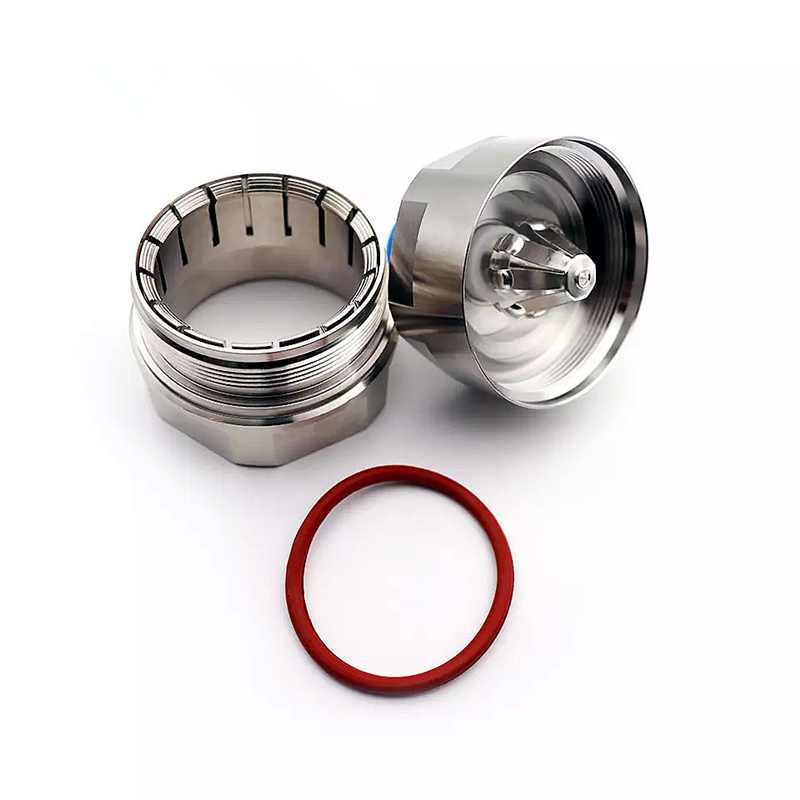

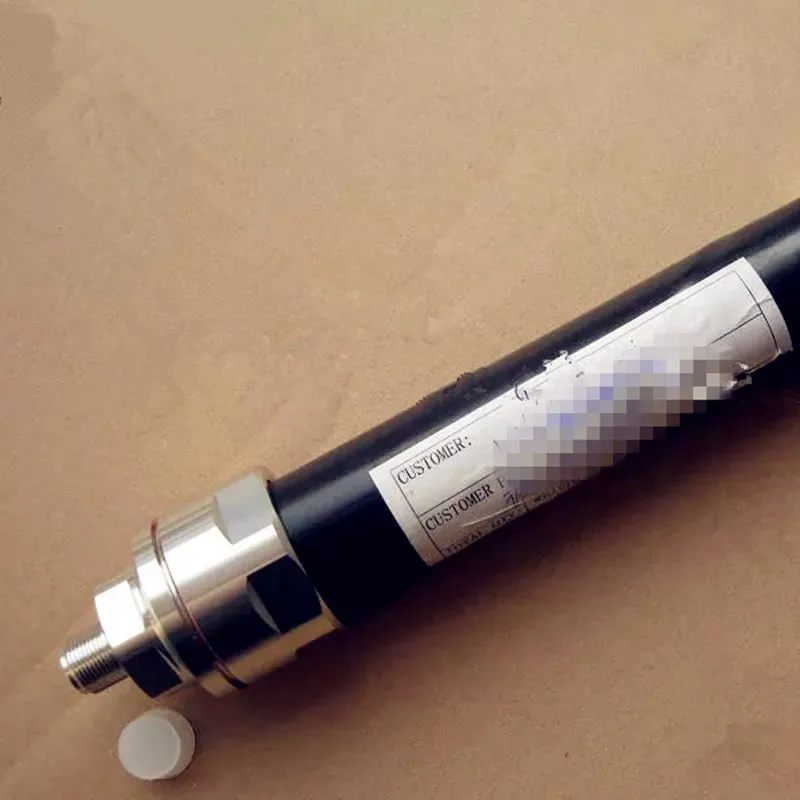

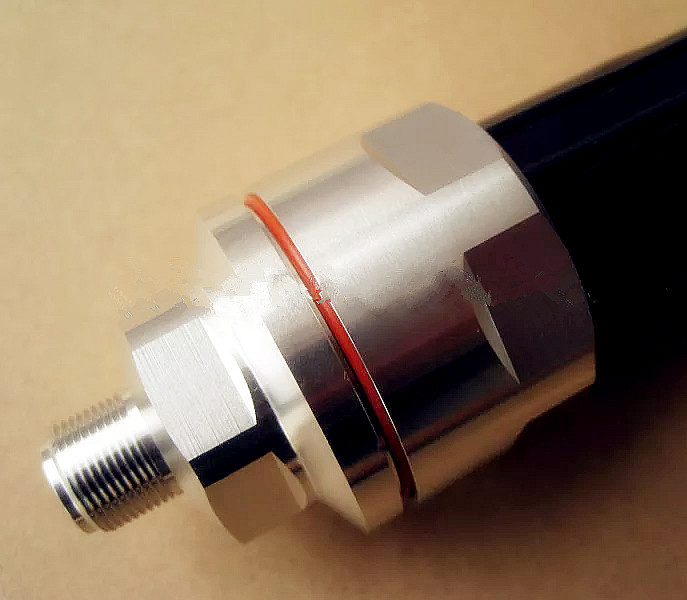

RF Connector 50ohm N Female Straight Coaxial 1-1/4" Coaxial Feeder Cable Connector
N connectors are available with the impedance of 50ohm and 75ohm.The frequency range extends to 18GHz.depending on the connector and cable type.The screw-type coupling mechanism provides a sturdy and reliable connection.Connector styles are available for flexible,conformable,semi-rigid and corrugated cable types.Both crimp and clamp cable termination processes are used for this series.
|
Electrical
|
|
|
Impedance
|
50ohm
|
|
Frequency
|
DC-11GHz
|
|
VSWR
|
(DC-3GHz)≤1.10 (3-6GHz)≤1.20
|
|
PIM
|
≤-165dBc
|
|
Dielectric withstanding voltage
|
≥2500V RMS, 50Hz, at sea level
|
|
Dielectric Resistance
|
≥5000MΩ
|
|
Center contact resistance
|
≤1.0m Ω
|
|
Outer contact resistance
|
≤1.0m Ω
|
|
Mechanical
|
|
|
Durability
|
≥100 times
|
|
Center contact captivation
|
30N
|
|
Coupling torque
|
≥ 5 Nm
|
|
Environmental
|
|
|
Watertightness
|
IP67
|
|
Rosh-compliance
|
Full ROHS compliance
|
|
Salt-fog test
|
96h
|
|
Temperature range
|
-40℃~+85℃
|
|
Material
|
|
|
Body
|
Brass / Tri-alloy plating
|
|
Center contact
|
Phosphor bronze / Ag plating
|
|
Dielectric
|
PTEF
|
|
Gasket
|
Silicone Rubber
|
|
Coupling nut
|
Brass,Nickel plated
|
