RF Coaxial RG MIL-C-17 RG223 Coaxial GSM Antenna Cable
Overview
This 50 Ohm RG223 cable with double braids is a multipurpose MIL-C-17 coaxial cable. These versatile cable assemblies with various lengths have been widely applied to communication systems.
Features
50 Ohm data signal transmission;

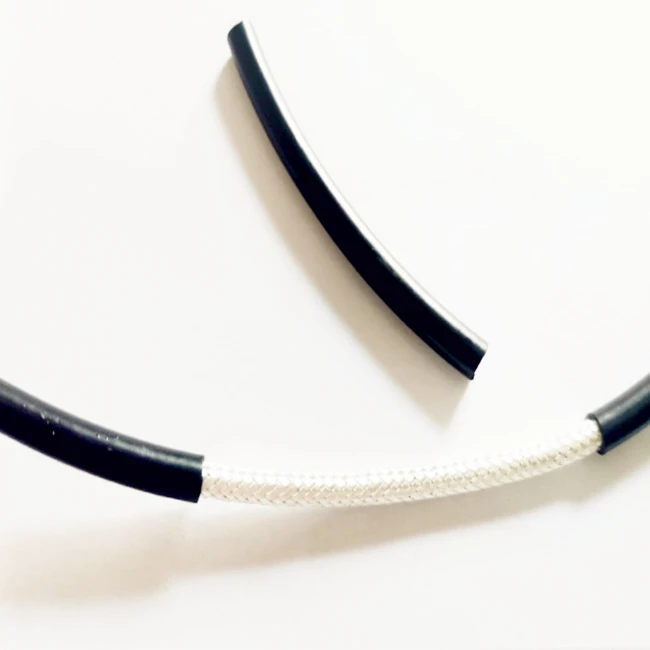

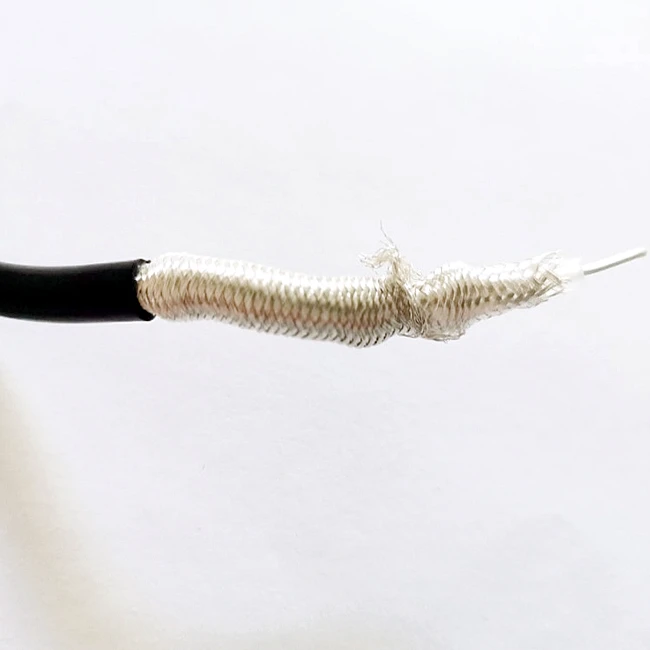

The shield is double braids;
The insulation is solid PE;
Common size cable can be easily terminated;
RoHS compliant;

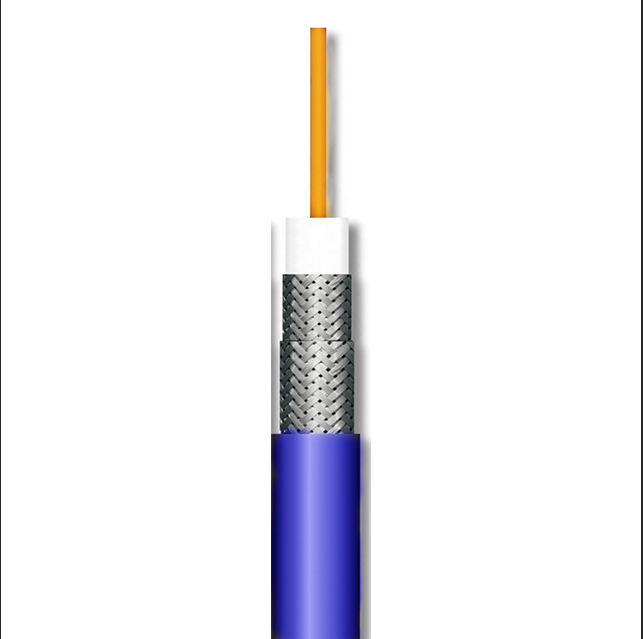

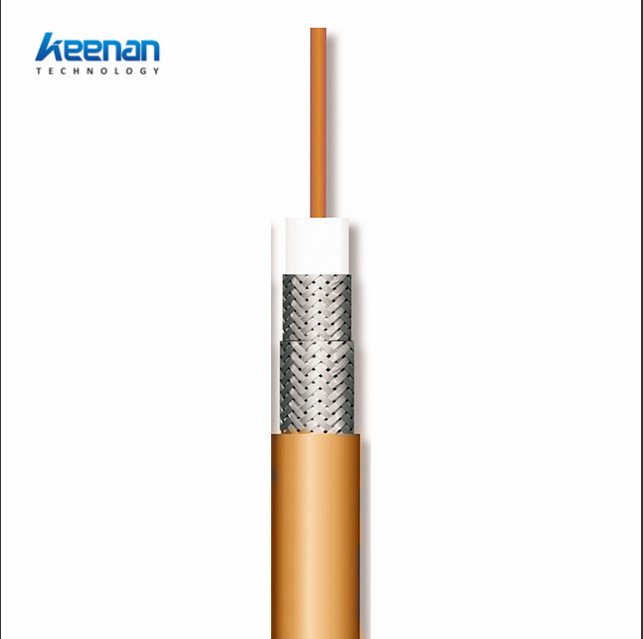

Construction
|
|
Material |
Diameter(mm) |
Remarks |
|
Inner Conductor Insulation Shield 1 Shield 2 Jacket |
Tinned Copper Solid PE Tinned Copper wire Braid Tinned Copper wire Braid PVC/TPE |
0.90 2.95 3.45 3.95 5.30 |
Per customer’s requirements: Out conductor could be 112 or 128 PC wires braiding; Jacket could be PVC or TPE; |
ElectricalCharacteristics
|
Capacitance (pF/m) Impedance (Ω) Velocity of Propagation (%) Max Operating Frequency (MHz) Max Operating Voltage(VRMS) Return Loss (dB) Operating Temperature(0C) |
101 50 66.0 2000 1500 25dB (5 to 1000 MHz) -30 to +70 |
Attenuation [@68oF (20oC)]
|
Frequency(MHz) |
Max Attenuation (dB/100m) |
|
100 400 1000 3000 |
13.50 28.10 48.00 83.50 |
Assemblies & Application

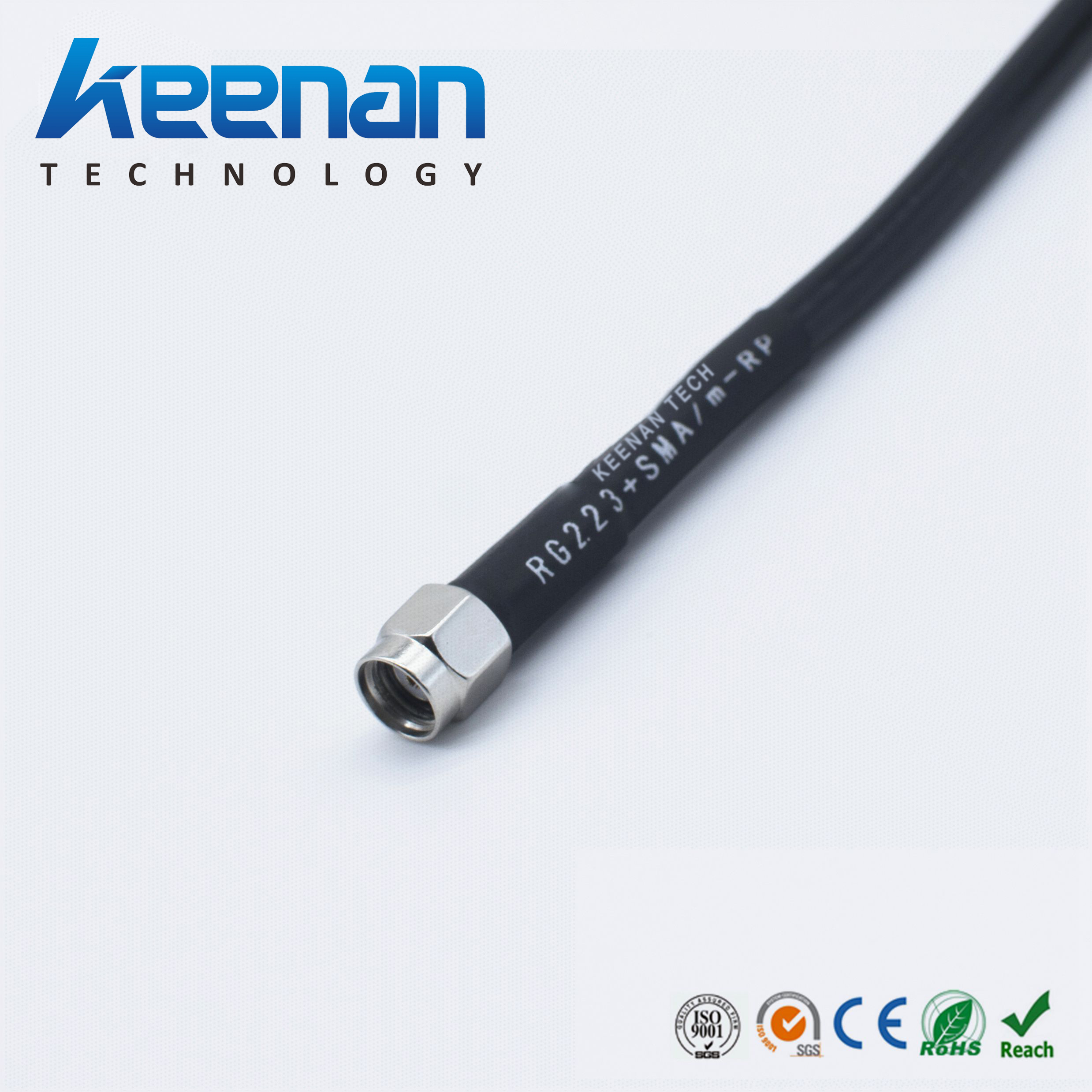

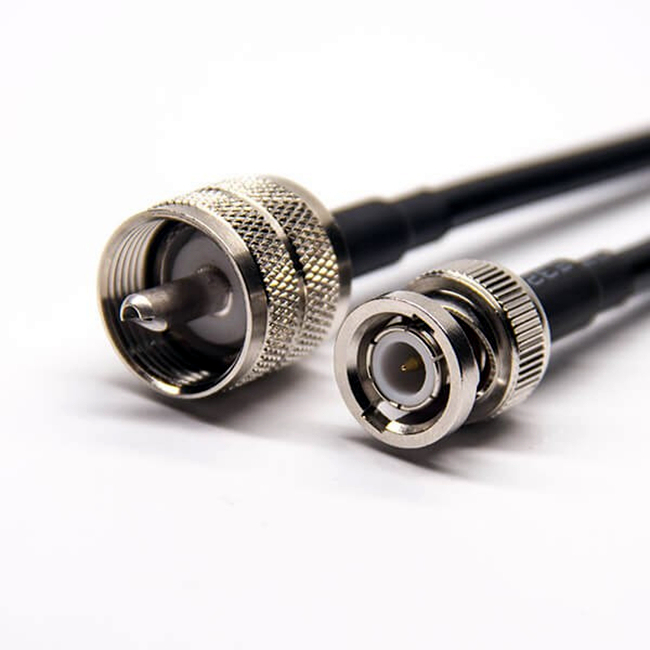

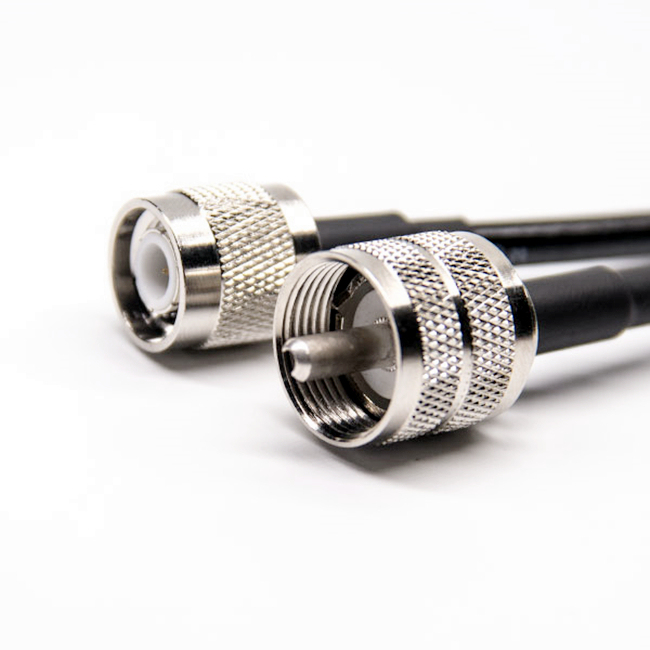

This 50 Ohm RG223 coaxial cable can be fixed with kinds of connectors,such as SMA,N,BNC,TNC
connectors.These versatile cable assemblies with various lengths have been widely applied to CDMA,GSM and other communication systems.
