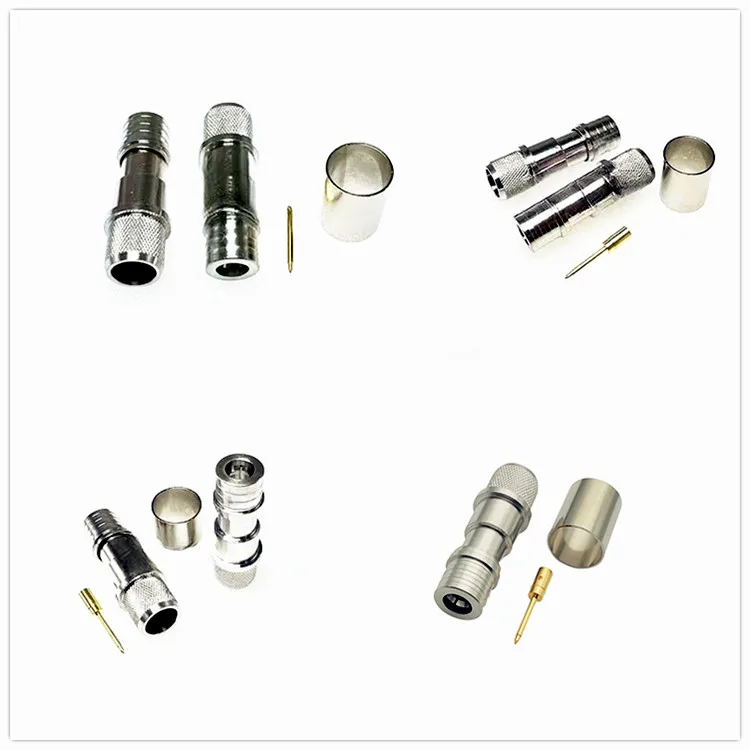

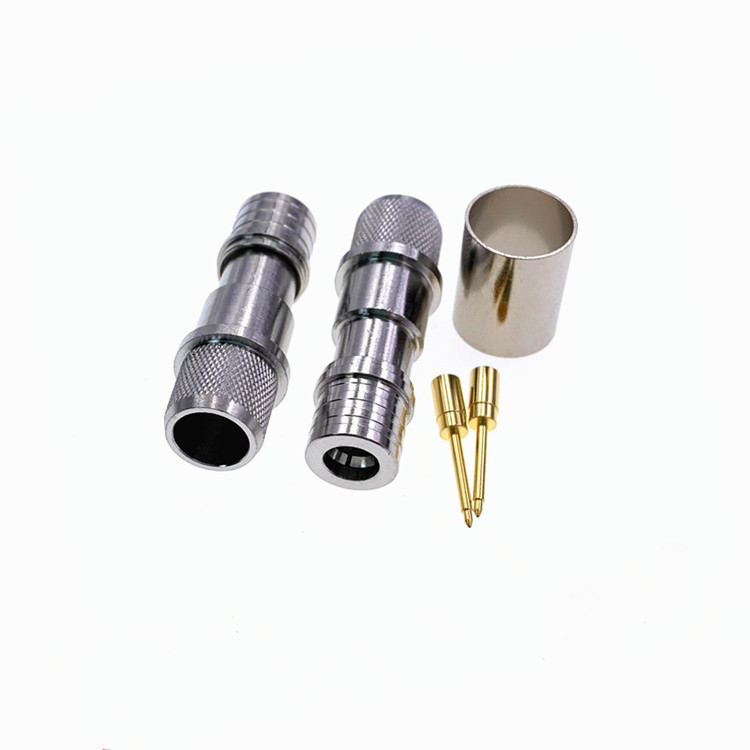

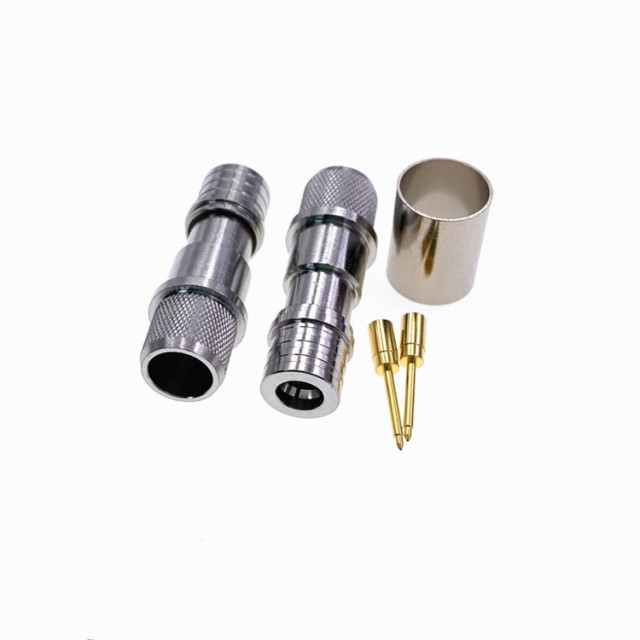

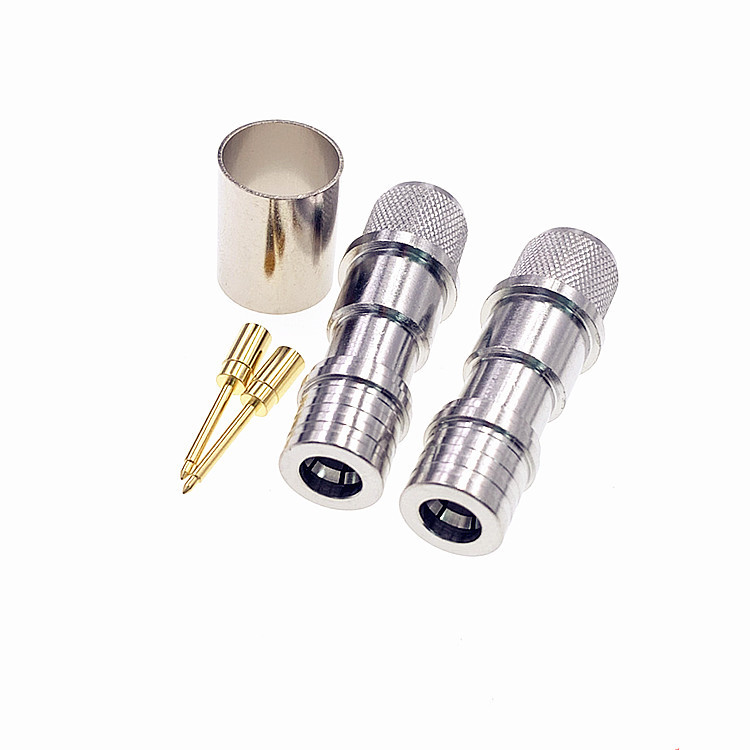

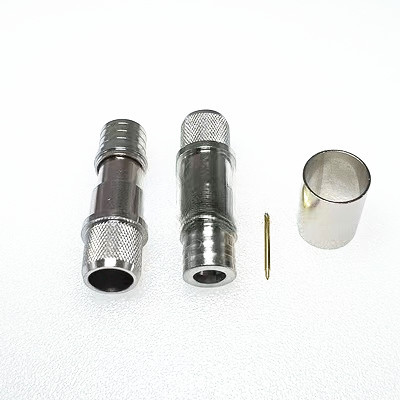

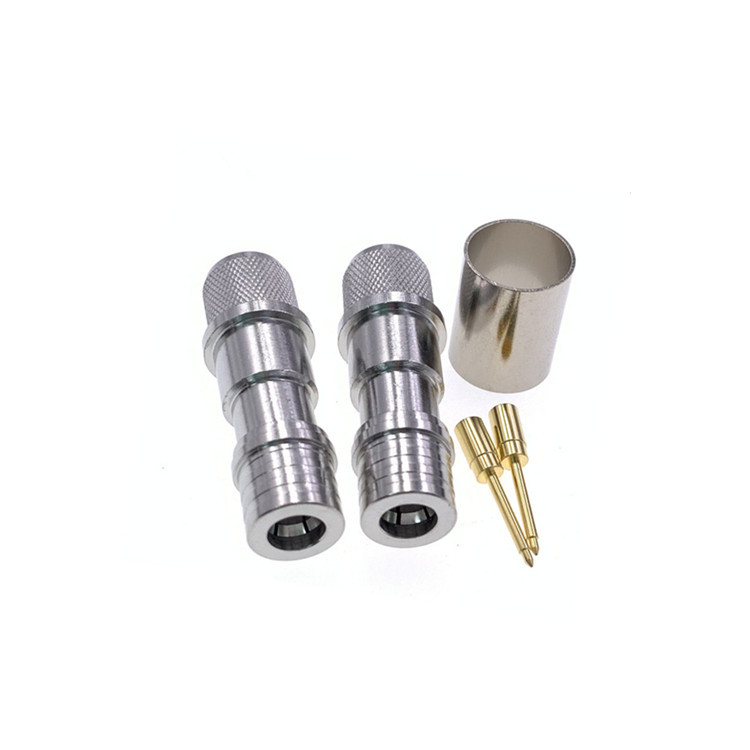

RF Coaxial QMA Male Plug Crimp Connector for RG213 LMR400 RG8 Coaxial Cable
Overview
RF coaxial adaptor has high reliability, strong vibration resistance, mechanical and electrical characteristics of excellent performance. It is widely used in vibration and environment under the condition of radio equipment and instrument , ground launch system, and it can join all kinds of coaxial cables.
Electrical Characteristics
| Name |
QMA male connector for LMR400 RG213 RG8 Cable |
|
Impedance |
50Ω |
|
Frequency range |
0~6GHz |
|
Vibration |
100m/S2 (10~500Hz) |
|
Insertion Loss |
≤ 0.15dB/6GHz |
|
VSWR Straight Rigth Angle |
≤ 1.2 ≤ 1.3 |
|
Contact resistance -center contact -outer contact |
≤0.5mΩ ≤1.5mΩ |
|
Insulation resistance |
≥10000MΩ |
|
Temperature range |
-55°C~+155°C |
|
Durability(matings) |
>500 |
Construction
|
Piece part |
Material |
plating |
|
Body |
Brass |
Nickel plated |
|
Center conductor |
Brass or Phosphor Bronze |
Gold or silver plated |
|
Crimping suite |
Copper alloy |
Nickel plated |
|
O-ring sealing |
6146 silastic |
|
|
Insulator |
PTFE |
