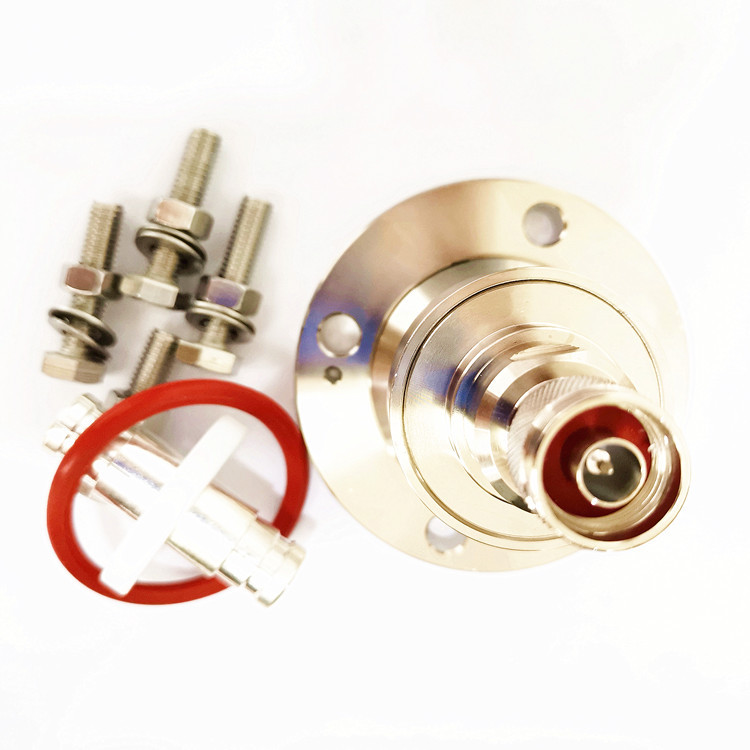

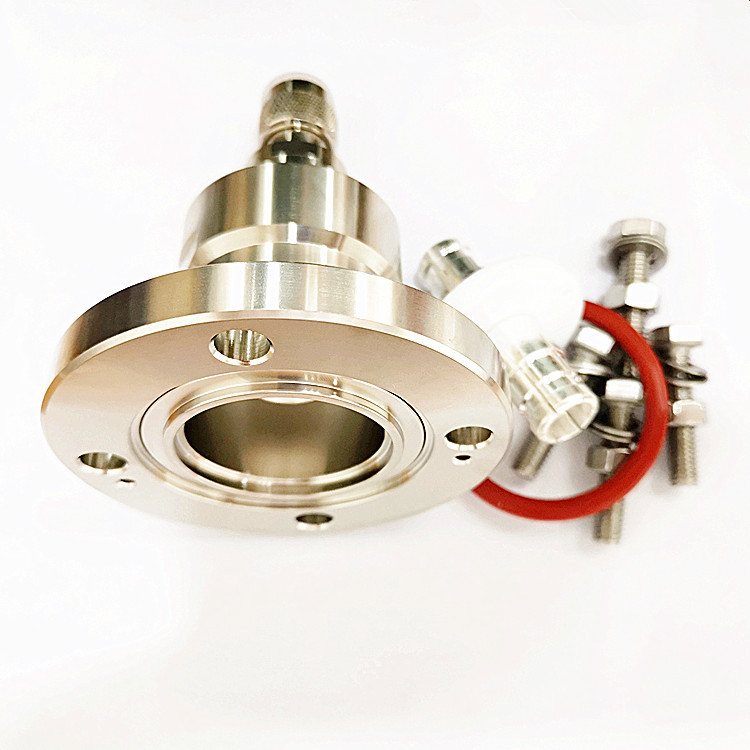

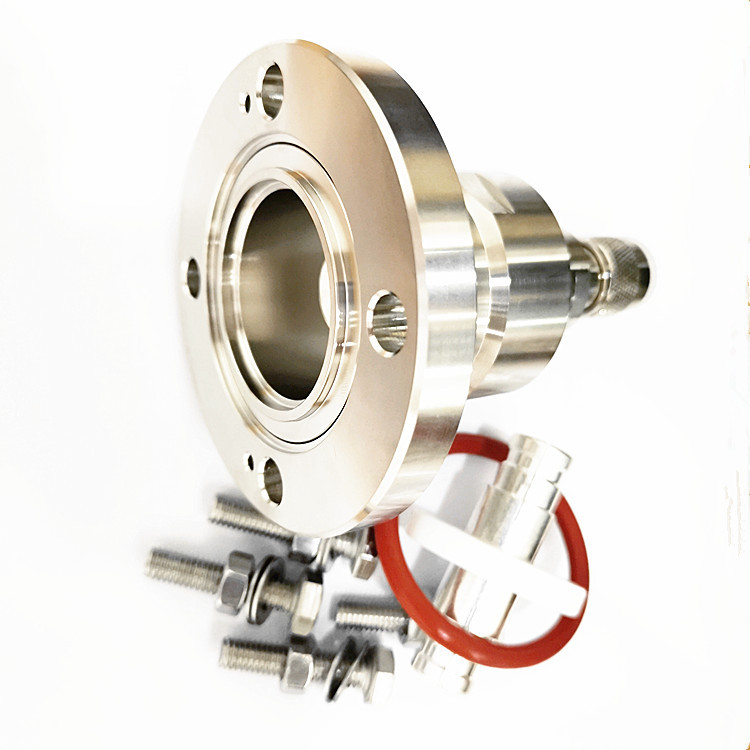

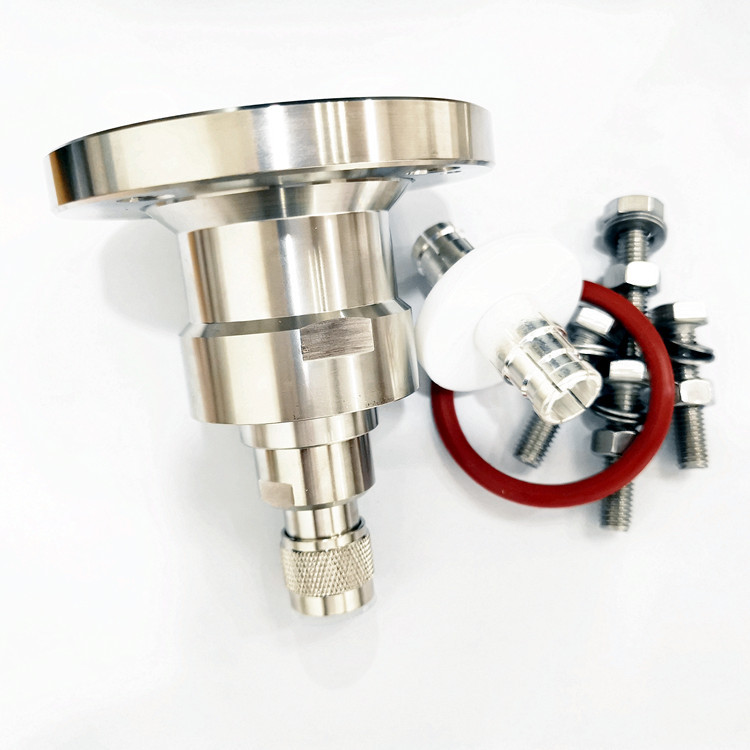

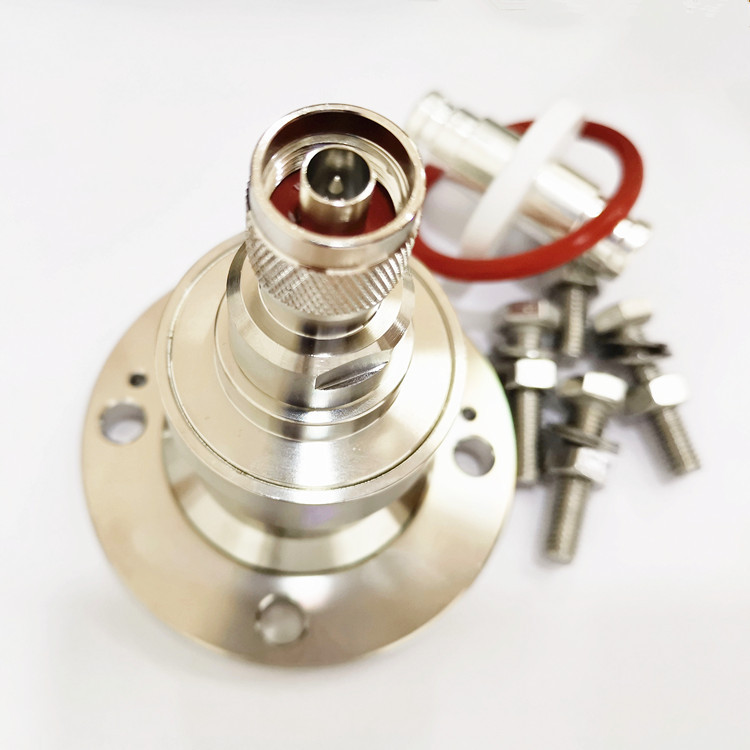

RF Coaxial Flange Adapter 1-5/8 EIA to N Male Connector Adapter
| RF Coaxial Flange Adapter 1-5/8 EIA Type to N Male Connector Adapter | |
| Characteristic Impedance | 50ohm |
| Frequency Range | DC-3GHz |
| VSWR | ≤1.1@DC-1000MHz |
| Insertion loss typical | ≤0.05DBi |
| Dielectric Withstanding Voltage | ≥6000V RMS,50Hz,at sea level |
| Dielectric Resistance | ≥5000MΩ |
| Average Power | 7KW @900MHz |
| Peak Power Maximum | 90KW |
| Contact Resistance | Center Contact ≤1.5mΩ Outer Contact ≤1.5 mΩ |
| Mechanical | |
| Durability | Mating cycles ≥500 |
| Material and Plating | |
| Body | Brass |
| Insulator | PTFE |
| Inner Conductor | Phosphor Bronze |
| Coupling Nut | Brass |
| Gasket | Silicone Rubber |
| Cable Clamp | Brass |
| Hardware kit(Bolts /Nut/Washer) | Stainless Steel |
| Environmental | |
| Operating Temperature | -45 °C-85 °C |
| Weatherproof Rate | IP68 |
| RoHs (2002/95/EC) | Compliant |
| | |

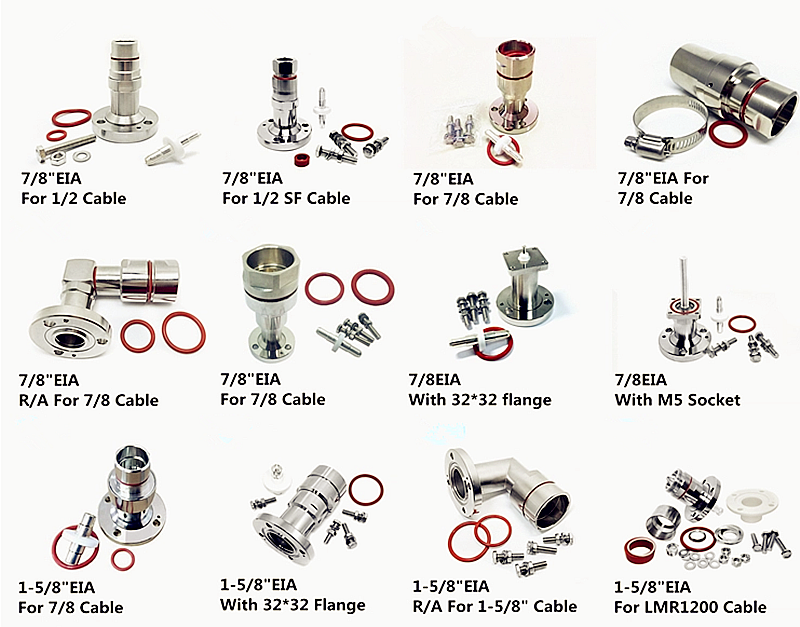

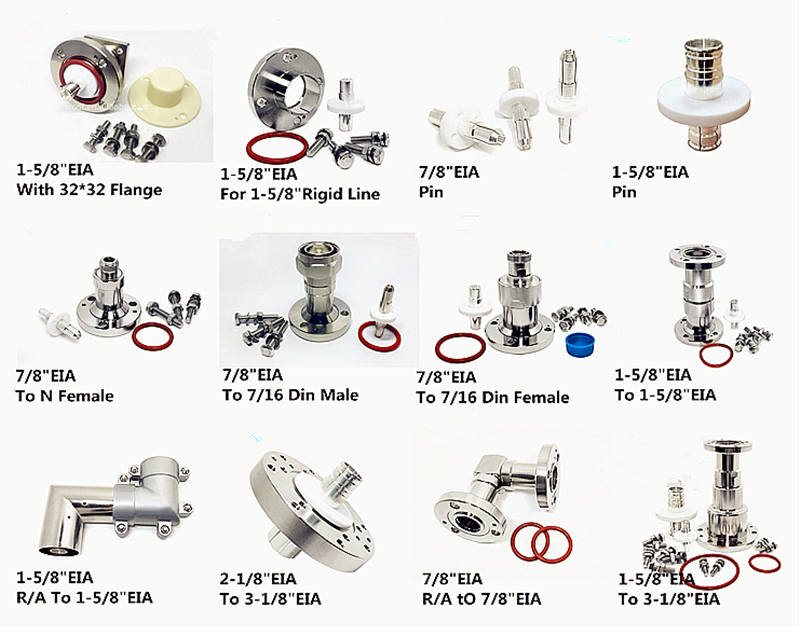

We could make different kinds of RF connectors ,such as SMA ,F ,BNC ,TNC, N,4.3-10 ,DIN and so on .If we did not reply you in time .pls feel free to call Alex Lee(Wechat/mail)
