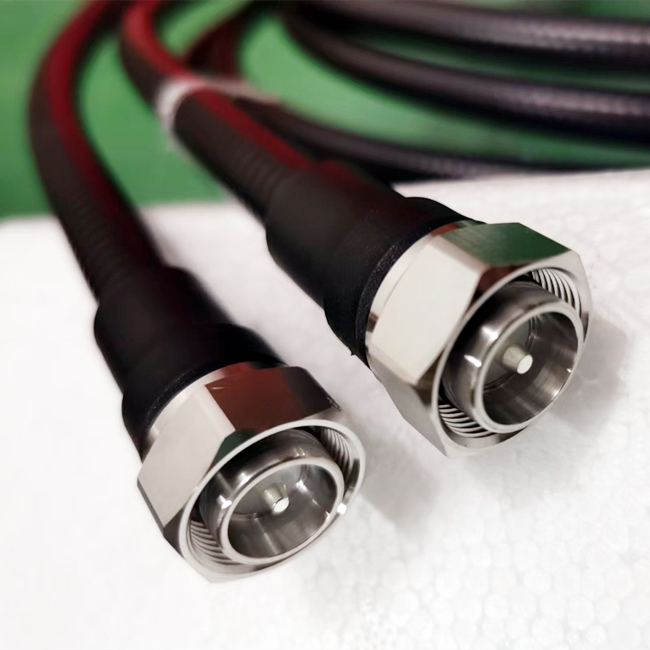

L29 (DIN 7/16) is a threaded RF coaxial connector, belonging to a low intermodulation PIM RF coaxial connector. The standard impedance is 50Ω, and the operating frequency range is DC-7.5GHz. The L29 coaxial connector was first developed in the 1960s. It features ultra-high power capacity and extreme environment tolerance. In low-frequency and high-power scenarios, its reliability and durability far exceed those of N-type and other connectors. It is widely used in antenna systems, main feed cables, and patch cord connections in broadcasting and television, wireless cellular base stations, and microwave communication systems.
|

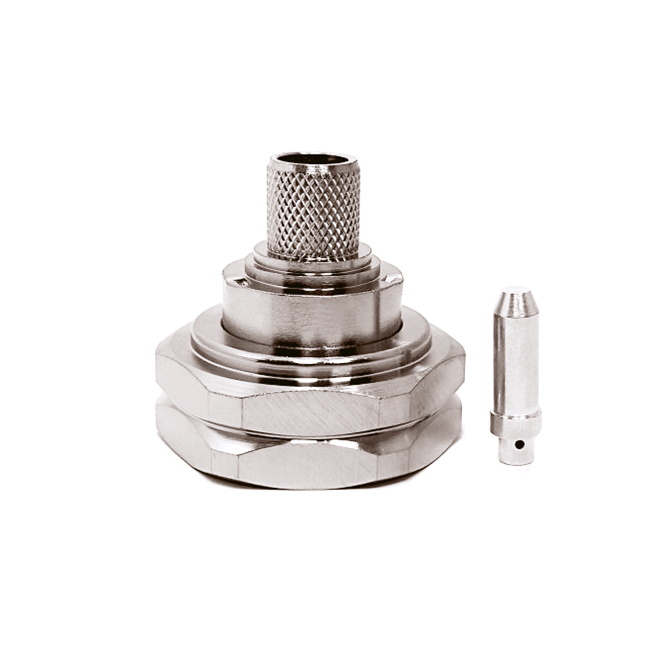

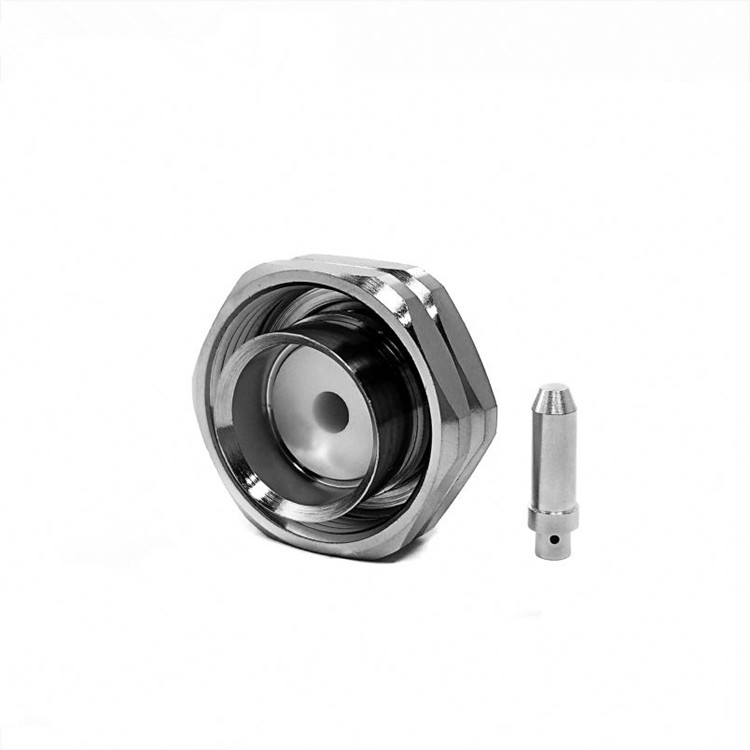

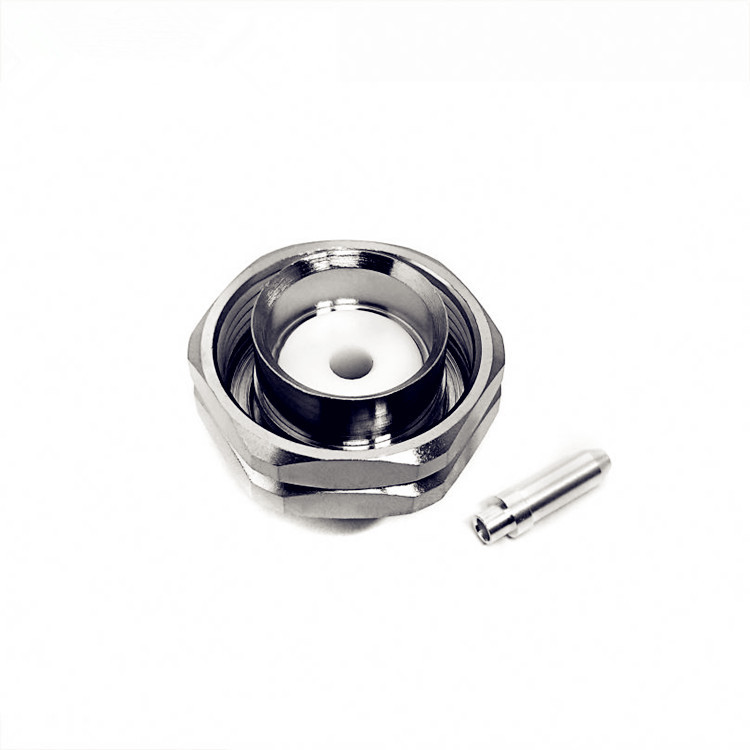

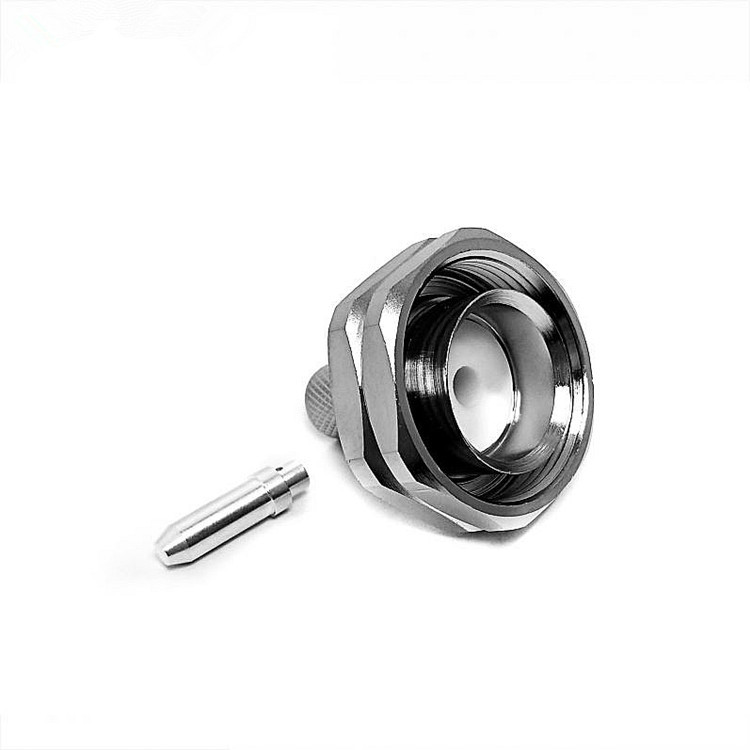

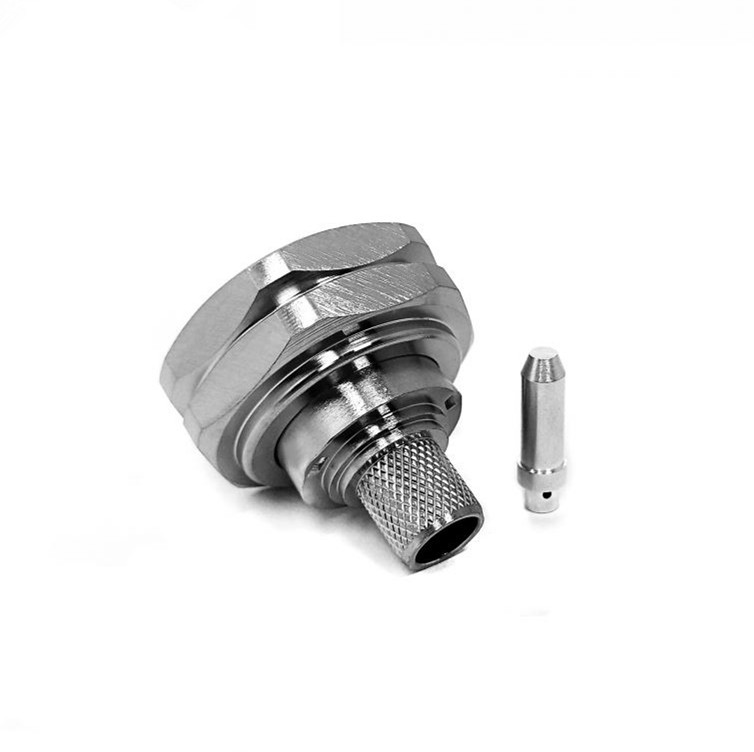

RF Coaxial Conector 7/16 Din Male Crimp Connector for RG213 RG8 LMR400
|
|
|
Impedance
|
50Ω
|
|
Vibration
|
MIL-STD-202,Method 213
|
|
Frequency range
|
DC-6GHz
|
|
Insertion Loss
|
≤ 0.15dB/6GHz
|
|
Working Voltage
|
335V max
|
|
Withstanding Voltage
|
2500V r.m.s at sea level
|
|
Insulation Resistance
|
1000V rms
|
|
VSWR:
|
Straight ≤ 1.1/6GHz
Right angle ≤ 1.2/6GHz
|
|
Contact resistance:
-center contact -outer contact |
≤1mΩ
≤ 1mΩ |
|
Insulation resistance
|
≥5000MΩ
|
|
Durability
|
Mating cycles ≥500
|
|
Temperature Range
|
-55~+155°C (PE Cable -40~+85°C)
|
|
Piece part
|
Material
|
plating
|
|
Body
|
Brass
|
Nickel plated
|
|
Center conductor
|
Brass
|
Gold or silver plated
|
|
Crimping suite
|
Copper alloy
|
Nickel plated
|
|
O-ring sealing
|
6146 silastic
|
|
|
Insulator
|
PTFE
|
