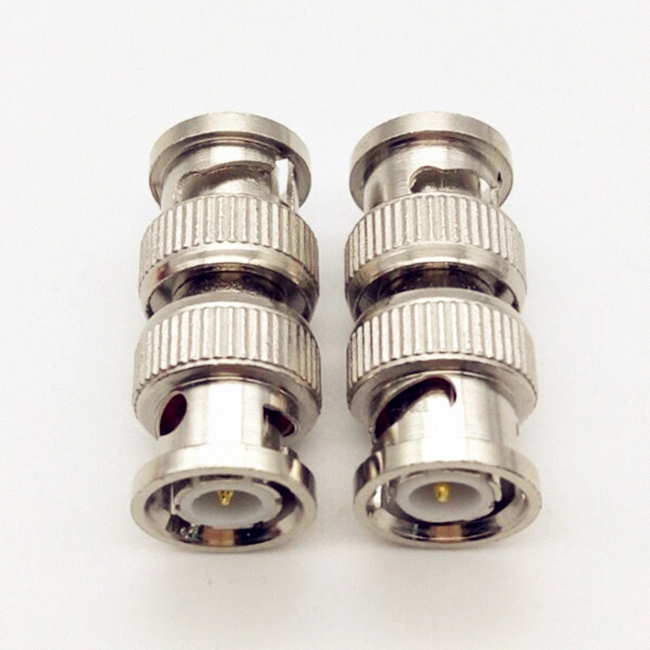

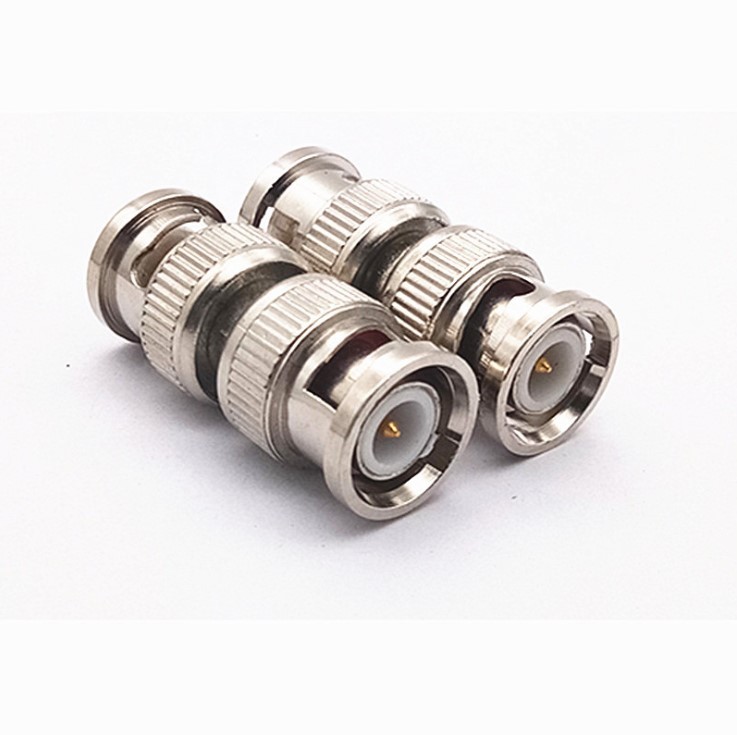

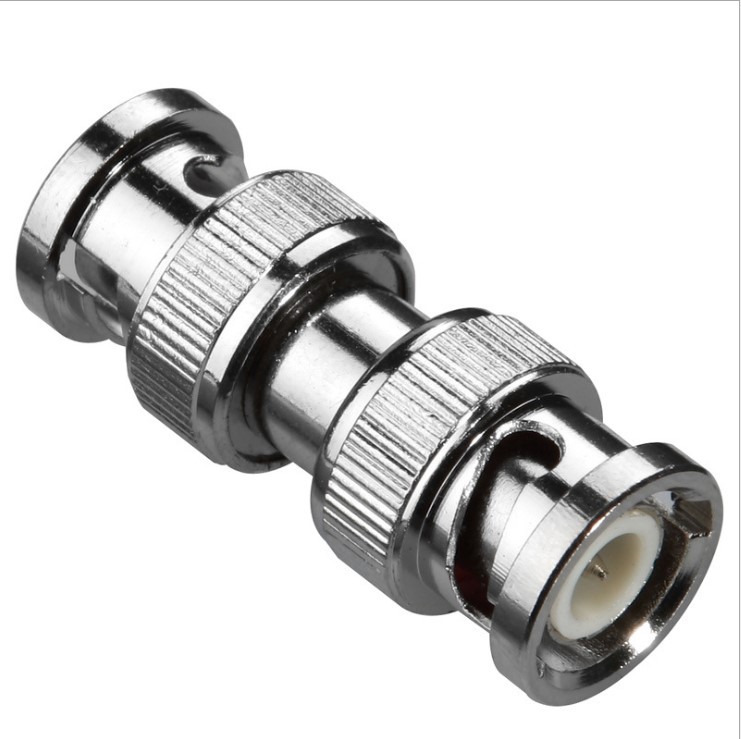

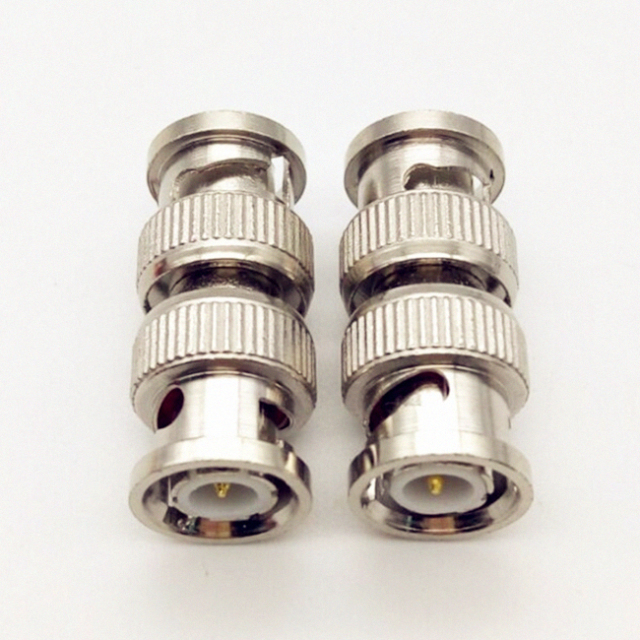

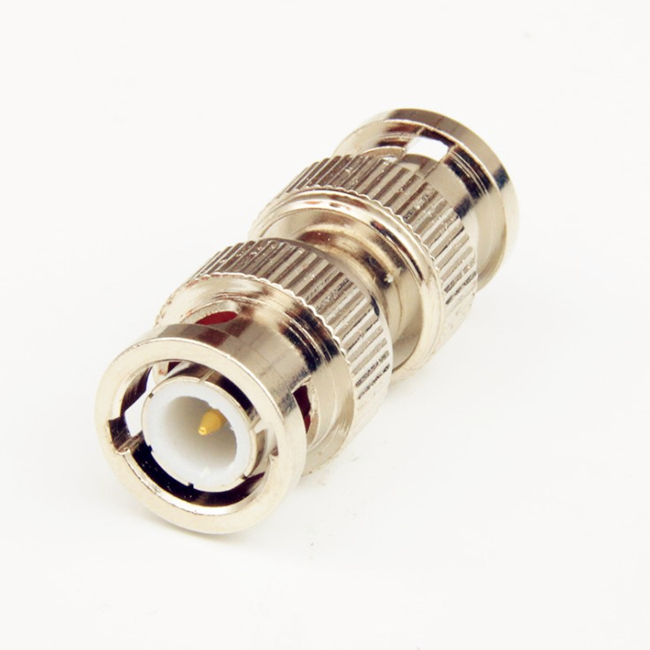

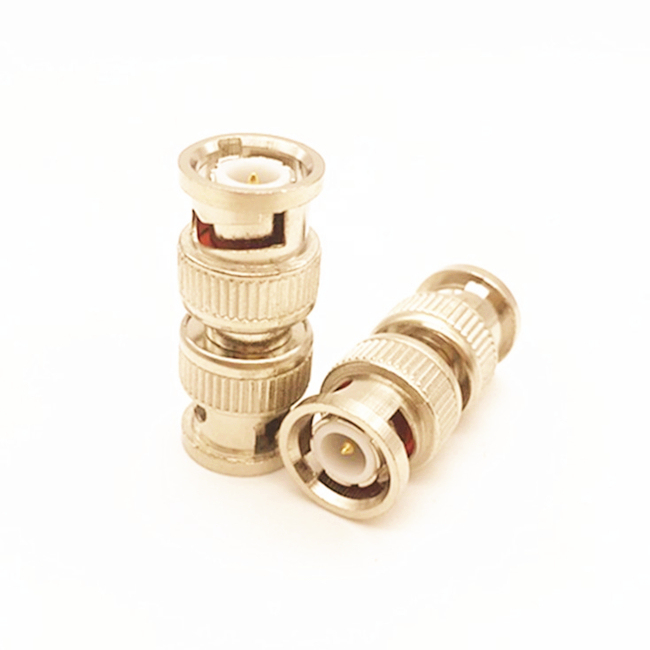

RF Coaxial BNC male to BNC male Adapter Connector CCTV Coax Adapter
Overview
RF coaxial adaptor has high reliability, strong vibration resistance, mechanical and electrical characteristics of excellent performance. It is widely used in vibration and environment under the condition of radio equipment and instrument , ground launch system, and it can join all kinds of coaxial cables.
Electrical Characteristics
| Name |
BNC connector |
|
Impedance |
50Ω/75Ω |
|
Frequency range |
0~14GHz |
|
Working Voltage |
2700V max |
|
Withstand Voltage |
4000V rms |
|
VSWR Straight Rigth Angle |
≤ 1.2 ≤ 1.3 |
|
Contact resistance -center contact -outer contact |
≤5mΩ ≤5mΩ |
|
Insulation resistance |
≥10000MΩ |
|
Temperature range |
-55°C~+155°C |
|
Durability(matings) |
>500 |
Construction
|
Piece part |
Material |
plating |
|
Body |
Brass |
Nickel plated |
|
Center conductor |
Brass or Phosphor Bronze |
Gold or silver plated |
|
Crimping suite |
Copper alloy |
Nickel plated |
|
O-ring sealing |
6146 silastic |
|
|
Insulator |
PTFE |
