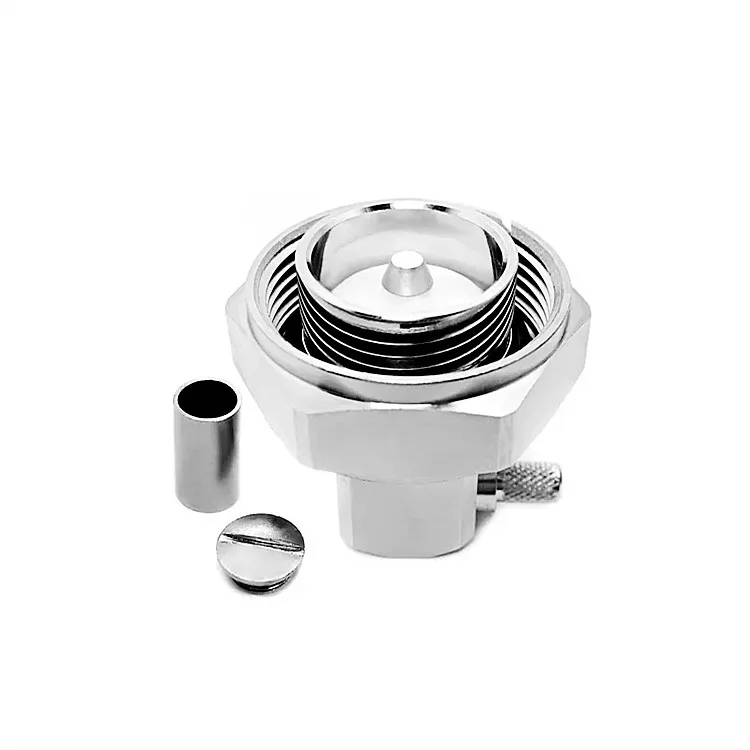

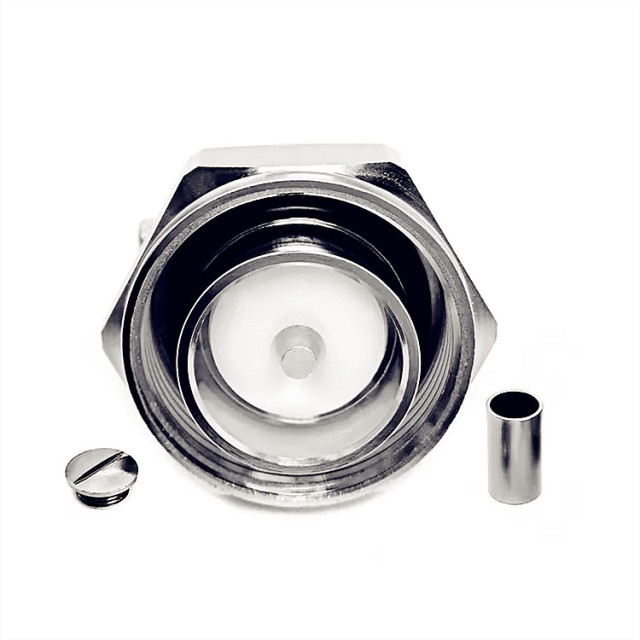

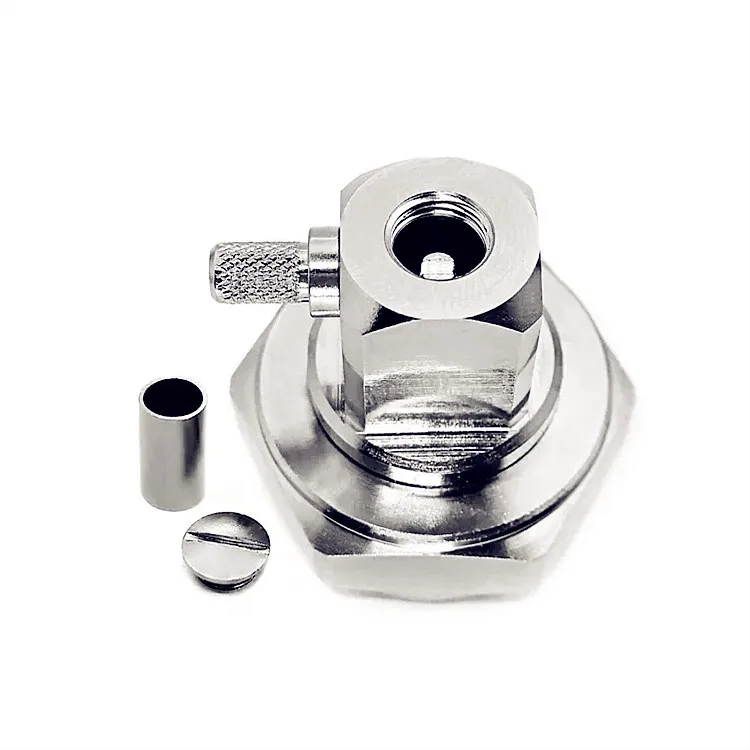

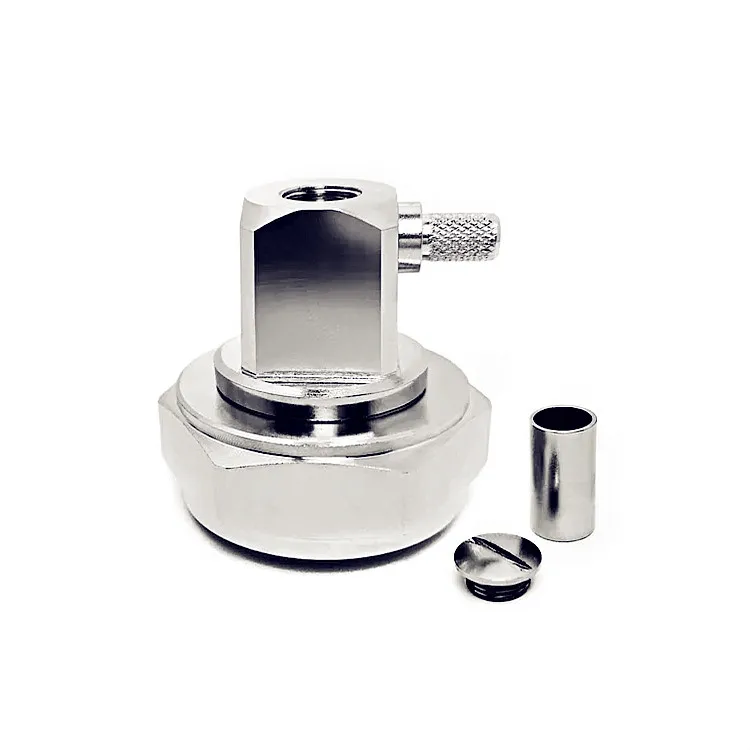

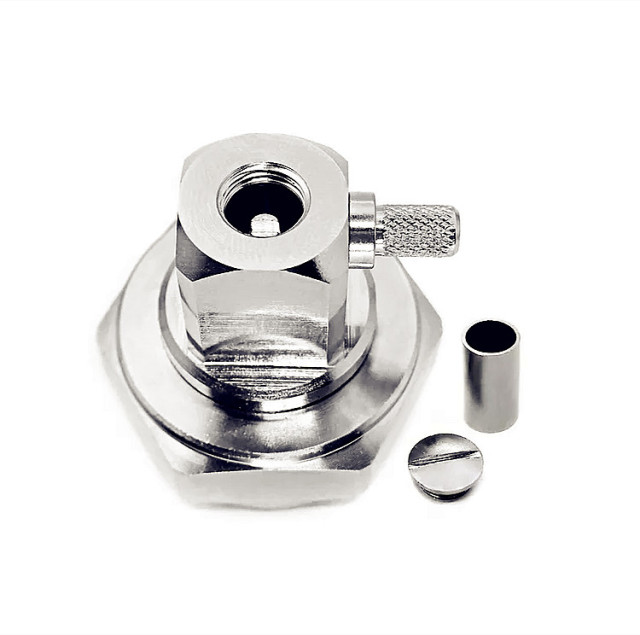

RF Coaxial 7/16 DIN Male Right Angle Crimp Type Connector for RG58 RG402 LMR195 Cable
Overview
RF coaxial connector/adaptor has high reliability, strong vibration resistance, mechanical and electrical characteristics of excellent performance. It is widely used in vibration and environment under the condition of radio equipment and instrument , ground launch system, and it can join all kinds of coaxial cables.
Discription:
Din connectors are available with the impedance of 50ohm.The frequency range extends to 11GHz.depending on the connector and cable type.The screw-type coupling mechanism provides a sturdy and reliable connection.Connector styles are available for flexible,conformable,semi-rigid and corrugated cable types.Both crimp and clamp cable termination processes are used for this series.
Applications:
Antennas/ Base station /Broad cast /Cable assembly /Cellular /Components /Instrumentation/Microwave Radio/Mil-Aero
PCS/Radar /Radios/Satcom /Surge protection WLAN
Note:
1) These characteristics are typical but may not apply to all connectors
2) OEM and ODM are available
|
RF Coaxial 7/16 DIN Male Right Angle Crimp Type Connector for RG58 RG402 LMR195 Cable
|
|
|
Temperature Range
|
-55~+155°C (PE Cable -40~+85°C)
|
|
Impedance
|
50Ω
|
|
Vibration
|
100m/S2 (10~500Hz), 10g
|
|
Frequency Range
|
DC-6GHz
|
|
Insertion Loss
|
≤ 0.24dB/6GHz
|
|
Withstanding Voltage
|
1500V r.m.s at sea level
|
|
Working Voltage
|
500Vr.m.s at sea level
|
|
Insulation Resistance
|
≥ 5000 MΩ
|
|
Center conductor retention force
|
450N
|
|
Durability
|
≥ 500(cycles)
|
|
Contact resistance
|
CenterContact ≤1mΩOuter Contact ≤1mΩ
|
|
Voltage Standing Wave Ratio
|
Straight ≤ 1.15/6GHz Right angle ≤ 1.25/6GHz
|
Construction
|
Piece part |
Material |
plating |
|
Body |
Brass |
Nickel plated |
|
Center conductor |
Brass or Phosphor Bronze |
Gold or silver plated |
|
Crimping suite |
Copper alloy |
Nickel plated |
|
O-ring sealing |
6146 silastic |
|
|
Insulator |
PTFE |
