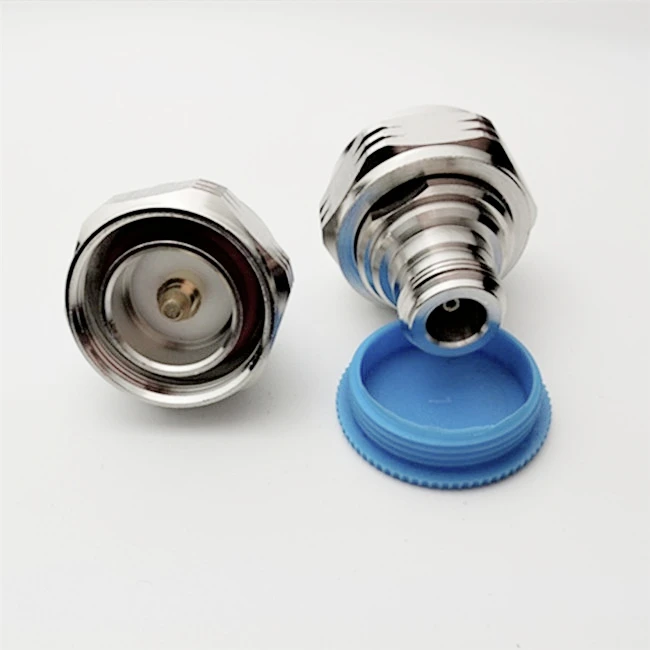

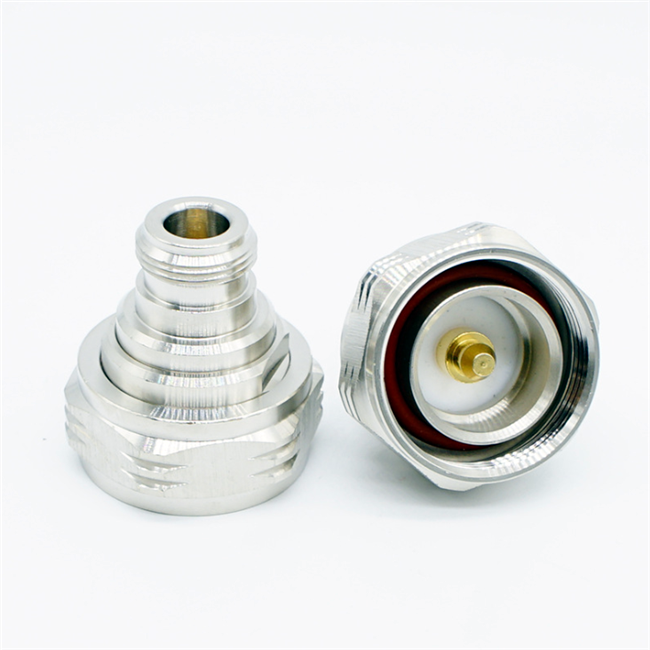

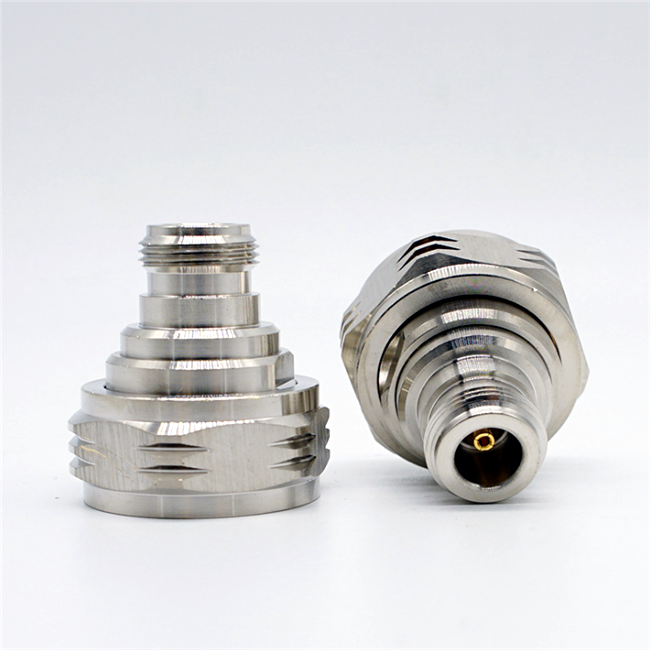

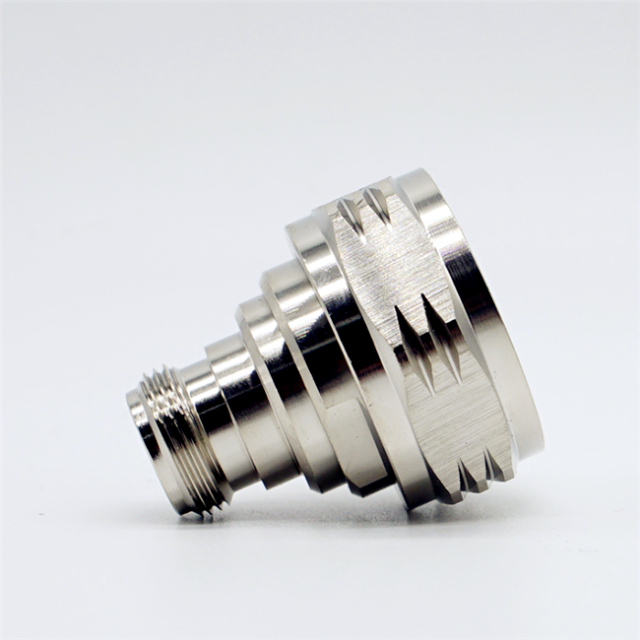

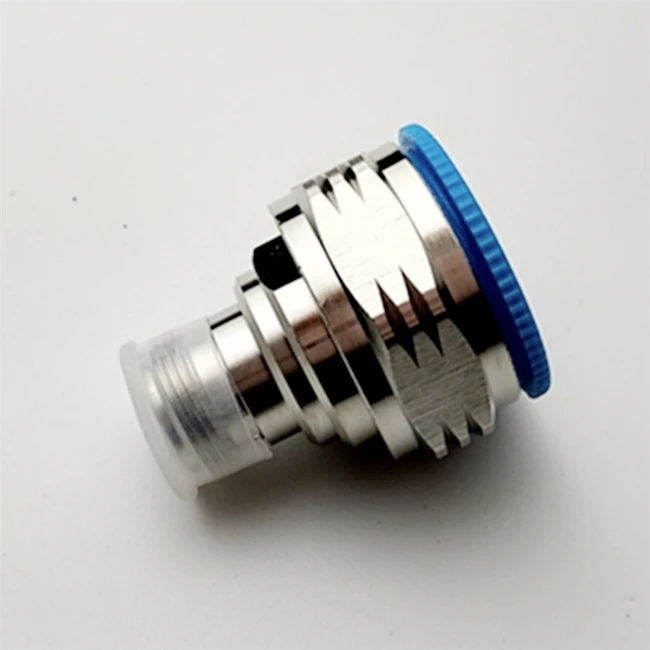

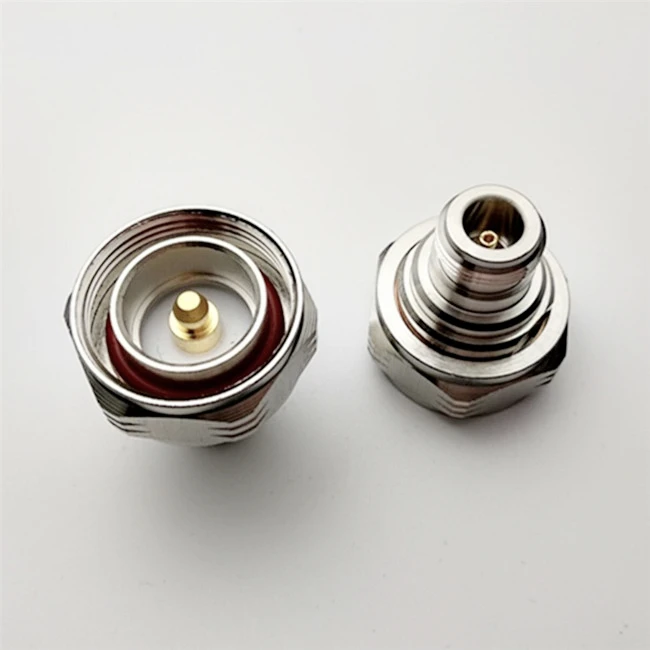

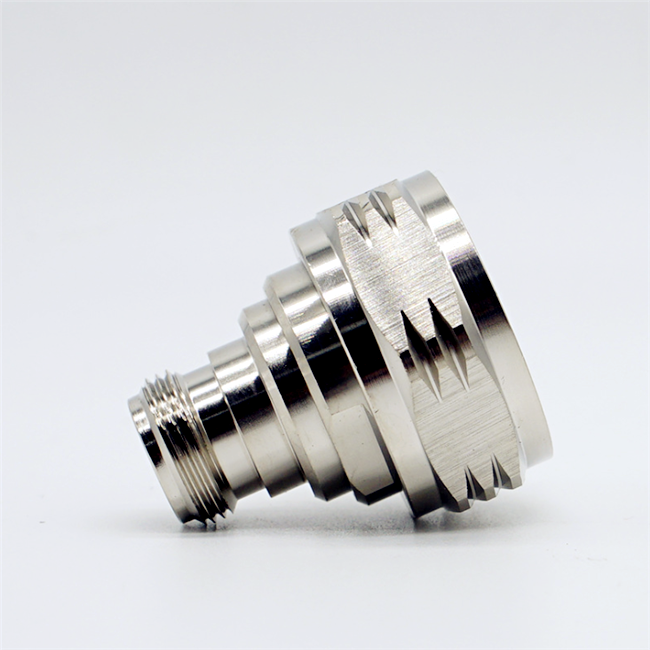

RF Coaxial 50Ohm N Female to DIN Male Coaxial 7/16 Connector Adapter
|
Place of Origin:
|
China (Mainland)
|
Brand Name:
|
OEM
|
|
Model Number:
|
7/16 Din
|
Type:
|
Adapter
|
|
Application:
|
RF
|
Gender:
|
Male/Female
|
|
Product Name:
|
7/16 Din Male Connector
|
Color:
|
Argent/Golden
|
|
Material:
|
Brass
|
Certificate:
|
ISO9001/CE/ROHS/FCC
|
|
Connector type:
|
mini din
|
Plating:
|
Nickel /Golden Palting
|
|
MOQ:
|
1 Piece
|
ODM/DEM:
|
Offered
|
|
Insulation Resistance:
|
≥ 5000 MΩ
|
Temperature Range:
|
-65~+165℃
|
Packaging Details: 1 piece in one plastic bag.
2 100 pieces in one paper carton.
3 Clear Plastic Bag/ Standard Export Carton.
4 According to customers requirement.
Delivery Time: 5-7 days
|
Center contact
|
Tin Bronze / Silver Plating
|
||
|
Body & Outer Conductor
|
Brass / Trimetal Plating
|
||
|
Dielectric
|
PTFE
|
||
|
Gasket
|
Silicon Rubber
|
||
|
Characteristics Impedance
|
50 Ohm
|
||
|
Frequency Range
|
DC~11GHz
|
||
|
Insulation Resistance
|
≥5000MΩ
|
||
|
Contact resistance
|
|||
|
Type
|
7/16 Din type male
|
DIN type male
|
|
|
Center contact
|
≤1.5mΩ
|
≤0.4mΩ
|
|
|
Outer contact
|
≤1.0mΩ
|
≤0.2mΩ
|
|
|
Dielectric Strength
|
2500V rms
|
||
|
Working voltage
|
1000V rms
|
||
|
Insertion Loss
|
@3 GHz
|
≤0.10dB
|
|
|
VSWR
|
≤1.10@DC~3.0GHz
|
||
|
Durability (matings)
|
≥500 cycles
|
||
|
Mechanical Shock Test Method
|
MIL-STD-202F, Method 107G, Test Condition B
|
||
|
Vibration Test Method
|
MIL-STD-202, Meth. 204, Cond. B
|
||
|
Temperature Range
|
-65~+165℃
|
||
|
RoHS
|
Compliant
|
||
