The MCX connector is specifically designed for any wire-to-board application that requires quick and easy crimping. These devices include 50 Ω and 75 Ω versions, with frequencies up to 6 GHz. The MCX ultra-miniature latch connector can achieve long-term and stable connection. With this ultra-miniature design, other electronic components can be densely installed on the PCB. MCX connectors are 30% smaller than SMB connectors and have been used in telecommunications, wireless and GPS applications.

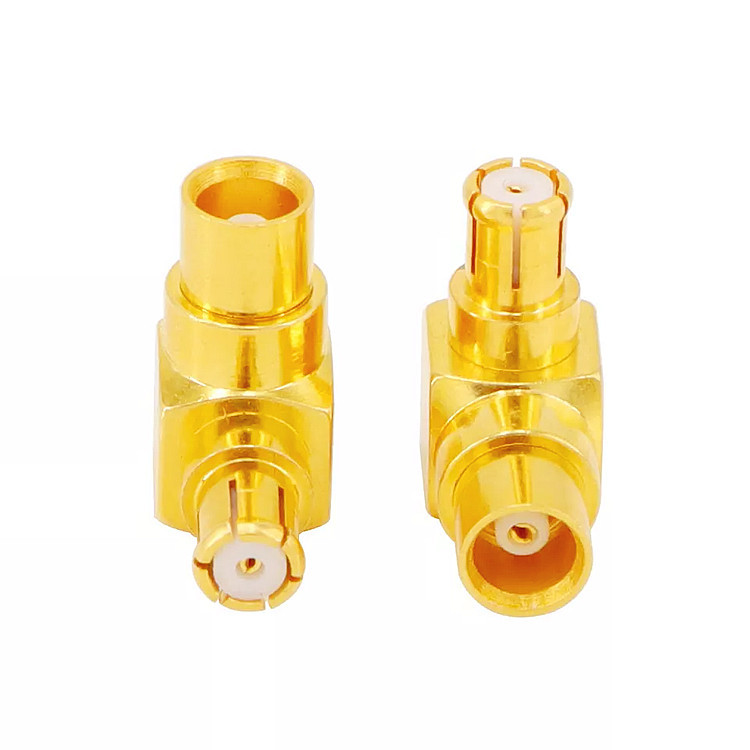

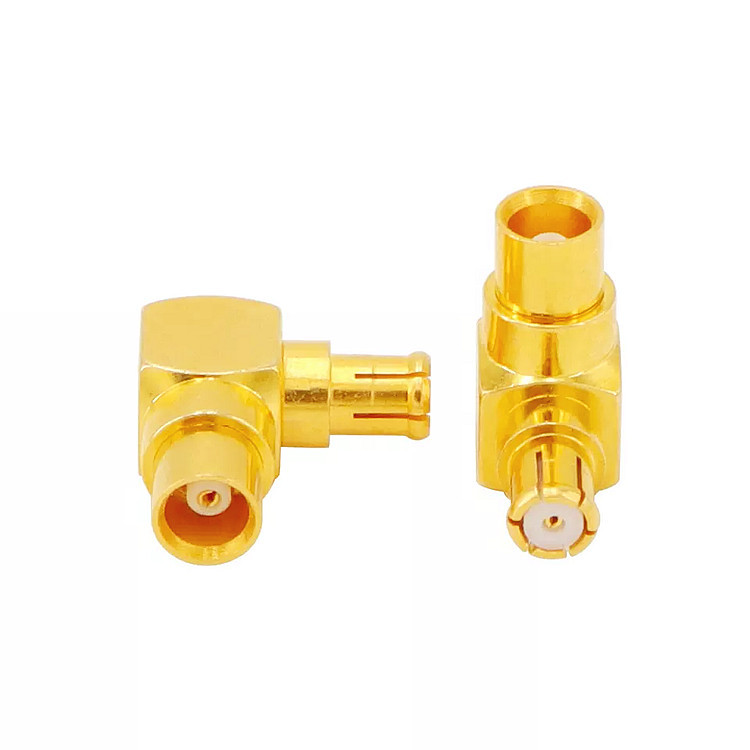

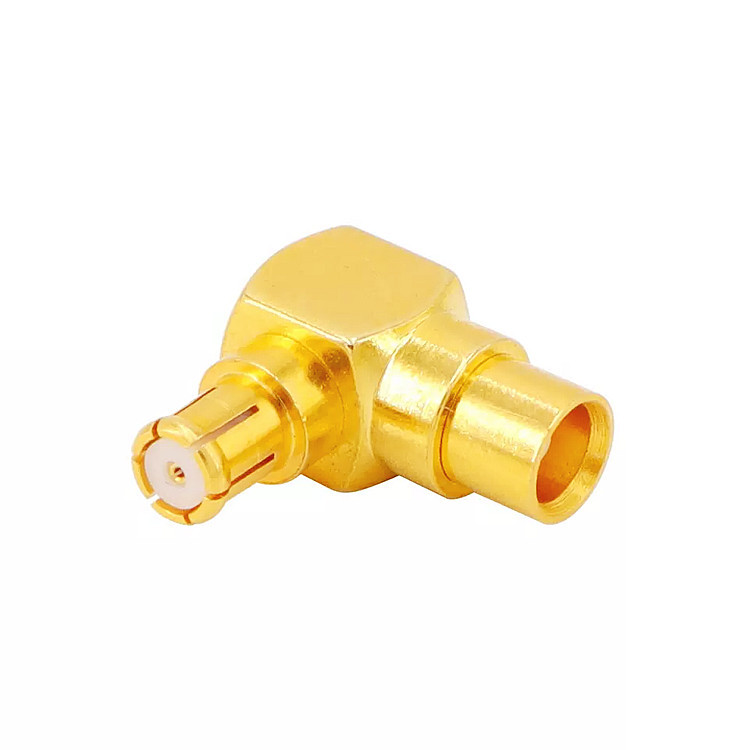

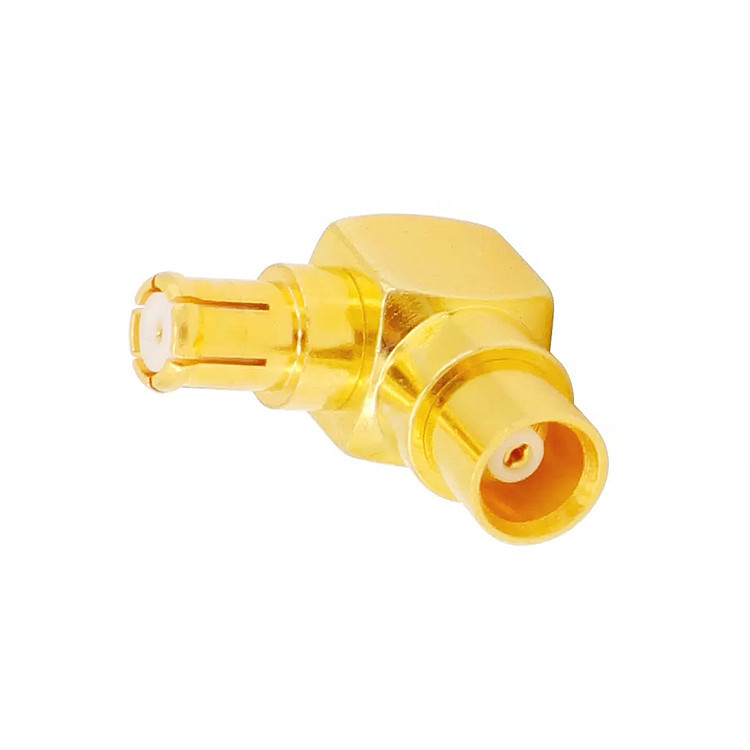

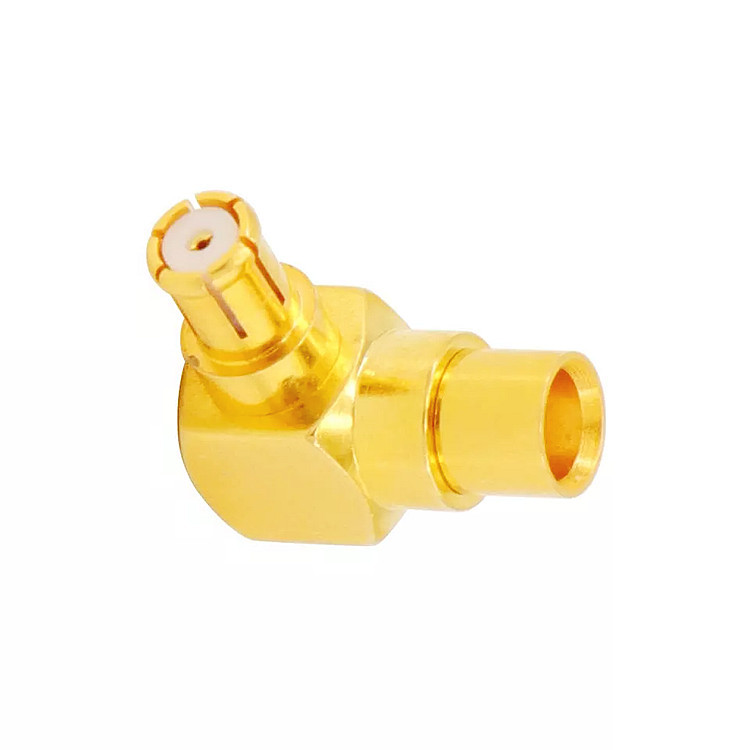

RF Adapter RPMCX Male to MCX Female Right Angle Antenna Adapter
Overview
RF coaxial adaptor has high reliability, strong vibration resistance, mechanical and electrical characteristics of excellent performance. It is widely used in vibration and environment under the condition of radio equipment and instrument , ground launch system, and it can join all kinds of coaxial cables.
Electrical Characteristics
| Name |
MCX RF connector |
|
Impedance |
50Ω |
|
Frequency range |
0~3GHz/0-18GHz |
|
Working Voltage |
2700V max |
|
Withstand Voltage |
4000V rms |
|
VSWR Straight Rigth Angle |
≤ 1.2 ≤ 1.3 |
|
Contact resistance -center contact -outer contact |
≤5mΩ ≤5mΩ |
|
Insulation resistance |
≥10000MΩ |
|
Temperature range |
-55°C~+155°C |
|
Durability(matings) |
>500 |
Construction
|
Piece part |
Material |
plating |
|
Body |
Brass |
Nickel plated |
|
Center conductor |
Brass or Phosphor Bronze |
Gold or silver plated |
|
Crimping suite |
Copper alloy |
Nickel plated |
|
O-ring sealing |
6146 silastic |
|
|
Insulator |
PTFE |
