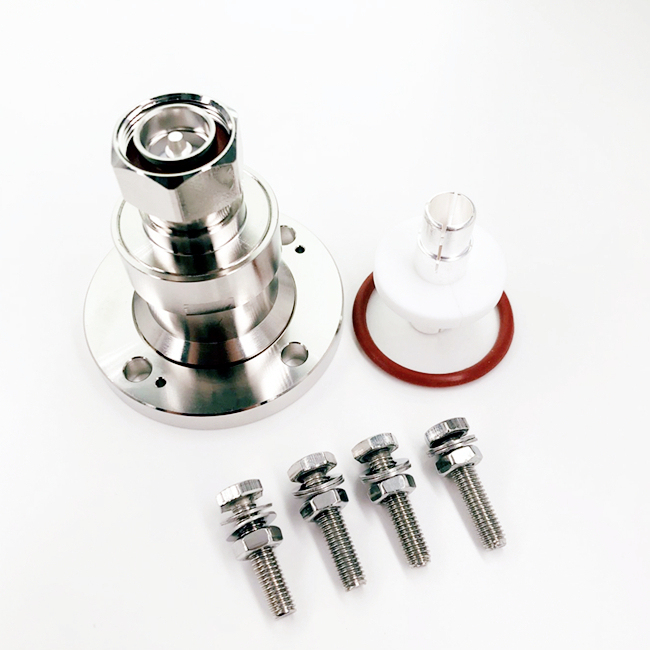

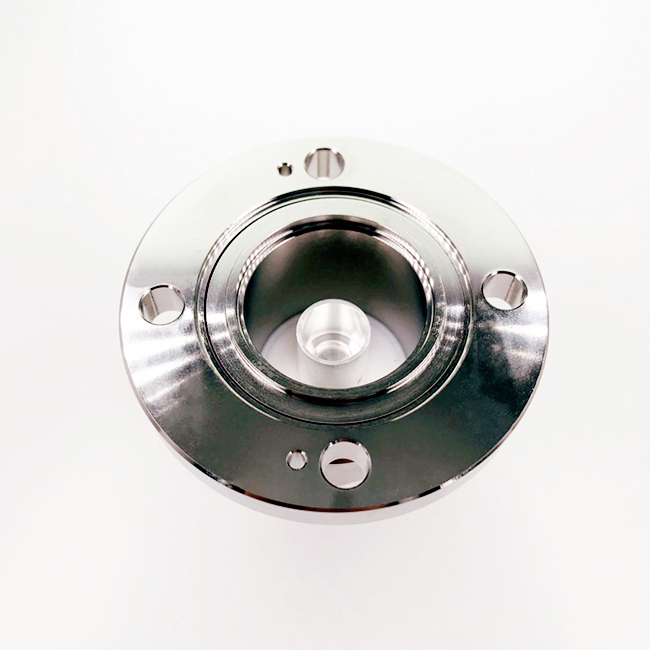

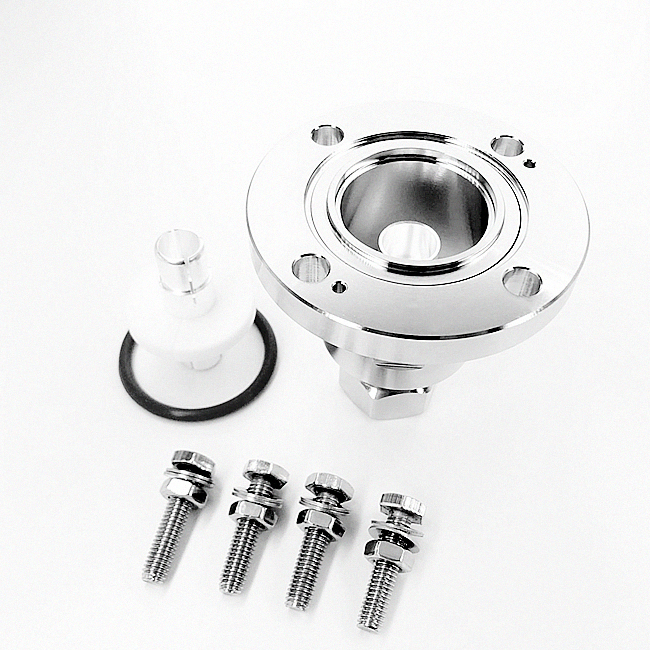

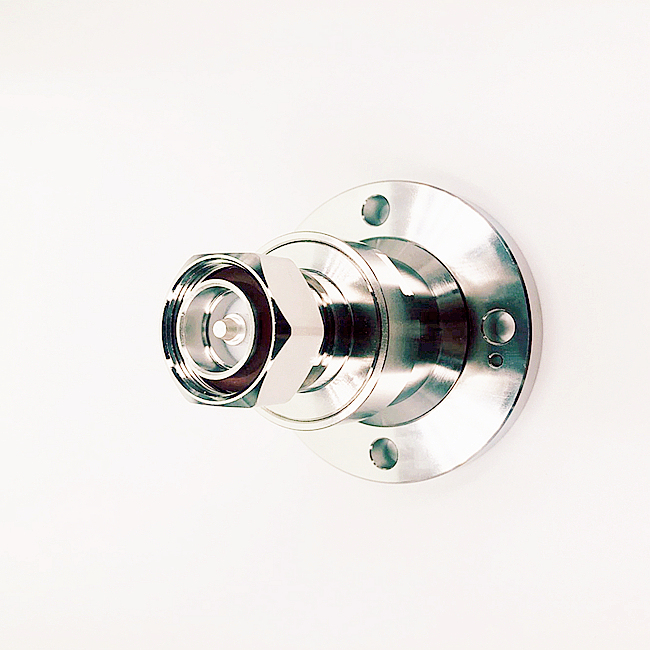

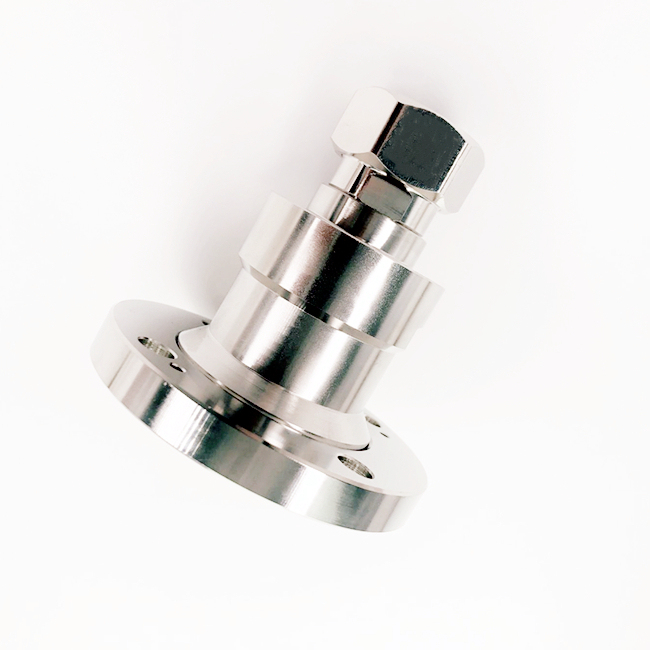

RF Adapter EIA Flange Connector 1-5/8 EIA to 7/16 Din Male Straight Adapter
1-5/8 " EIA to 7/16 DIN male RF Connector
|
Electrical |
|
|
|
Characteristic Impedance |
50ohm |
|
|
Frequency Range |
DC-5GHz |
|
|
VSWR |
≤1.07@DC-1000MHz |
|
|
Insertion loss typical |
≤0.03dB |
|
|
Dielectric Withstanding Voltage |
≥6000V RMS,50Hz,at sea level |
|
|
Dielectric Resistance |
≥5000MΩ |
|
|
Average Power |
3.40KW @900MHz |
|
|
Peak Power Maximum |
90KW |
|
|
Contact Resistance |
Center Contact ≤1.5mΩ |
Outer Contact ≤1.5 mΩ |
|
Mechanical |
|
|
|
Durability |
Mating cycles ≥50 |
|
|
Material and Plating |
|
|
|
Parts Name |
Material |
Plating |
|
Body |
Brass |
Ni |
|
Insulator |
PTFE |
— |
|
Inner Conductor |
Phosphor Bronze |
Ag |
|
Coupling Nut |
Brass |
Ni |
|
Gasket |
Silicone Rubber |
— |
|
Cable Clamp |
Brass |
— |
|
Hardware kit(Bolts /Nut/Washer) |
Stainless Steel |
— |
|
Environmental |
|
|
|
Operating Temperature |
—45 °C-85 °C |
|
|
Weatherproof Rate |
IP67 |
|
We could make different kinds of RF connectors ,such as SMA ,F ,BNC ,TNC, N,4.3-10 ,DIN and so on .If we did not reply you in time .pls feel free to call Alex Lee(Wechat/mail)
