Coaxial flange connectors, generally known as “EIA flanges”, are connected by a coupling element. The flange connector system complies with international standards EIA STD RS-225, 339 IEC, DIN EN 122150 and MIL-F 24044. The EIA flange connectors are excellently qualified suited for pressurized systems and for outdoor installations. 1 5/8" EIA connectors are used to link two elements of a rigid or semi-rigid high performance coaxial transmission line for radio frequency signals. Typically, these are operated in systems for very high power transmission (from kW to MW), e.g. in DAB, DVB or FM broadcast systems or in high-energy applications in research facilities (particle accelerator, plasmatron).

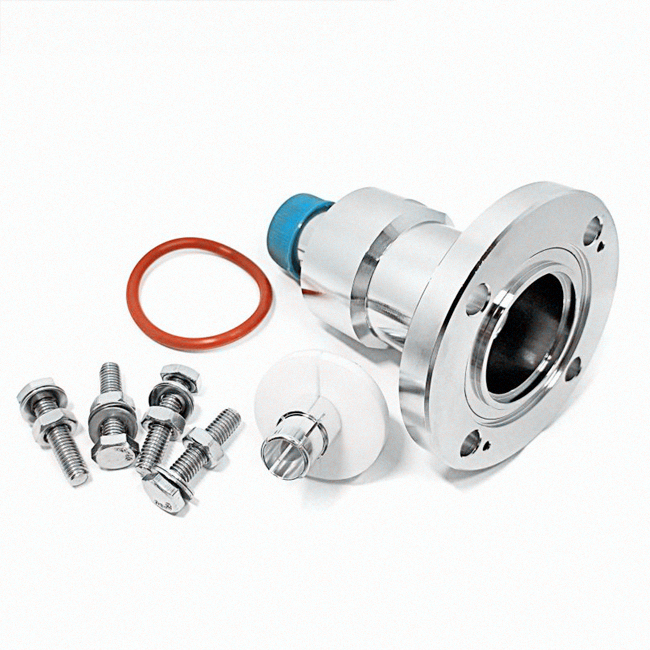

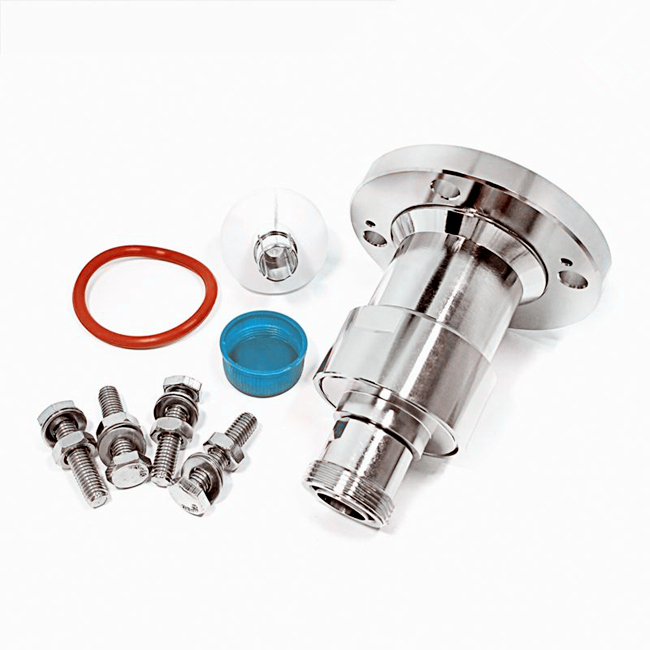

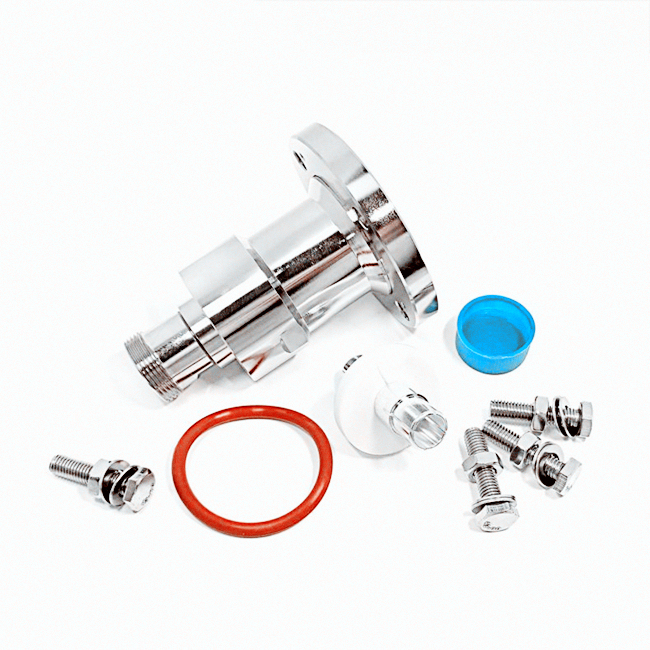

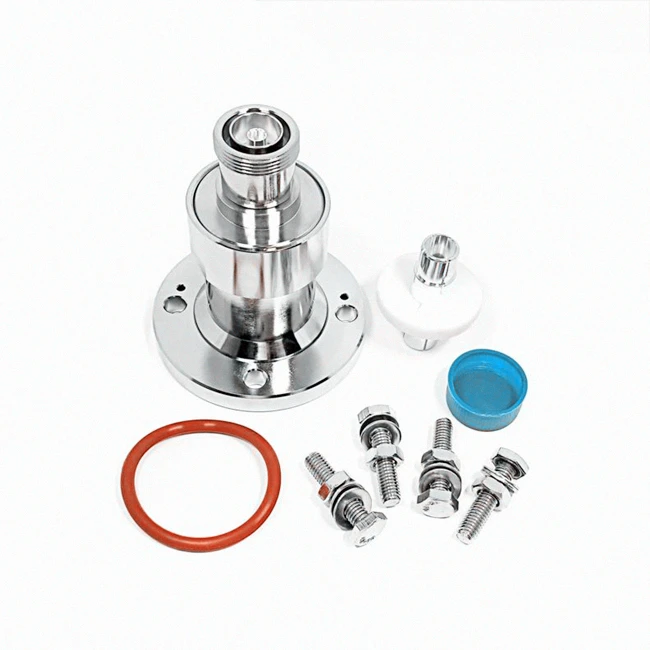

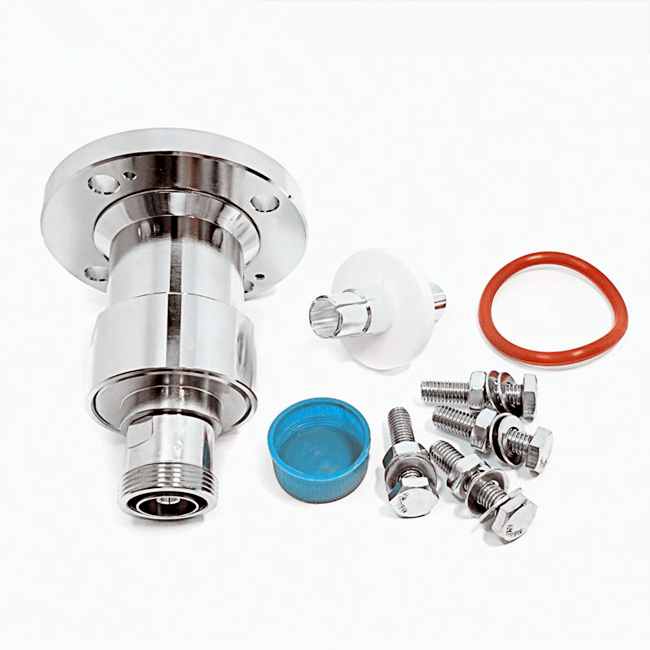

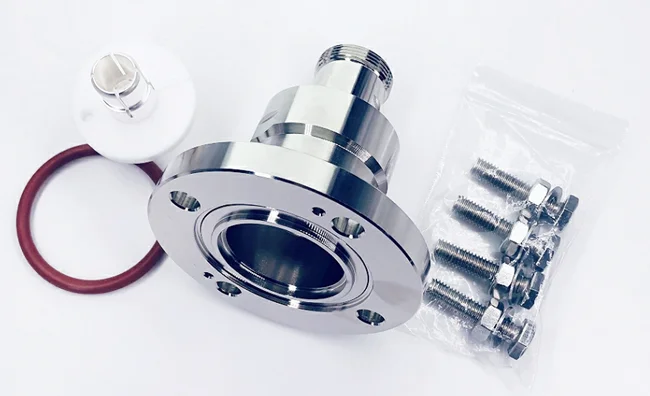

RF Adapter EIA Flange Connector 1-5/8 eia to 7/16 DIN Female Jack Coaxial Adapter
1-5/8 " EIA to 7/16 DIN female RF Connector
|
Electrical |
|
|
|
Characteristic Impedance |
50ohm |
|
|
Frequency Range |
DC-5GHz |
|
|
VSWR |
≤1.07@DC-1000MHz |
|
|
Insertion loss typical |
≤0.03dB |
|
|
Dielectric Withstanding Voltage |
≥6000V RMS,50Hz,at sea level |
|
|
Dielectric Resistance |
≥5000MΩ |
|
|
Average Power |
3.40KW @900MHz |
|
|
Peak Power Maximum |
90KW |
|
|
Contact Resistance |
Center Contact ≤1.5mΩ |
Outer Contact ≤1.5 mΩ |
|
Mechanical |
|
|
|
Durability |
Mating cycles ≥50 |
|
|
Material and Plating |
|
|
|
Parts Name |
Material |
Plating |
|
Body |
Brass |
Ni |
|
Insulator |
PTFE |
— |
|
Inner Conductor |
Phosphor Bronze |
Ag |
|
Coupling Nut |
Brass |
Ni |
|
Gasket |
Silicone Rubber |
— |
|
Cable Clamp |
Brass |
— |
|
Hardware kit(Bolts /Nut/Washer) |
Stainless Steel |
— |
|
Environmental |
|
|
|
Operating Temperature |
—45 °C-85 °C |
|
|
Weatherproof Rate |
IP67 |
|
|
RoHs (2002/95/EC) |
Compliant By Exemption |
|
We could make different kinds of RF connectors ,such as SMA ,F ,BNC ,TNC, N,4.3-10 ,DIN and so on .If we did not reply you in time .pls feel free to call Alex Lee(Wechat/mail)
