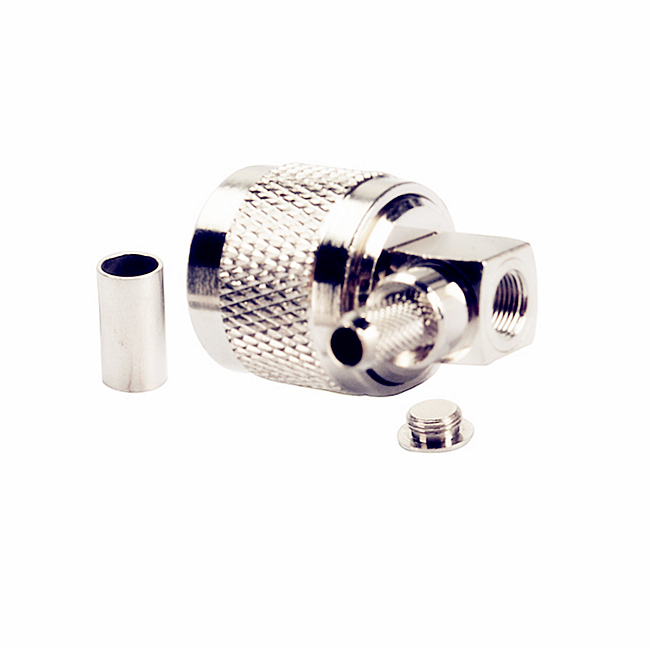

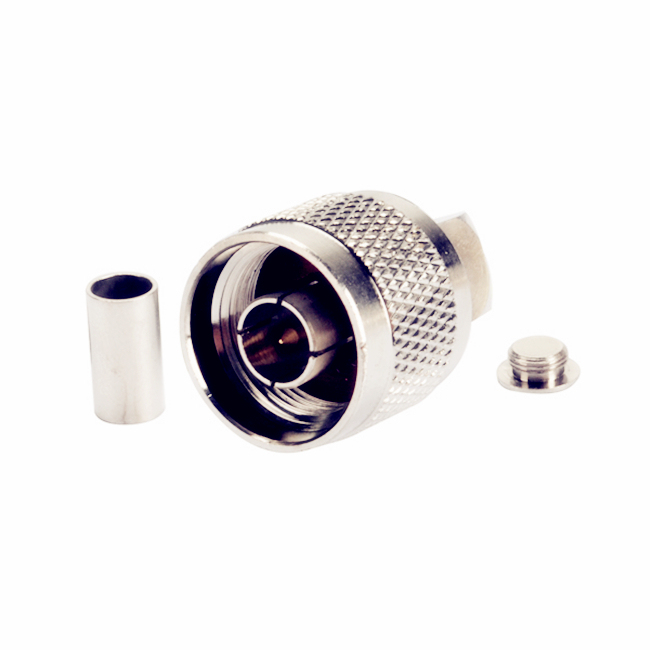

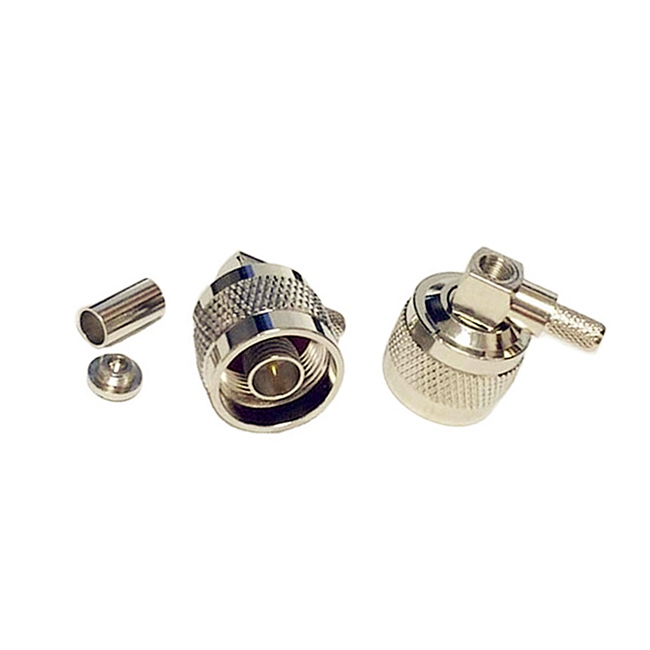

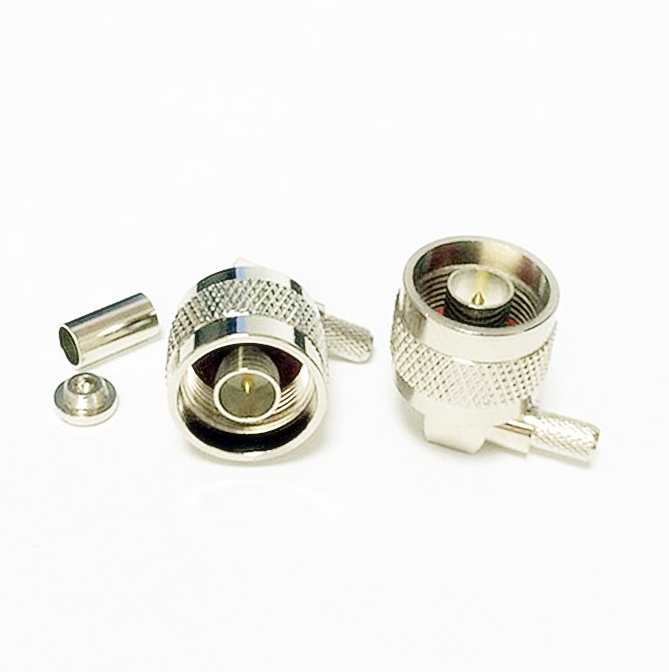

N Type Male Right Angle Crimp RG58 LMR-195 RG400 RG142 Cable Connector
Overview
RF coaxial adaptor has high reliability, strong vibration resistance, mechanical and electrical characteristics of excellent performance. It is widely used in vibration and environment under the condition of radio equipment and instrument , ground launch system, and it can join all kinds of coaxial cables.

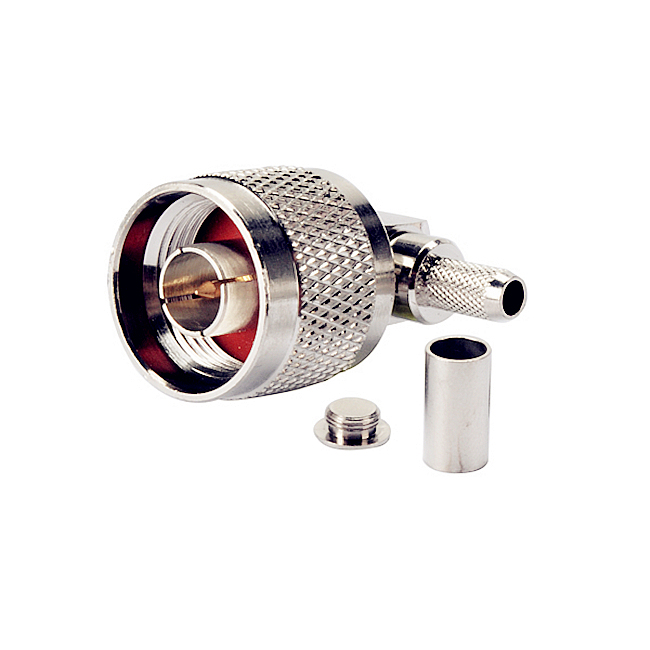

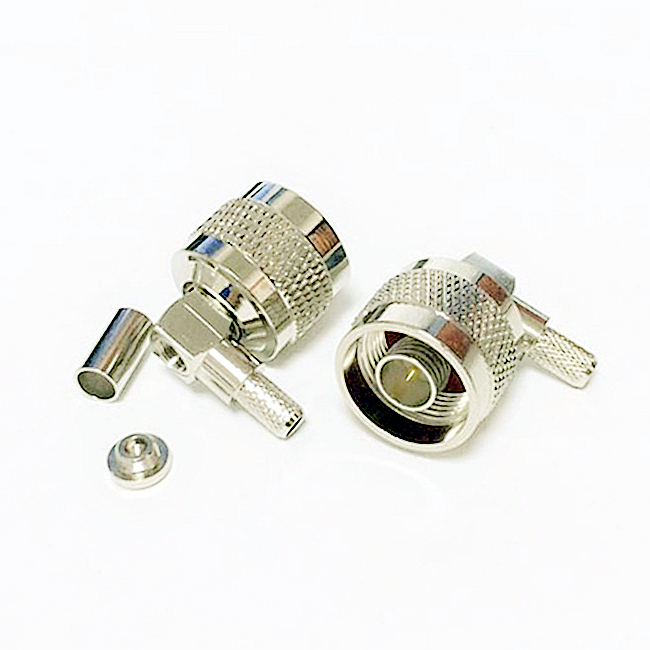

N Type Male Right Angle Crimp RG58 LMR-195 RG400 RG142 Cable Connector
|
Electrical Performance |
|
|
Impedance |
50 Ohms |
|
Frequency Range |
DC-11GHz |
|
Voltage Rating |
500V |
|
Dielectric Withstanding Voltage |
1500V |
|
VSWR Straight: Right-Angle: |
1.25@6GHz Max. 1.3@6GHz Max. |
|
Contact Resistance Center contact: Outer contact: |
1.50m Ohms Max. 1.00m Ohms Max. |
|
Insulation Resistance |
5000Mohms |
|
Insertion Loss |
0.24dB @ 3GHz Max. |
|
RF Leakage |
/ |
|
Material Specifications |
|
|
Bodies |
Nickel-plated Brass |
|
Pin Contact |
Gold-plated Brass |
|
Socket Contact |
Gold-plated Beryllium copper |
|
Insulator |
PTFE(Telfon) |
|
gasket |
Silicone Rubber |
|
Crimp Ferrule |
Copper alloy |
|
Durability |
500matings |
|
Environmental Date |
|
|
Temperature Range |
-55~+155 |
|
Thermal Shock |
MIL-STD-202 methord |
|
Vibration |
100m/s, 10g |
|
Water Proof |
Heat shrink tube or Silicone Rubber Gasket |
|
Corrosion |
5% salt-solution 48Hours Min. |
|
IP |
67 |
|
Other Specifictions |
|
|
Standard Applicable |
MIL-C-39012; CECC 22210; IEC60169-16; |
|
RoHS |
Compliant |
