The N-type connector is one of the RF coaxial connectors and is used to connect coaxial cables. This medium-sized, waterproof threaded connector was one of the earliest connectors to support microwave frequency signals. The purpose of the N-type connector is to meet the demand for reliable, weatherproof, medium-sized RF connectors with consistent performance, including models that support up to 18GHz. The structure of N-type connectors is divided into male or female heads, and the styles include standard polarity or reverse polarity. The shape of N-type connectors is divided into straight type or right-angle type, as well as 4-hole flange type, press-in type, baffle type, 2-hole panel type, 4-hole panel type or no-installation type.

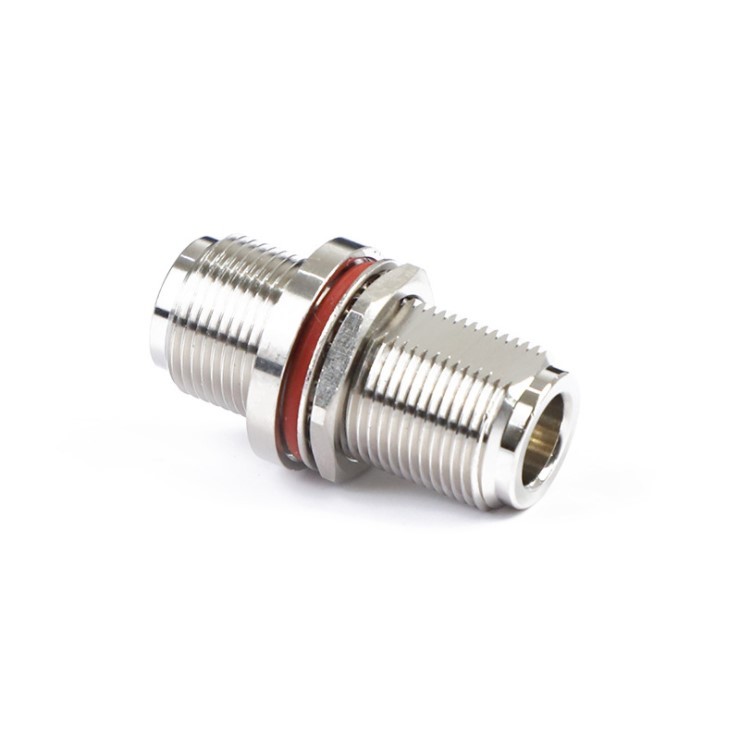

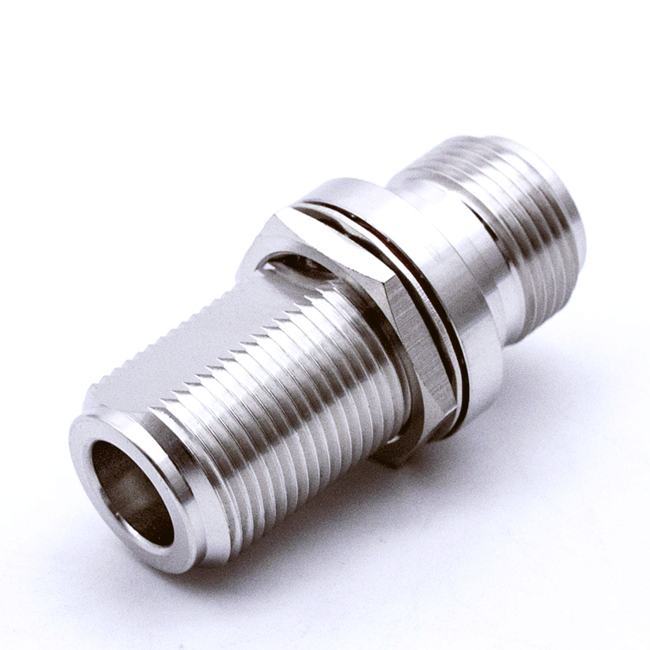

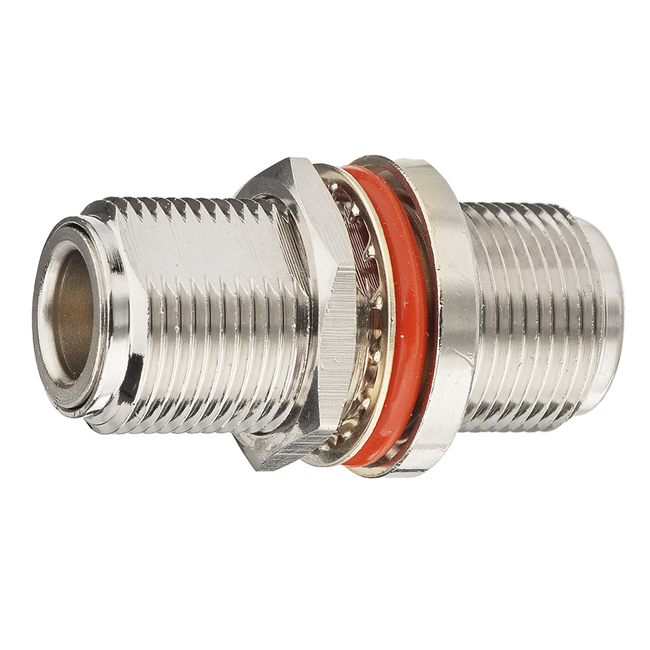

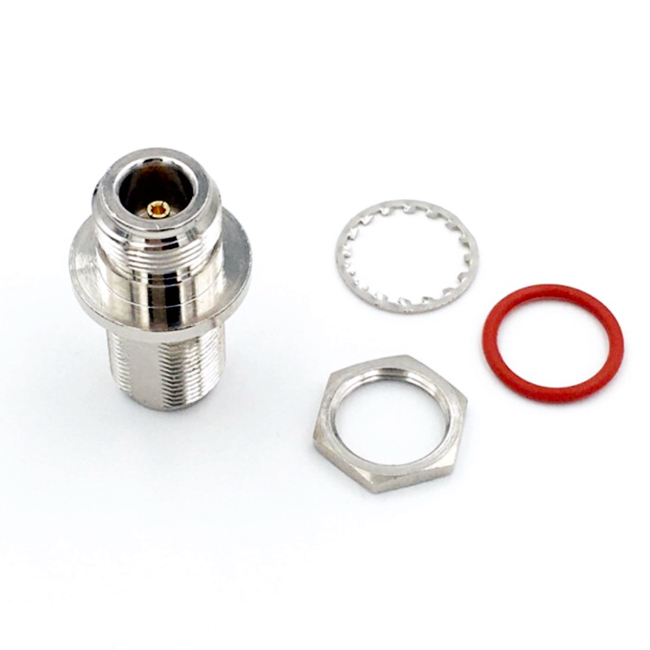

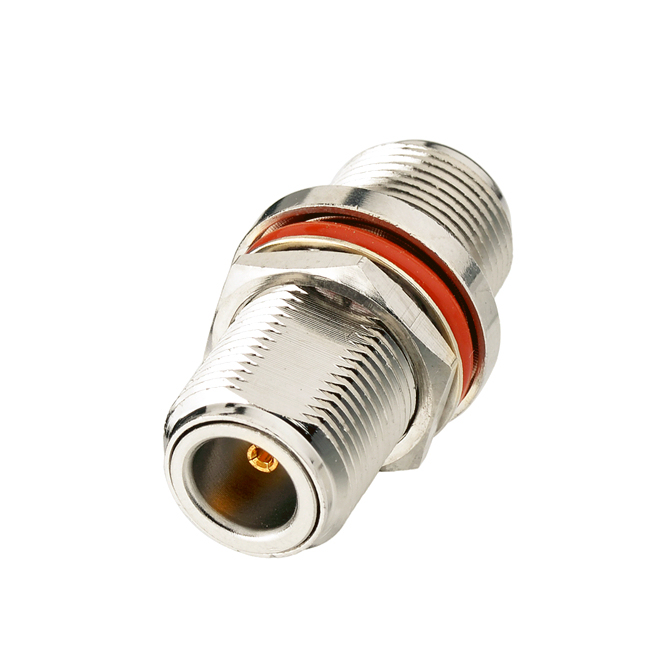

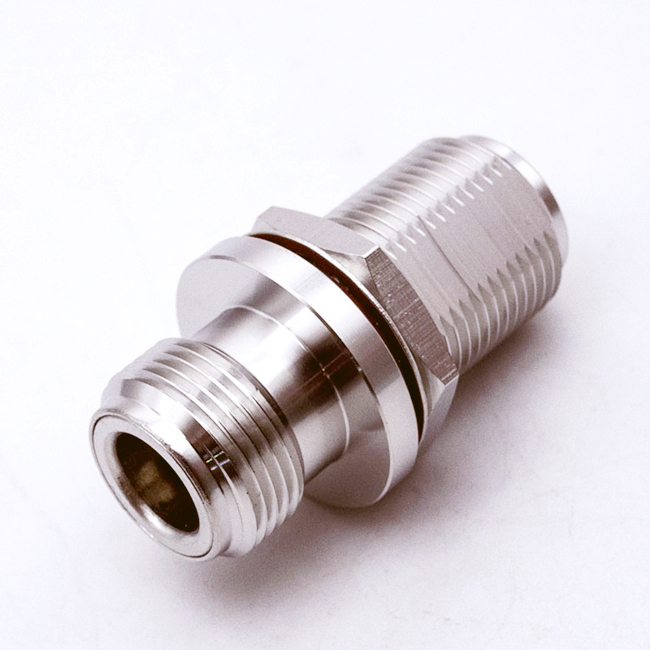

N Type Female to N Female Sealed O-ring Bulkhead Mount Straight Connector Adapter
Overview
RF coaxial adaptor has high reliability, strong vibration resistance, mechanical and electrical characteristics of excellent performance. It is widely used in vibration and environment under the condition of radio equipment and instrument , ground launch system, and it can join all kinds of coaxial cables.
Electrical Characteristics
| Name |
N Female to N Female Bulkhead Adaptor |
|
Impedance |
50Ω |
|
Frequency range |
0~6GHz |
|
Working Voltage |
2700V max |
|
Withstand Voltage |
4000V rms |
|
VSWR Straight Rigth Angle |
≤ 1.2 ≤ 1.3 |
|
Contact resistance -center contact -outer contact |
≤5mΩ ≤5mΩ |
|
Insulation resistance |
≥10000MΩ |
|
Temperature range |
-55°C~+155°C |
|
Durability(matings) |
>500 |
Construction
|
Piece part |
Material |
plating |
|
Body |
Brass |
Nickel plated |
|
Center conductor |
Brass or Phosphor Bronze |
Gold or silver plated |
|
Crimping suite |
Copper alloy |
Nickel plated |
|
O-ring sealing |
6146 silastic |
|
|
Insulator |
PTFE |
