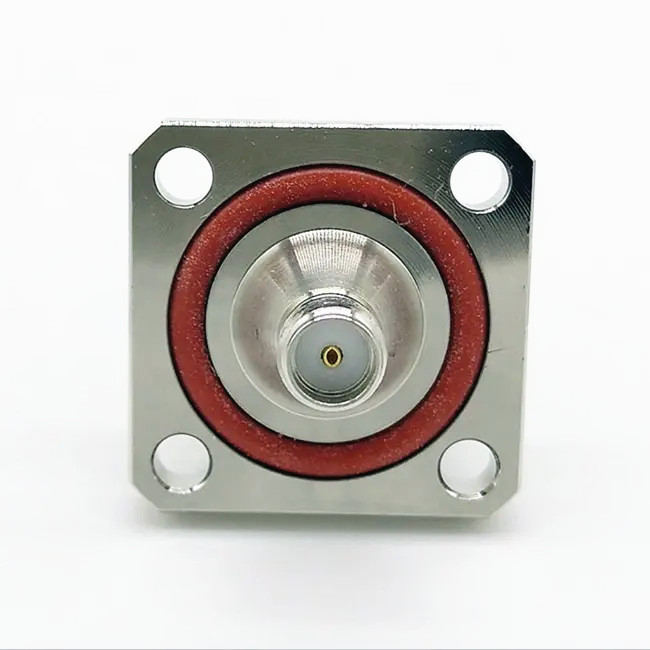

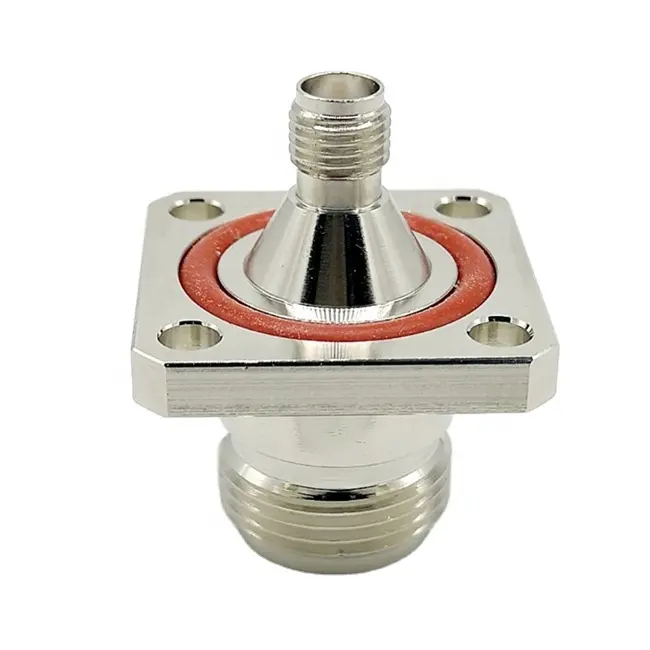

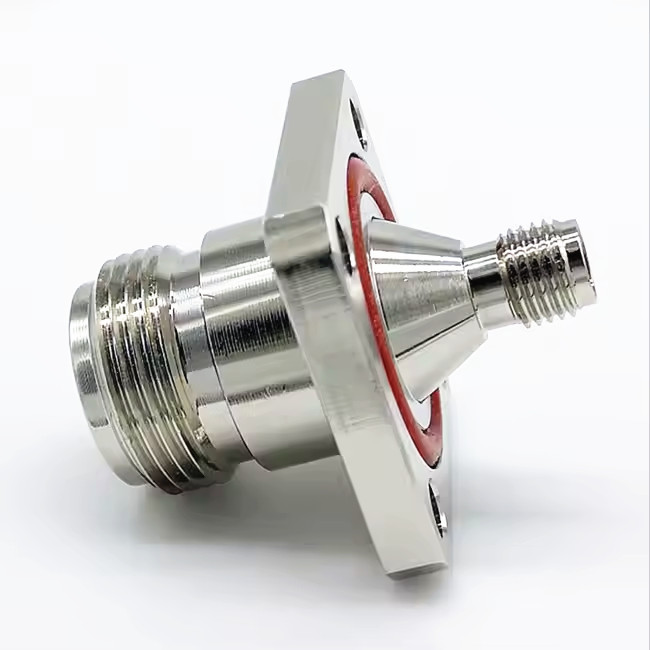

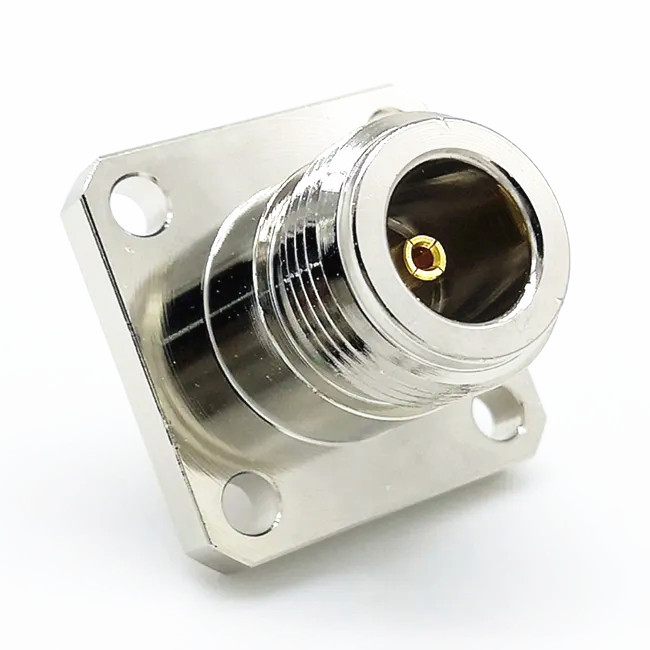

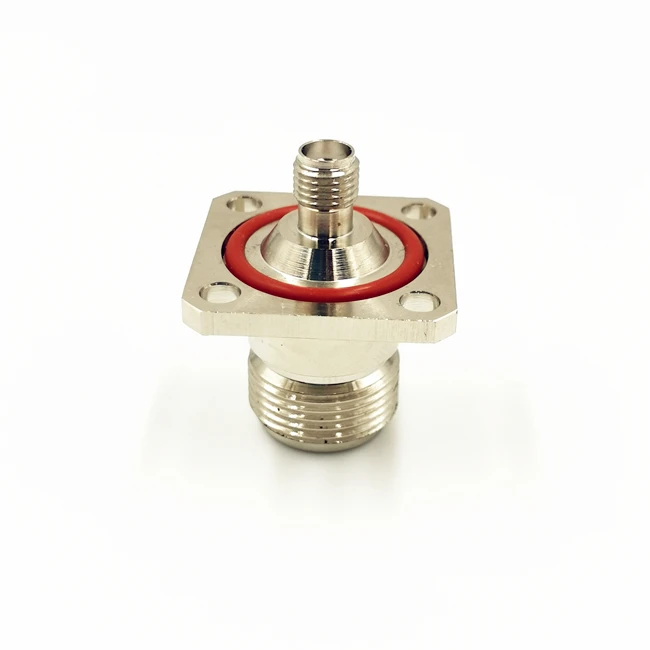

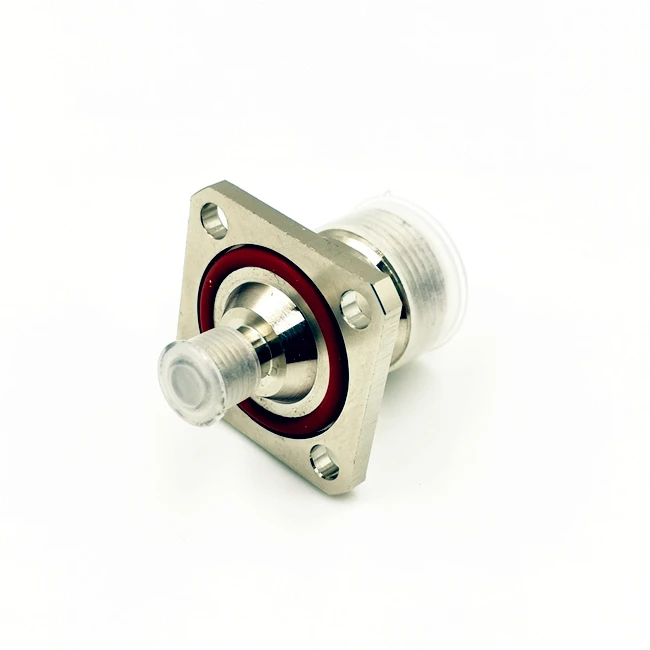

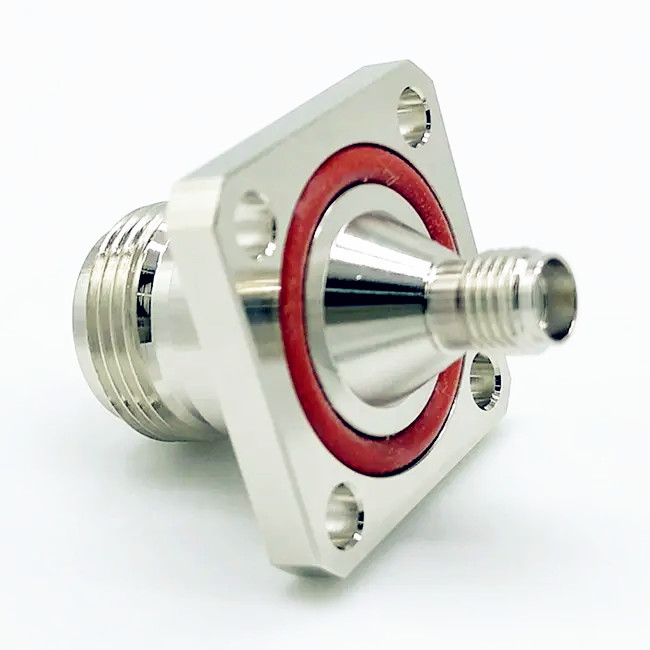

RF Coaxial Connector SMA Female to N Female 4 Hole Flange Panel Mount Adpater
RF coaxial adaptor has high reliability, strong vibration resistance, mechanical and electrical characteristics of excellent performance. It is widely used in vibration and environment under the condition of radio equipment and instrument , ground launch system, and it can join all kinds of coaxial cables.
|
SMA Female jack to N female flange Panel Mount 4 Holes Connector
|
|
|
Electrical
|
|
|
Impedance
|
DC-6Ghz
|
|
Frequency range
|
<0.9db
|
|
Working Voltage
|
90 V
|
|
Withstand Voltage
|
50 OHMS
|
|
VSWR: -Straight -Rigth Angle
|
≤ 1.2 ≤ 1.3
|
|
Contact resistance: -center contact -outer contact
|
≤1mΩ ≤1mΩ
|
|
Insulation resistance
|
≥5000MΩ
|
|
Mechanical
|
|
|
Temperature range
|
-55°C~+155°C
|
|
Durability(matings)
|
>500 cycles
|
|
Material and plating
|
|||
|
Piece part
|
Material
|
plating
|
|
|
Body
|
Brass
|
Tri-Metal or nickel plated
|
|
|
Center conductor
|
Brass or Phosphor Bronze
|
Gole or silver plated
|
|
|
Crimping suite
|
Copper alloy
|
Nickel plated
|
|
|
O-ring sealing
|
6146 silastic
|
||
|
Insulator
|
PTFE
|
||
|
Environmental
|
|||
|
IEC 60169-16/MIL-C-39012/CECC22210
|
|||
