Manufacturer Factory Price Coaxial Cable RG58 for Communication
Overview
This 50 Ohm RG58 cable is a multipurpose MIL-C-17 coaxial cable. These versatile cable assemblies with various lengths have been widely applied to communication systems.
Features
· 50 Ohm data signal transmission;
· The inner conductor could be solid or layer-stranded;
· With the excellent layer-stranded process to ensure stable VSWR;
· Customized cable color , winding and connector, meet your different requirements;
· RoHS compliant;

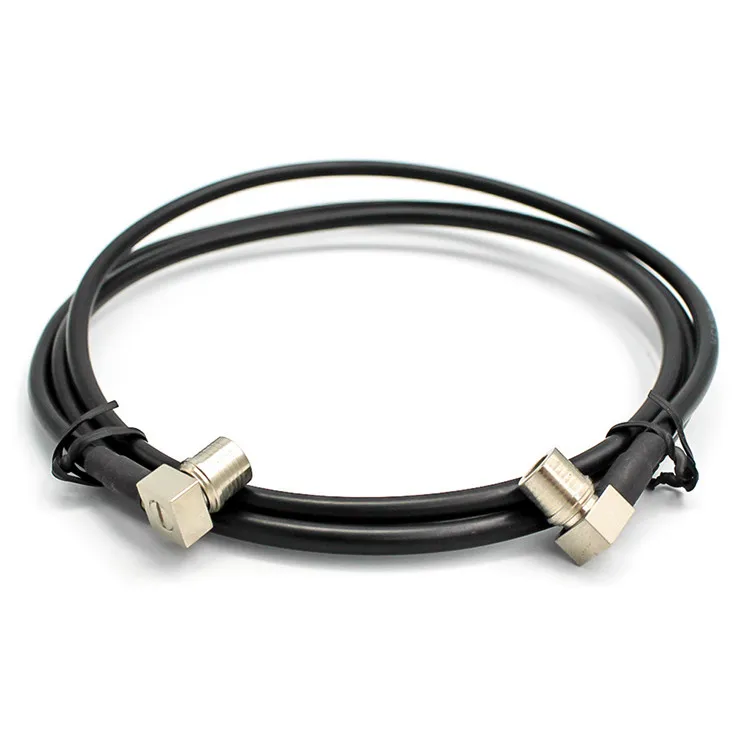

Assemblies & Application

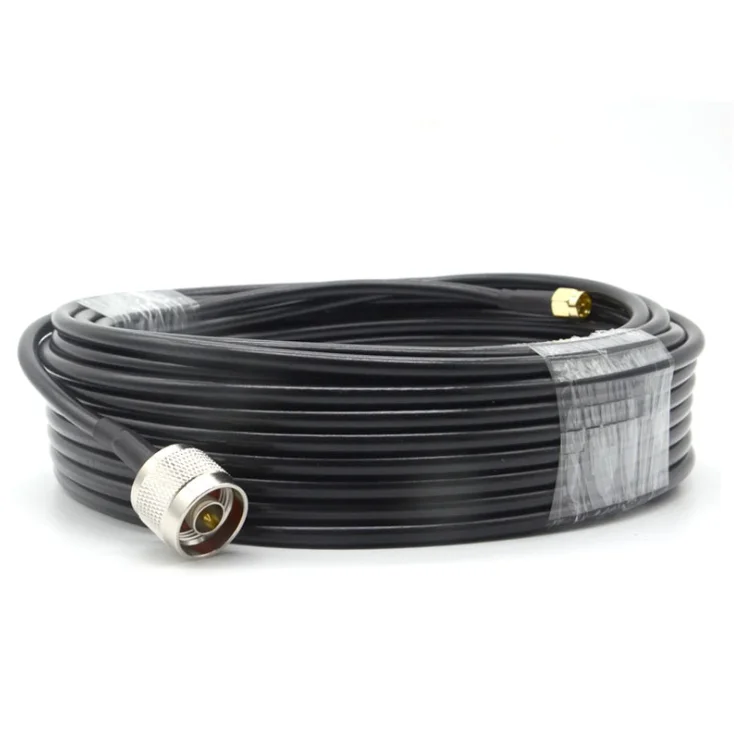

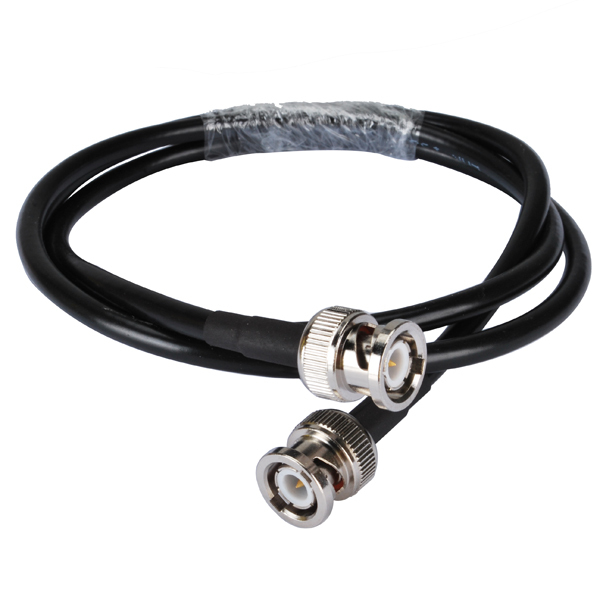

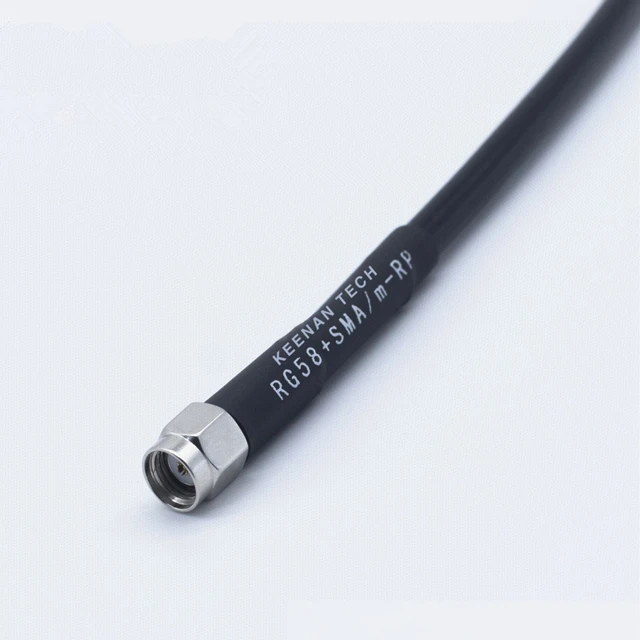

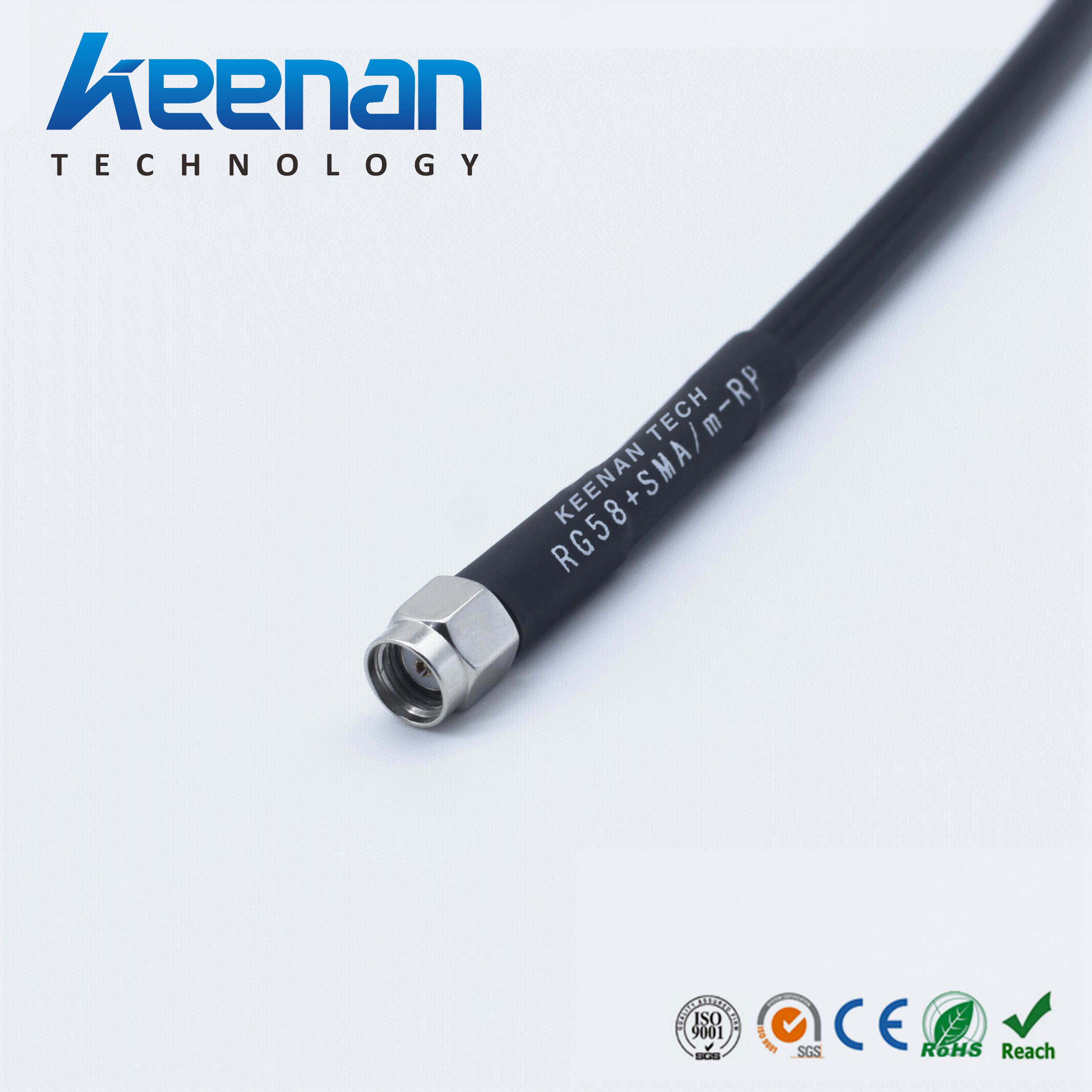

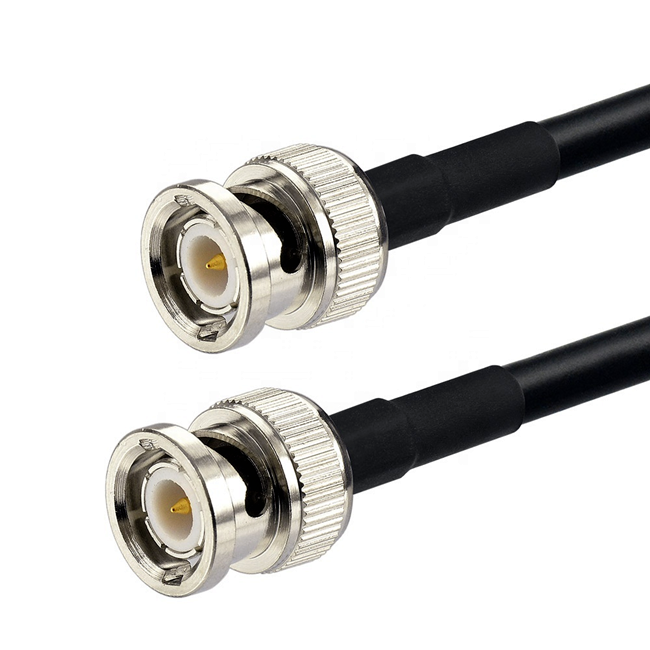

This 50 Ohm RG58 coaxial cable can be fixed with kinds of connectors,such as SMA,N,BNC,TNC connectors.These versatile cable assemblies with various lengths have been widely applied to CDMA,GSM and other communication systems.

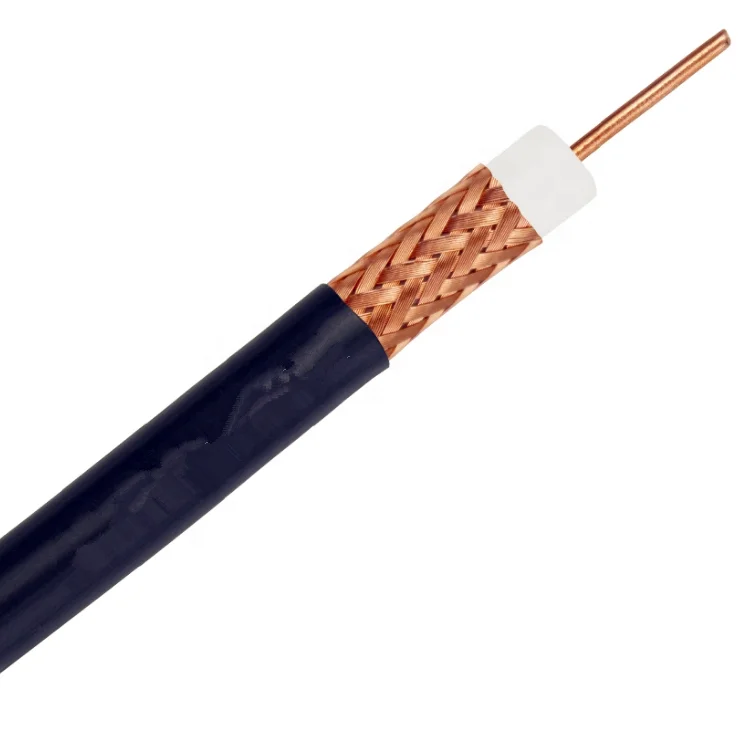

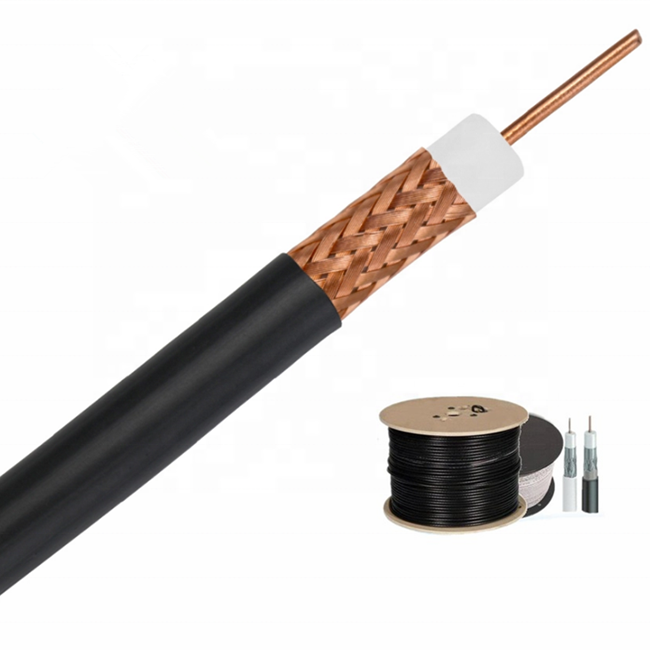

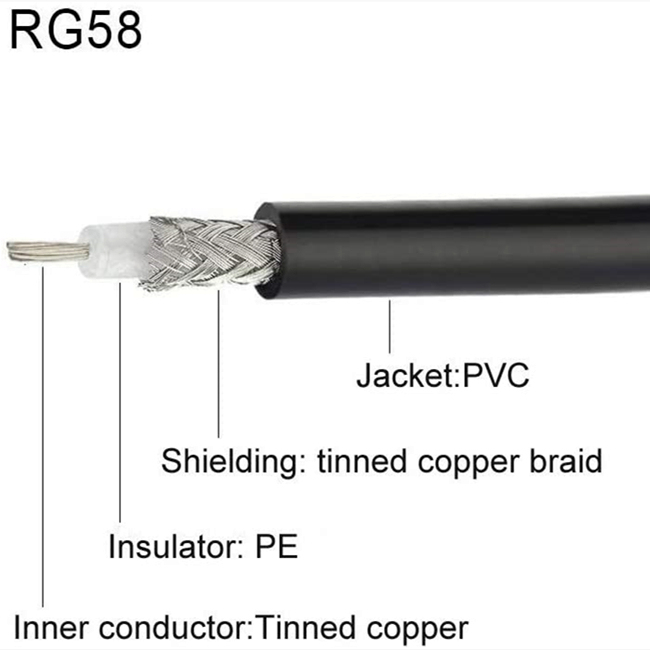

Construction
|
|
Material |
Diameter(mm) |
Remarks |
|
Inner Conductor Insulation Out conductor Jacket |
Solid PE BC wire Braid PVC/TPE |
19*0.18 2.95 3.45 4.95 |
Per customer’s requirements: Out conductor could be 80,96,112 or 128 BC wires braiding;Jacket could be PVC or TPE; |
ElectricalCharacteristics
|
Capacitance (pF/m) Impedance (Ω) Velocity of Propagation (%) Max Operating Frequency (MHz) Max Operating Voltage(VRMS) Return Loss (dB) Operating Temperature(0C) |
101 50 66.0 2000 1500 18dB (10 to 3000 MHz) -30 to +70 |
Attenuation [@68oF (20oC)]
|
Frequency(MHz) |
Max Attenuation (dB/100m) |
|
100 500 900 1000 2000 2500 |
15.50 43.00 53.50 58.00 81.00 98.00 |
More Ideas
1) If require conventional construction and materials, please click RG58;
2) If require better welding performance and good flexibility,you can choose RG58-TC-TC;
3) If require a solid inner conductor,you can choose RG58S-BC-BC;
4) If require two-way transmission,you can choose RG58 DUAL;
5) If require better attenuation,you can choose 3D-FB or FLMR195;
6) If require to be used in high temperature environment at 105oC, please click RG58-XLPE;
7) If require lightweight and lower price,you can choose RG58S-BC-CCA or RG58S-CCS-CCA;
8) If require high tensile strength,please click RG58S-CCS-CCA;
9) For more RG58 assemblies,you can choose RG58 ASSEMBLIES;
10) Any other requirements or queries, please click CONTACT US.
