Light weight, compact and vibration proof design
Low cost commercial grade (Brass FME) available in nickel or gold plating
Terminates to all standard flexible coaxial cables, low-loss (LMR/RG) type cables and industry standard semi-rigid and conformable cables.

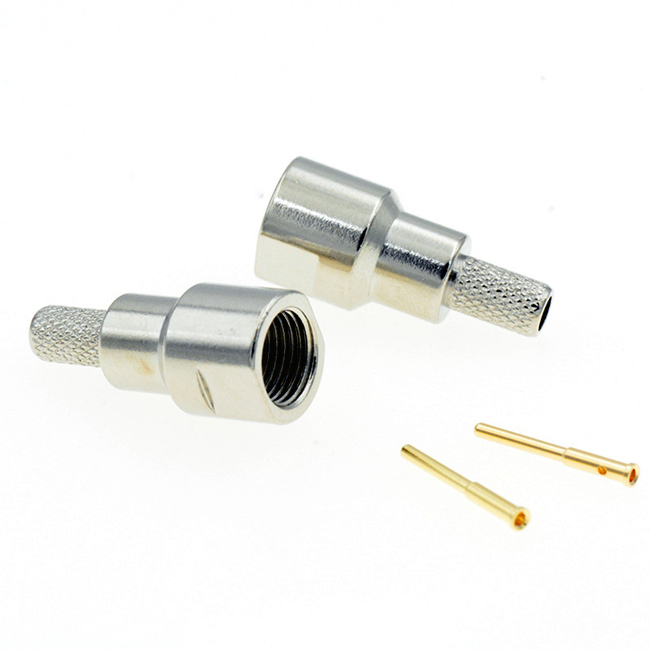

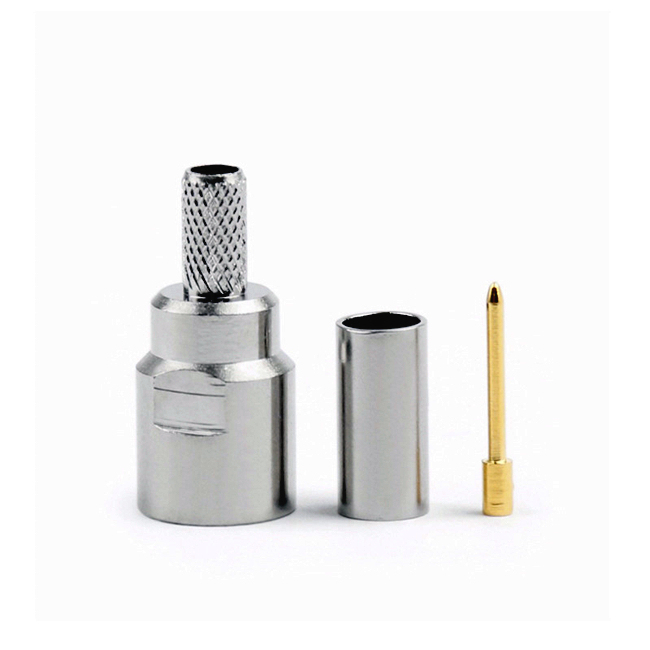

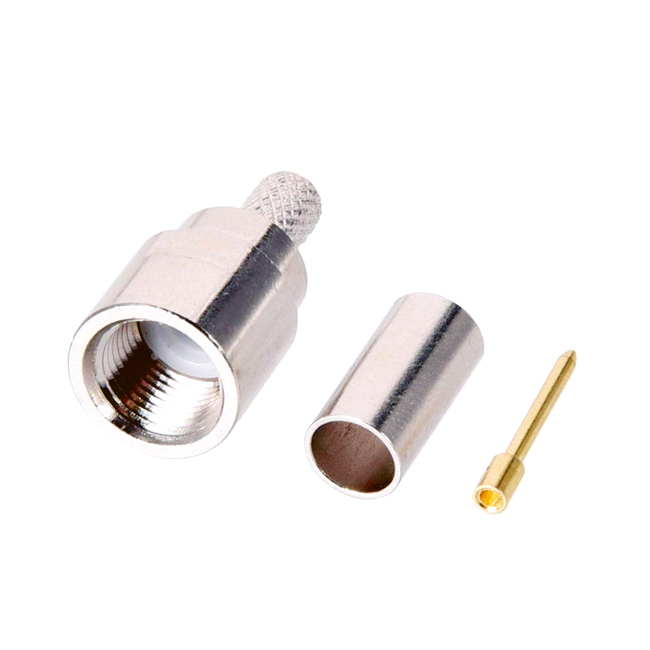

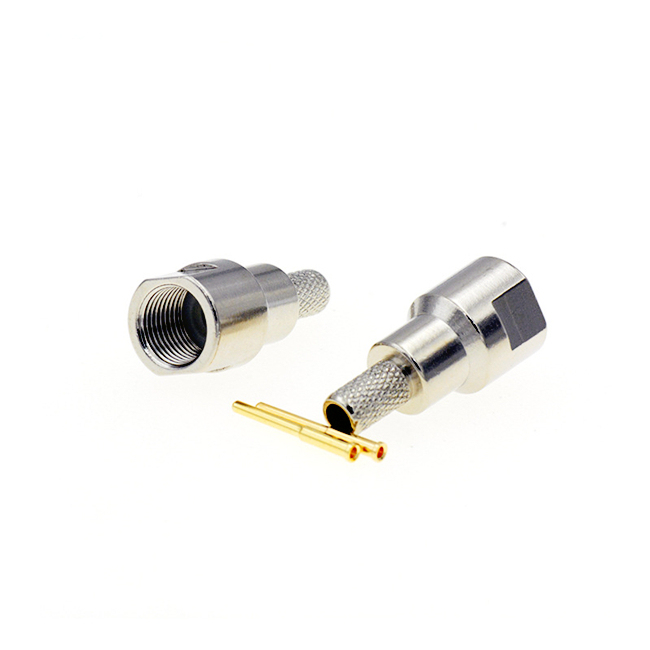

Made in China Factory Price Fme Male Crimp RF Connector For Rg174 Rg316 Rg178 Cable
Light weight, compact and vibration proof design
Low cost commercial grade (Brass FME) available in nickel or gold plating
Terminates to all standard flexible coaxial cables, low-loss (LMR/RG) type cables and industry standard semi-rigid and conformable cables.
|
Specifications
|
||||
|
Major Technical Characteristics
|
||||
|
Temperature Range
|
-55 degree to +150dregree
|
|||
|
Vibration
|
100m/S2 (10 to 500 Hz), 10G
|
|||
|
Impendance
|
50ohm/75ohm
|
|||
|
Frenquency Range
|
DC-4GHZ
|
|||
|
Working Voltage
|
500V r.m.s at sea level
|
|||
|
Workstandinging Voltage
|
1500V r.m.s at sea level
|
|||
|
Center Contact Resistance
|
≤1.5Mohm
|
|||
|
Outer Contact Resistance
|
≤1Mohm
|
|||
|
Insulation Resistance
|
≥5000Mohm
|
|||
|
Center conductor Retention Force
|
≤0.57N
|
|||
|
Insertion Loss
|
≤0.2dB/3Ghz
|
|||
|
VoltaggeStanding Wave Ratio :
|
||||
|
Straight
|
≤1.10+0.02f
|
|||
|
Right Angle
|
≤1.20+0.03f
|
|||
|
Dutability (Mating)
|
≤500(cycles)
|
|||
|
Body
|
Brass/Gold Plated
|
|||
|
Contact
|
Brass/Gold Plated
|
|||
|
Insulator
|
PTFE
|
|||
|
Nut
|
Brass
|
|||
|
Washer
|
Brass
|
|||
