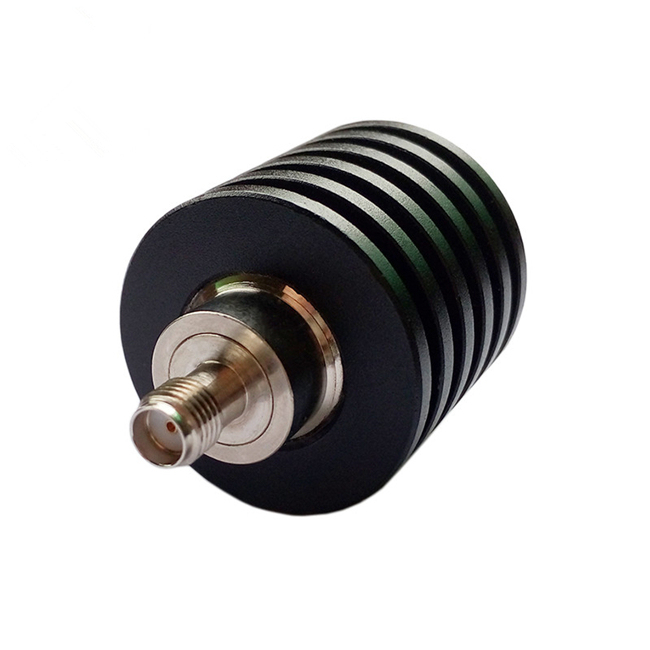

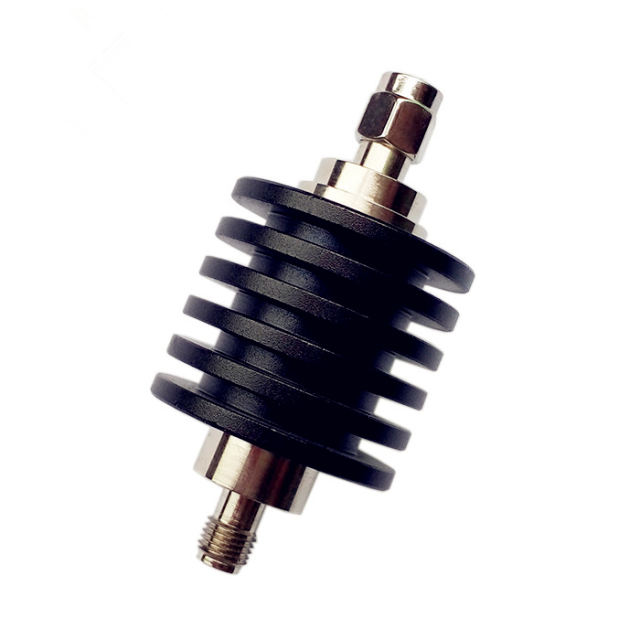

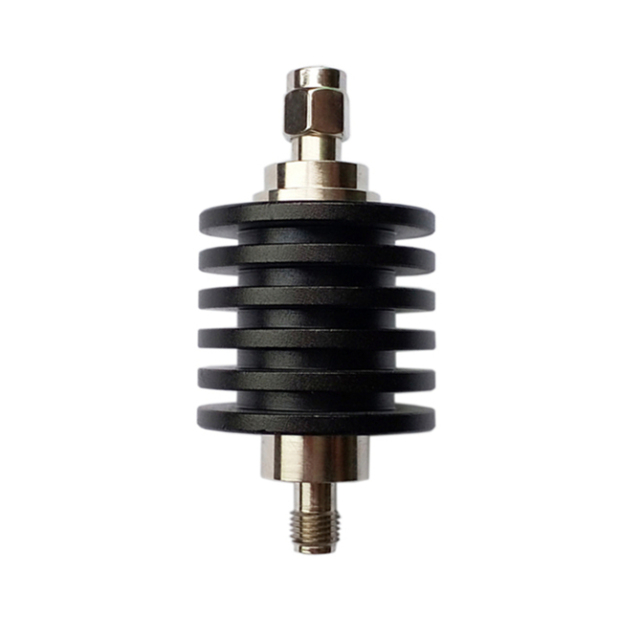

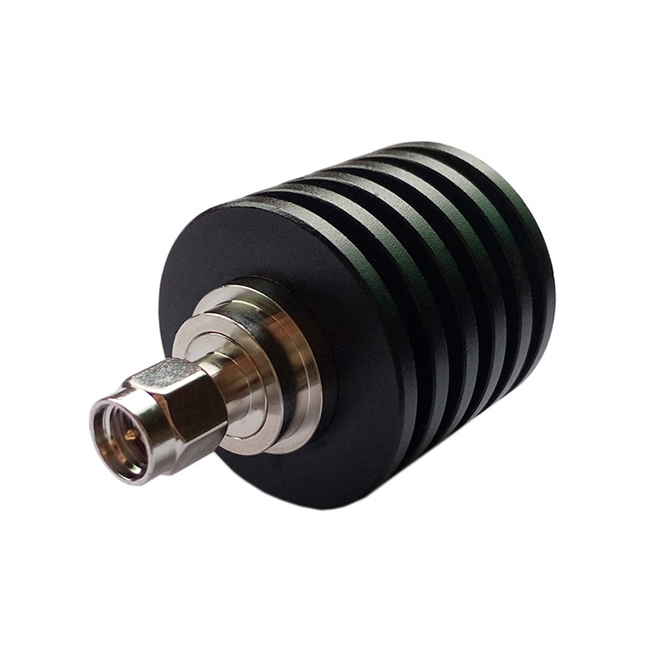

Low VSWR DC-6Ghz 10W SMA Male to Female RF Coaxial Fixed Attenuator

No.AT-10W-SMA-JK 6G
Low VSWR DC-6Ghz 10W SMA Male to Female RF Coaxial Fixed Attenuator
  • Low VSWR DC-6Ghz 10W SMA Male to Female RF Coaxial Fixed Attenuator
  • Low VSWR DC-6Ghz 10W SMA Male to Female RF Coaxial Fixed Attenuator
  • Low VSWR DC-6Ghz 10W SMA Male to Female RF Coaxial Fixed Attenuator
  • Low VSWR DC-6Ghz 10W SMA Male to Female RF Coaxial Fixed Attenuator
  • Low VSWR DC-6Ghz 10W SMA Male to Female RF Coaxial Fixed Attenuator

Description

Low VSWR DC-6Ghz 10W SMA Male to Female RF Coaxial Fixed Attenuator

Application

10W SMA-JK Attenuator
* 10W SMA-JK RF 3G/4G Attenuator is widely used in below fileds:
* Mobile Communication Network Optimization and In-door distribution system.
* Cluster communication, satellite communication, shortwave communication and hopping radio.
* Radar, electronic navigation and electronic confrontation.
* Aerospace equipment systems
 1593569191(1)

Specification
Model
10W SMA-JK Attenuator
Power
10W
Connector
N-JK
Frequency Range
DC-3GHz/6GHz
Attenuation
1,2,3,5,6,10,15,20,30,40dB available, and 1-10dB.±0.5dB,15-40dB±1dB
VSWR (MAX)
1.2:1
Impendance
50Ω
Temperature Range
-55°C to +125°C
Dimension
Φ30*60mm
Weight
60g
