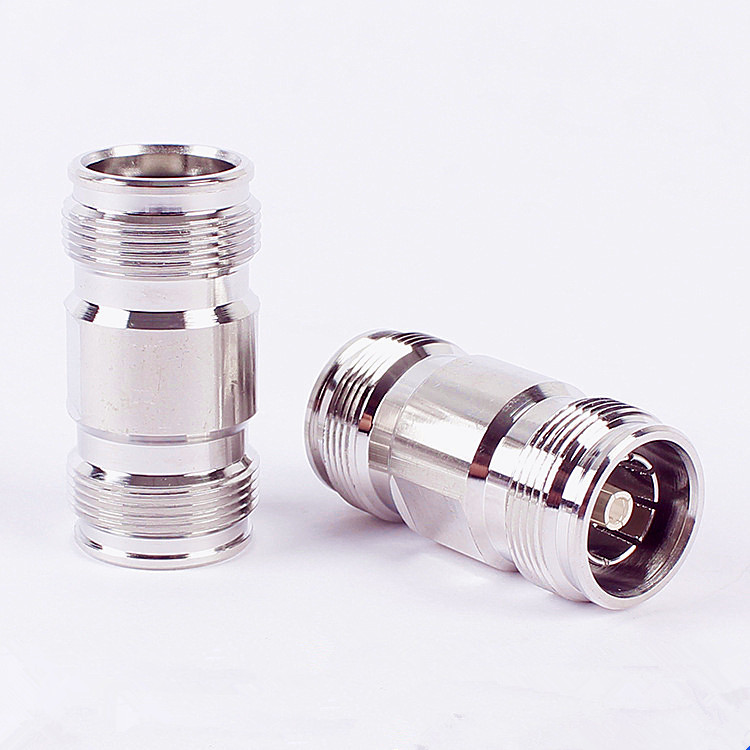

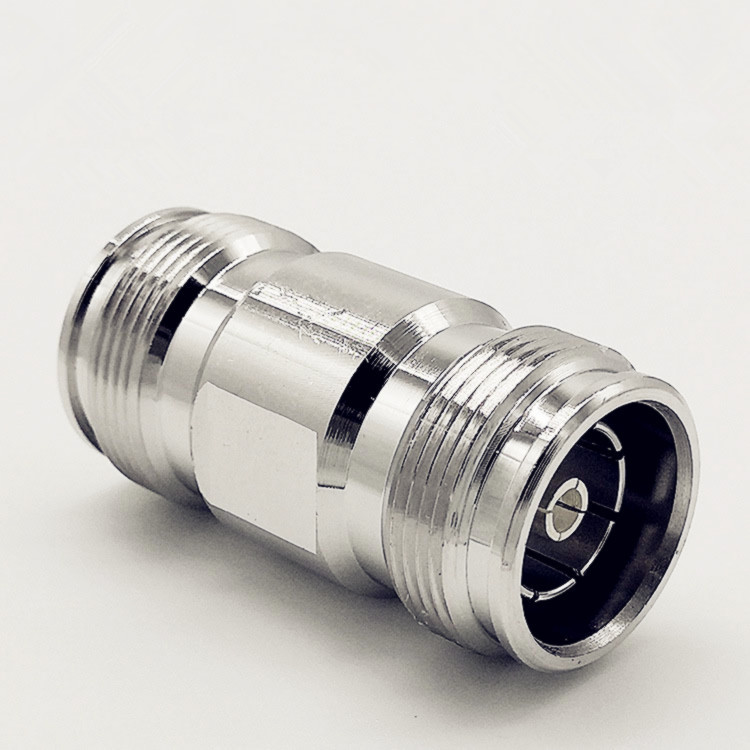

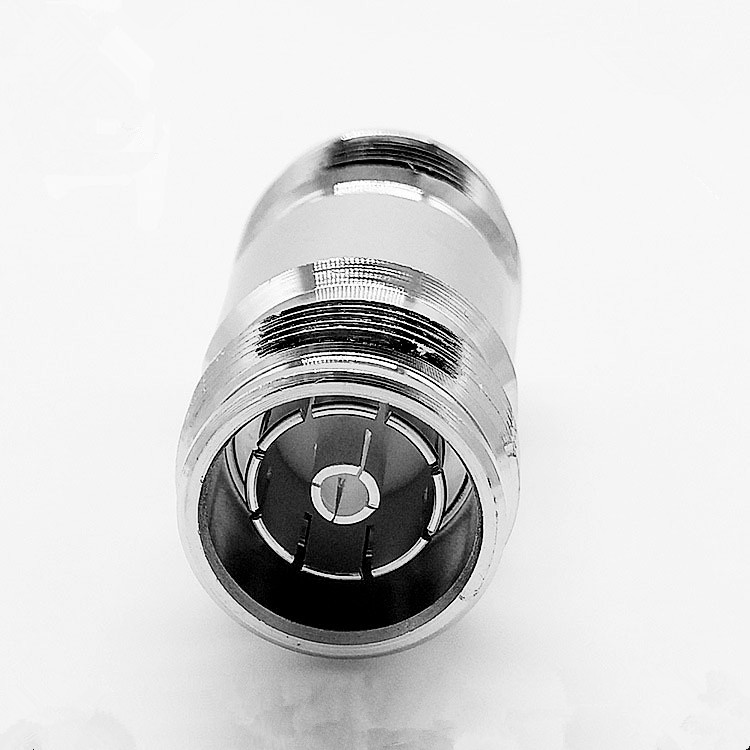

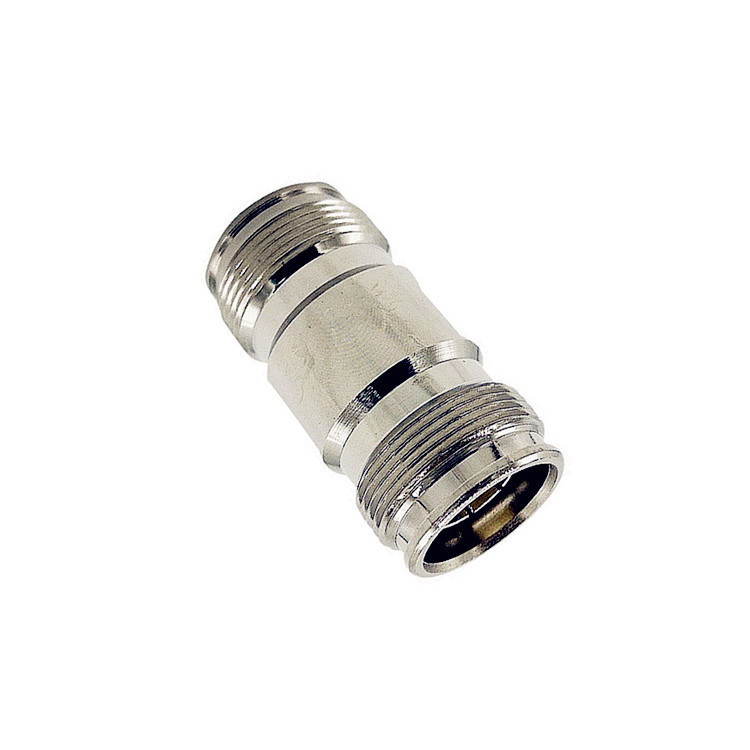

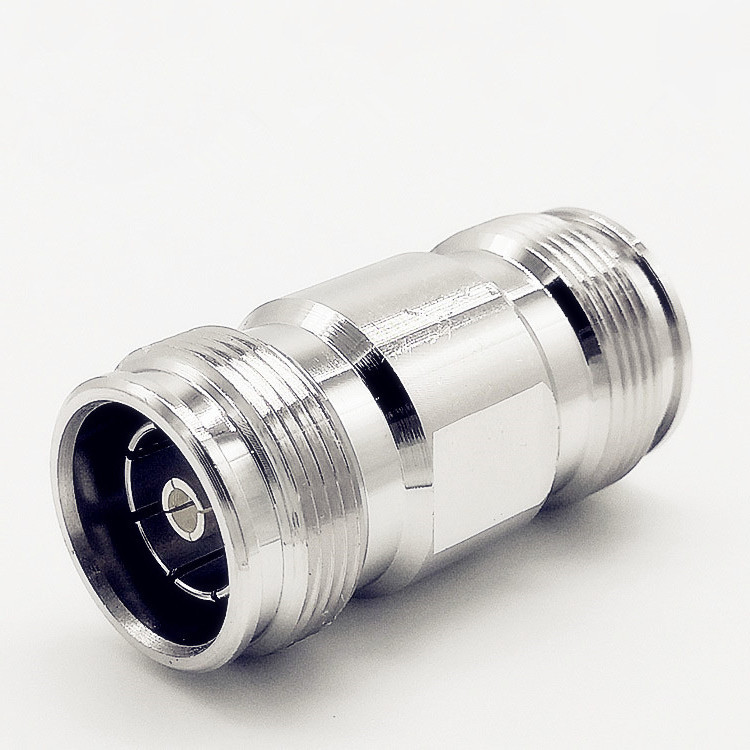

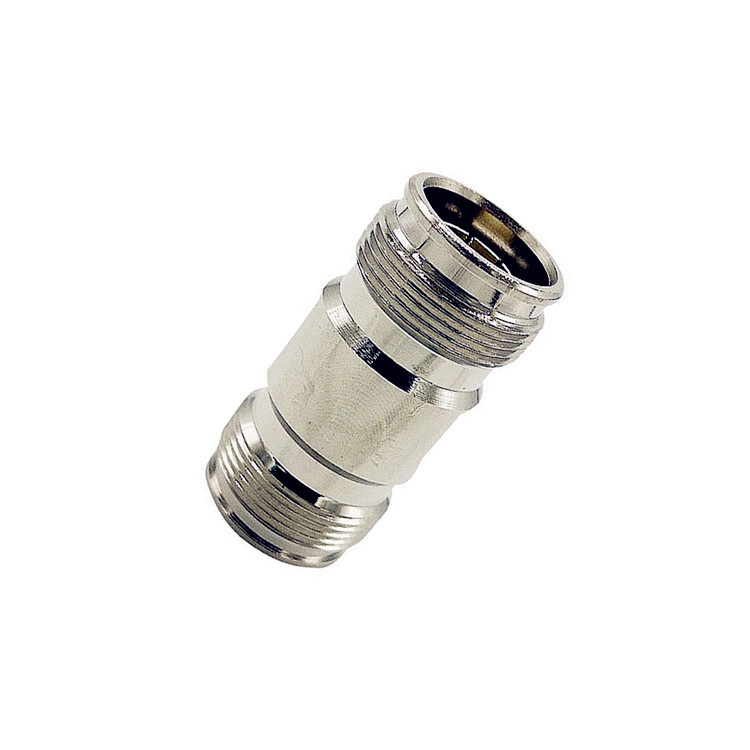

Low PIM RF Coaxial Adapter Mini Din 4.3-10 Female to 4.3-10 Female Connector Adapter
Overview
RF coaxial adaptor has high reliability, strong vibration resistance, mechanical and electrical characteristics of excellent performance. It is widely used in vibration and environment under the condition of radio equipment and instrument , ground launch system, and it can join all kinds of coaxial cables.
Electrical Characteristics
|
Specifications
|
||||
|
Major Technical Characteristics
|
||||
|
Temperature Range
|
-55 degree to +150dregree
|
|||
|
Vibration
|
100m/S2 (10 to 500 Hz), 10G
|
|||
|
Impendance
|
50ohm
|
|||
|
Frenquency Range
|
DC-6GHZ
|
|||
|
Working Voltage
|
500V r.m.s at sea level
|
|||
|
Workstandinging Voltage
|
1500V r.m.s at sea level
|
|||
|
Center Contact Resistance
|
≤1.5Mohm
|
|||
|
Outer Contact Resistance
|
≤1Mohm
|
|||
|
Insulation Resistance
|
≥5000Mohm
|
|||
|
Center conductor Retention Force
|
≤0.57N
|
|||
|
Insertion Loss
|
≤0.2dB/3Ghz
|
|||
|
VoltaggeStanding Wave Ratio :
|
||||
|
Straight
|
≤1.10+0.02f
|
|||
|
Right Angle
|
≤1.20+0.03f
|
|||
|
Dutability (Mating)
|
≤500(cycles)
|
|||
|
Body
|
Brass/Gold Plated
|
|||
|
Contact
|
Brass/Gold Plated
|
|||
|
Insulator
|
PTFE
|
|||
|
Nut
|
Brass
|
|||
|
Washer
|
Brass
|
|||
