Low loss RF coaxial LMR200 LMR300 LMR400 LMR500 LMR600 RG223 communication cable
This is a coaxial cable with foam insulation. It has a good attenuation and shielding effectiveness.As a substitute for RG58 coaxial cable,it has been widely applied to radio transmission,base radio antenna station and other communication systems.
• 50 Ohm data signal transmission;
• The shielding layer composed of aluminum foil and braiding has a good shielding effectiveness;
• Excellent performance in high frequency,VSWR stability;
• Customized cable color , winding and connector, meet your different requirements;
• RoHS compliant;

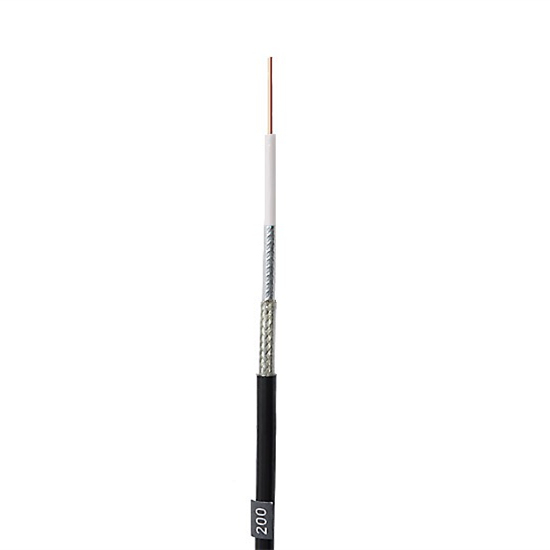

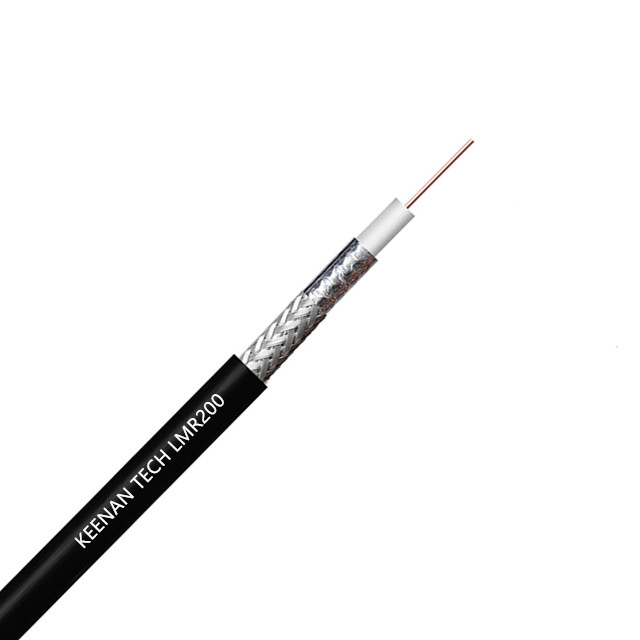

Construction
|
Item
|
Material
|
Diameter(mm)
|
Remarks |
|
Inner Conductor
Dielectric
First Shield
Second Shield
Jacket
|
Bare Copper
Foam PE
Bonded Aluminum Foil
TC Wire Braid
PVC/PE/LSZH
|
19*0.23/1.12
2.95
3.07
3.66
4.95
|
Per customer’s requirements:
Out conductor could be 96,112 or 128 TC wires braiding;
Jacket could be PVC,PE or LSZH; |
Electrical Characteristics
|
Impedance (Ω)
Capacitance (pF/m)
Velocity of Propagation (%)
Return Loss
Screening Effectiveness(db)
Voltage With Stand
Installation Temp(℃)
Operating Temp(℃)
|
50±3
83..3
83.0
≥20
≥90
1000.0
-30 to +70
-30 to +70
|
Attenuation (@200C)
|
Frequency(MHz)
|
Max Attenuation(dB/100m)
|
|
150
220
450
900
1500
1800
2000
2500 |
14.1
16.9
23.8
33.6
43.4
48.0
51.0
57.6 |

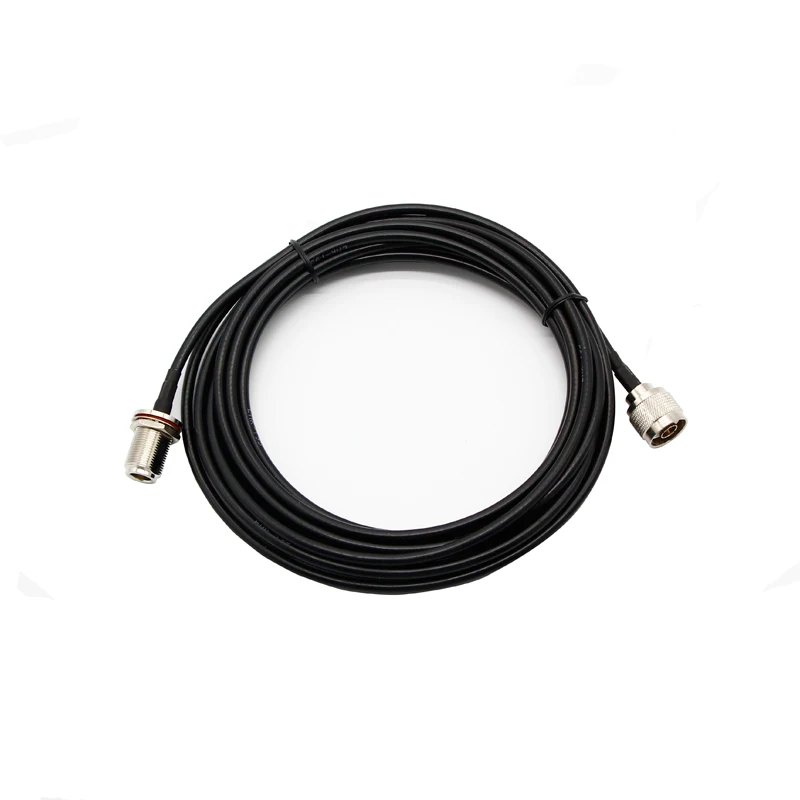

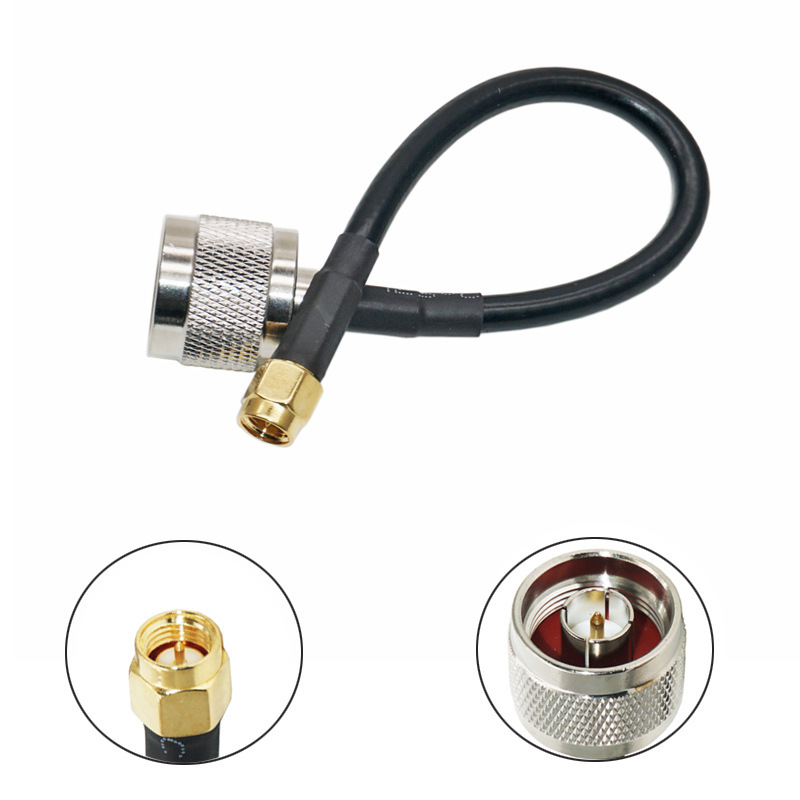

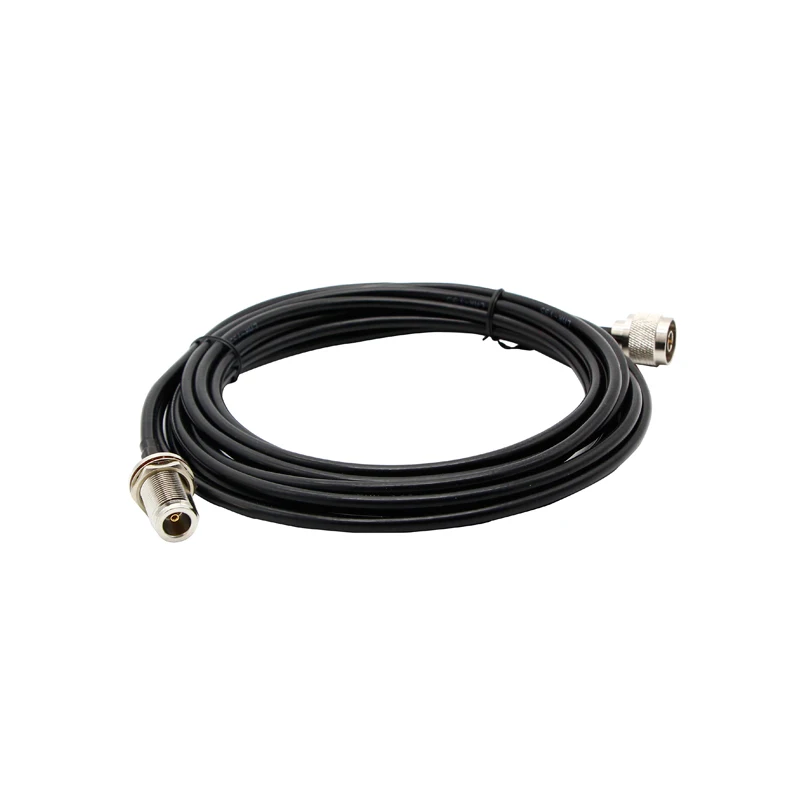

These 50 Ohm 200 series coaxial cables can be equipped with varied connectors,as for SMA,N,BNC,TNC connectors.As a substitute for RG58 coaxial cable, these versatile cable assemblies with various lengths have been widely applied to CDMA,GSM radio transmission,base radio antenna station and other communication systems.
