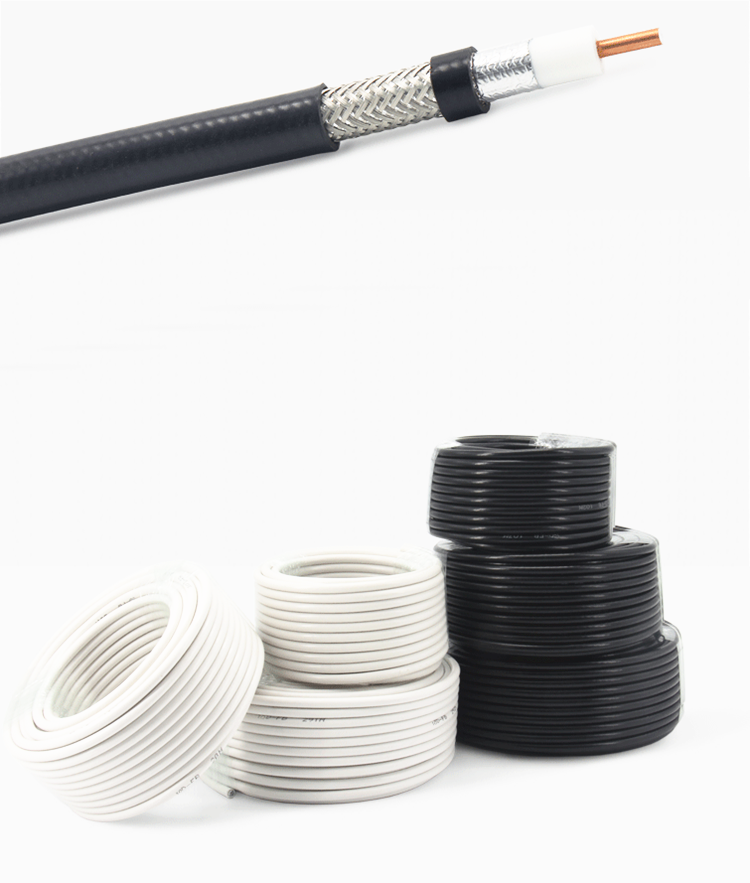

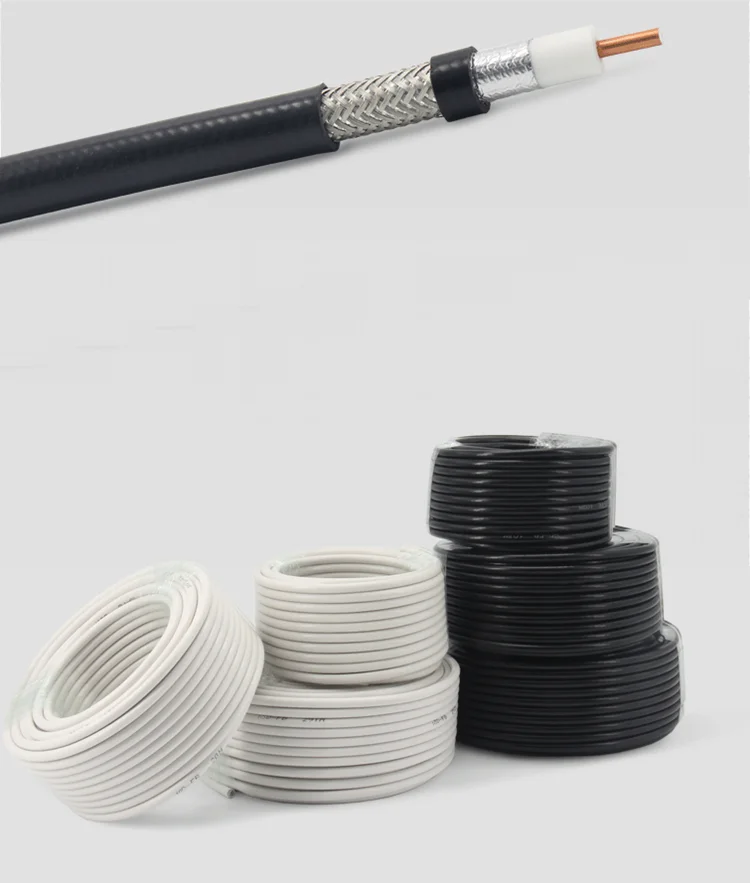

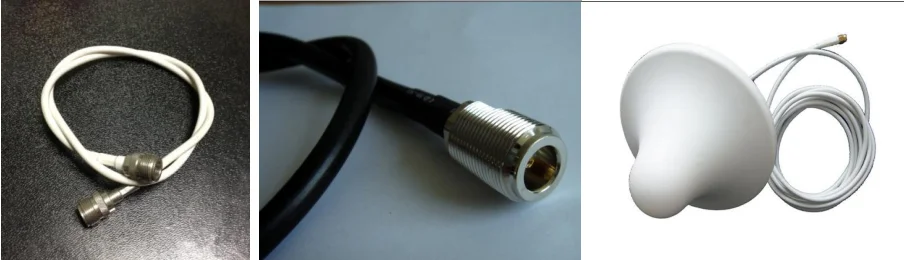

Low Loss RF Coaxial 3D-FB 5D-FB 7D-FB 8D-FB 10D-FB 12D-FB Antenna Station Communication Cableion cable
This is a JIS foam coaxial cable with solid inner conductor. It has a good attenuation and shielding effectiveness, and has been widely applied to radio transmission,base radio antenna station and other communication systems.
• 50 Ohm data signal transmission;
• The shielding layer composed of aluminum foil and braiding has a good shielding effectiveness;
• Excellent performance in high frequency,VSWR stability;
• Similar to the LMR500 coaxial cable;
• RoHS compliant;

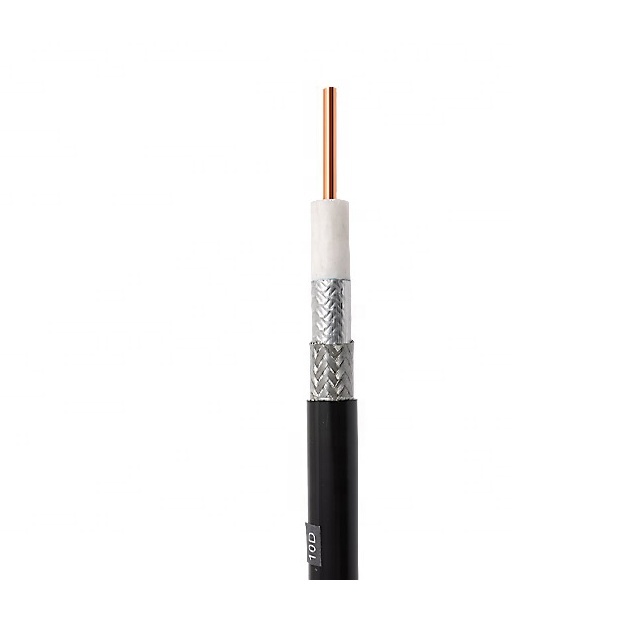

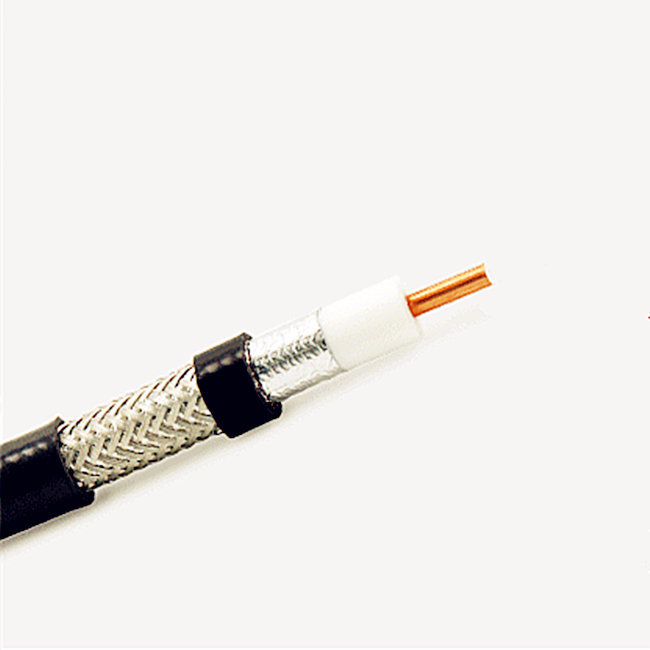

Construction
|
Item
|
Material
|
Diameter(mm)
|
Remarks |
|
Inner Conductor
Dielectric
First Shield
Second Shield
Jacket
|
Bare Copper
Foam PE
Bonded Aluminum Foil
TC Wire Braid
PVC/PE/LSZH
|
3.5
10.00
10.20
10.80
13.00
|
Per customer’s requirements:
Out conductor could be 144 ,168 or 192 TC wires braiding;
Jacket could be PVC,PE or LSZH; |
Electrical Characteristics
|
Impedance (Ω)
Capacitance (pF/m)
Velocity of Propagation (%)
Dielectric strength(kV)
V.S.W.R
Return Loss
Screening Effectiveness(db)
Min. Bending Radius (mm)
Operating Temperature(0C)
|
50±3
82±2
80.0
1.6
≤1.2 (50----3000MHz)
≥20 (50----3000MHz)
≥85
65.0
-25 to +70
|
Attenuation (@200C)
|
Frequency(MHz)
|
Max Attenuation(dB/100m)
|
|
100
350
400
800
1200
1800
2000
2500
|
3.2
6.3
6.8
10.2
13.2
16.8
18.2
21.0
|
More Ideas
1) If require conventional construction and materials, please click 10D-FB;
2) If require lightweight and weldable shield,please click 10D-CCA-TCCA or 10D-CCA-TC;
3) If require lightweight and lower price,please click 10D-CCA-AL or 10D-CCA-TCCA;

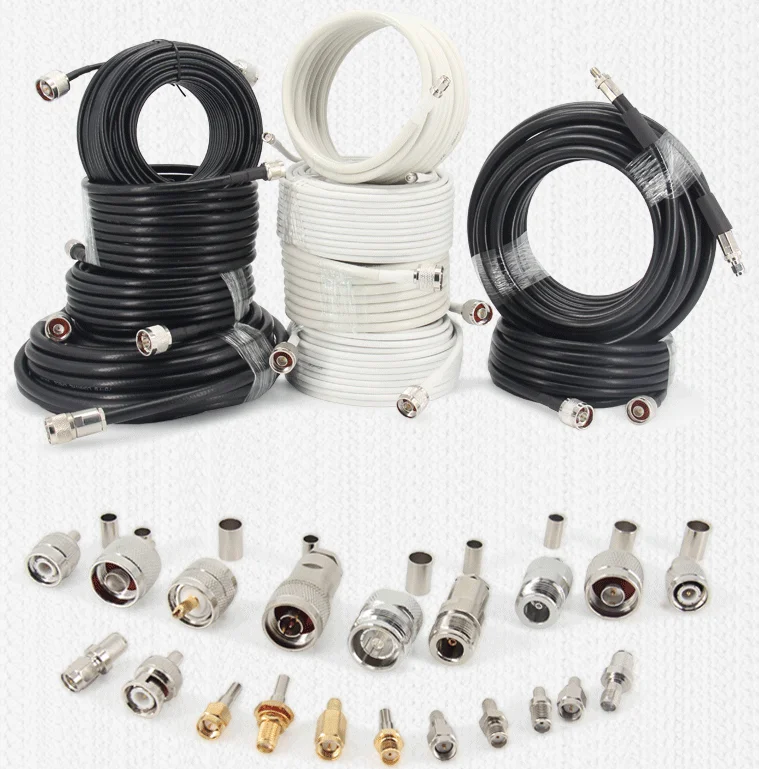

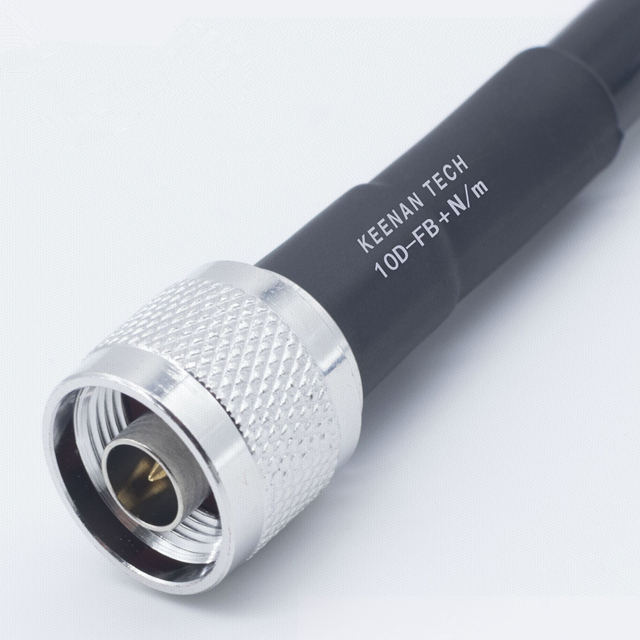

4) For more 10D-FB assemblies,please click 10D ASSEMBLIES;
