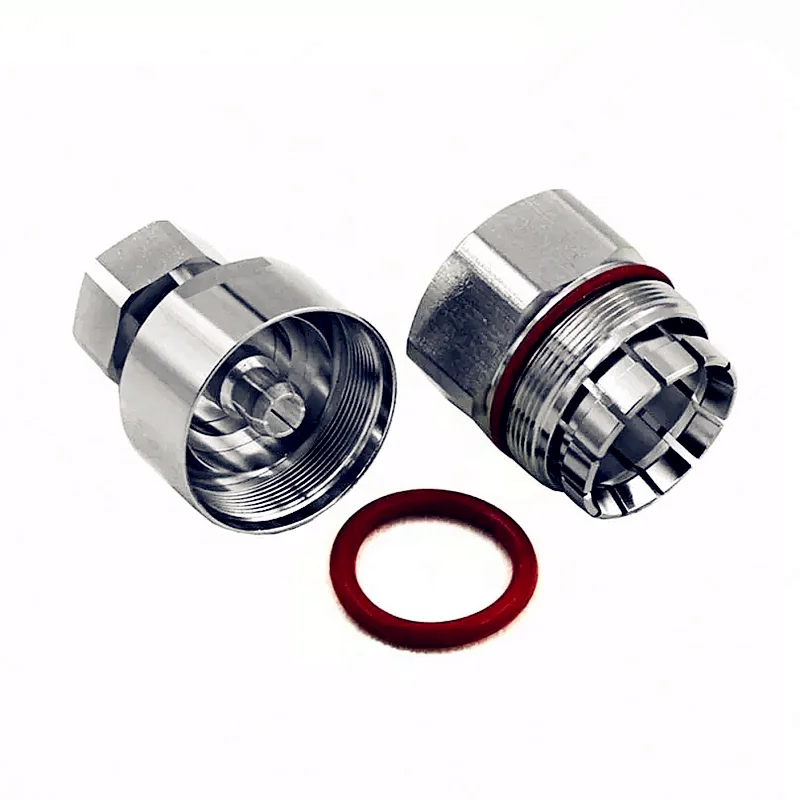

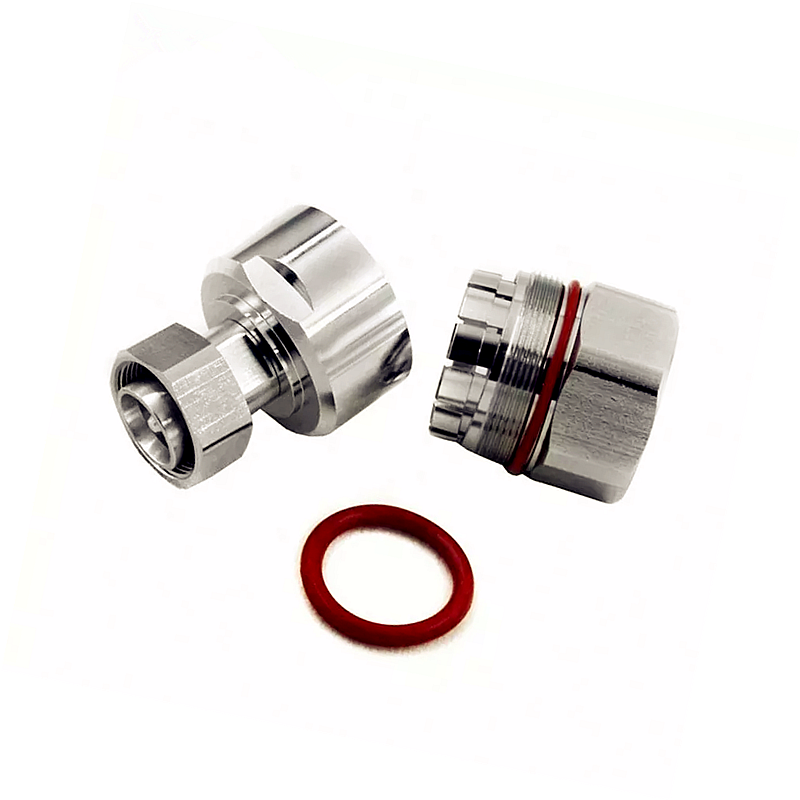

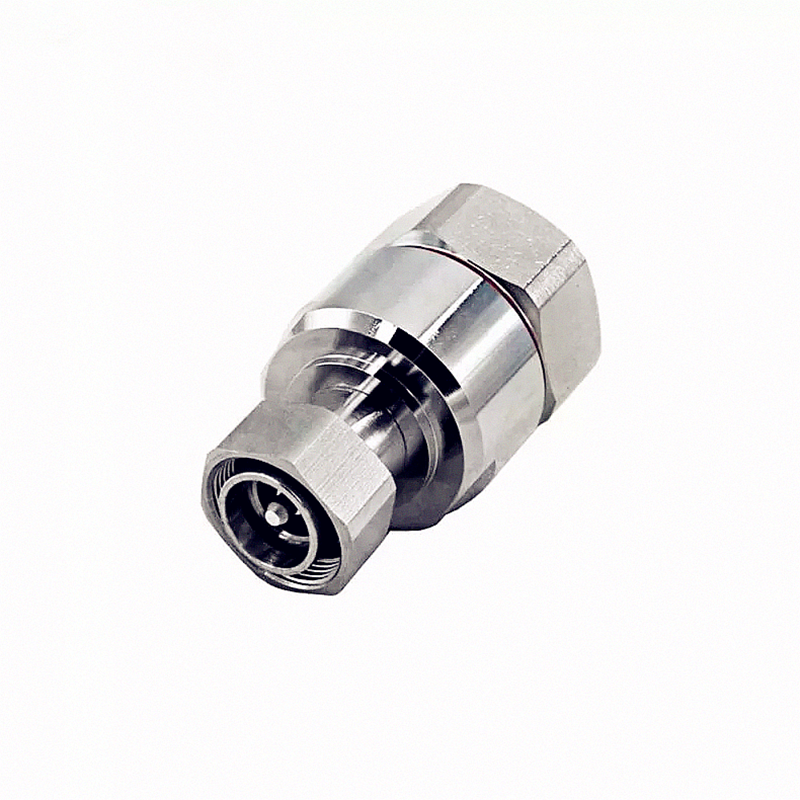

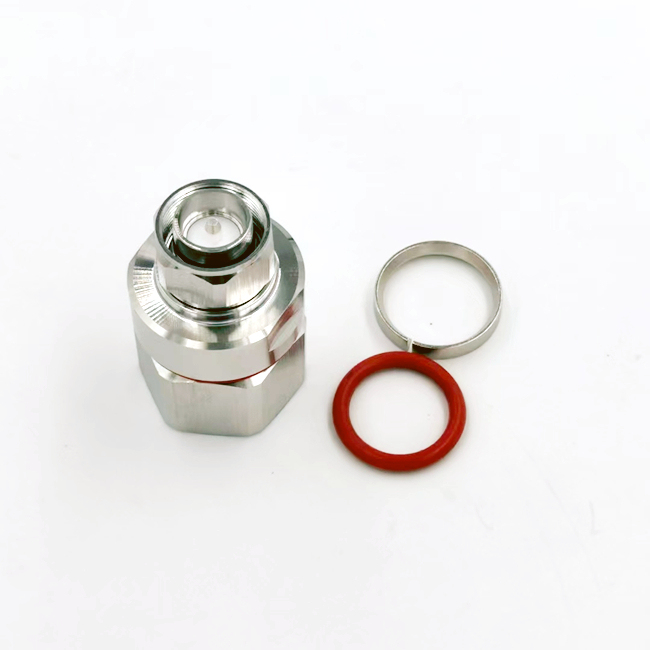

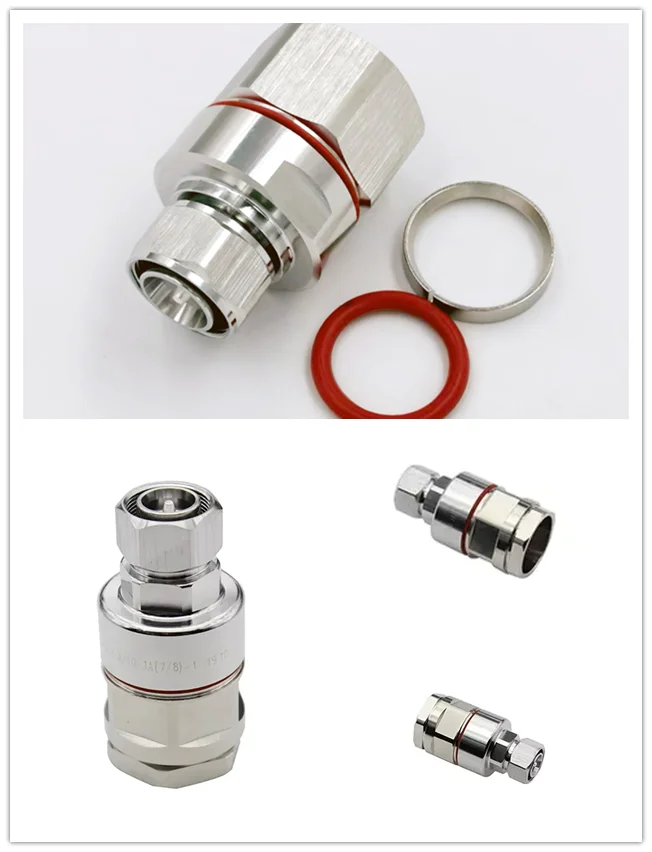

Low Less RF Coaxial 4.3-10 Male Clamp Connector For 7/8" Foam Feeder Flexible Cable
RF 4.3-10 connector system allows constant PIM values for a wide range of torque values. It has excellent electrical performances: Low and reliable PIM, Small form factor, Very good RL/IL performance, High screening efficiency, High power performance for its form factor. The characteristic of this connector is: Smallest footprint, Low and reliable PIM independent of torque, Easy installation. They are widely used in the remote radio head as well as interface on the antenna and on the jumpers
|
Electrical
|
|
|
Impedance
|
50ohm
|
|
Frequency
|
DC-11GHz
|
|
VSWR
|
(DC-3GHz)≤1.10 (3-6GHz)≤1.20
|
|
PIM
|
≤-165dBc
|
|
Dielectric withstanding voltage
|
≥2500V RMS, 50Hz, at sea level
|
|
Dielectric Resistance
|
≥5000MΩ
|
|
Center contact resistance
|
≤1.0m Ω
|
|
Outer contact resistance
|
≤1.0m Ω
|
|
Mechanical
|
|
|
Durability
|
≥100 times
|
|
Center contact captivation
|
30N
|
|
Coupling torque
|
≥ 5 Nm
|
|
Environmental
|
|
|
Watertightness
|
IP67
|
|
Rosh-compliance
|
Full ROHS compliance
|
|
Salt-fog test
|
96h
|
|
Temperature range
|
-40℃~+85℃
|
|
Material
|
|
|
Body
|
Brass / Tri-alloy plating
|
|
Center contact
|
Phosphor bronze / Ag plating
|
|
Dielectric
|
PTEF
|
|
Gasket
|
Silicone Rubber
|
|
Coupling nut
|
Brass,Nickel plated
|
