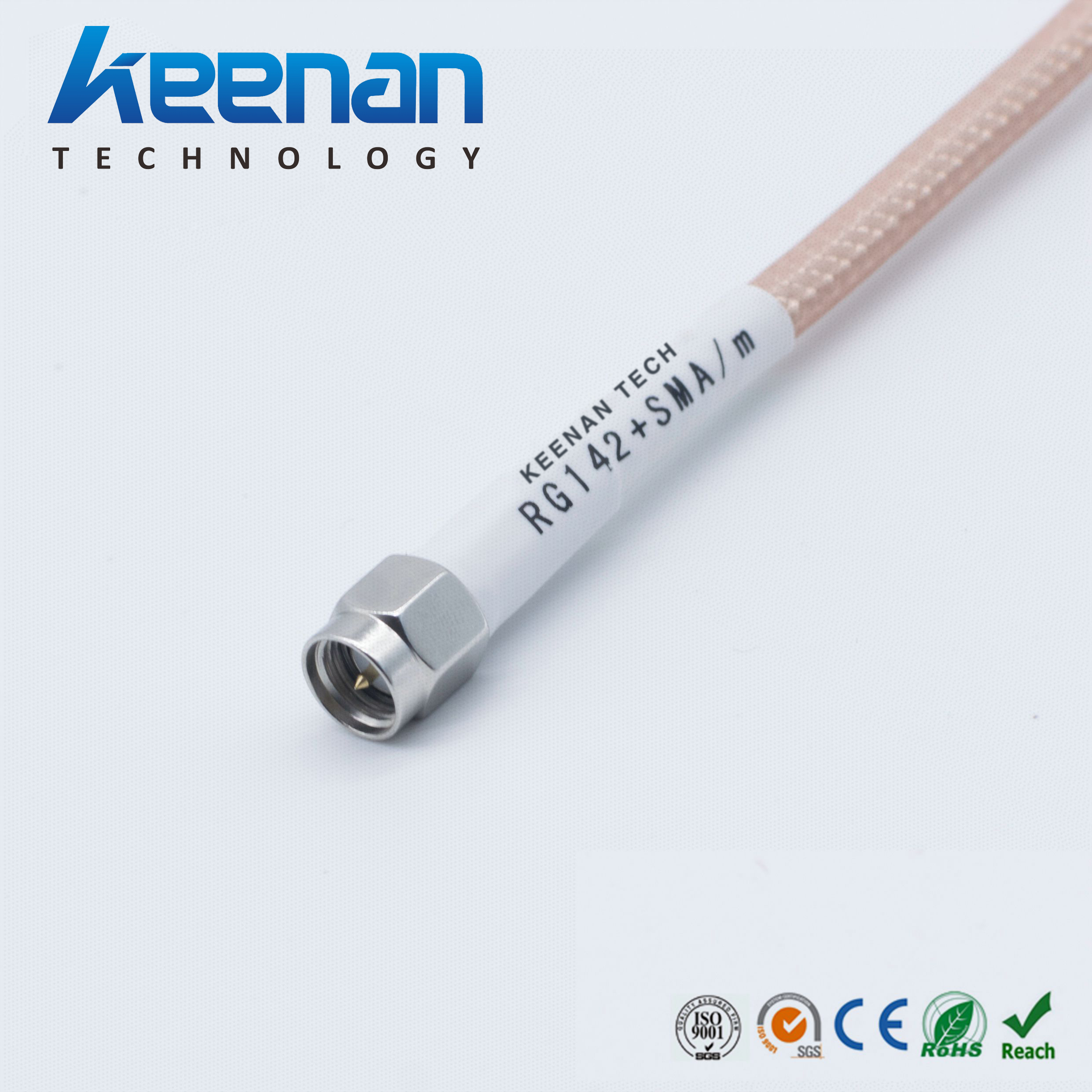

High Temperature RG142 RG316 RG178 RG179 RG400 Coaxial Cable for Telecommunication
Overview
This 50 Ohm RG142 coaxial cable has small outer diameter and can be fixed kinds of connectors. It can work for a long time in a 200 degree temperature environment.Its versatile cable assemblies with various lengths have been widely used for tight fit applications.
Features
50 Ohm data signal transmission;
The inner conductor could be stranded or solid;
Special insulation materials,providing good electrical property and welding performance;
Small diameter is ideal for tight fit applications;
Customized cable color , winding and connector, meet your different requirements;
RoHS compliant;

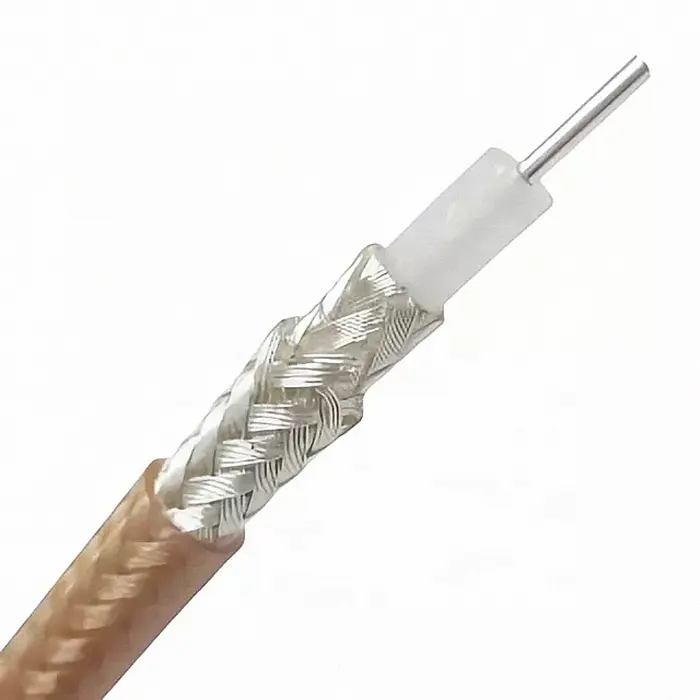

Construction
|
|
Material |
Diameter(mm) |
|
Inner Conductor Dielectric First Shield Second Shield Jacket |
Silver Plated Copper PTFE SPC Braid 95% Coverage SPC Braid 95% Coverage FEP |
0.94 3.00 112*0.1 112*0.1 4.95 |
Electrical Characteristics
|
Capacitance (pF/m) Impedance (Ω) Velocity of Propagation (%) Bending Radius(mm) Max Operating Frequency (MHz) Max Operating Voltage(VRMS) Operating Temperature(0C) |
96.5 50.0 70.0 25 8000 1900.0 -55 to +200 |
Attenuation [@68oF (20oC)]
|
Frequency(MHz) |
Max Attenuation (dB/100m) |
|
100 400 1000 3000 5000 |
12.5 25.6 42.0 78.1 105.0 |
