High Quality Low Less LMR100 LMR195 LMR240 Coaxial Antenna Cable
High Quality Low Less LMR100 LMR195 LMR240 Coaxial Antenna Cable

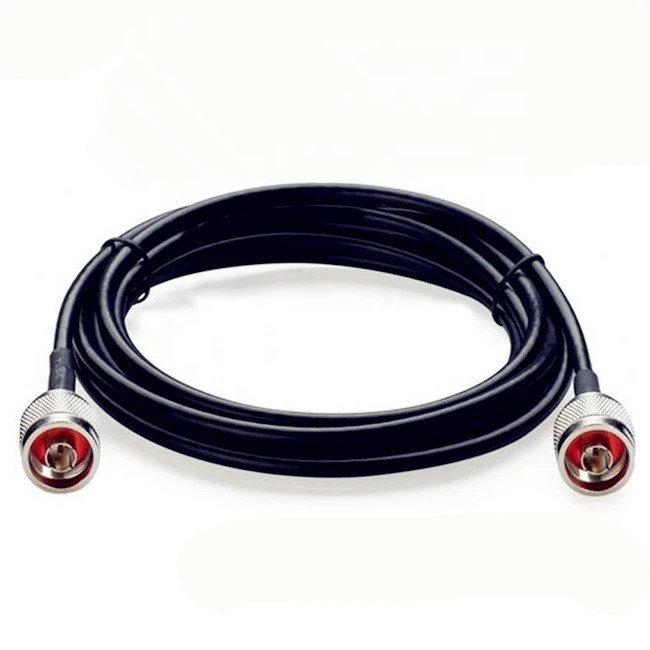

This 50 Ohm 100 series coaxial cable can be used in applications where cable assemblies must be built in the field. Its versatile cable assemblies with various lengths have been widely used for tight fit applications
• 50 Ohm data signal transmission;
• The shielding layer composed of aluminum foil and braiding has a good shielding effectiveness;
• Excellent performance in high frequency,VSWR stability;
• Customized cable color , winding and connector, meet your different requirements;
• RoHS compliant;

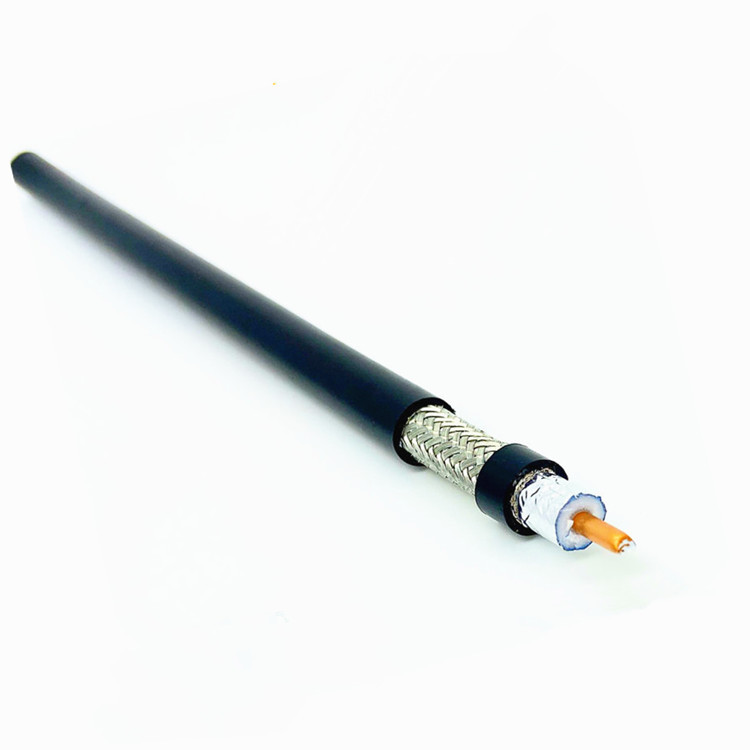

Construction
|
Item
|
Material
|
Diameter(mm)
|
Remarks |
|
Inner Conductor
Dielectric
First Shield
Second Shield
Jacket
|
Bare Copper
Foam PE
Bonded Aluminum Foil
TC Wire Braid
PVC/PE/LSZH
|
0.46
1.52
1.65
2.11
2.79
|
Per customer’s requirements:
Out conductor could be 96,112 or 128 TC wires braiding;
Jacket could be PVC,PE or LSZH; |
Electrical Characteristics
|
Impedance (Ω)
Capacitance (pF/m)
Velocity of Propagation (%)
Return Loss
Screening Effectiveness(db)
Voltage With Stand
Installation Temp(℃)
Operating Temp(℃)
|
50±3
83..3
83.0
≥20
≥90
1000.0
-30 to +70
-30 to +70
|
Attenuation (@200C)
|
Frequency(MHz)
|
Max Attenuation(dB/100m)
|
|
150
220
450
900
1500
1800
2000
2500 |
29.4
35.8
51.9
74.9
98.7
109.0
115.5
130.6 |

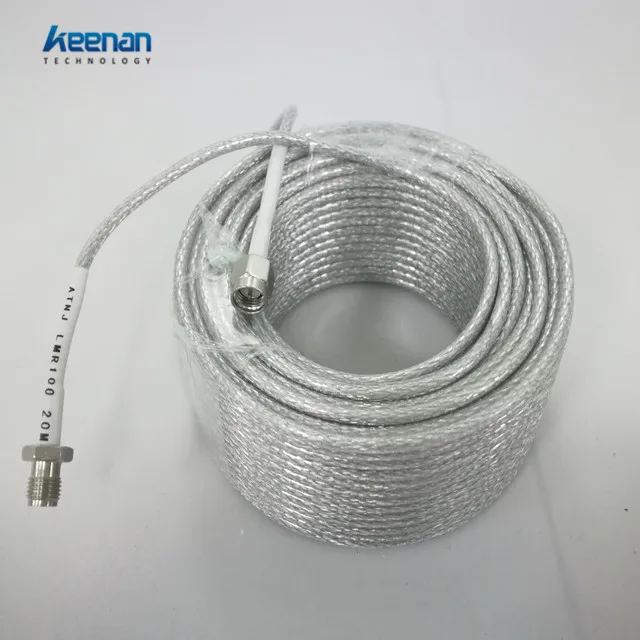

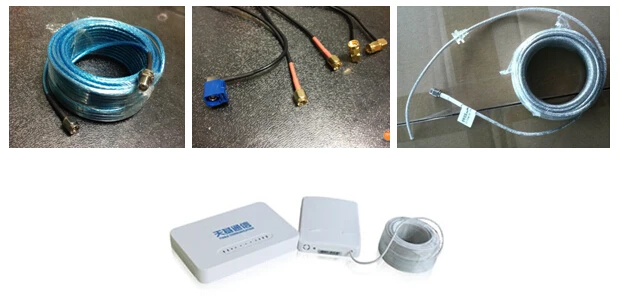

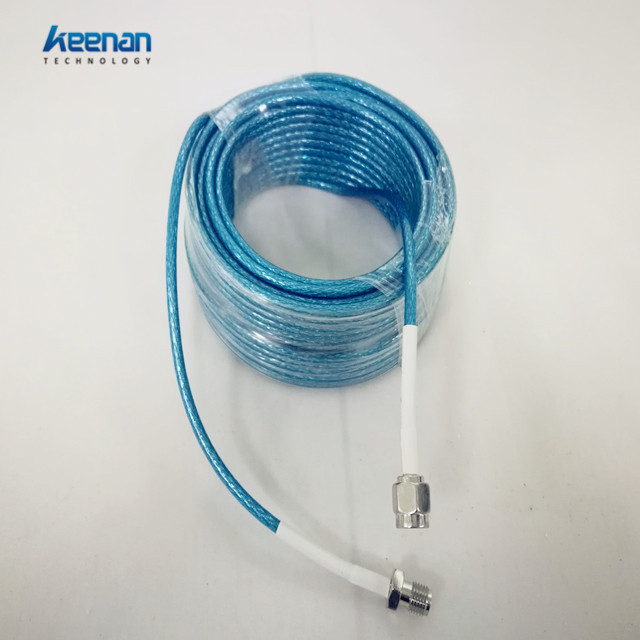

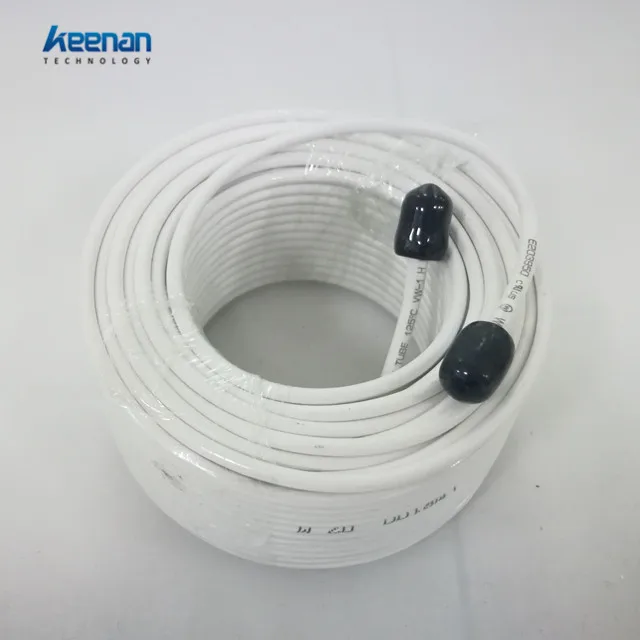

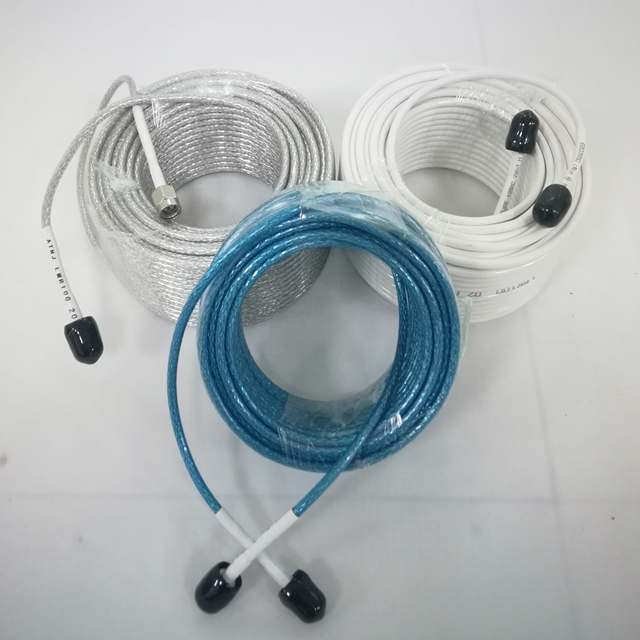

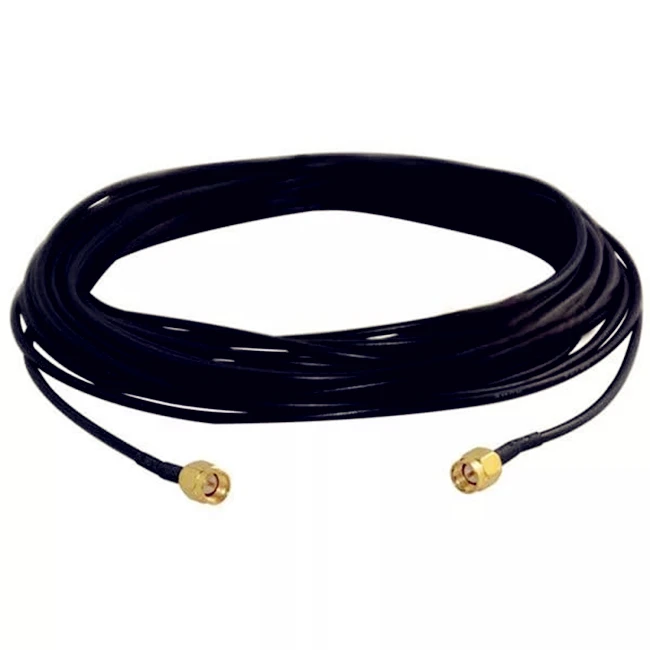

This 50 Ohm LMR100 coaxial cable can be fixed kinds of connectors,such as SMA,FRAKA,BNC,MCX connectors.These versatile cable assemblies with various lengths have been widely applied to CDMA,TD,GSM antenna systems and other communication systems
