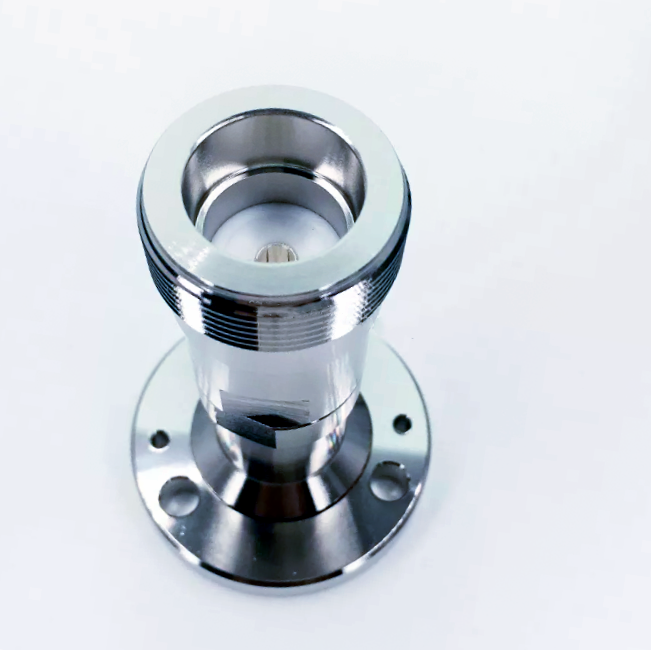

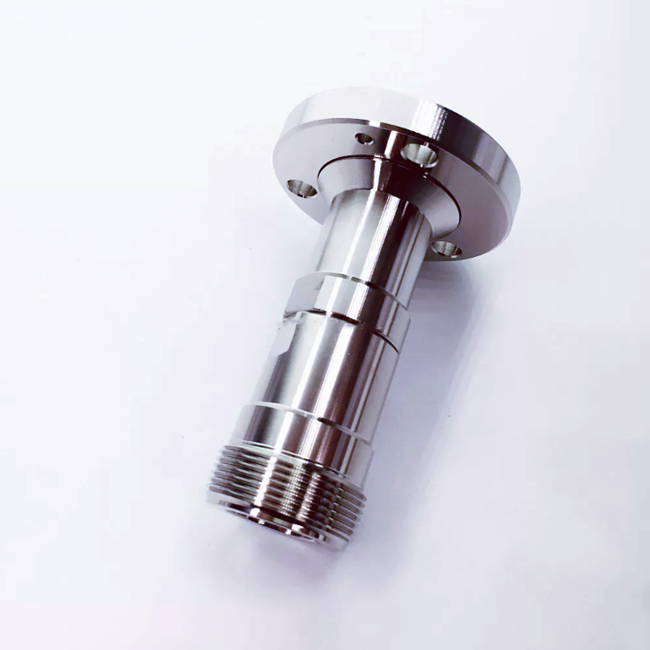

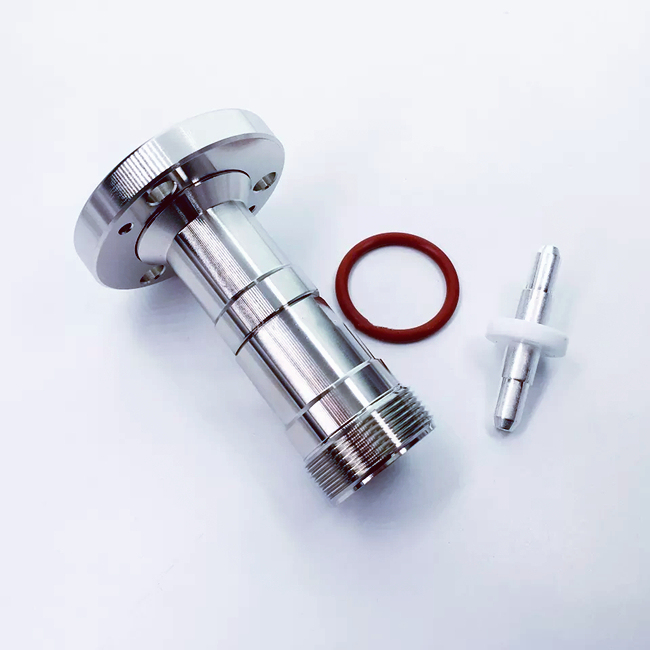

High Quality LC Female to 7/8" EIA Flange RF Connector Adapter
|

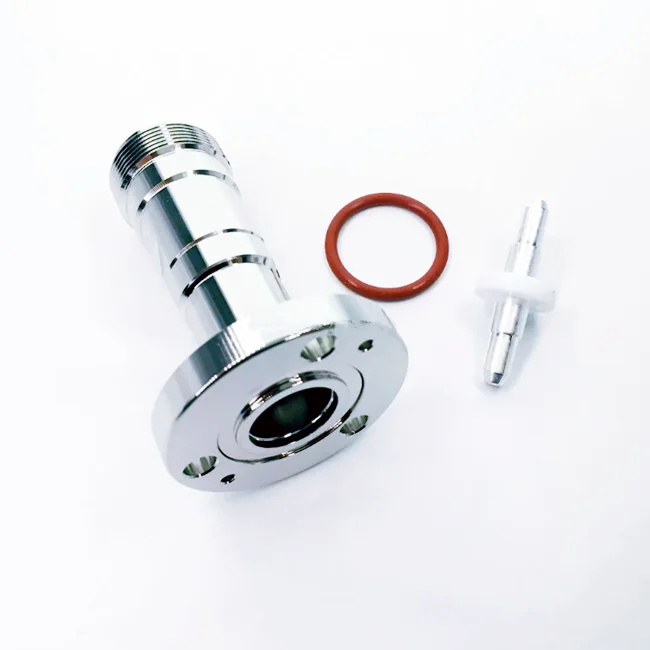

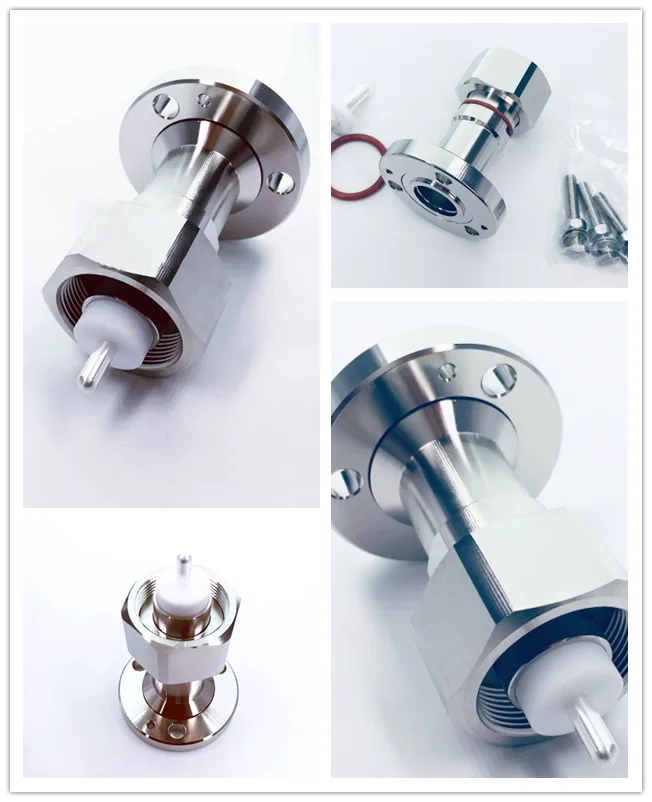

High Quality 7/8" EIA Flange to LC Male Plug RF Connector Adaptor
|
|
|
Characteristic Impedance
|
50ohm
|
|
Frequency Range
|
DC-3GHz
|
|
VSWR
|
≤1.1@DC-1000MHz
|
|
Insertion loss typical
|
≤0.05DBi
|
|
Dielectric Withstanding Voltage
|
≥6000V RMS,50Hz,at sea level
|
|
Dielectric Resistance
|
≥5000MΩ
|
|
Average Power
|
7KW @900MHz
|
|
Peak Power Maximum
|
90KW
|
|
Contact Resistance
|
Center Contact ≤1.5mΩ Outer Contact ≤1.5 mΩ
|
|
Mechanical
|
|
|
Durability
|
Mating cycles ≥500
|
|
Material and Plating
|
|
|
Body
|
Brass
|
|
Insulator
|
PTFE
|
|
Inner Conductor
|
Phosphor Bronze
|
|
Coupling Nut
|
Brass
|
|
Gasket
|
Silicone Rubber
|
|
Cable Clamp
|
Brass
|
|

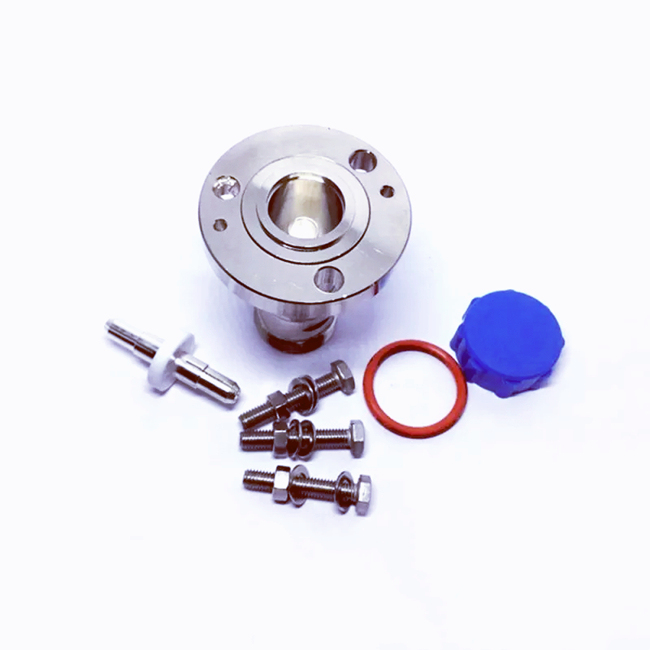

Hardware kit(Bolts /Nut/Washer)
|
Stainless Steel
|
|
Environmental
|
|
|
Operating Temperature
|
-45 °C-85 °C
|
|
Weatherproof Rate
|
IP68
|
|
RoHs (2002/95/EC)
|
Compliant
|
|
|
|
We could make different kinds of RF connectors ,such as SMA ,F ,BNC ,TNC, N,4.3-10 ,DIN and so on .If we did not reply you in time .pls feel free to call Alex Lee(Wechat/mail)
