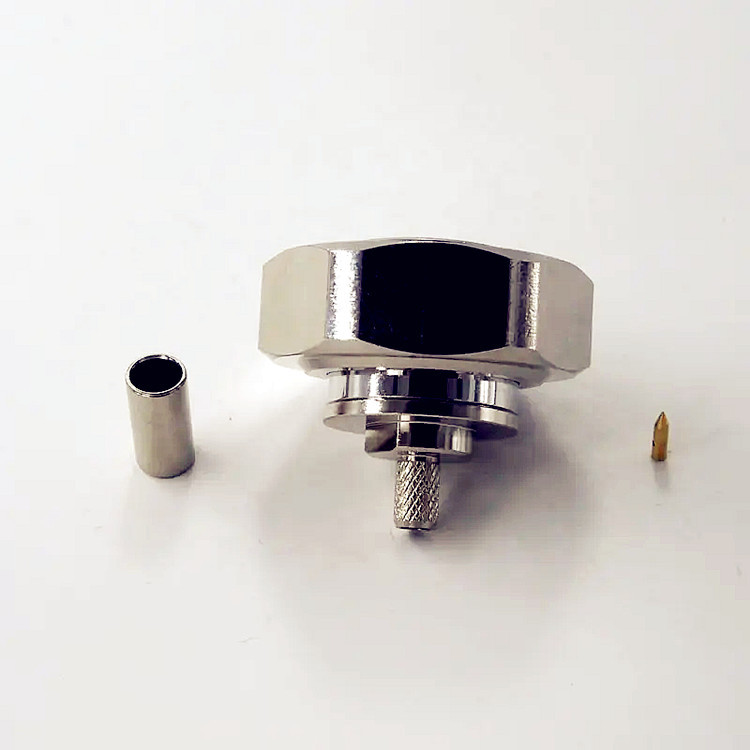

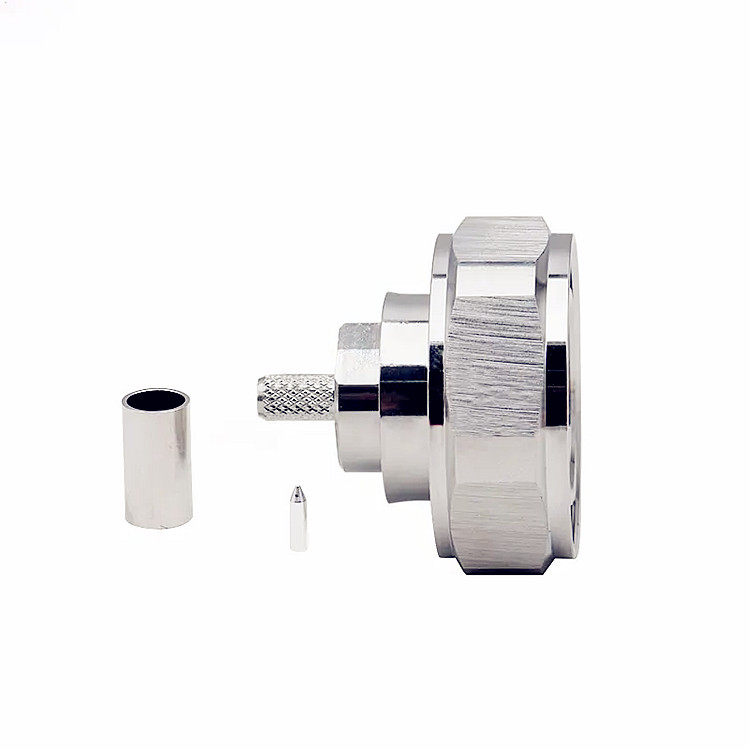

High Quality 716 DIN Male Crimp RF Coaxial Antenna Connector For RG58 LMR195 RG402 Cable

Name: High Quality 716 DIN Male Crimp RF Coaxial Antenna Connector For RG58 LMR195 RG402 Cable
Brand: https://keenantech.net/
SKU: DIN-C-J-3
Price: 2.80 USD
Availability: InStock
Rating: 5 (1 reviews)

No.DIN-C-J-3

L29 (DIN 7/16) is a threaded RF coaxial connector, belonging to a low intermodulation PIM RF coaxial connector. The standard impedance is 50Ω, and the operating frequency range is DC-7.5GHz. The L29 coaxial connector was first developed in the 1960s. It features ultra-high power capacity and extreme environment tolerance. In low-frequency and high-power scenarios, its reliability and durability far exceed those of N-type and other connectors. It is widely used in antenna systems, main feed cables, and patch cord connections in broadcasting and television, wireless cellular base stations, and microwave communication systems.

$2.80

Description

High Quality 716 DIN Male Crimp RF Coaxial Antenna Connector For RG58 LMR195 RG402 Cable

L29 (DIN 7/16) is a threaded RF coaxial connector, belonging to a low intermodulation PIM RF coaxial connector. The standard impedance is 50Ω, and the operating frequency range is DC-7.5GHz. The L29 coaxial connector was first developed in the 1960s. It features ultra-high power capacity and extreme environment tolerance. In low-frequency and high-power scenarios, its reliability and durability far exceed those of N-type and other connectors. It is widely used in antenna systems, main feed cables, and patch cord connections in broadcasting and television, wireless cellular base stations, and microwave communication systems.

High Quality 716 DIN Male Crimp RF Coaxial Antenna Connector For RG58 LMR195 RG402 Cable
Impedance	50Ω
Vibration	MIL-STD-202,Method 213
Frequency range	DC-6GHz
Insertion Loss	≤ 0.15dB/6GHz
Working Voltage	335V max
Withstanding Voltage	2500V r.m.s at sea level
Insulation Resistance	1000V rms
VSWR:	Straight ≤ 1.1/6GHz Right angle ≤ 1.2/6GHz
Contact resistance: -center contact -outer contact	≤1mΩ ≤ 1mΩ
Insulation resistance	≥5000MΩ
Durability	Mating cycles ≥500
Temperature Range	-55~+155°C (PE Cable -40~+85°C)

Piece part	Material	plating
Body	Brass	Nickel plated
Center conductor	Brass	Gold or silver plated
Crimping suite	Copper alloy	Nickel plated
O-ring sealing	6146 silastic
Insulator	PTFE

Note: We can provide other materials and plating specifications according to customers'requirements.
