L29 (DIN 7/16) is a threaded RF coaxial connector, belonging to a low intermodulation PIM RF coaxial connector. The standard impedance is 50Ω, and the operating frequency range is DC-7.5GHz. The L29 coaxial connector was first developed in the 1960s. It features ultra-high power capacity and extreme environment tolerance. In low-frequency and high-power scenarios, its reliability and durability far exceed those of N-type and other connectors. It is widely used in antenna systems, main feed cables, and patch cord connections in broadcasting and television, wireless cellular base stations, and microwave communication systems.

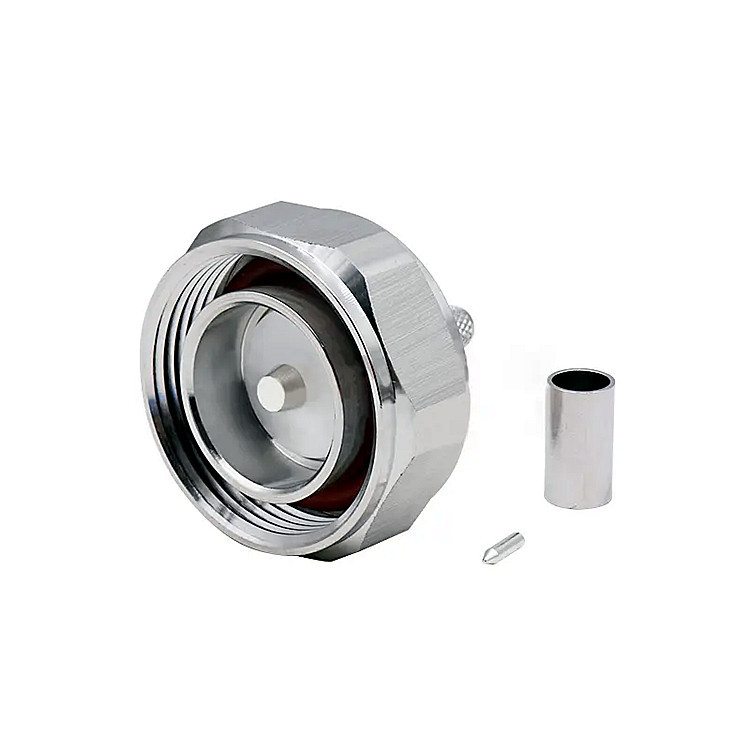

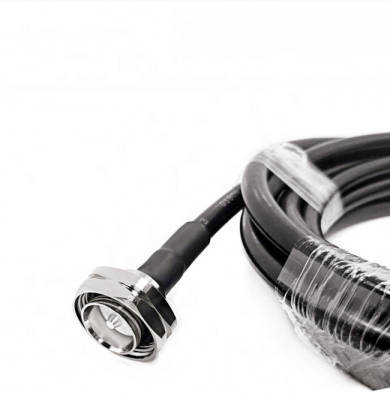

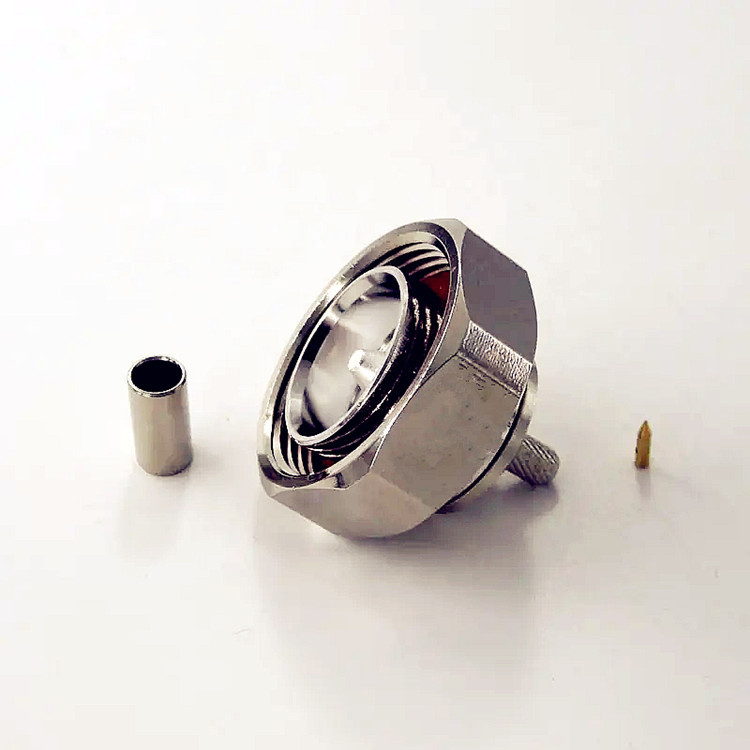

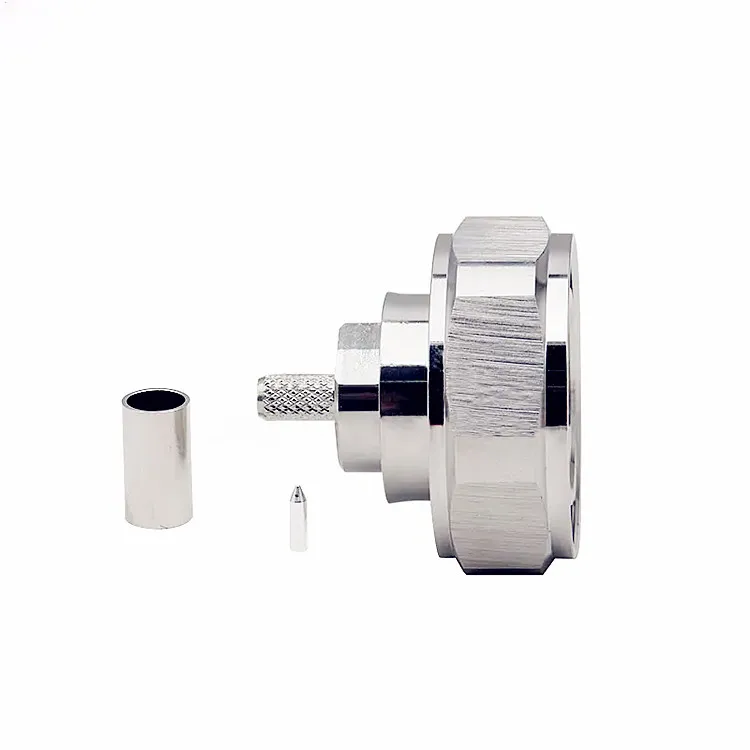

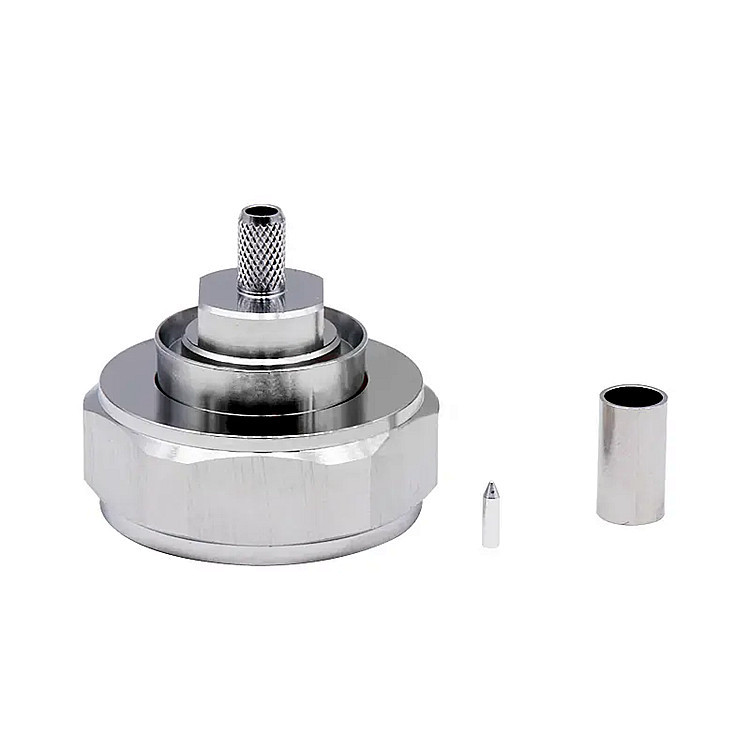

High Quality 7/16 DIN Male Crimp RF Antenna Connector For RG58 LMR195 RG402 Coaxial Cable
Overview
RF coaxial connector/adaptor has high reliability, strong vibration resistance, mechanical and electrical characteristics of excellent performance. It is widely used in vibration and environment under the condition of radio equipment and instrument , ground launch system, and it can join all kinds of coaxial cables.
Discription:Type 7/16(L29) is one kind of thread coupling RF coaxial connector. Characteristic impedance is 50ohm. The characteristic of connector is in big power, low VSWR, less attenuation, low inter-modulation, excellent nature of airtight. They are used in connection with feeder cables in broadcast, Television,ground launch system, monitoring of radar, microwave communication fields etc. Our company manufacturer produces many kinds of jumper lines, which can reduce your cost on cable.
Applications:
Antennas/ Base station /Broad cast /Cable assembly /Cellular /Components /Instrumentation/Microwave Radio/Mil-Aero
PCS/Radar /Radios/Satcom /Surge protection WLAN
Note:
1) These characteristics are typical but may not apply to all connectors
2) OEM and ODM are available
Construction
|
Piece part |
Material |
plating |
|
Body |
Brass |
Nickel plated |
|
Center conductor |
Brass or Phosphor Bronze |
Gold or silver plated |
|
Crimping suite |
Copper alloy |
Nickel plated |
|
O-ring sealing |
6146 silastic |
|
|
Insulator |
PTFE |
