High Quality 50Ohm RG213 Good Flexibility Multipurpose MIL-C-17 Coaxial Cable
Overview
This 50 Ohm RG213 cable is a multipurpose MIL-C-17 coaxial cable.It has good flexibility. These versatile cable assemblies with various lengths have been widely applied to communication systems.
Features
50 Ohm data signal transmission;
The insulation is solid PE;
The inner conductor is stranded;
It has good flexibility;
Common size cable can be easily terminated;
Be in conformity with the European ROHS standard;
Assemblies & Application

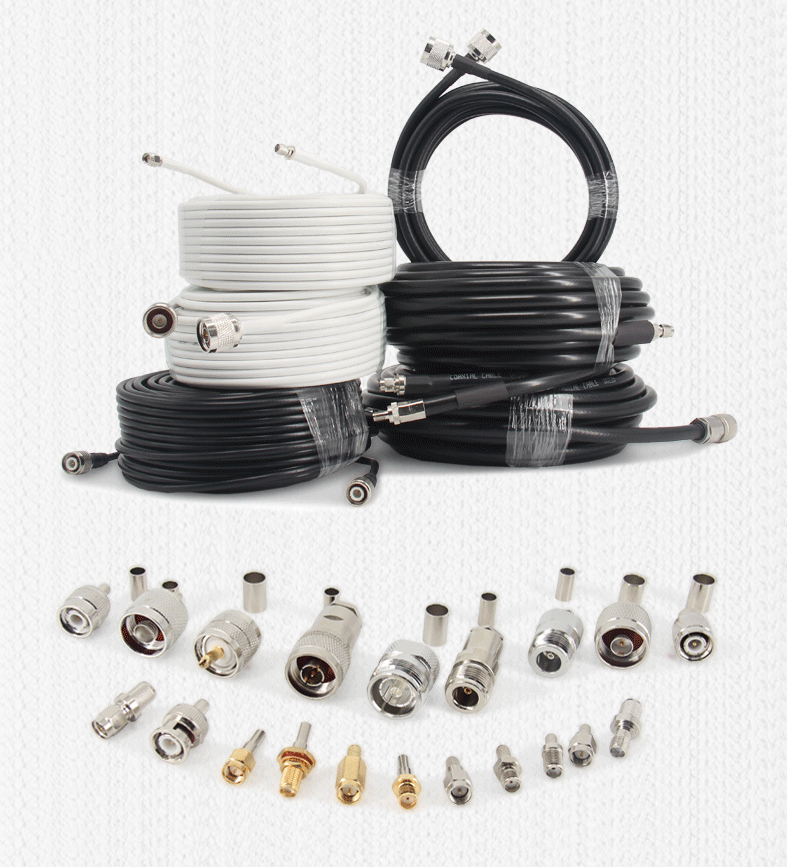

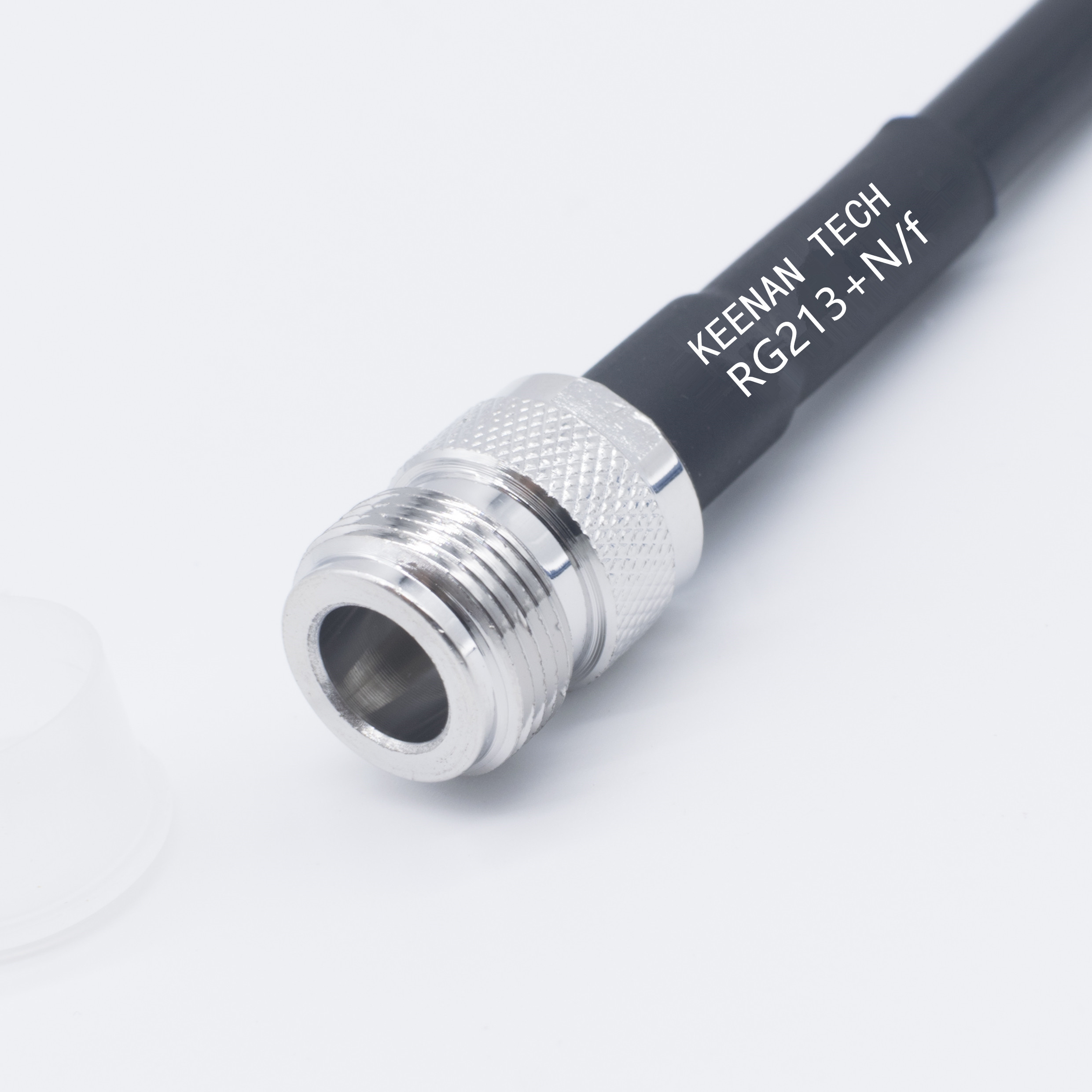

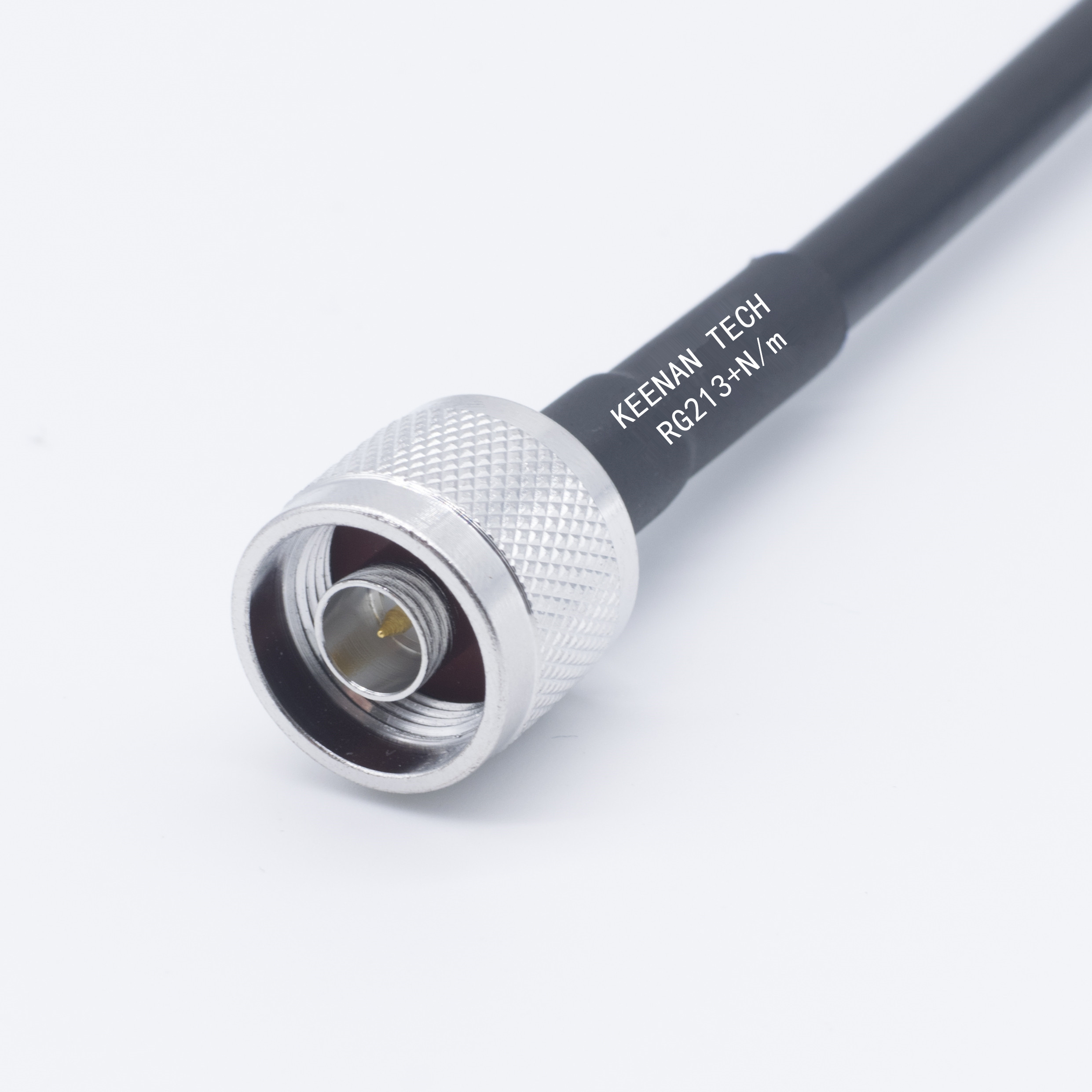

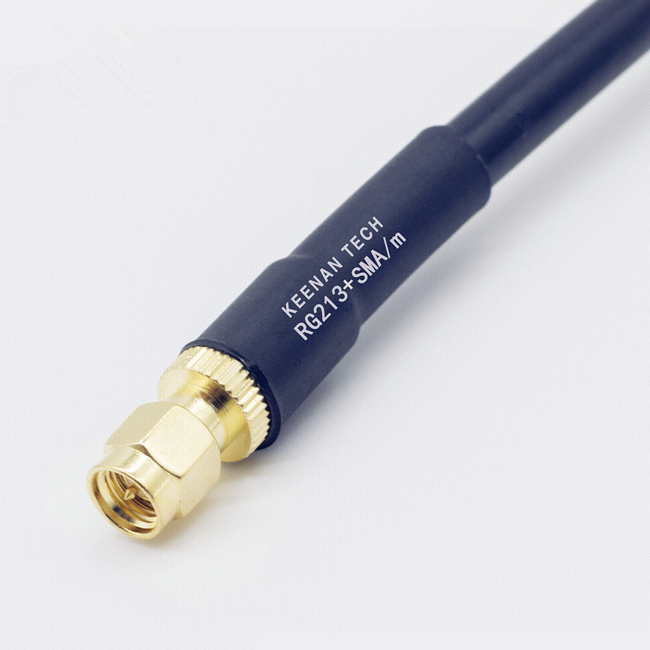

This 50 Ohm RG213 coaxial cable can be fixed with kinds of connectors,such as SMA,N,BNC,TNC
connectors.These versatile cable assemblies with various lengths have been widely applied to CDMA,GSM and other communication systems.

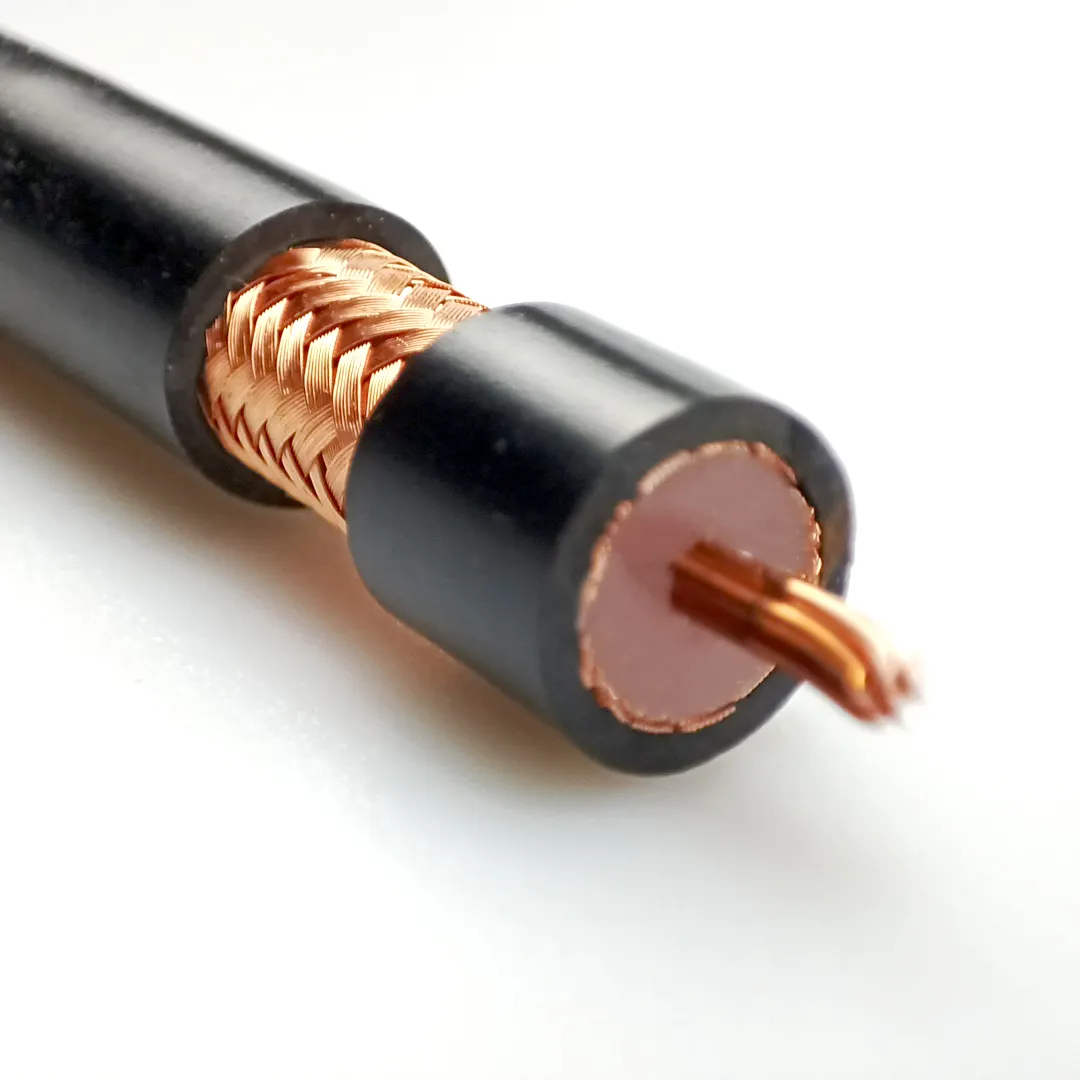

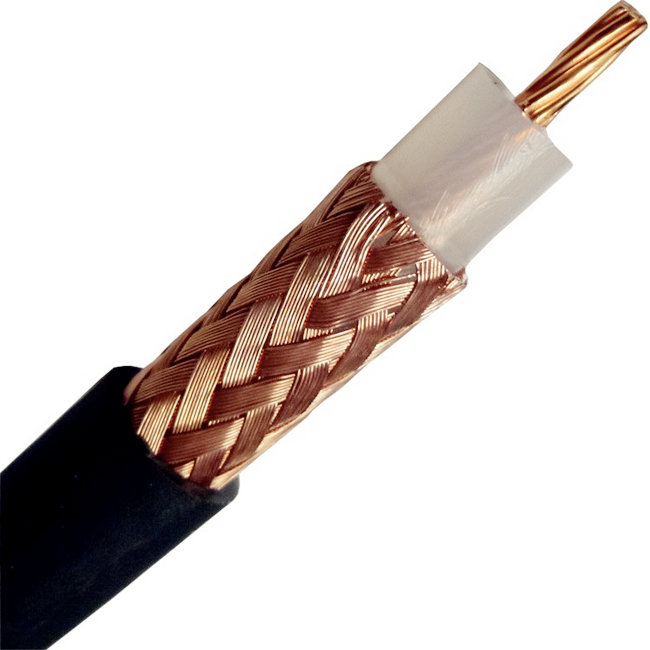

Construction
|
|
Material |
Diameter(mm) |
Remarks |
|
Inner Conductor Insulation Out conductor Jacket |
Bare Copper Solid PE BC wire Braid PVC/TPE/TPU |
7*0.75 7.24 7.90 10.30 |

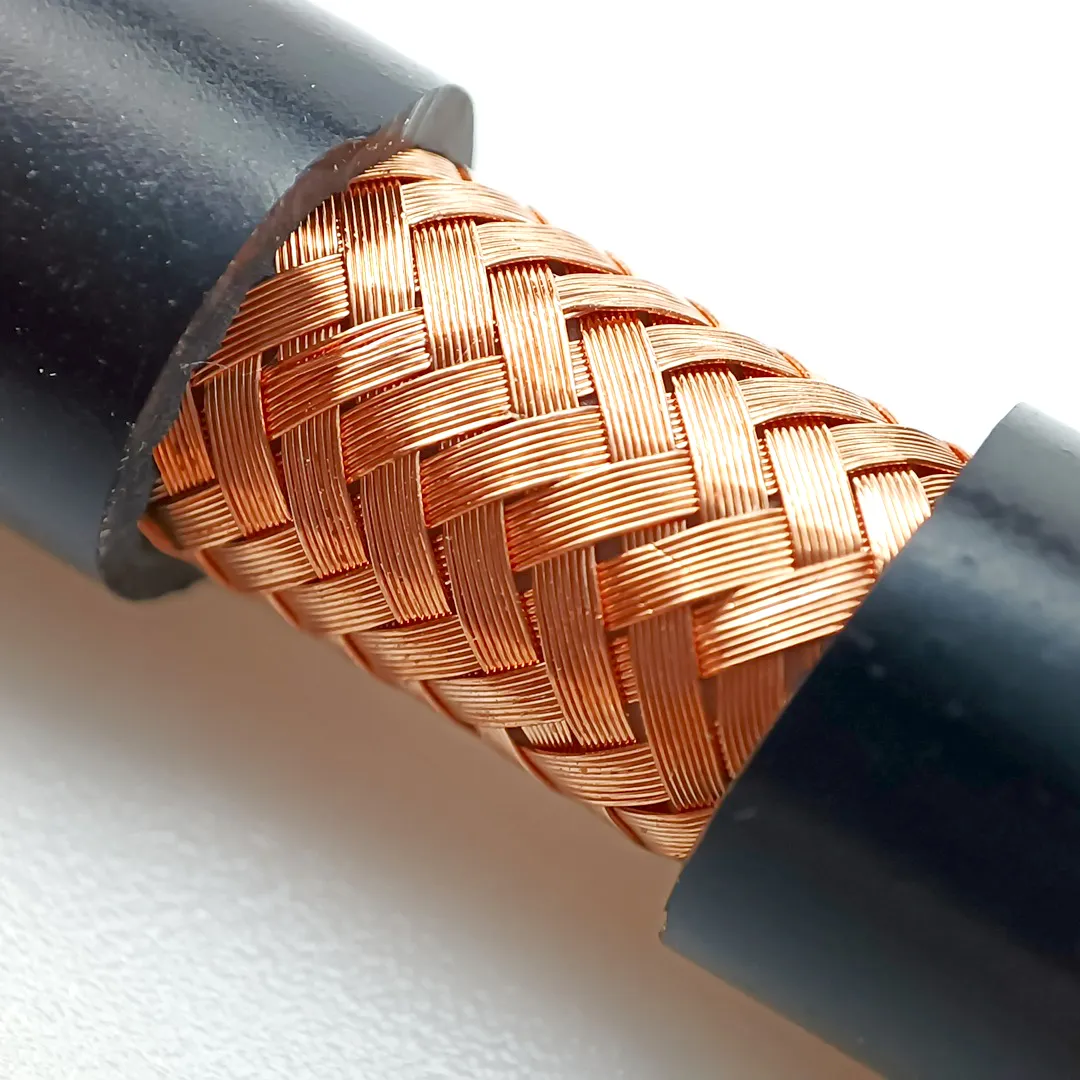

Per customer’s requirements: Out conductor could be 144,168,192 or 216 BC wires braiding; Jacket could be PVC,TPE or TPU; |
ElectricalCharacteristics
|
Capacitance (pF/m) Impedance (Ω) Velocity of Propagation (%) Max Operating Frequency (MHz) Max Operating Voltage(VRMS) Inner Conductor Resistance (Ω/kM) Return Loss (dB) Operating Temperature(0C) |
101.0 50.0 66.0 2000 1500.0 130 20 -30 to +70 |
Attenuation [@68oF (20oC)]
|
Frequency(MHz) |
|
Max Attenuation (dB/100m) |
|
100 400 1000 3000 |
|
6.8 14.5 25.0 50.0 |
More Ideas
1) If require conventional construction and materials, please click RG213;
2) If require lightweight and lower price,you can choose RG213-BC-CCA ;
3) If require better attenuation,you can choose 7D-FB or LMR400;
4) For more RG213 assemblies,you can choose RG213 ASSEMBLIES;
5) Any other requirements or queries, please click CONTACT US.
