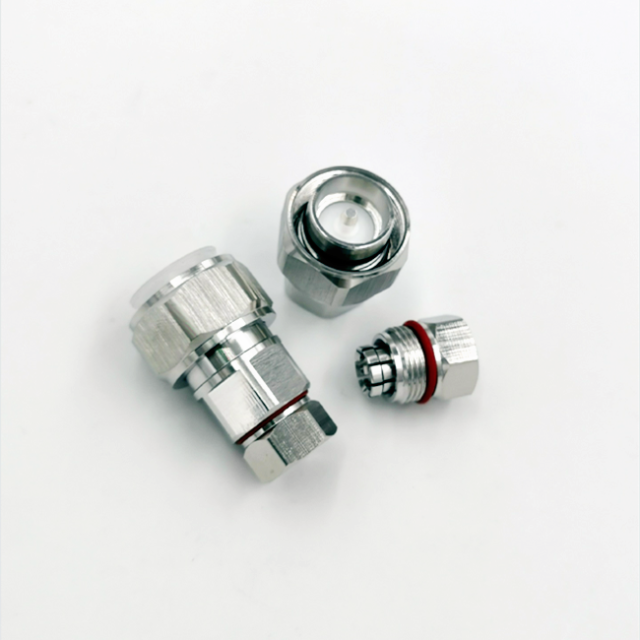

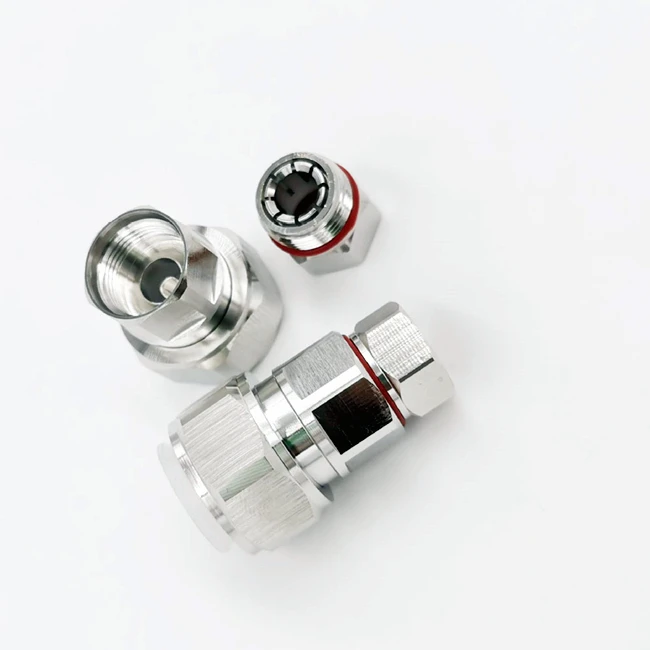

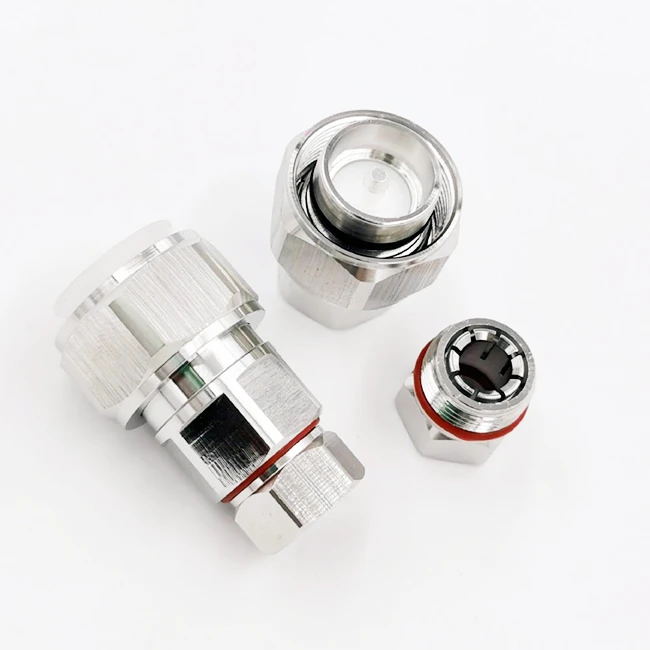

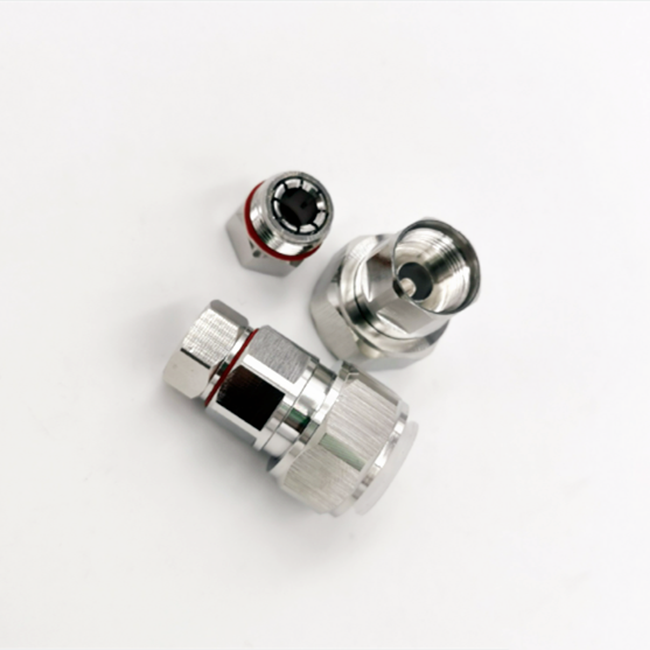

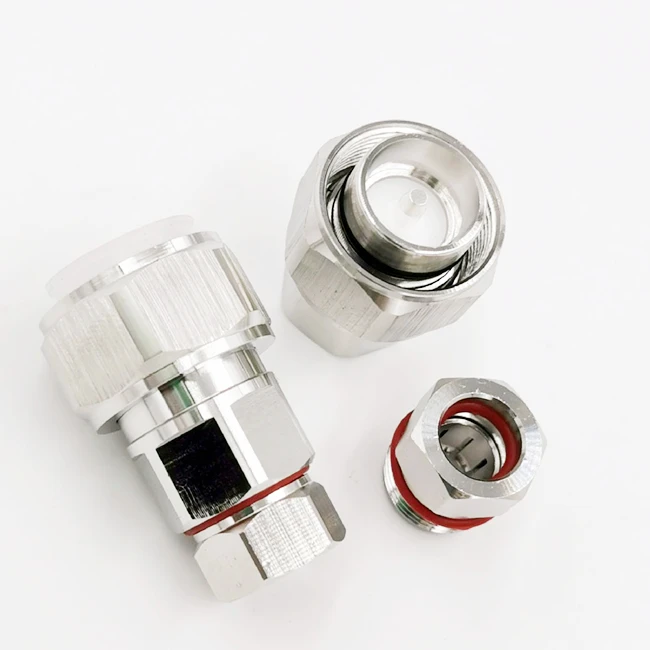

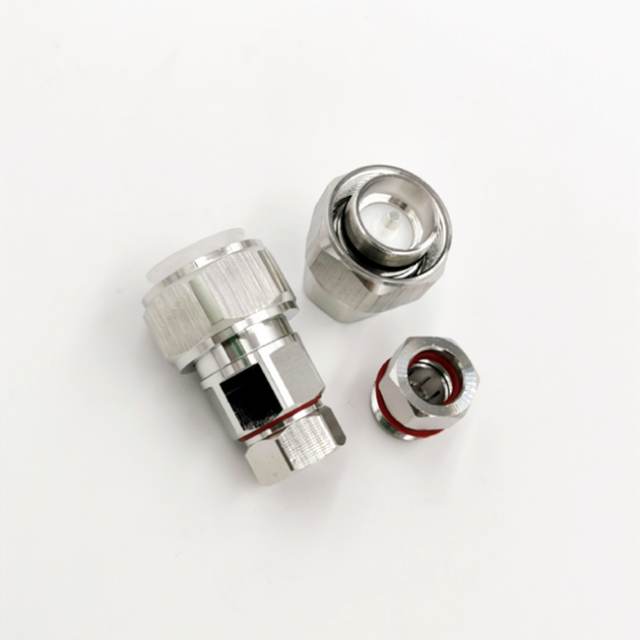

High Quality 4.3-10 MINI DIN Male Coaxial Connector for 1/4" Feeder Cable
|
Place of Origin:
|
China (Mainland)
|
Brand Name:
|
keenan
|
|
Model Number:
|
Mini din
|
Type:
|
Adapter
|
|
Application:
|
RF
|
Gender:
|
Male/Female
|
|
Product Name:
|
4.3-10-J1/4
|
Color:
|
Argent/Golden
|
|
Material:
|
Brass
|
Certificate:
|
ISO9001/CE/ROHS/FCC
|
|
Connector type:
|
mini din
|
Plating:
|
Nickel /Golden Palting
|
|
MOQ:
|
1 Piece
|
ODM/DEM:
|
Offered
|
|
Insulation Resistance:
|
≥ 5000 MΩ
|
Temperature Range:
|
-65~+165℃
|
|
Interface |
|
||
|
According to |
IEC 60169-54 / IEC 60169-4 |
||
|
|
|||
|
Electrical |
|
||
|
Characteristic Impedance |
50 ohm |
||
|
Frequency Range |
DC-11GHz |
||
|
VSWR |
VSWR≤1.10(3.0G) |
||
|
PIM3 |
≤-160dBc@2x20w |
||
|
Dielectric Withstanding Voltage |
≥2500V RMS,50hz,at sea level |
||
|
Contact Resistance |
Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ |
||
|
Dielectric Resistance |
≥5000MΩ |
||
|
|
|||
|
Mechanical |
|
||
|
Durability |
Mating cycles ≥500cycles |
||
|
|
|||
|
Material and plating |
|
|
|
|
|
Material |
plating |
|
|
Body |
Brass |
Tri-Alloy |
|
|
Insulator |
PTFE |
- |
|
|
Center conductor |
Tin Phosphor bronze |
Ag |
|
|
Gasket |
SIlicone rubber |
- |
|
|
Other |
Brass |
Ni |
|
|
|
|||
|
Environmental |
|
||
|
Temperature Range |
-40℃~+85℃ |
||
|
Rosh-compliance |
Full ROHS compliance |
||
