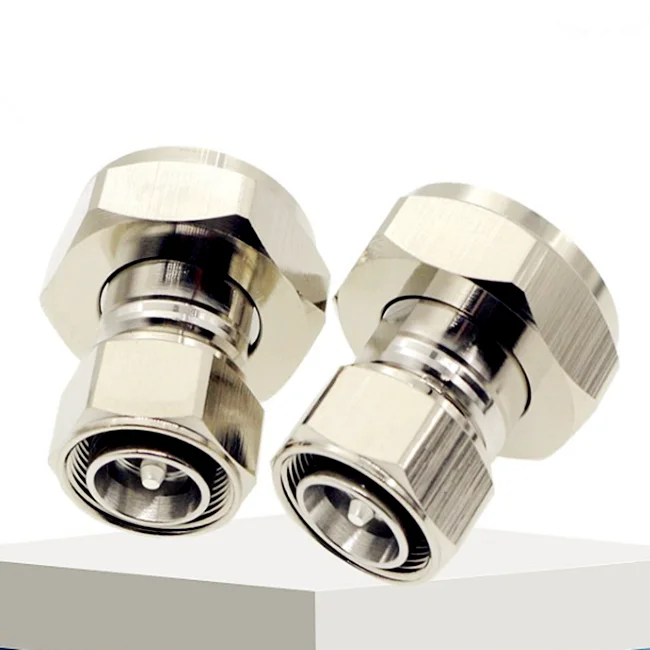

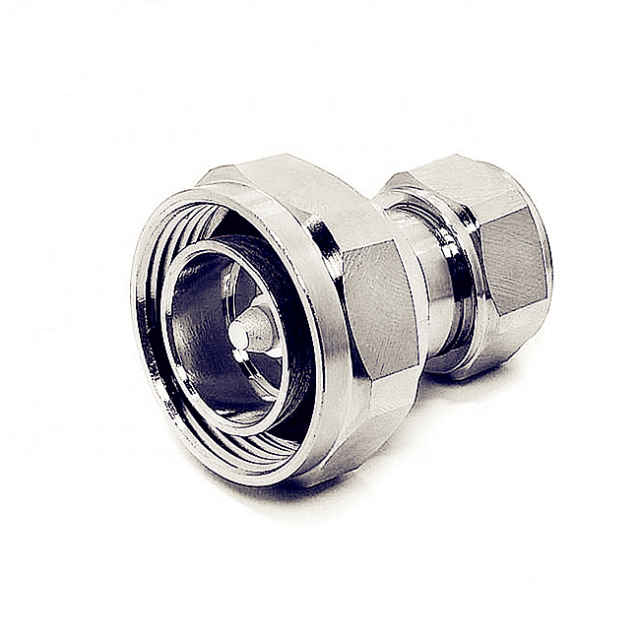

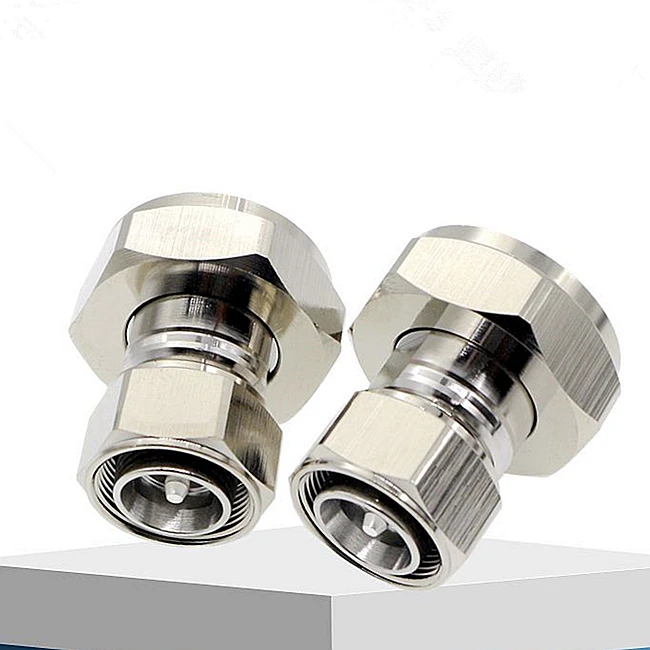

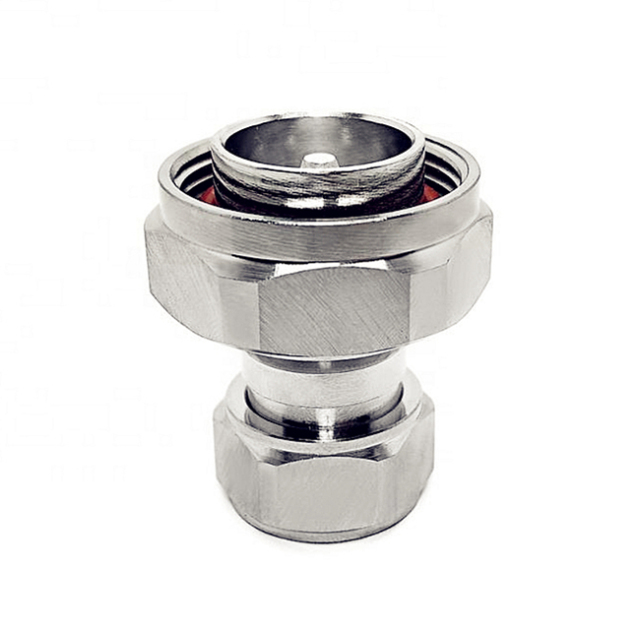

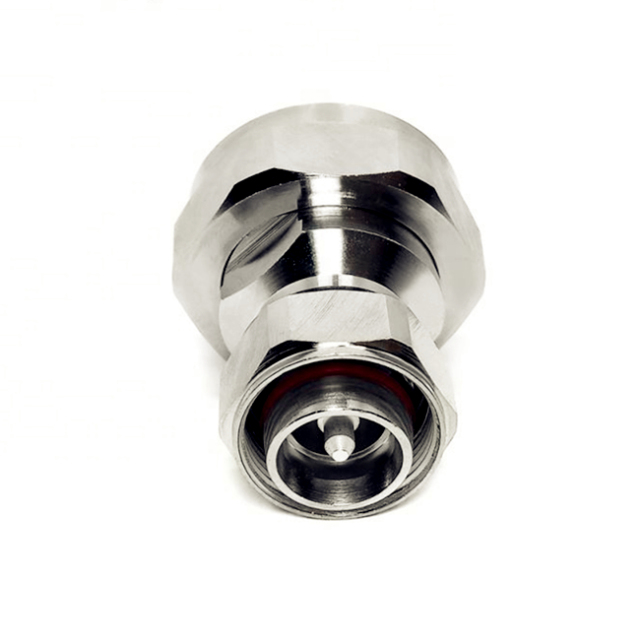

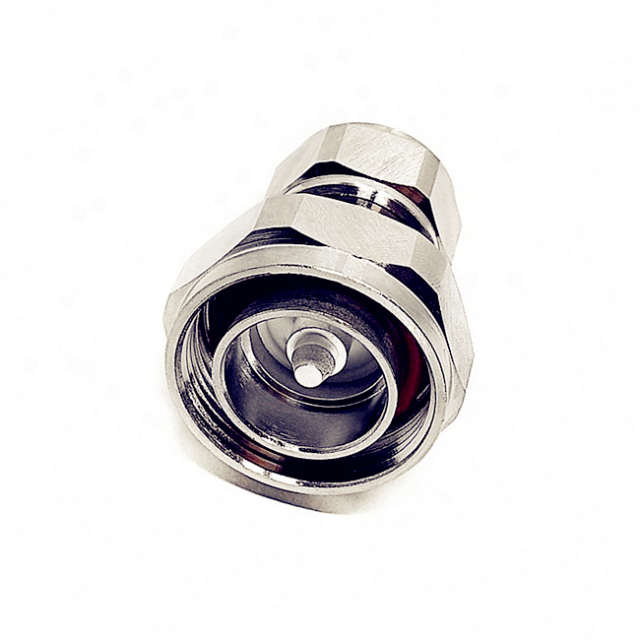

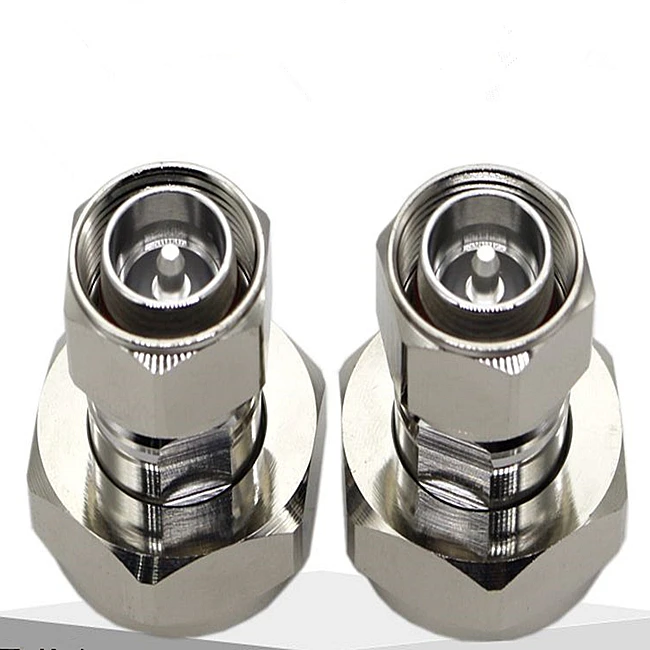

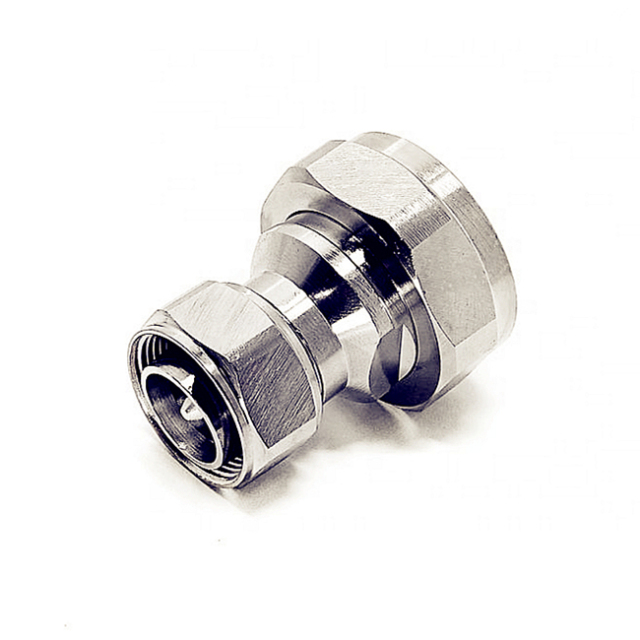

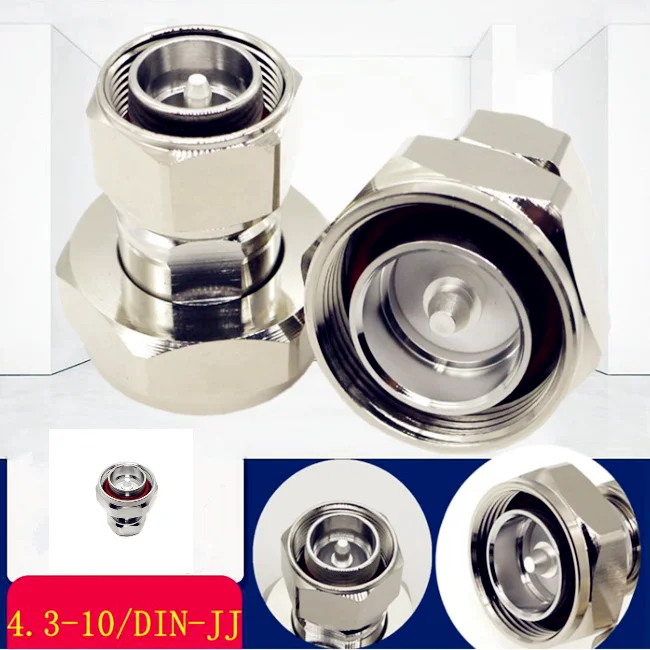

High Quality 4.3-10 Male to 7/16 DIN Male RF Adaptor Connector
2 100 pieces in one paper carton.
3 Clear Plastic Bag/ Standard Export Carton.
4 According to customers requirement.
|
Interface |
|
||
|
According to |
IEC 60169-54 / IEC 60169-4 |
||
|
|
|||
|
Electrical |
|
||
|
Characteristic Impedance |
50 ohm |
||
|
Frequency Range |
DC-6GHz |
||
|
VSWR |
VSWR≤1.10(3.0G) |
||
|
PIM3 |
≤-160dBc@2x20w |
||
|
Dielectric Withstanding Voltage |
≥2500V RMS,50hz,at sea level |
||
|
Contact Resistance |
Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ |
||
|
Dielectric Resistance |
≥5000MΩ |
||
|
|
|||
|
Mechanical |
|
||
|
Durability |
Mating cycles ≥500cycles |
||
|
|
|||
|
Material and plating |
|
|
|
|
|
Material |
plating |
|
|
Body |
Brass |
Tri-Alloy |
|
|
Insulator |
PTFE |
- |
|
|
Center conductor |
Tin Phosphor bronze |
Ag |
|
|
Gasket |
SIlicone rubber |
- |
|
|
Other |
Brass |
Ni |
|
|
|
|||
|
Environmental |
|
||
|
Temperature Range |
-40℃~+85℃ |
||
|
Rosh-compliance |
Full ROHS compliance |
||
