High Performance Factory Price 750hm RG11 CCTV CATV Satellite Communication Coaxial Cable
Overview
This 75 Ohm RG11 is the most commonly coaxial cable used in existing and next generation TV network and securitymonitoring and control systems.
Features
· 75 Ohm data signal transmission;
· The inner conductor could be Copper Clad Steel or Bare Copper;
· The insulation is foam PE;
· Customized cable color , winding and connector, meet your different requirements;
· RoHS compliant;
Assemblies & Application

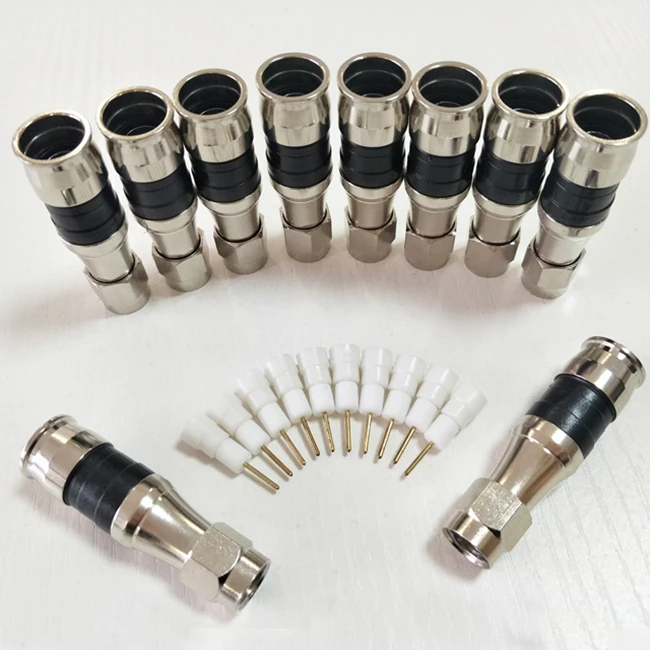

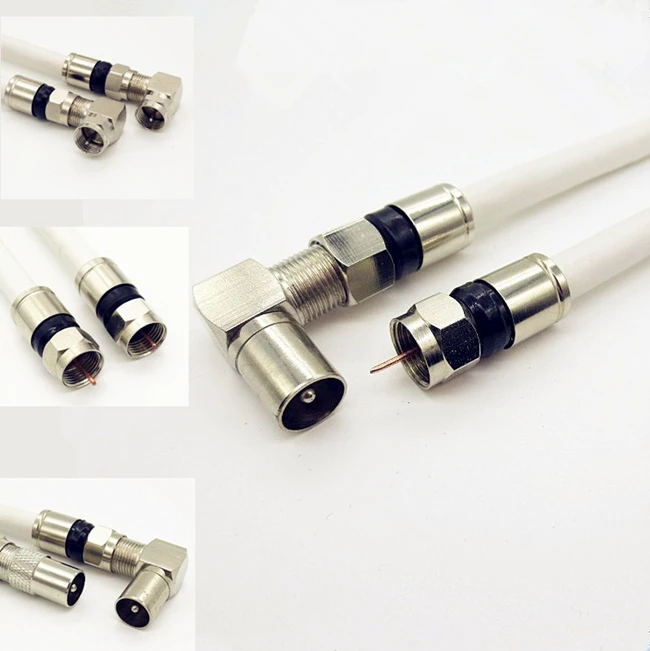

This 75 Ohm RG11 coaxial cable can be fixed with kinds of connectors,such as F,BNC,TNC connectors.Theseversatile cable assemblies with various lengths have been widely applied to existing and next generation TV networkand security monitoring and control systems.

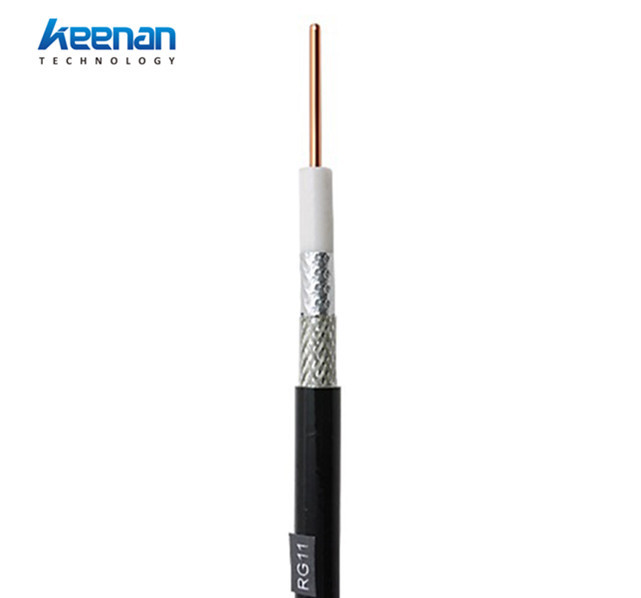

Construction
|
Item |
Material |
Diameter(mm) |
Remarks |
|
Inner Conductor Insulation First Shield Second Shield Jacket |
CCS/BC Foam PE Bonded Aluminum Foil AL-Mg/TC Wire Braid PVC/PE |
1.63 7.11 7.30 8.00 10.03 |
Per customer’s requirements: The inner conductor could be CCS or BC; The second shield could be 96,112,128 or 144 AL-Mg /TC wires braiding; Jacket could be PVC or PE ; |
Electrical Characteristics
|
Impedance (Ω) Capacitance (pF/m) Velocity of Propagation (%) Dielectric strength(kV) V.S.W.R Return Loss Screening Effectiveness(db) Min. Bending Radius (mm) Operating Temperature(0C) |
75±3 54±2 84.0 1.6 ≤1.2 ≥20 ≥75 35.0 -25 to +70 |
Attenuation (@200C)
|
Frequency(MHz) |
Max Attenuation(dB/100m) |
|
250 300 400 500 600 865 1000 |
6.72 7.38 8.53 9.51 10.43 13.05 14.27 |
More Ideas
1) If require conventional construction and materials, please click RG11;

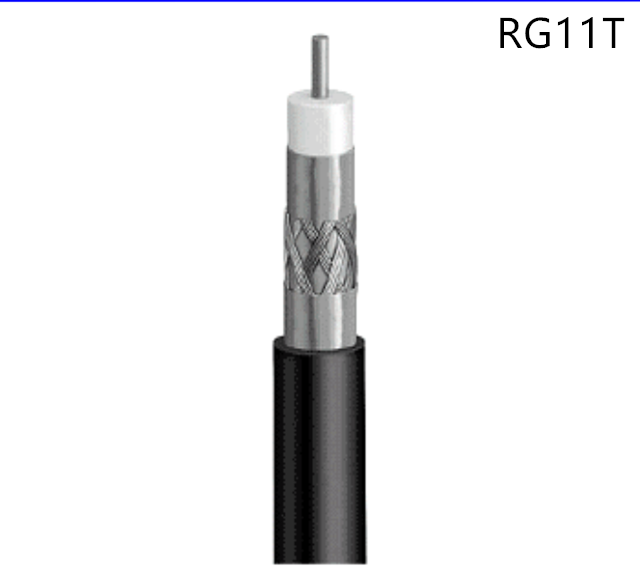

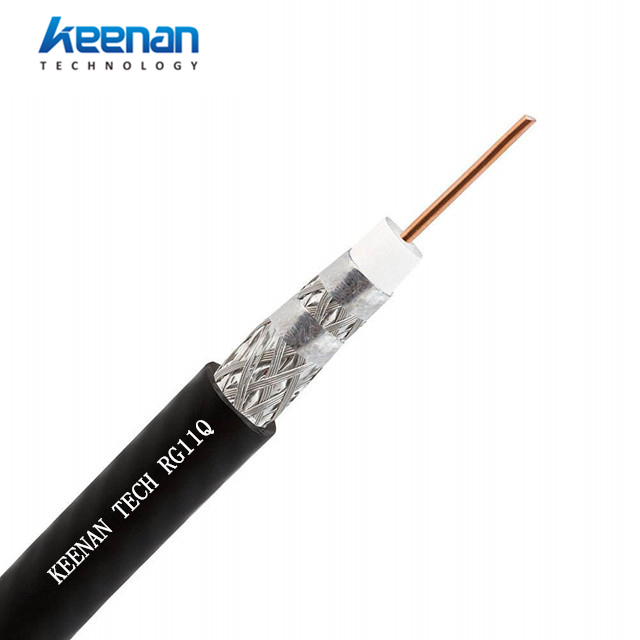

2) If require better shield effectiveness, please click RG11T or RG11Q;

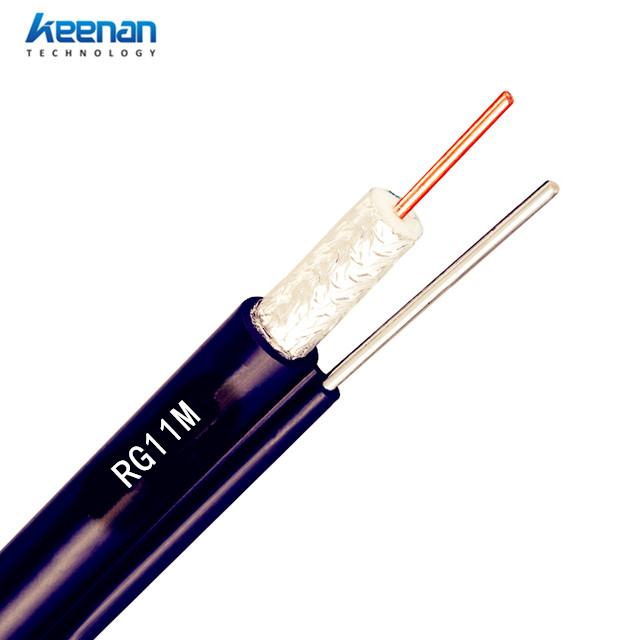

3) If require high tensile strength, please click RG11M;
4) For a cable with smaller wire diameter,please click RG6 or RG59 or MINI RG59;
5) If require cable running through the window or door, please click FLAT WIRE;

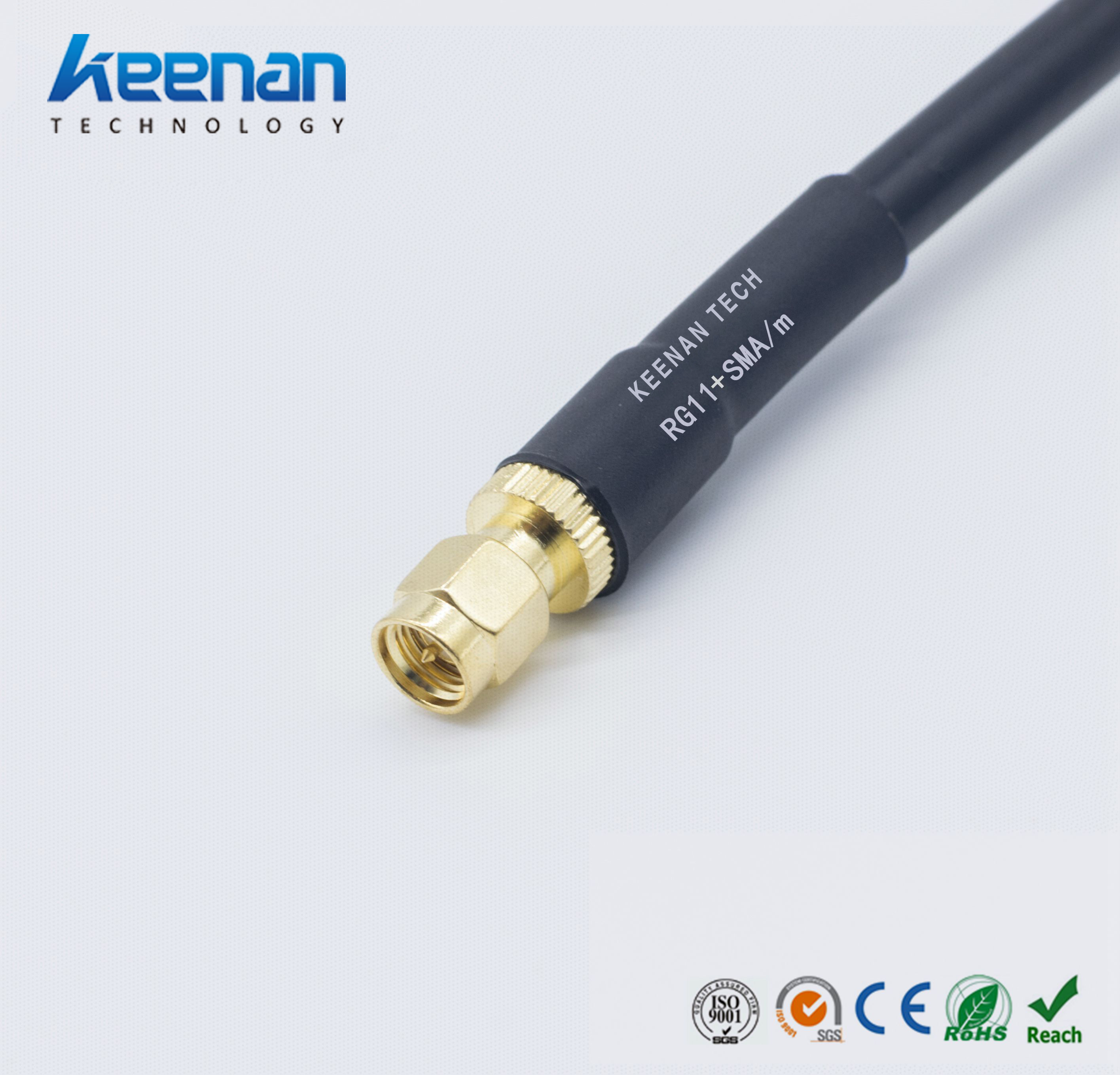

6) For more RG11 assemblies, please click RG11 ASSEMBLIES;
7) Any other requirements or queries, please click CONTACT US.
