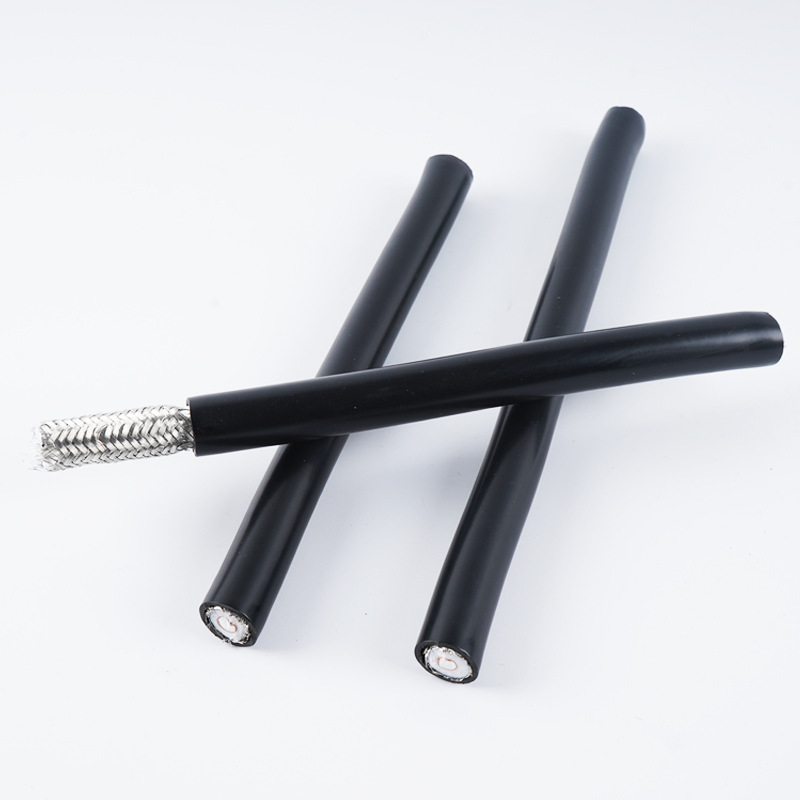

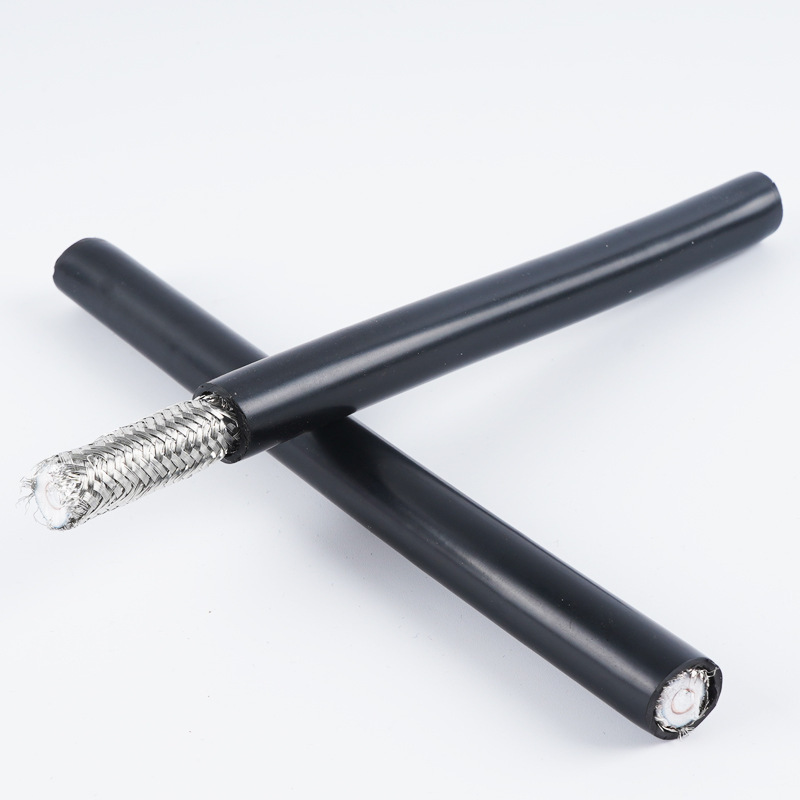

High Performance 50ohm LMR500 LMR600 Low loss RF Coaxial Cable for Communication
Overview
This is a coaxial cable with foam insulation. It has a good attenuation and shielding effectiveness.It has been widely applied to radio transmission,base radio antenna station and other communication systems.
Features
50 Ohm data signal transmission;
The shielding layer composed of aluminum foil and braiding has a good shielding effectiveness;
Excellent performance in high frequency,VSWR stability;
Similar to the 10D-FB coaxial cable;
RoHS compliant;
Assemblies & Application

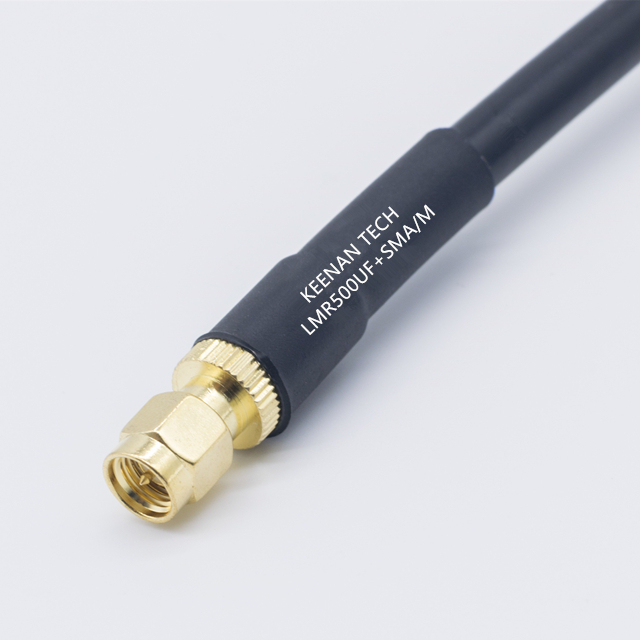

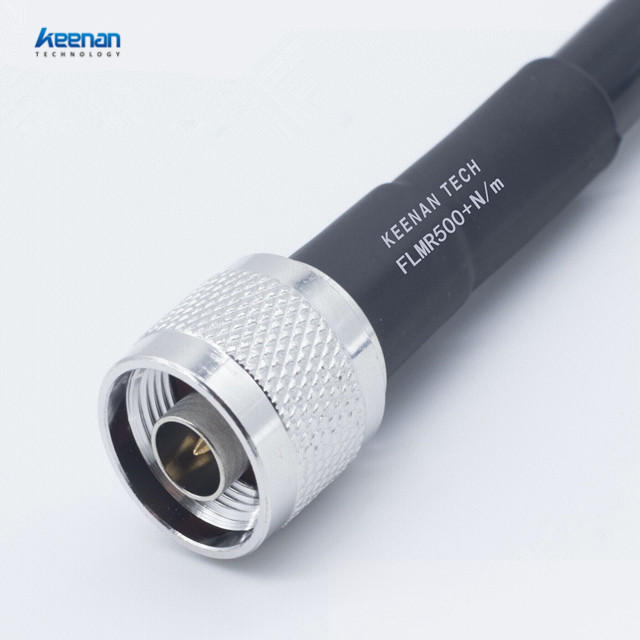

These 50 Ohm 500 series coaxial cables can be fixed kinds of connectors,such as SMA,N,BNC,TNC
connectors.These versatile cable assemblies with various lengths have been widely applied to CDMA,GSM radio transmission,base radio antenna station and other communication systems.

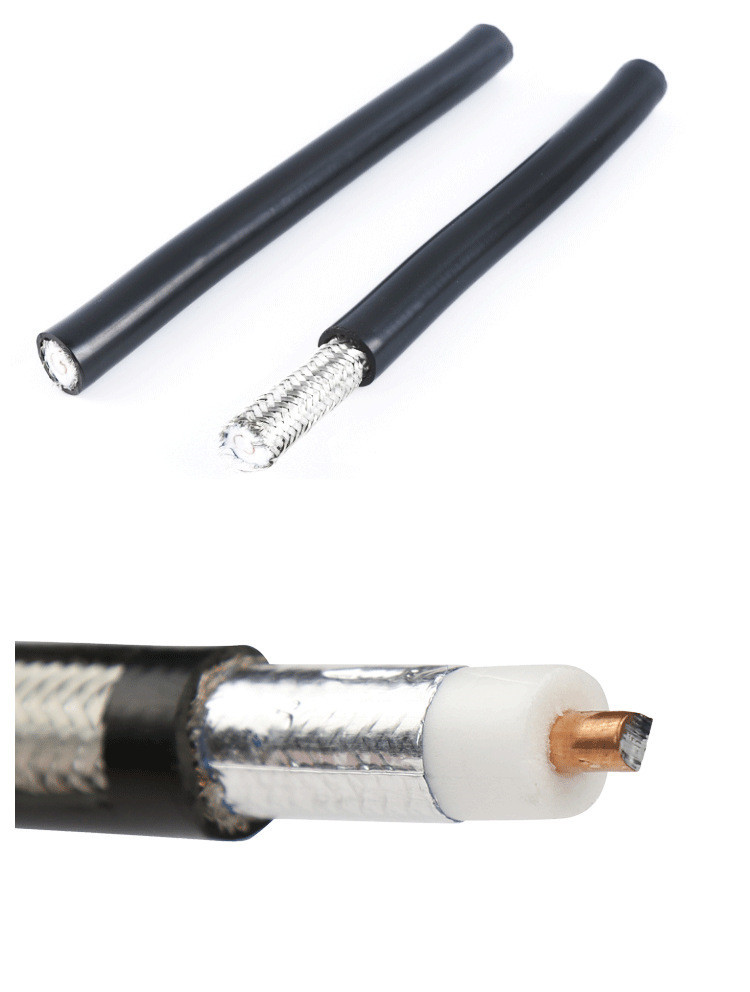

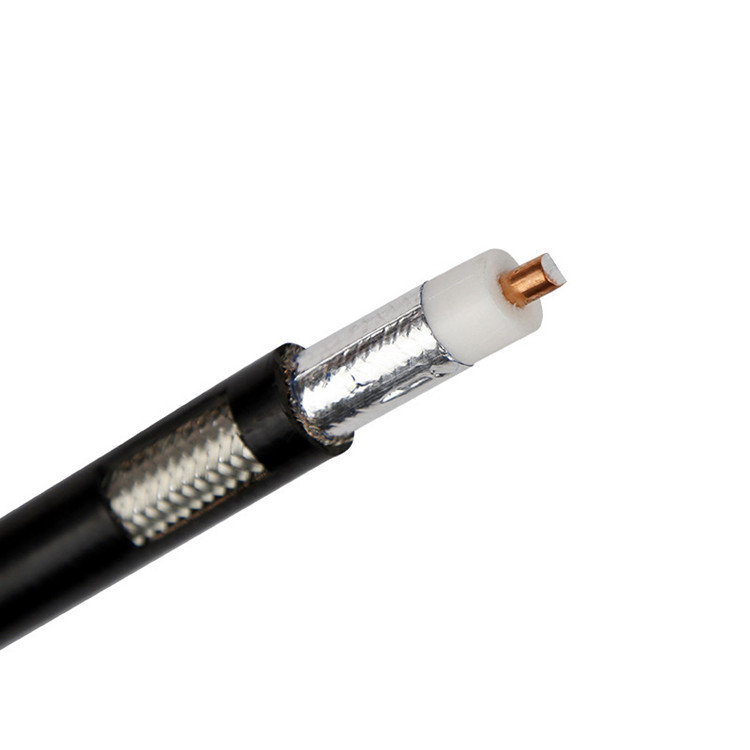

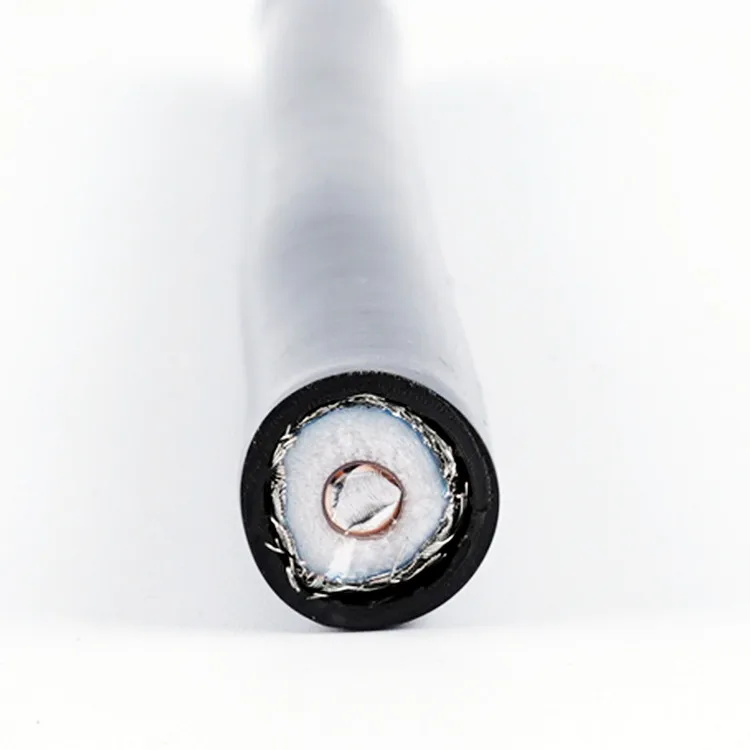

Construction
|
Item |
Material |
Diameter(mm) |
Remarks |
|
Inner Conductor Dielectric First Shield Second Shield Jacket |
BC Foam PE Bonded Aluminum Foil TC Wire Braid PVC/PE/LSZH |
3.61 9.40 9.55 10.29 12.70 |
Per customer’s requirements: Out conductor could be 144,168 or 192 TC wires braiding; Jacket could be PVC,PE or LSZH; |
Electrical Characteristics
|
Impedance (Ω) Capacitance (pF/m) Velocity of Propagation (%) Return Loss Screening Effectiveness(dB) Voltage With Stand Installation Temp(℃) Operating Temp(℃) |
50±3 77.5 86.0 ≥18 ≥80 3000.0 -30 to +70 -30 to +70 |
Attenuation (@200C)
|
Frequency(MHz) |
Max Attenuation(dB/100m) |
|
150 220 450 900 1500 1800 2000 2500 |
4.0 4.9 7.1 10.3 13.6 15.0 15.9 18.0 |
