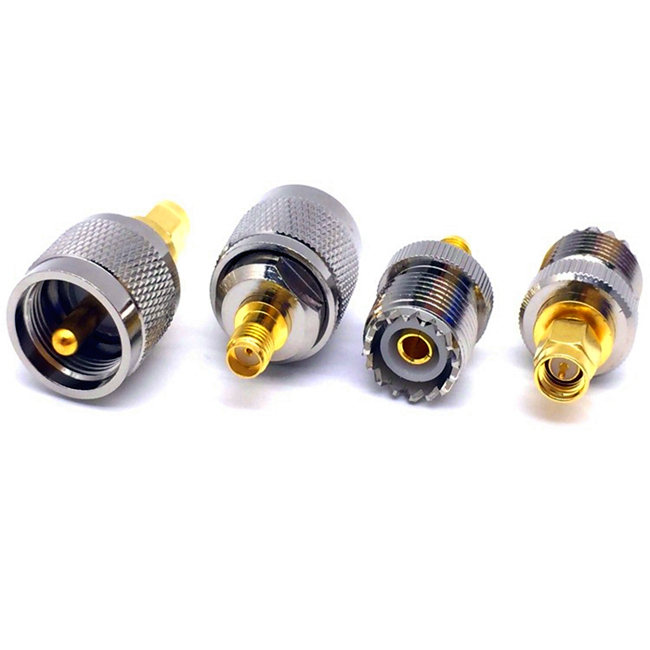

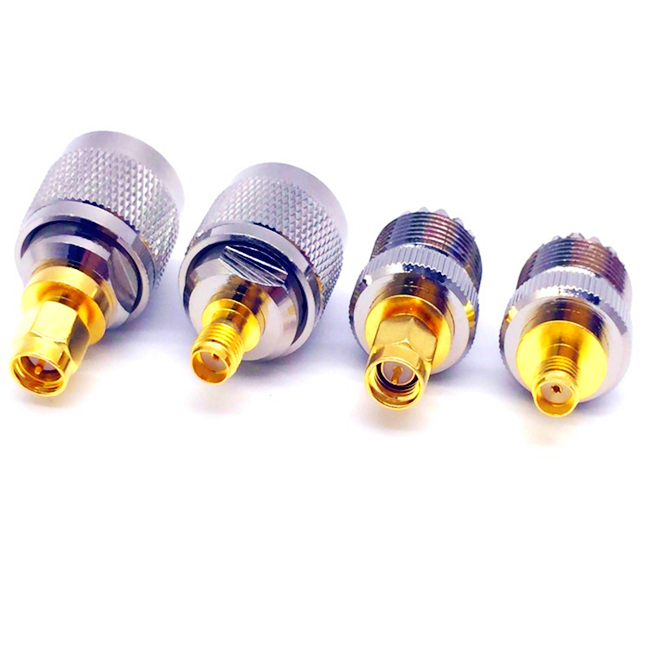

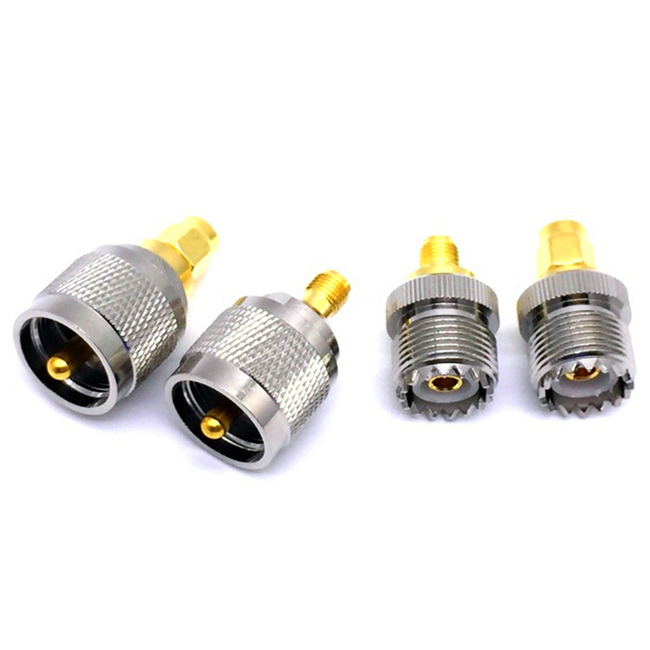

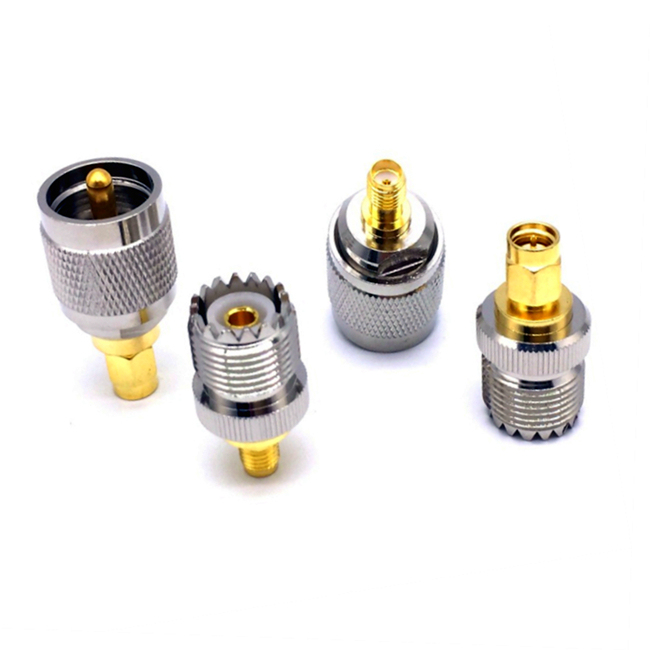

High Frequency Walkie Talkie Connector UHF Male/Female to SMA Male/Female RF Coaxial Antenna Adapter
Overview
RF coaxial adaptor has high reliability, strong vibration resistance, mechanical and electrical characteristics of excellent performance. It is widely used in vibration and environment under the condition of radio equipment and instrument , ground launch system, and it can join all kinds of coaxial cables.
|
Temperature range |
-40~+85°C |
|
Vibration |
100m/s2 (10~500Hz) |
|
Impedance |
50 OHM |
|
Frequency Range |
DC – 6GHz |
|
Working Voltage |
2700V max |
|
Break-down Voltage |
4000V rms @ sea level |
|
Contact resistance |
≤0.4 OHM @ inner contact |
|
Average power |
3KW max |
|
Insulation resistance |
≥10000M OHM |
|
VSWR |
≤ 1.10 |
|
Durability (mating) |
≥500 (cycles) |
Material & Plating
|
Body |
Brass |
Nickel plated / Alloy plated |
|
Inner Pin |
Brass |
Gold plated |
|
Resilient Contact |
Beryllium Copper |
Gold plated |
|
Socket Contact |
Beryllium or tin bronze |
Gold plated |
|
Insulator |
PTFE |
|
|
Crimp Ferrule |
Copper alloy |
Nickel / Gold plated |
|
O-ring sealing |
Silicone Rubber |
|
