High Frequency Low Loss Signal Antenna RF LMR240 RG58 RG8X Coaxial Cable

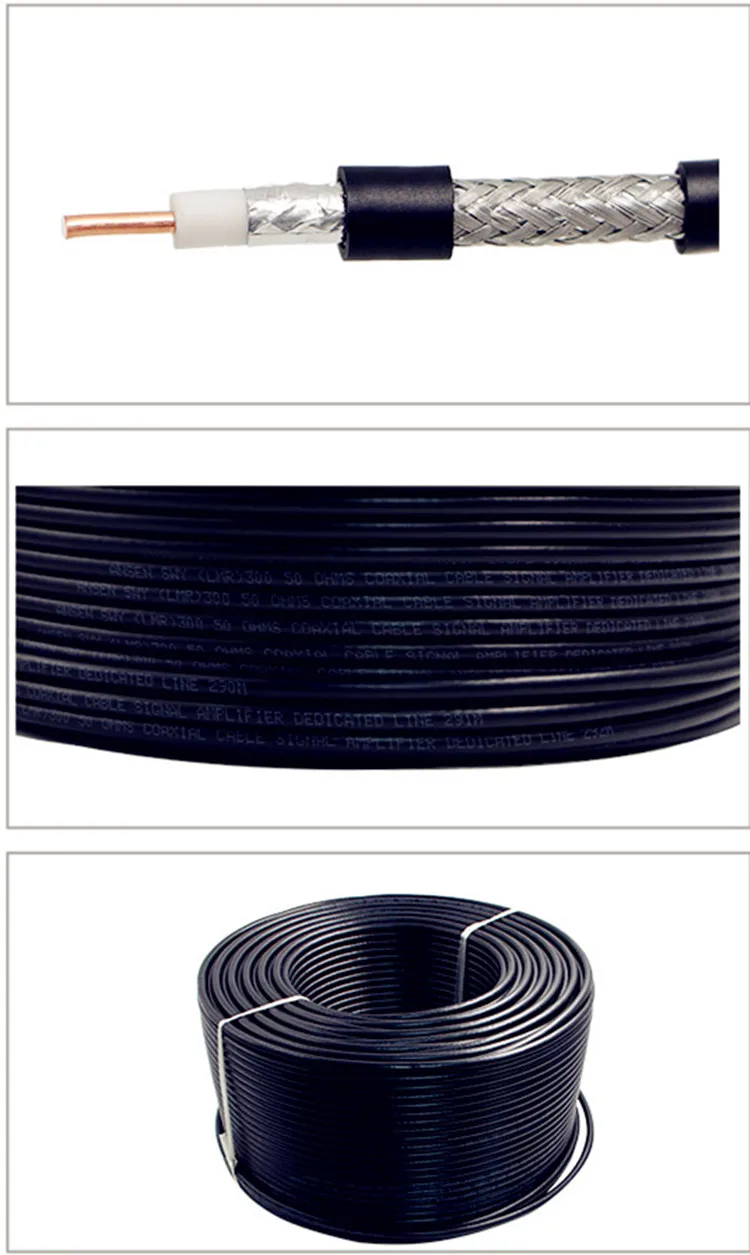

This is a coaxial cable with foam insulation. It has a good attenuation and shielding effectiveness.It has been widely applied to radio transmission,base radio antenna station and other communication systems.
• 50 Ohm data signal transmission;
• The shielding layer composed of aluminum foil and braiding has a good shielding effectiveness;
• Excellent performance in high frequency,VSWR stability;
• Similar to the 4D-FB coaxial cable;
• RoHS compliant;

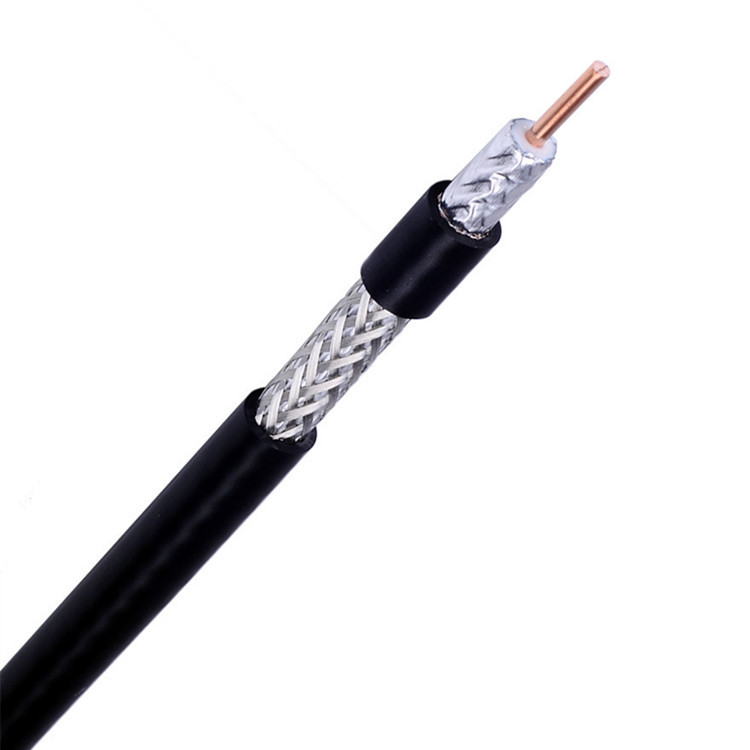

Construction
|
Item
|
Material
|
Diameter(mm)
|
Remarks |
|
Inner Conductor
Dielectric
First Shield
Second Shield
Jacket
|
Bare Copper
Foam PE
Bonded Aluminum Foil
TC Wire Braid
PVC/PE/LSZH
|

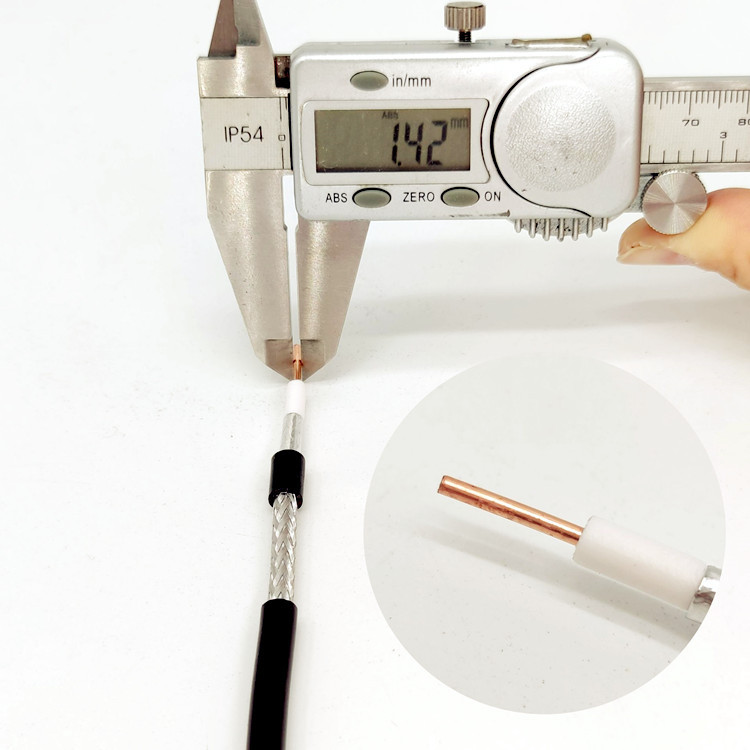

19*0.29/1.42
3.81
3.94
4.52
6.10
|
Per customer’s requirements:
Out conductor could be 96 ,112or 128 TC wires braiding;
Jacket could be PVC,PE or LSZH; |
Electrical Characteristics
|
Impedance (Ω)
Capacitance (pF/m)
Velocity of Propagation (%)
Return Loss
Screening Effectiveness(db)
Voltage With Stand
Installation Temp(℃)
Operating Temp(℃)
|
50±3
79.4
84.0
≥20
≥90
1500.0
-20 to +70
-20 to +70
|
Attenuation (@200C)
|
Frequency(MHz)
|
Max Attenuation(dB/100m)
|
|
150
220
450
900
1500
1800
2000
2500 |
10.5
13.0
18.3
25.8
33.6
36.9
39.1
44.6 |

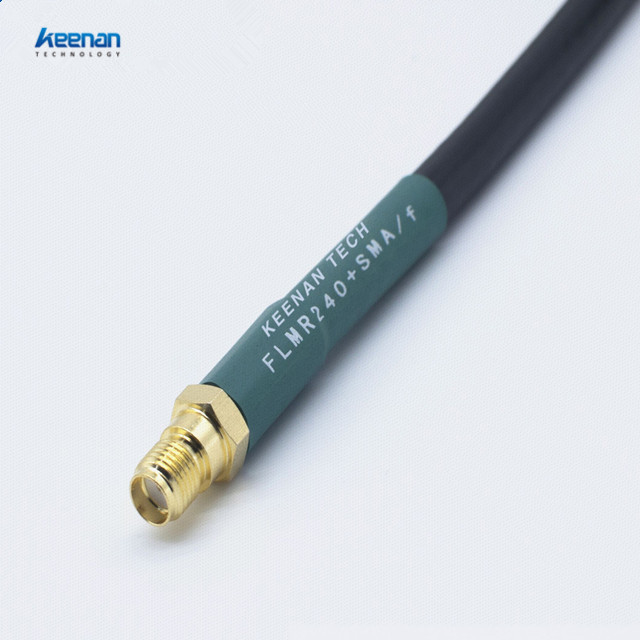

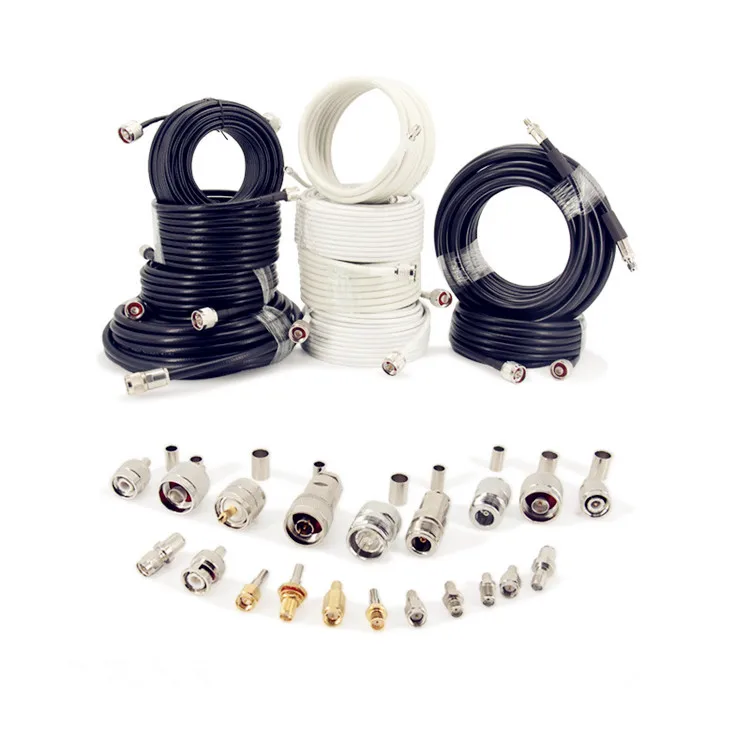

These 50 Ohm 240 series coaxial cables can be fixed kinds of connectors,such as SMA,N,BNC,TNC connectors.As a substitute for RG58 coaxial cable, these versatile cable assemblies with various lengths have been widely applied to CDMA,GSM radio transmission,base radio antenna station and other communication systems.
