TNC connectors are similar to BNC and N-type connectors, but they are more flexible and practical, and are suitable for high-frequency and broadband data transmission. It is mainly used in fields such as television, radio, radar and communication, and is widely applied in aviation, military, aerospace and industrial fields. The advantages and features of TNC connectors are reflected in the following aspects: They can withstand frequencies up to 11GHz. Compatible with BNC connectors and N-type connectors, it is convenient and flexible to use. Threaded connection can be adopted to ensure firmness and reliability, and it is suitable for environments with significant vibration and shock. It has properties such as corrosion resistance, durability, water resistance and dust resistance.

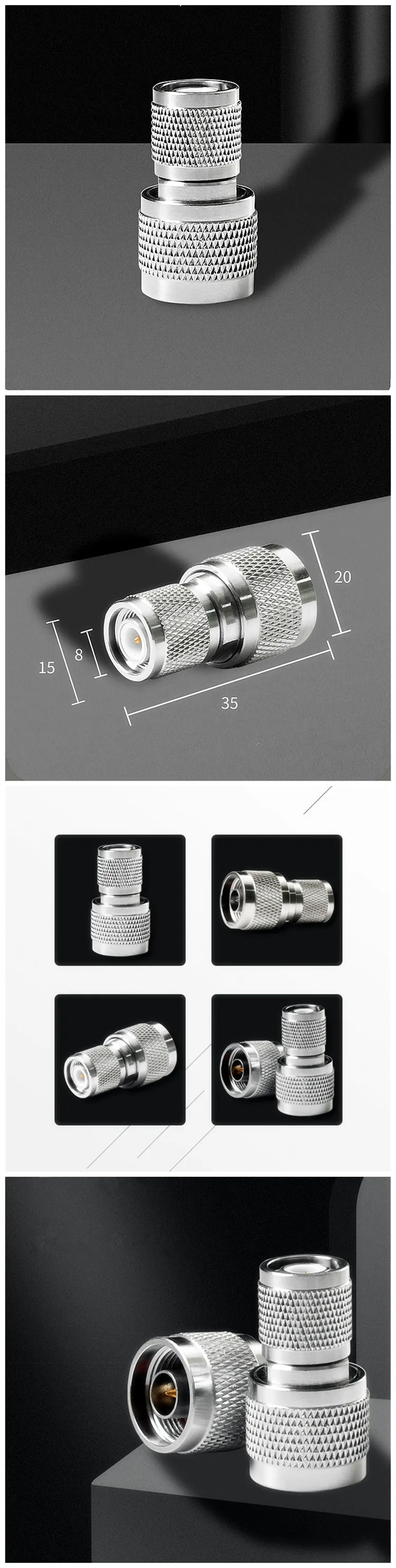

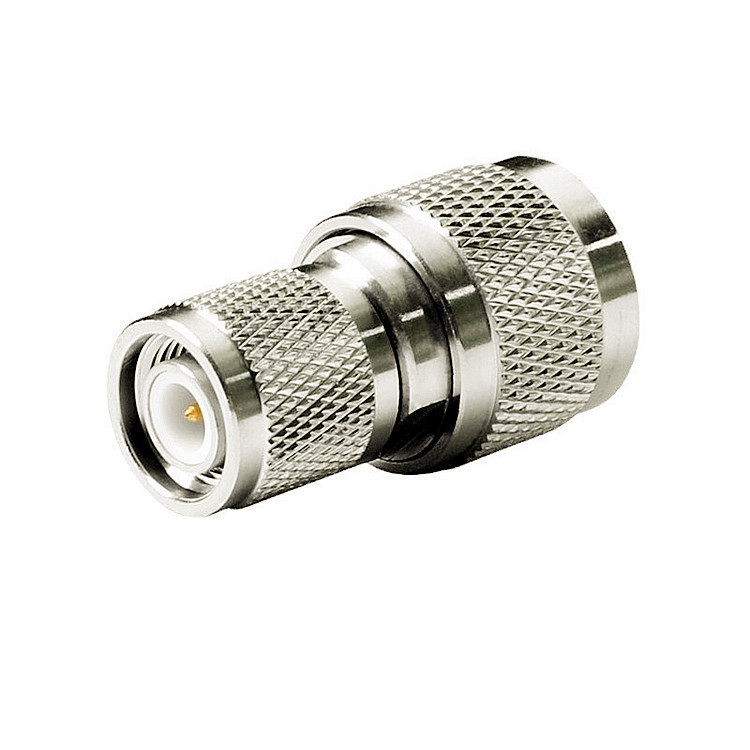

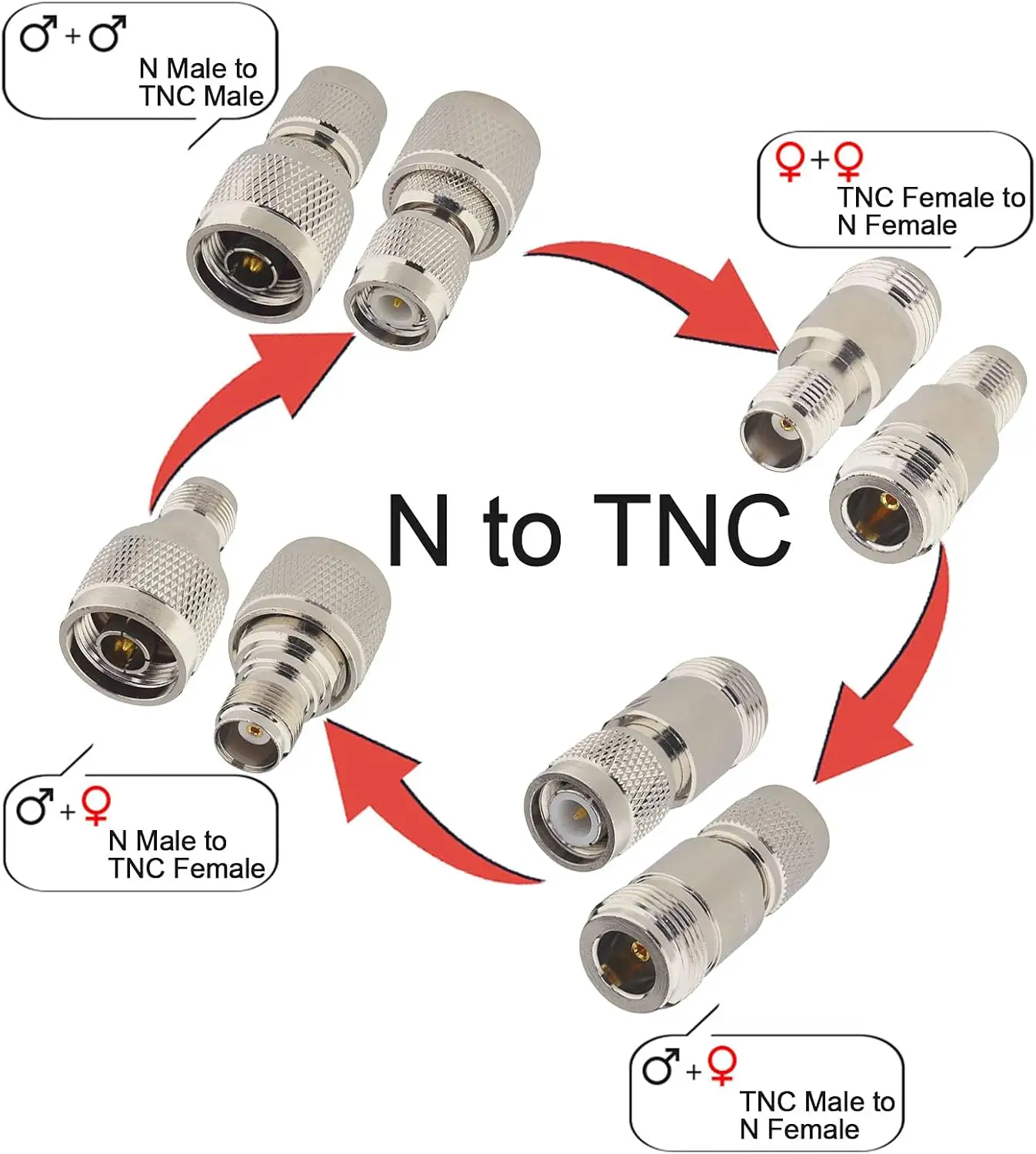

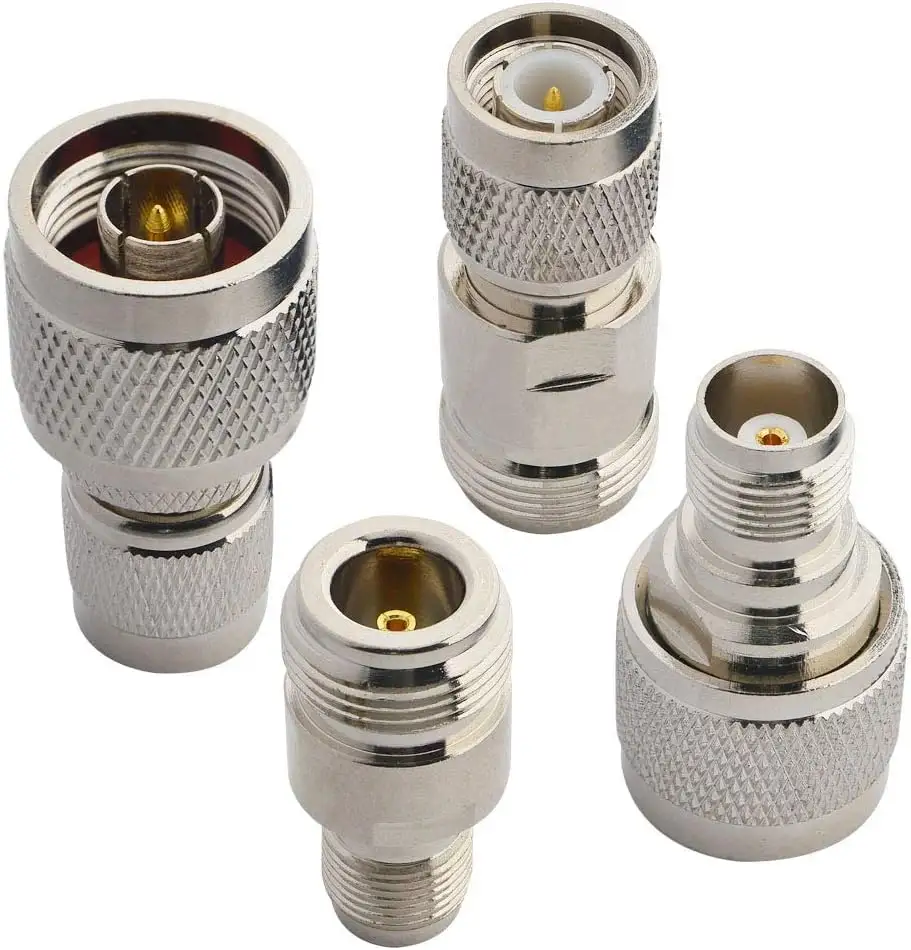

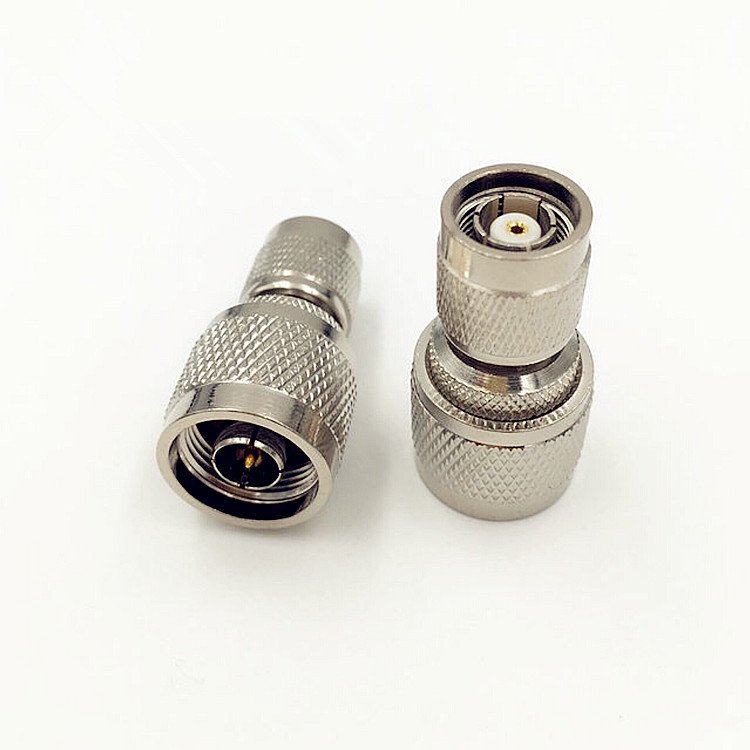

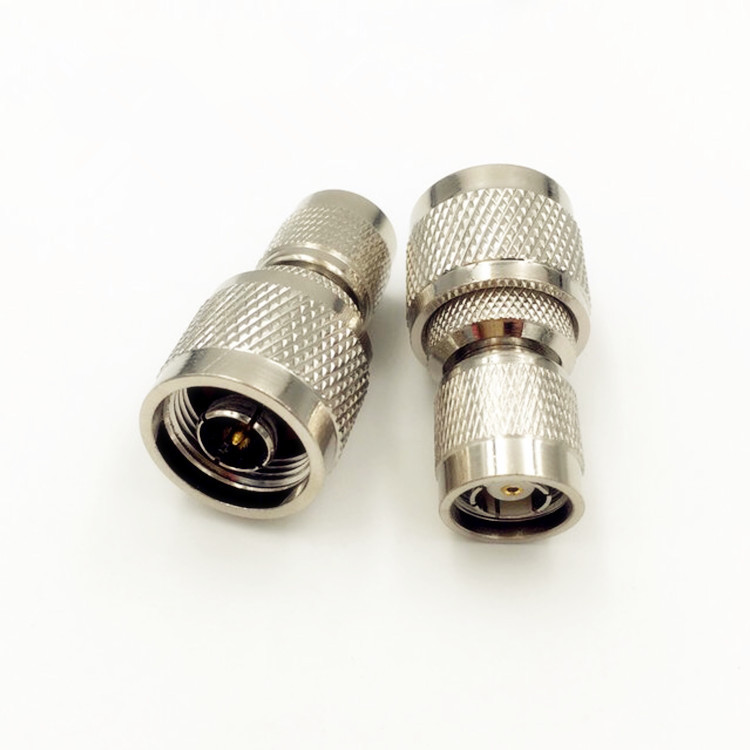

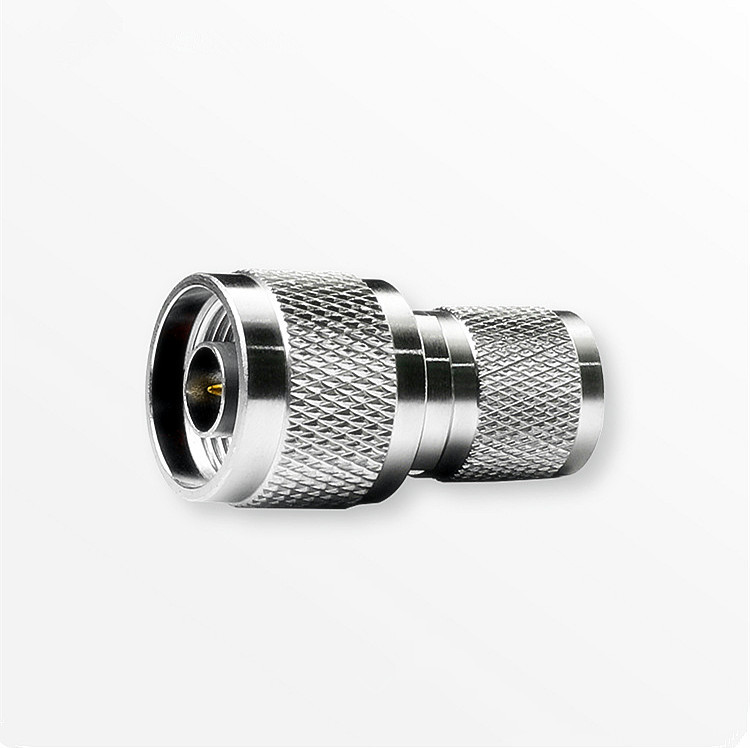

GSM 3G 4G Adapter N Male to TNC Male Adapter for GPS WiFi WLAN Router Radios Antenna
Overview
RF coaxial adaptor has high reliability, strong vibration resistance, mechanical and electrical characteristics of excellent performance. It is widely used in vibration and environment under the condition of radio equipment and instrument , ground launch system, and it can join all kinds of coaxial cables.
Electrical Characteristics
| Name |
TNC to N RF Adapter |
|
Impedance |
50Ω |
|
Frequency range |
0~6GHz |
|
Working Voltage |
2700V max |
|
Withstand Voltage |
4000V rms |
|
VSWR Straight Rigth Angle |
≤ 1.2 ≤ 1.3 |
|
Contact resistance -center contact -outer contact |
≤5mΩ ≤5mΩ |
|
Insulation resistance |
≥10000MΩ |
|
Temperature range |
-55°C~+155°C |
|
Durability(matings) |
>500 |
Construction
|
Piece part |
Material |
plating |
|
Body |
Brass |
Nickel plated |
|
Center conductor |
Brass or Phosphor Bronze |
Gold or silver plated |
|
Crimping suite |
Copper alloy |
Nickel plated |
|
O-ring sealing |
6146 silastic |
|
|
Insulator |
PTFE |
