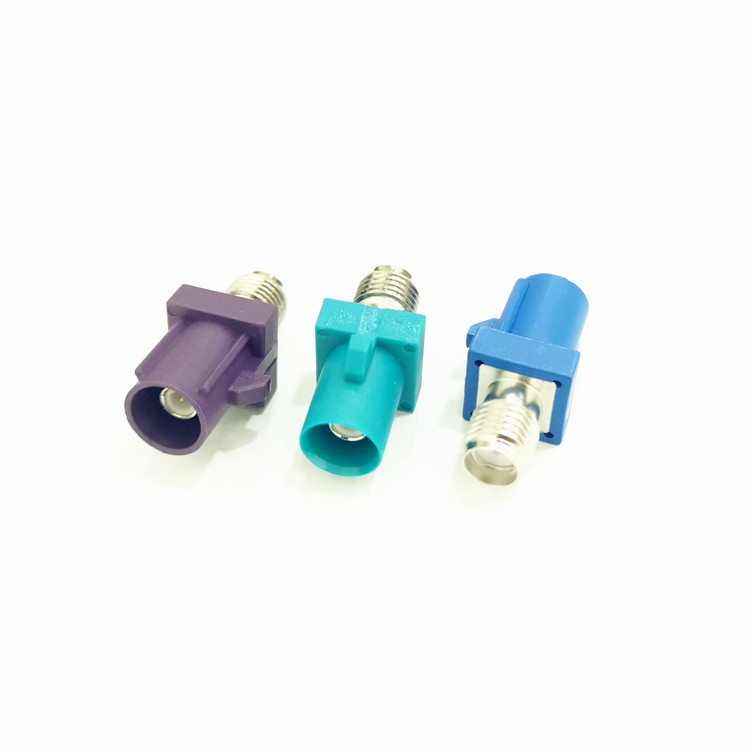

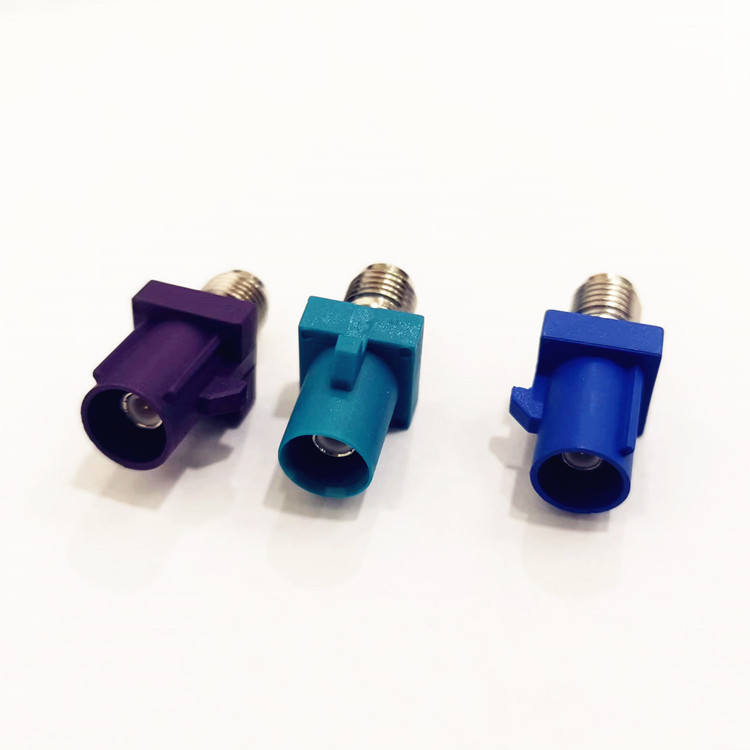

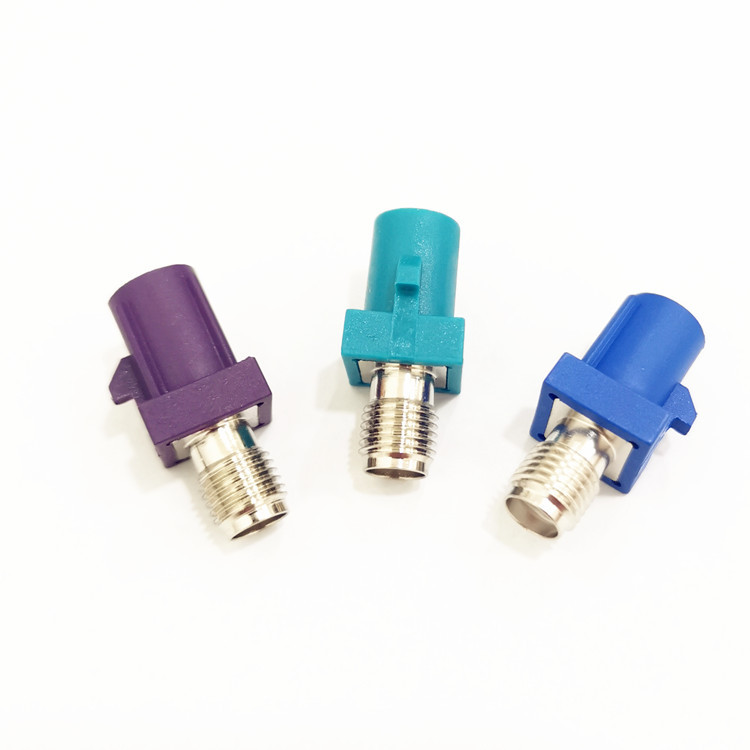

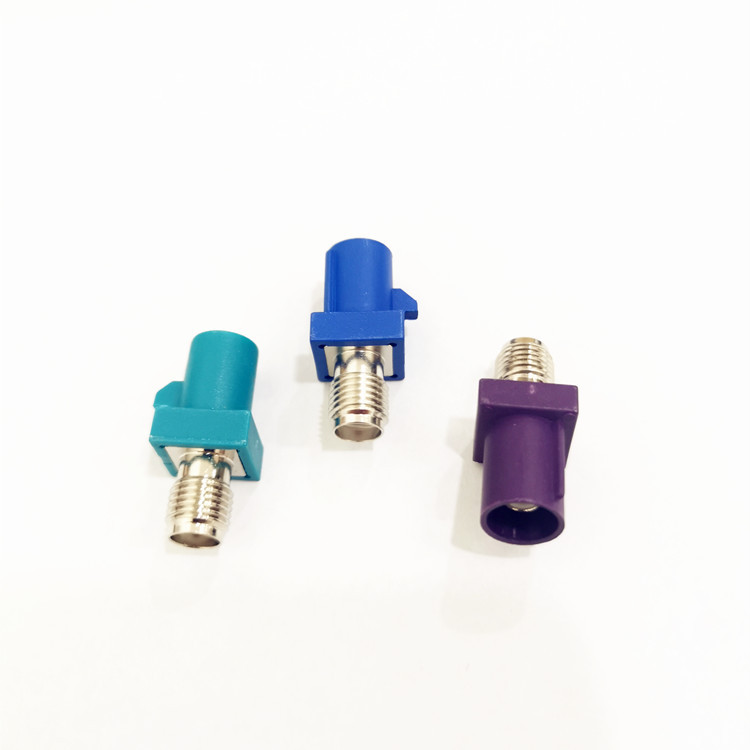

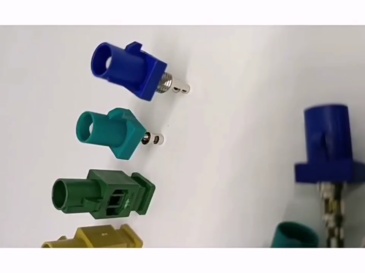

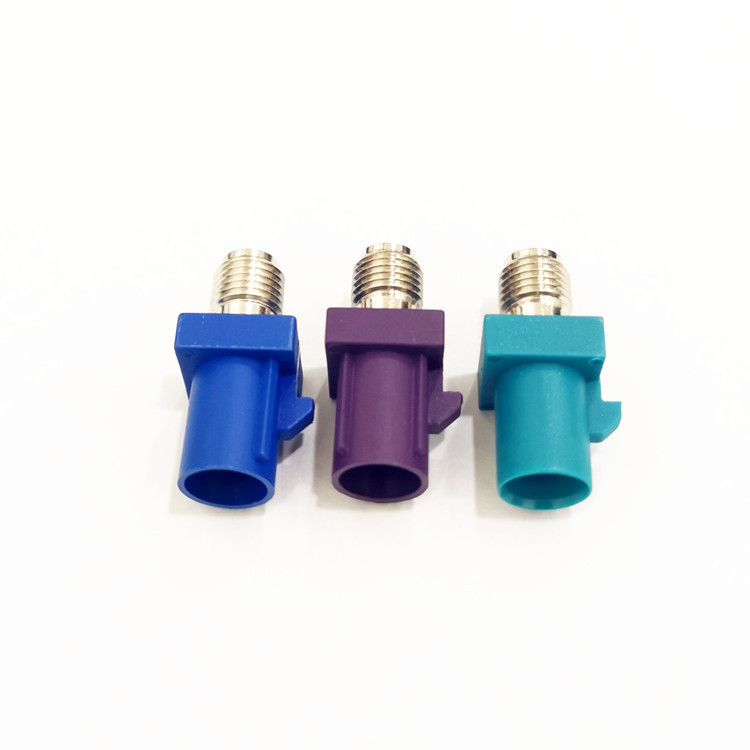

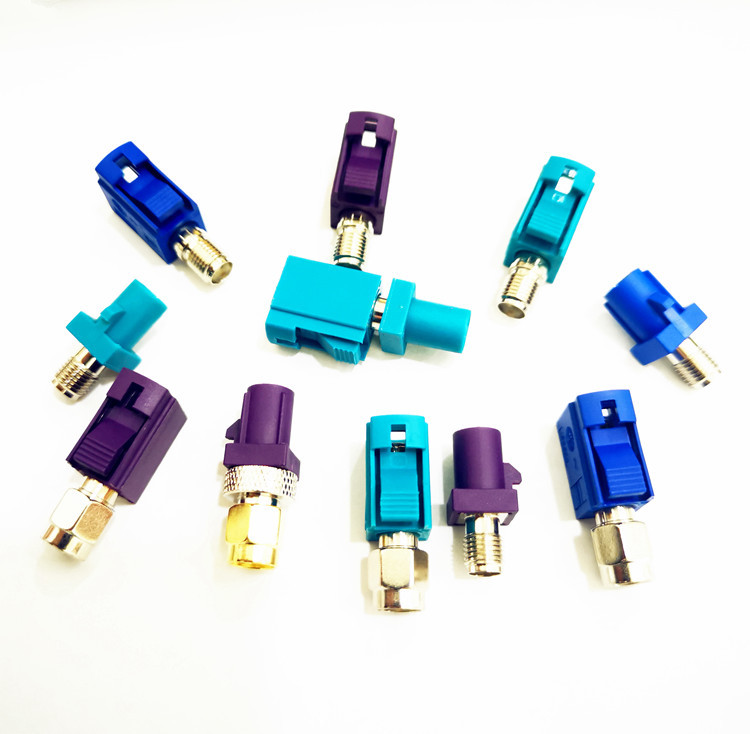

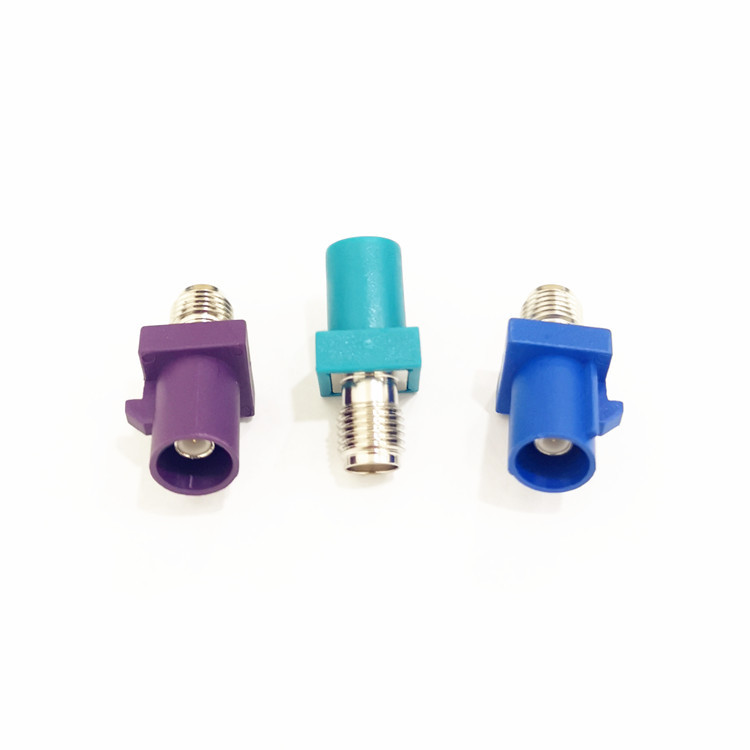

Fakra to SMA Connector Adapter SMA Female to FAKRA Male RF Coaxial Converter
Overview
RF coaxial adaptor has high reliability, strong vibration resistance, mechanical and electrical characteristics of excellent performance. It is widely used in vibration and environment under the condition of radio equipment and instrument , ground launch system, and it can join all kinds of coaxial cables.
|
1.Electrical Data: |
||
|
1.1 Impedance: |
50Ω |
|
|
1.2 Frequency range: |
DC-6GHZ |
|
|
1.3 Working voltage: |
335V RMS,50Hz, at sea level |
|
|
1.4 Dielectric Withstanding Voltage |
1000V RMS,50Hz, at sea level |
|
|
1.5 VSWR: |
<1.3 @DC-2.5GHz |
|
|
1.6 Contact resistance: |
inner conductor ≤6MΩ |
outer conductor ≤1MΩ |
|
1.7 Insulation resistance: |
1000MΩ |
|
|
2.Mechanical Data: |
||
|
2.1 Durability: |
≥500 |
|
|
2.2 Engagement force: |
≤25N |
|
|
2.3 Tight lock force |
≥100N |
|
|
3.Environmental Data: |
||
|
3.1 Temperature Range: |
-40 ° C ~ 105 ° C |
|
|
3.2 Salt spray resistance: |
>48H |
|
|
3.3 Operating humidity: |
10% ~ 95%RH |
|
|
4.Material and plating |
||
|
Parts name |
Material |
Plating |
|
Body |
Brass |
Nickle |
|
Insulator |
PTFE |
-- |
|
Center contact |
Bronze |
Nickle |
|
Ferrule |
Annealed Copper |
Nickle |
|
Plastic housings |
PA |
-- |
|
Available Colors: |
A(Black), B(White), C(Blue), D(Bordeaux), E(Green), F(Brown), G(Grey), H(Violet), I(Beige), K(Curry), L(Carmine red), M(Pastel |
|
