FAKRA A B C D E F G H I K Z Automotive Connector For GPS Antenna Car Video TV Radio Camera
Assemblies & Application

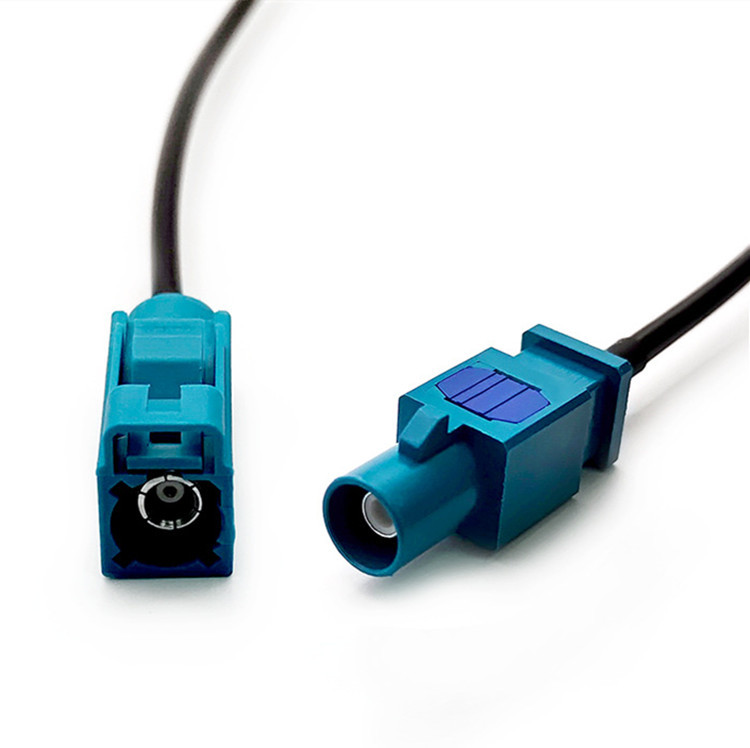

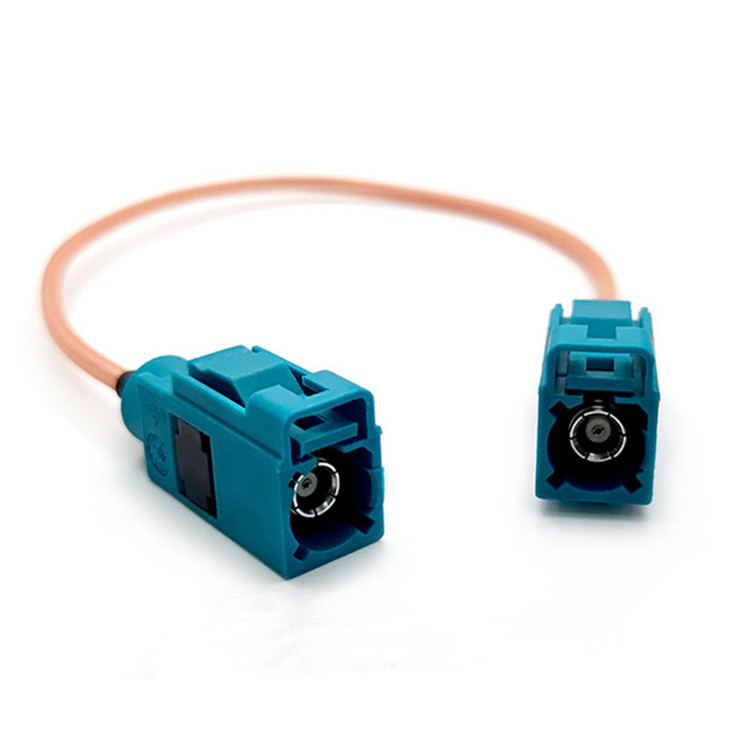

This 50 Ohm RG174/RG178/RG316 coaxial cable can be fixed kinds of connectors,such as SMA,FRAKA,BNC,MCX connectors.These versatile cable assemblies with various lengths have been widely applied to GPS,BEIDOU,GSM and other communication systems.
|
1.Electrical Data: |
||
|
1.1 Impedance: |
50Ω |
|
|
1.2 Frequency range: |
DC-3GHZ |
|
|
1.3 Working voltage: |
335V RMS,50Hz, at sea level |
|
|
1.4 Dielectric Withstanding Voltage |
1000V RMS,50Hz, at sea level |
|
|
1.5 VSWR: |
<1.3 @DC-2.5GHz |
|
|
1.6 Contact resistance: |
inner conductor ≤6MΩ |
outer conductor ≤1MΩ |
|
1.7 Insulation resistance: |
1000MΩ |
|
|
2.Mechanical Data: |
||
|
2.1 Durability: |
≥500 |
|
|
2.2 Engagement force: |
≤25N |
|
|
2.3 Tight lock force |
≥100N |
|
|
3.Environmental Data: |
||
|
3.1 Temperature Range: |
-40 ° C ~ 105 ° C |
|
|
3.2 Salt spray resistance: |
>48H |
|
|
3.3 Operating humidity: |
10% ~ 95%RH |
|
|
4.Material and plating |
||
|
Parts name |
Material |
Plating |
|
Body |
Brass |
Nickle |
|
Insulator |
PTFE |
-- |
|
Center contact |
Bronze |
Nickle |
|
Ferrule |
Annealed Copper |
Nickle |
|
Plastic housings |
PA |
-- |
|

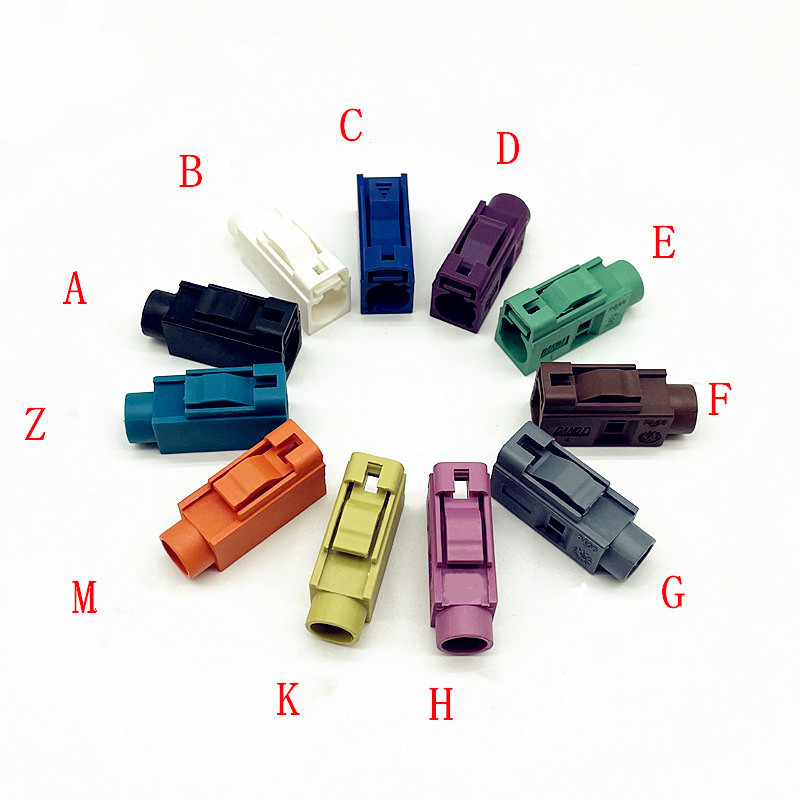

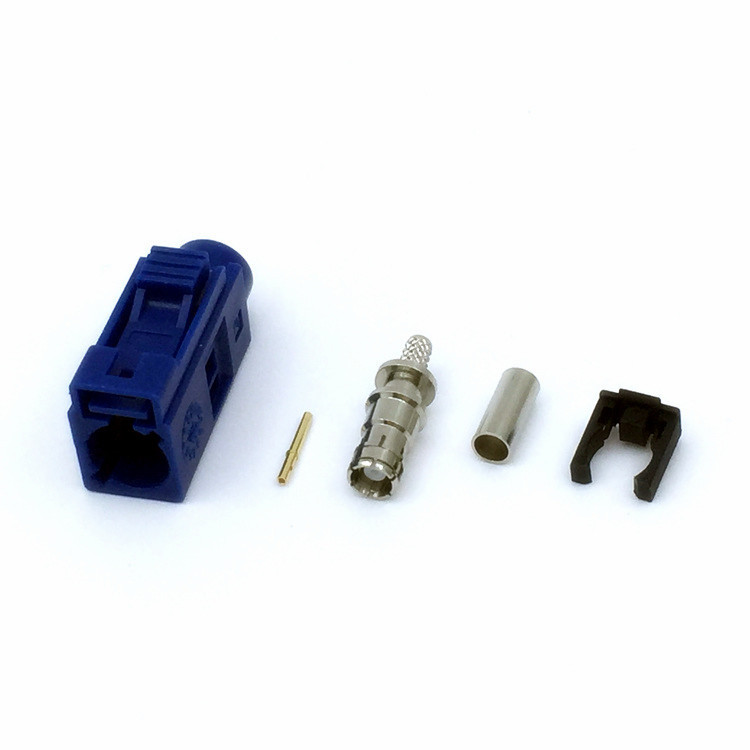

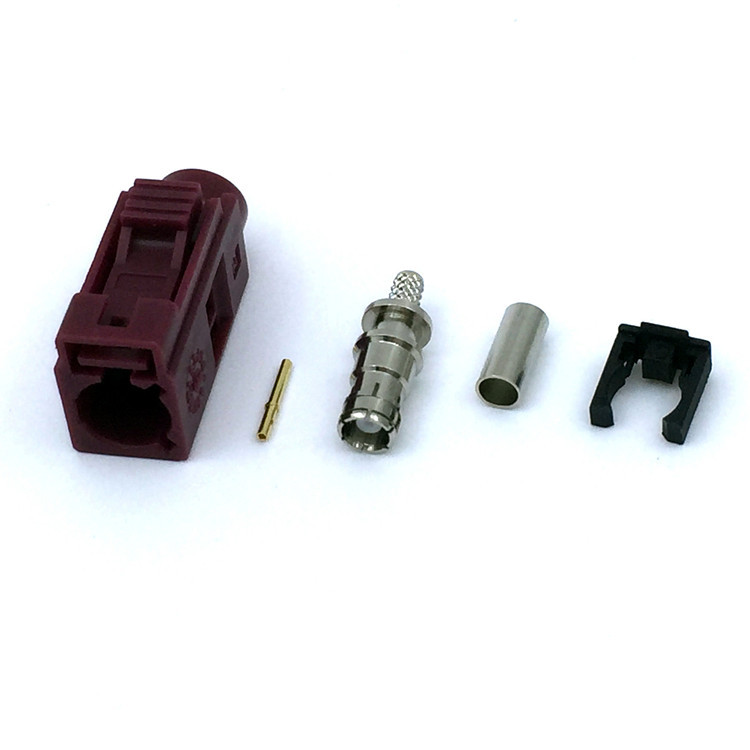

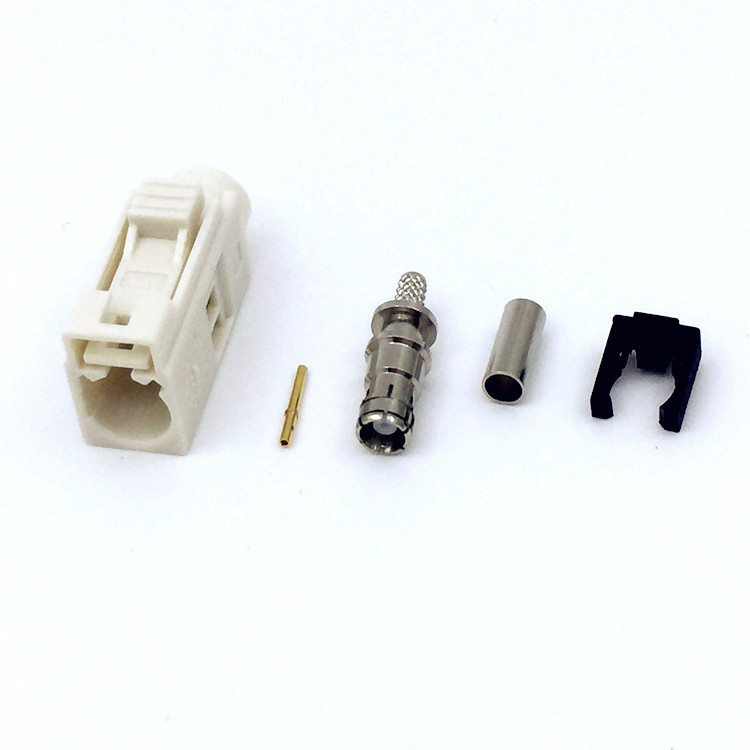

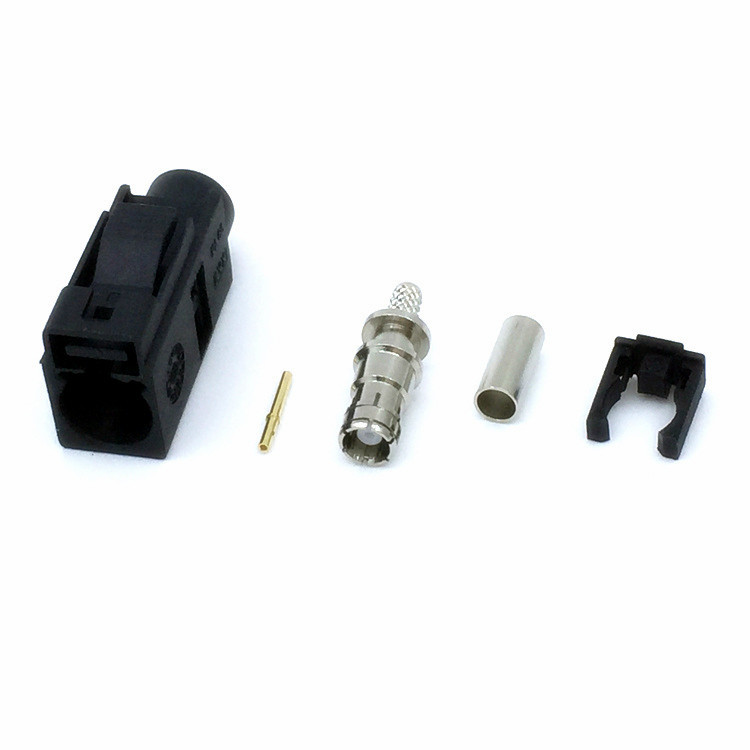

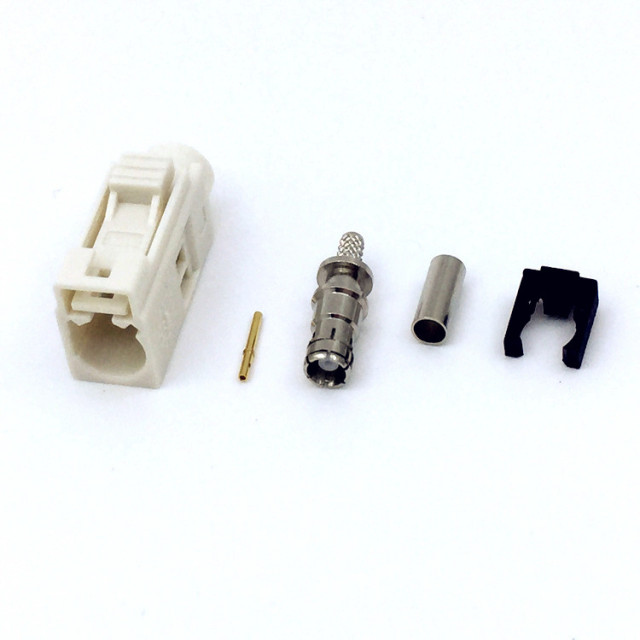

Available Colors: |
A(Black), B(White), C(Blue), D(Bordeaux), E(Green), F(Brown), G(Grey), H(Violet), I(Beige), K(Curry), L(Carmine red), M(Pastel |
|
