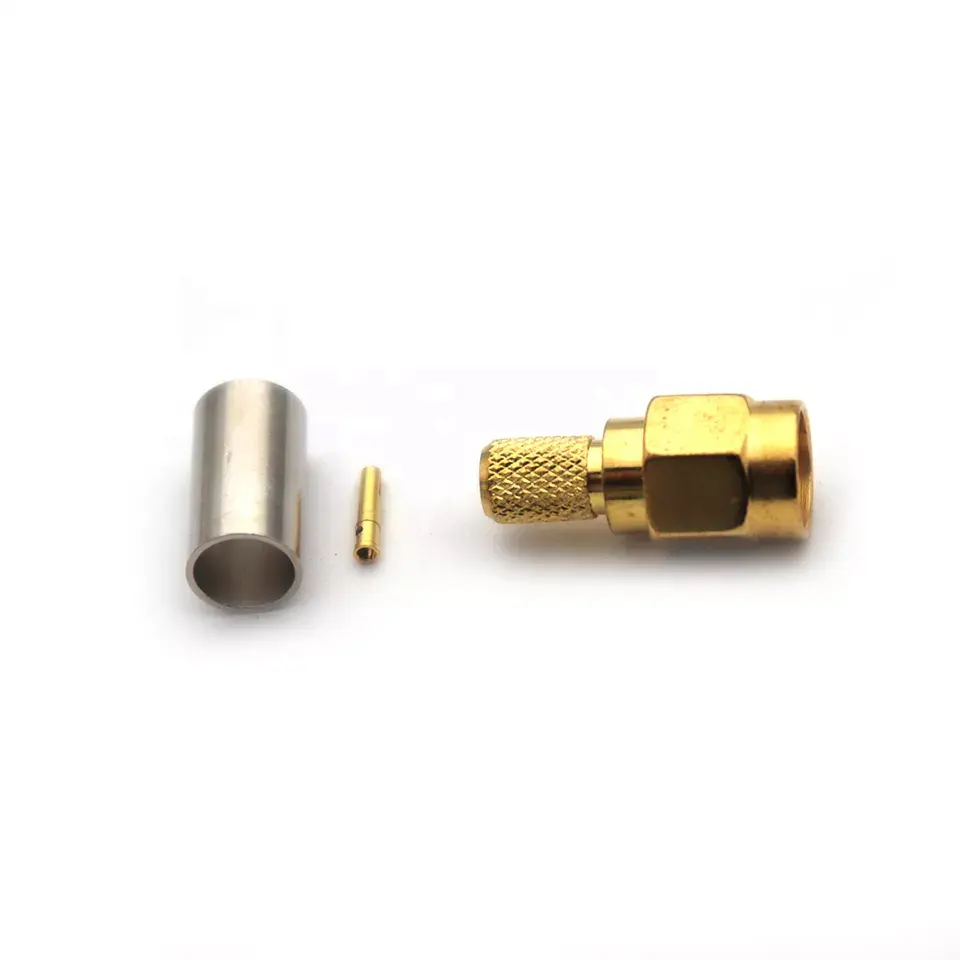

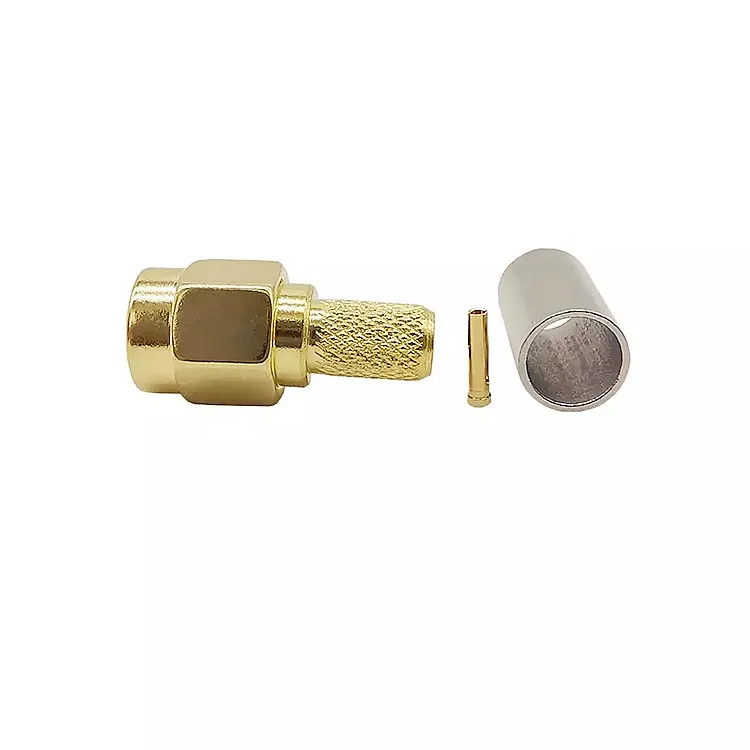

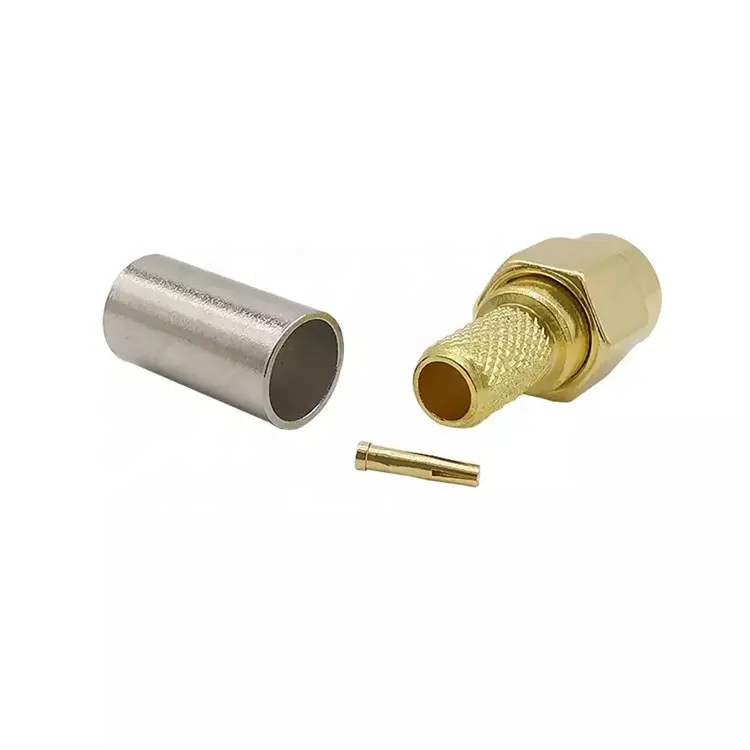

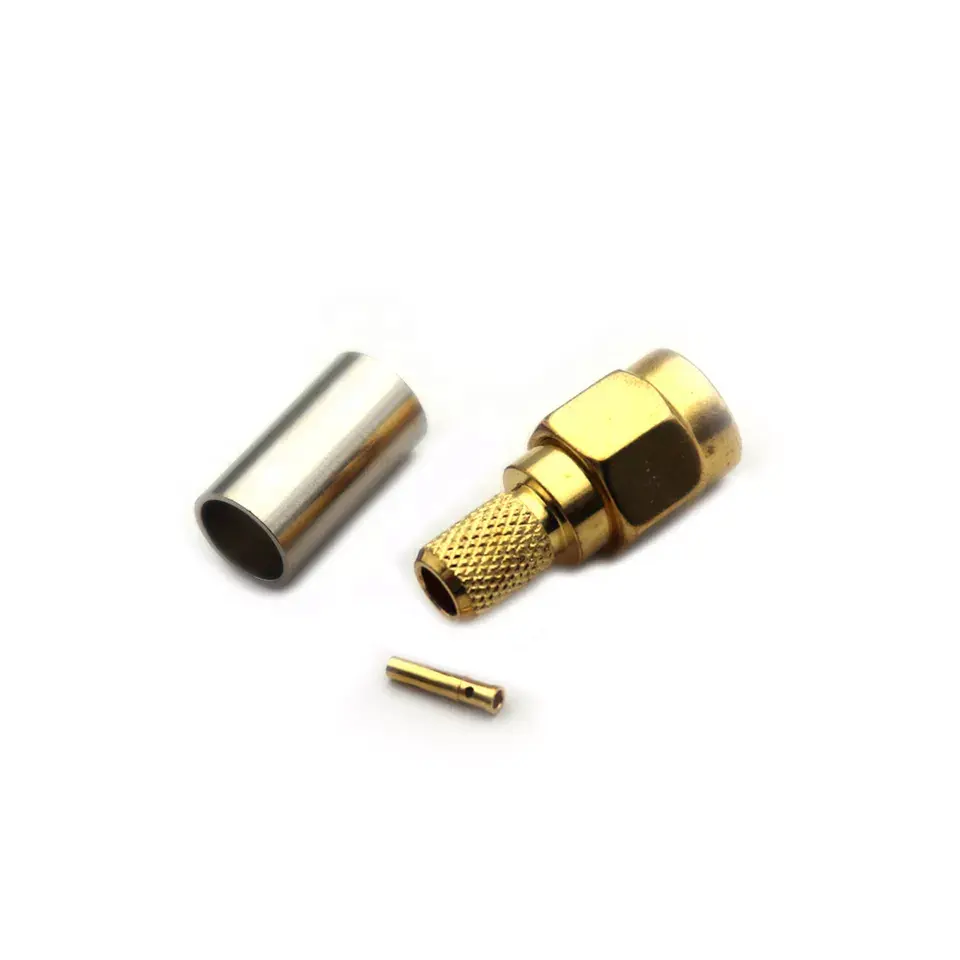

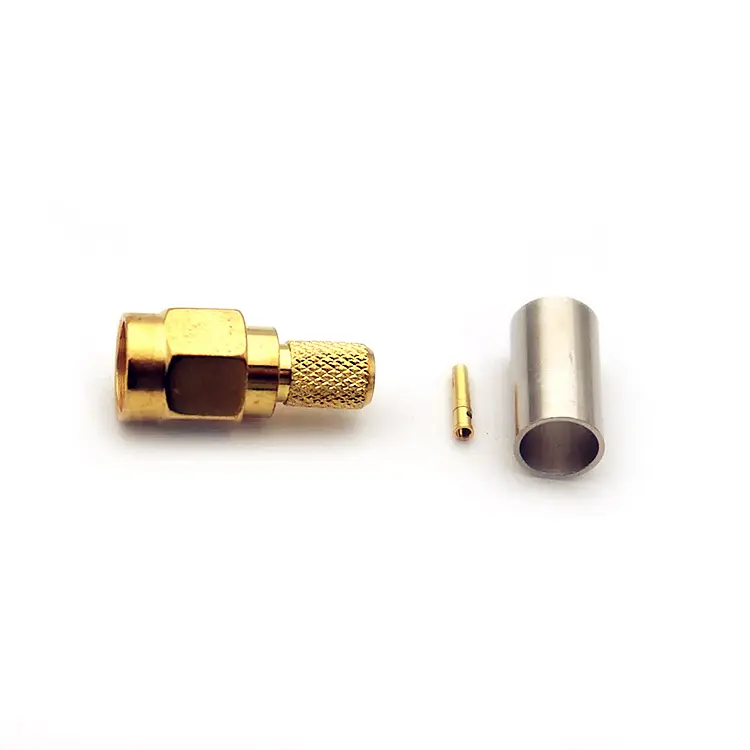

Factory Price RPSMA Plug Crimp Coaxial Connector For RG58 LMR200 LMR195 Cable
Overview
RF coaxial connector has high reliability, strong vibration resistance, mechanical and electrical characteristics of excellent performance. It is widely used in vibration and environment under the condition of radio equipment and instrument , ground launch system, and it can join all kinds of coaxial cables.
Electrical Characteristics
| Temperature Range | -55 ~ +155° |
| Impedance | 50Ω |
| Frequency Range | 0~6GHz (50Ω) |
| Working Voltage | 335V rms at sea level |
| Dielectric Withstanding Voltage | 1000V rms at sea level |
| Contact resistance | Center Contact ≤3mΩ |
| Outer Contact ≤2.5mΩ | |
| Insulation resistance | ≥5000MΩ |
| VSWR | ≤1.15 |
| Durability | ≥500 CYCLES |
| Body | Brass, gold plated /nickel plated |
| Center contact | Brass , gold plated |
| Insulator | Teflon |
| Crimping tube | Copper alloy , nickel plated |
Note: We can provide other materials and plating specifications according to customers'requirements Male SMA Type Plug Connector
