Factory Price 75ohm Coaxial Cable RG59 RG6 RG58 RG11 for CCTV
Overview
This 75 Ohm RG59 is the most commonly coaxial cable used in existing and next generation TV network and security monitoring and control systems.
Features
75 Ohm data signal transmission;
The inner conductor could be Copper Clad Steel or Bare Copper;
The insulation is foam PE or solid PE;
Customized cable color , winding and connector, meet your different requirements;
RoHS compliant;
Assemblies & Application

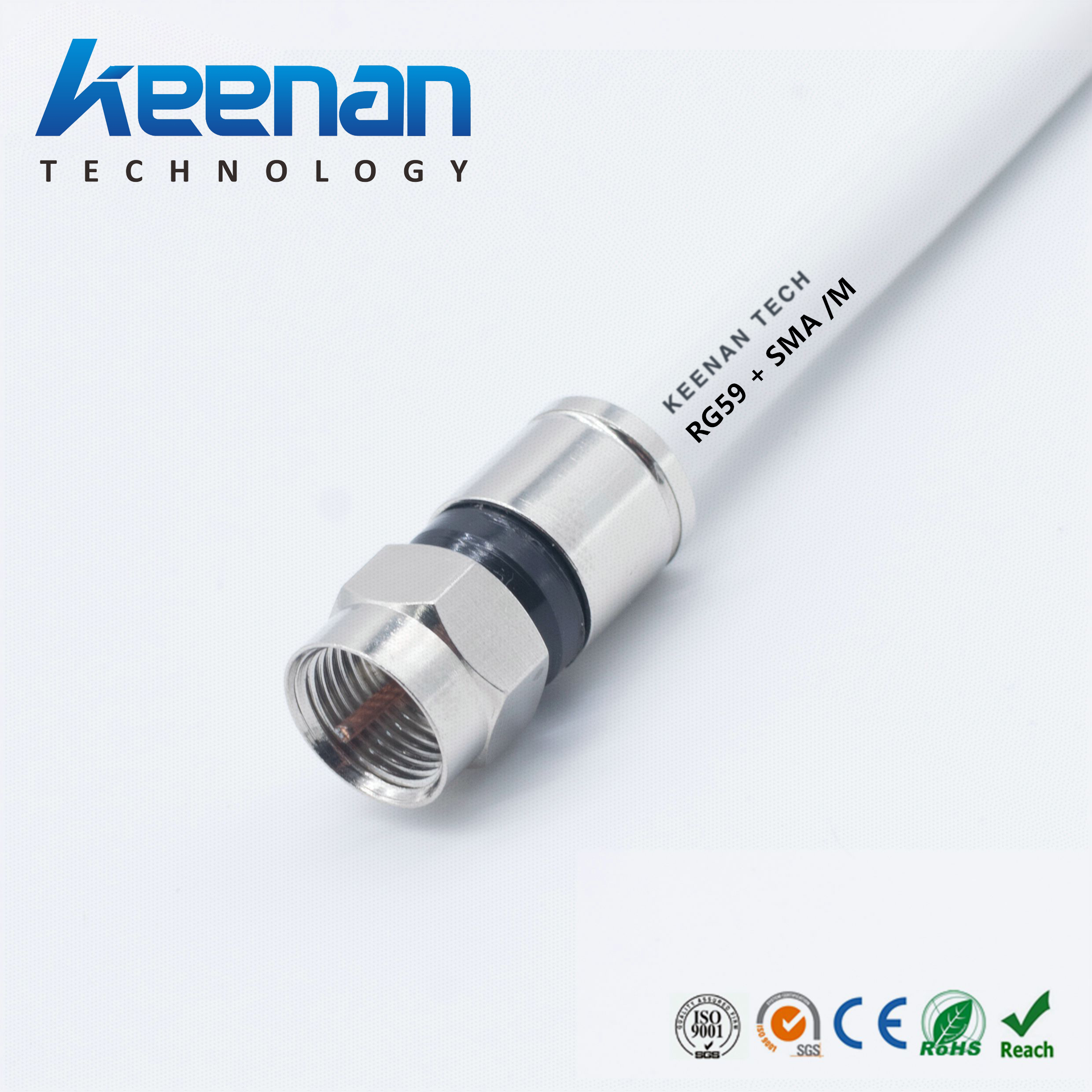

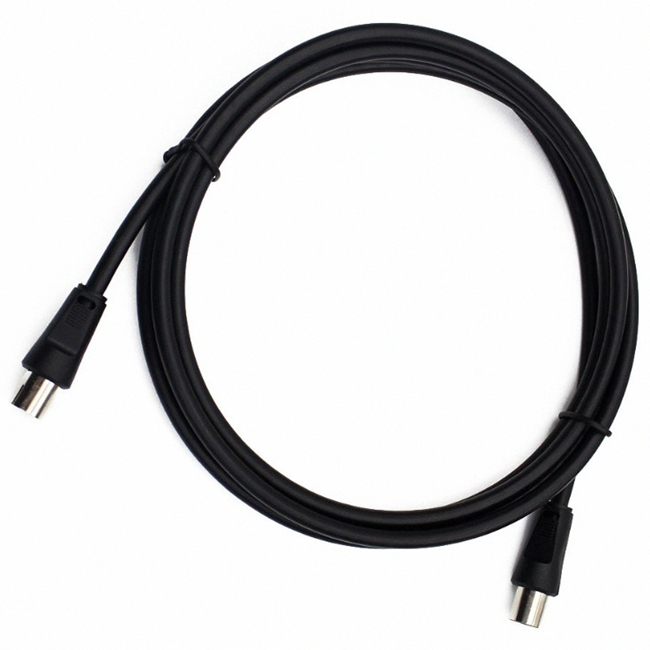

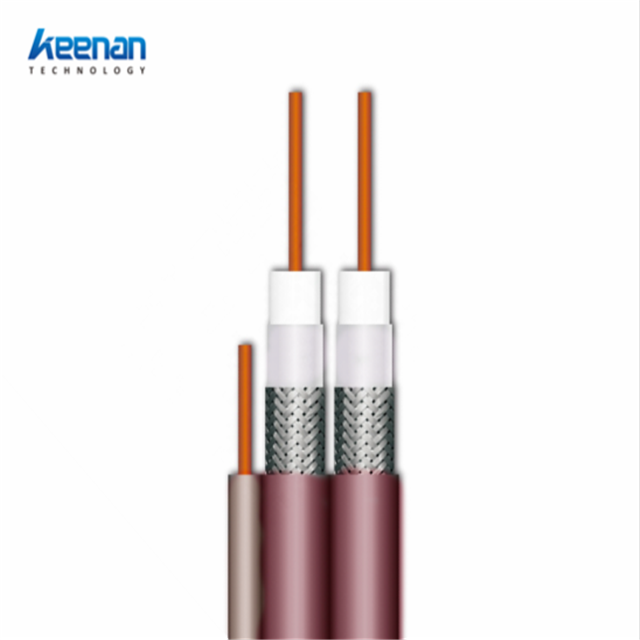

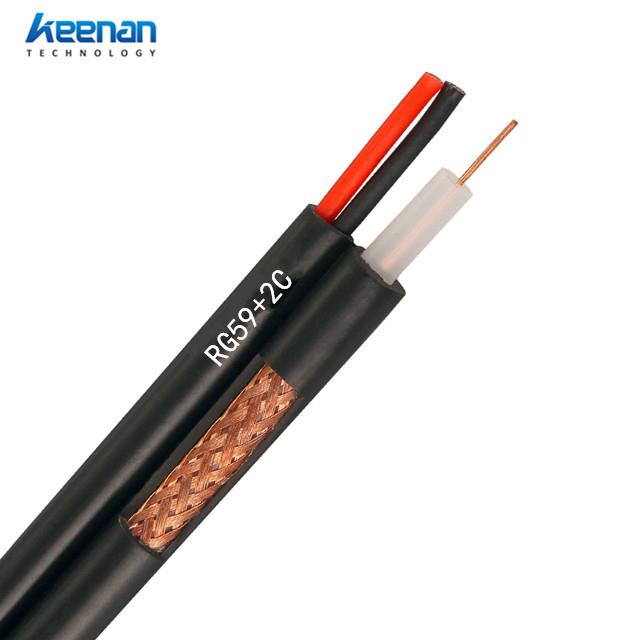

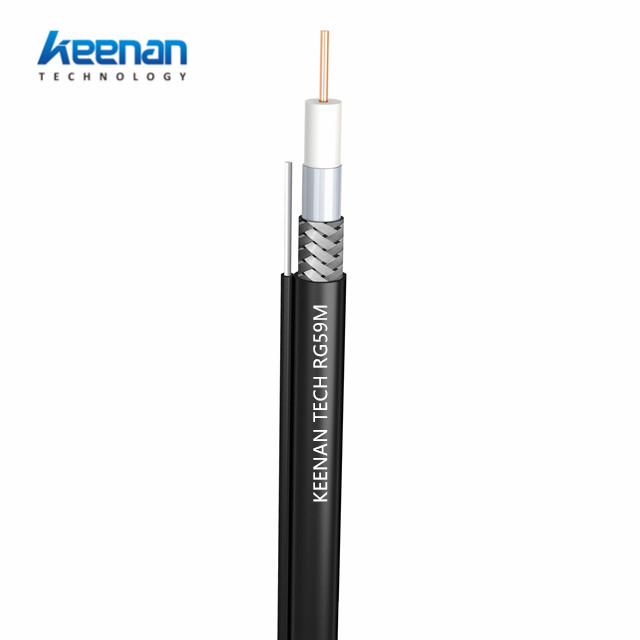

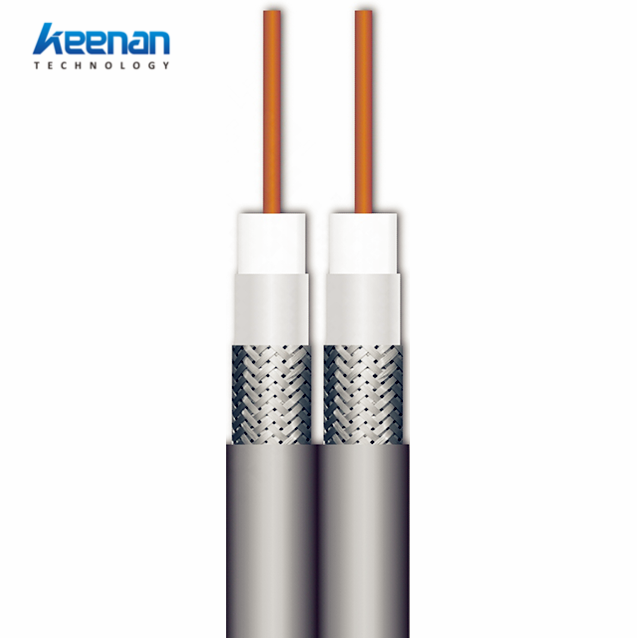

This 75 Ohm RG59 coaxial cable can be fixed with kinds of connectors,such as F,BNC,TNC connectors.These versatile cable assemblies with various lengths have been widely applied to existing and next generation TV network and security monitoring and control systems.

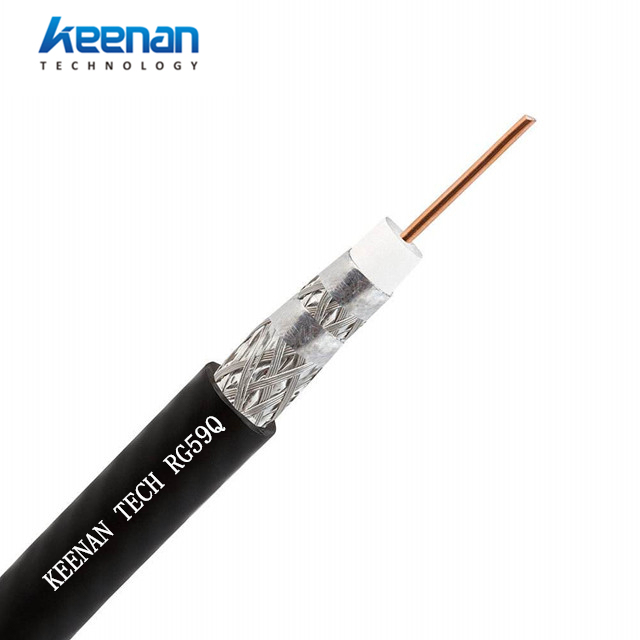

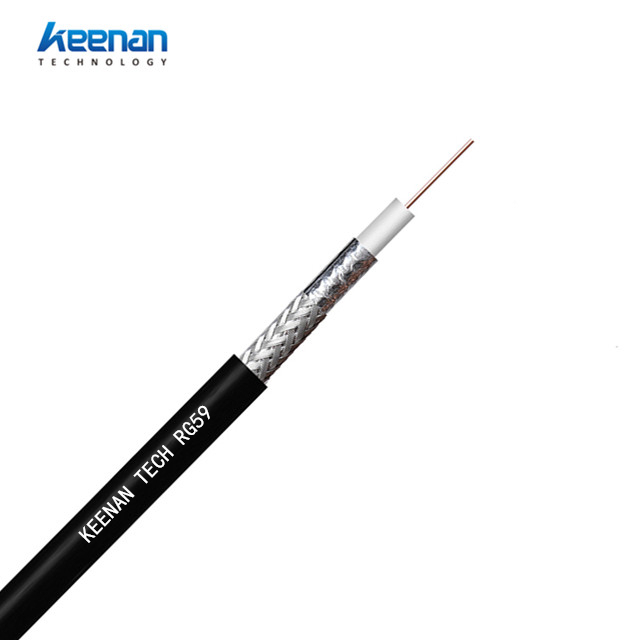

Construction
|
Item |
Material |
Diameter(mm) |
Remarks |
|
Inner Conductor Insulation First Shield Second Shield Jacket |
CCS/BC Foam PE Bonded Aluminum Foil AL-Mg/TC Wire Braid PVC/PE |
0.81 3.66 3.80 4.20 6.10 |
Per customer’s requirements: The inner conductor could be CCS or BC; The second shield could be 48,64,80,96,112 or 128 AL-Mg /TC wires braiding;Jacket could be PVC or PE ; |
Electrical Characteristics
|
Impedance (Ω) Capacitance (pF/m) Velocity of Propagation (%) Dielectric strength(kV) V.S.W.R Return Loss Screening Effectiveness(db) Min. Bending Radius (mm) Operating Temperature(0C) |
75±3 54±2 84.0 1.6 ≤1.2 ≥20 ≥85 35.0 -25 to +70 |
Attenuation (@200C)
|
Frequency(MHz) |
Max Attenuation(dB/100m) |
|
300 400 500 600 750 1000 |
14.06 16.73 18.70 20.34 22.87 26.64 |
