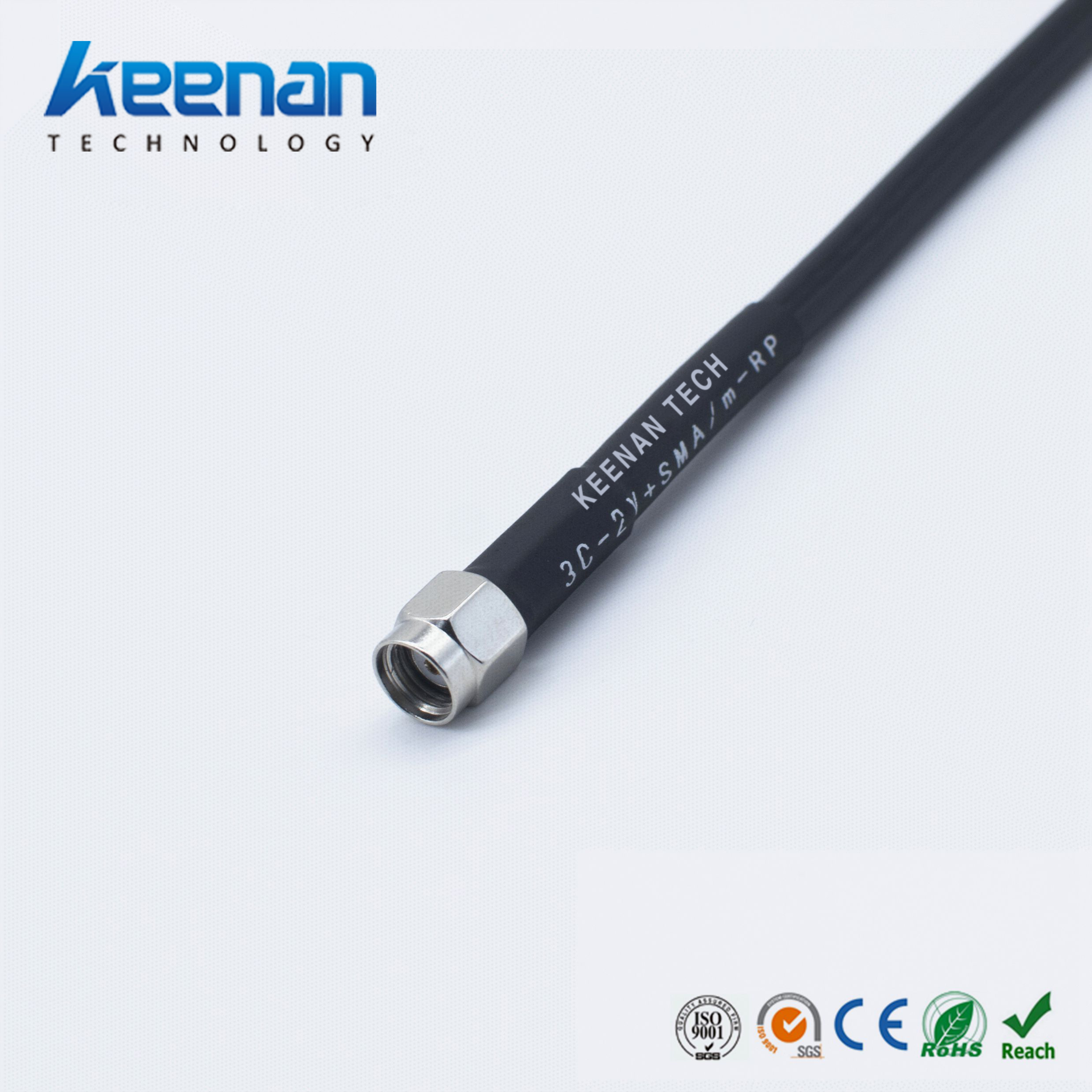

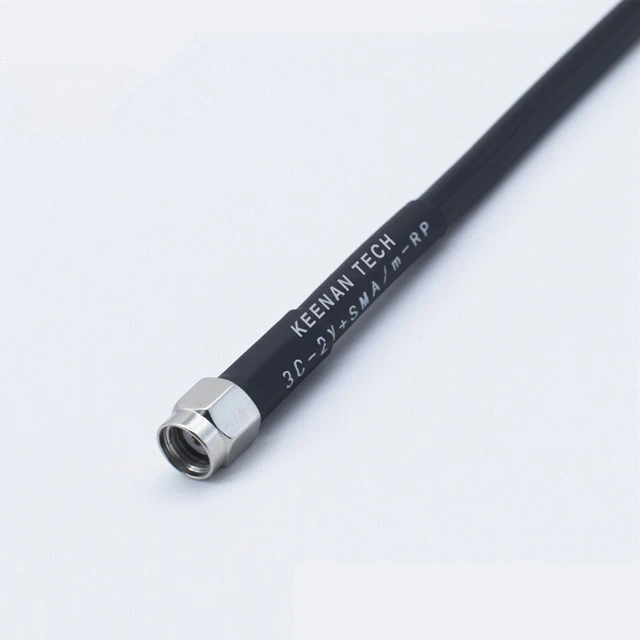

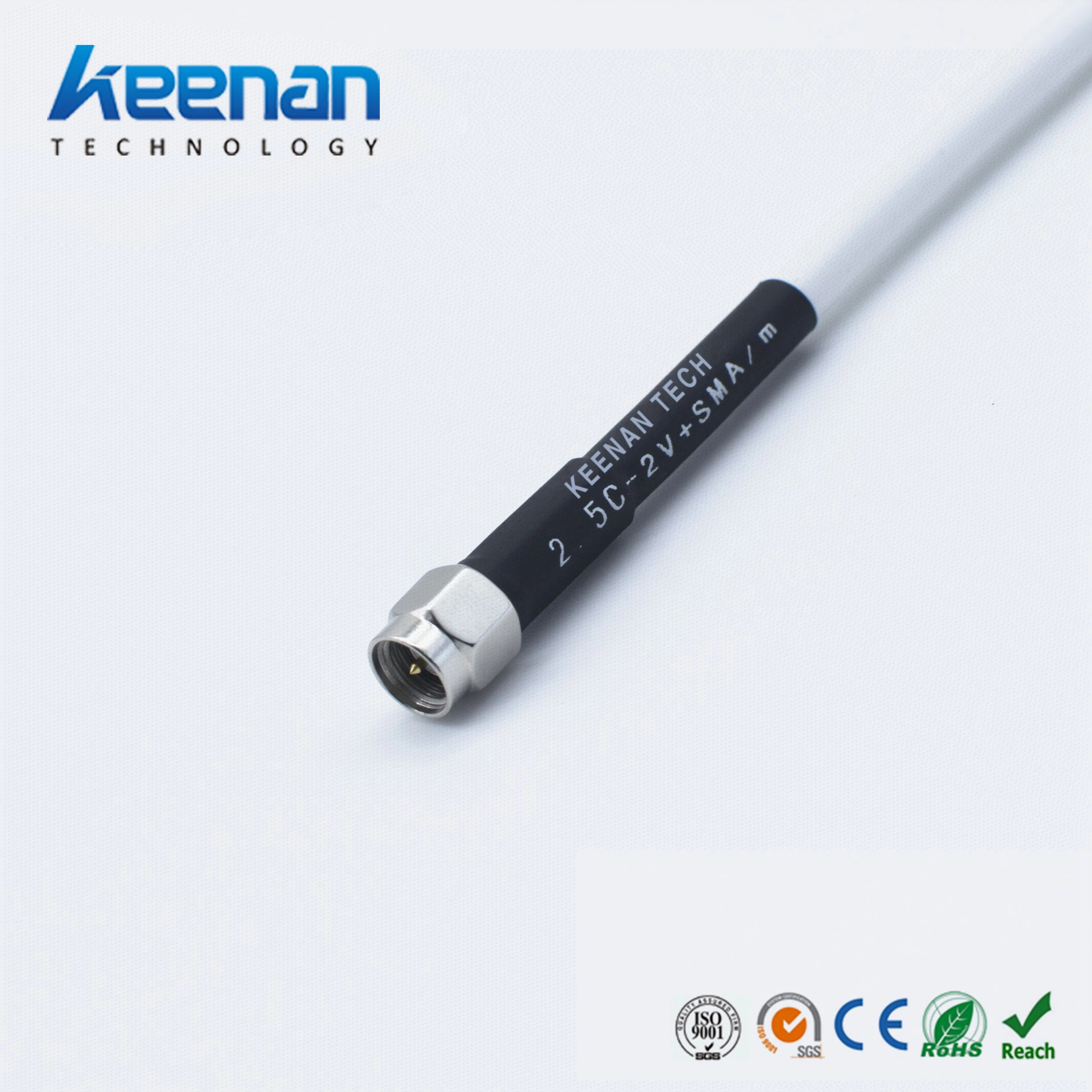

Factory Communication Coaxial Cable 1.5C-2V/2.5C-2V/3C-2V Camera Cable
Overview
This 75 Ohm 3C-2V cable is JIS coaxial cable. Its versatile cable assemblies with various lengths have been widely used for audio and video transmission system.
Features
75 Ohm data signal transmission;
Being widely used for audio and video transmission system;
Common size cable can be easily terminated;
RoHS compliant;
Assemblies & Application
This 75 Ohm 3C-2V coaxial cable can be fixed with kinds of connectors,such asF,TV,BNC,TNC connectors.These versatile cable assemblies with various lengths have been widely applied to audio & video transmission and other communication systems.
Construction
|
|
Material |
Diameter(mm) |
Remarks
|
|
Inner Conductor Insulation Out conductor Jacket |
BC/CCS Solid PE BC wire Braid PVC/LSZH |
0.5 3.0 3.5 5.0 |
Per customer’s requirements: Out conductor could be 48,64,80 or 96 BC wires braiding; Jacket could be PVC or LSZH;
|
Electrical Characteristics
|
Capacitance (pF/m) Impedance (Ω) Velocity of Propagation (%) Max Operating Frequency (MHz) Max Operating Voltage(VRMS) Inner Conductor Resistance (Ω/kM) Return Loss (dB) Operating Temperature(0C) |
69 75 67 1000 1000 -- 18 -30 to +105 |
Attenuation [@68oF (20oC)]
|
Frequency(MHz) |
Max Attenuation (dB/100m) |
|
30 200 500 1000 |
9.00 23.0 32.0 46.0 |
More Ideas
1) If require conventional construction and materials, please check 3C-2V;
2) If require better welding performance,please inquire about 3C-2V-TC;
3) If require lightweight and lower price,you can choose 3C-2V-CCA
4) If require to be used in high temperature environment at 105oC,
please inquire about 3C-XLPE;
5) For more 3C-2V assemblies,please inquire about 3C-2V ASSEMBLIES;
