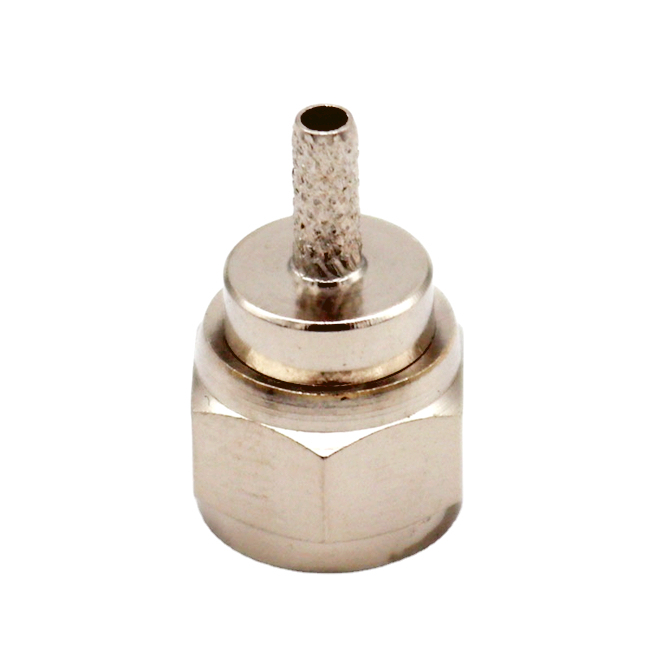

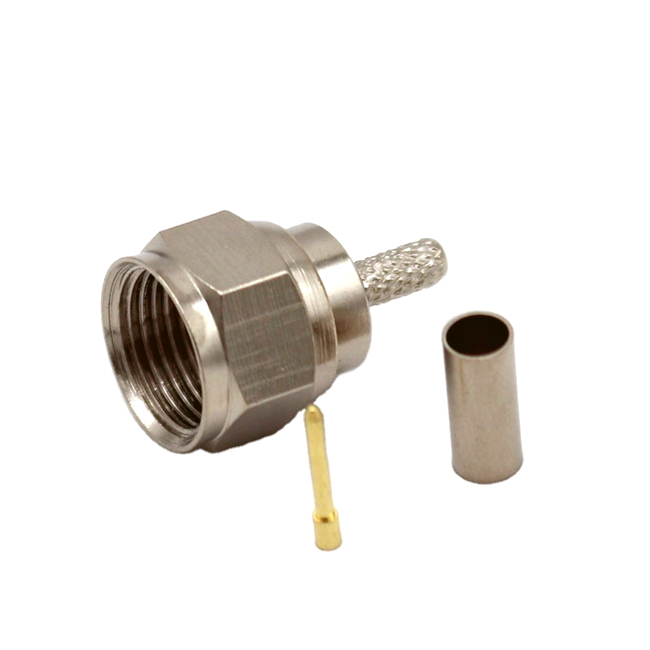

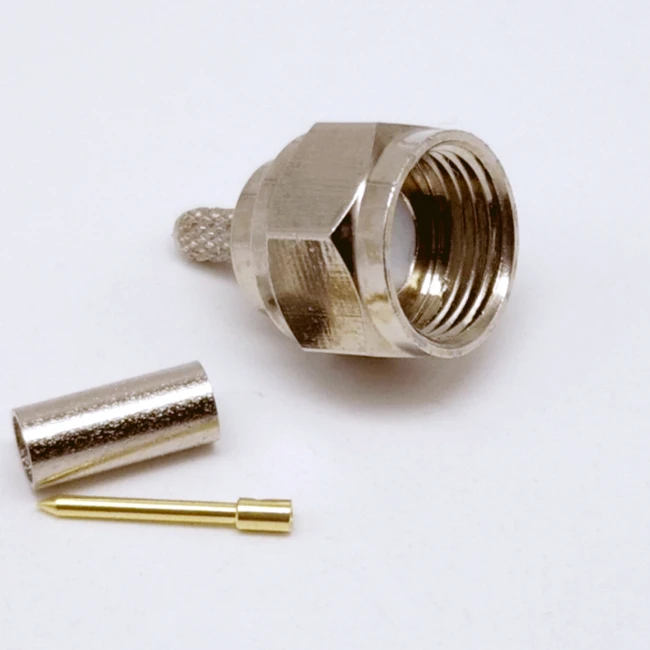

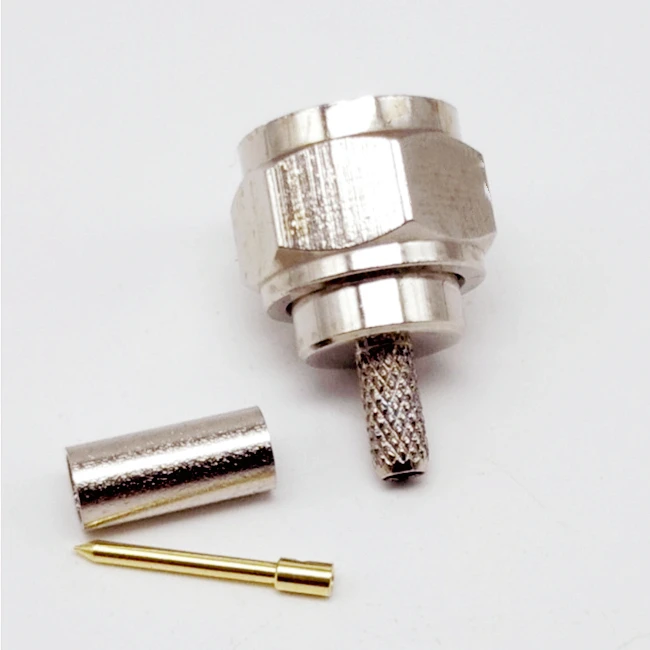

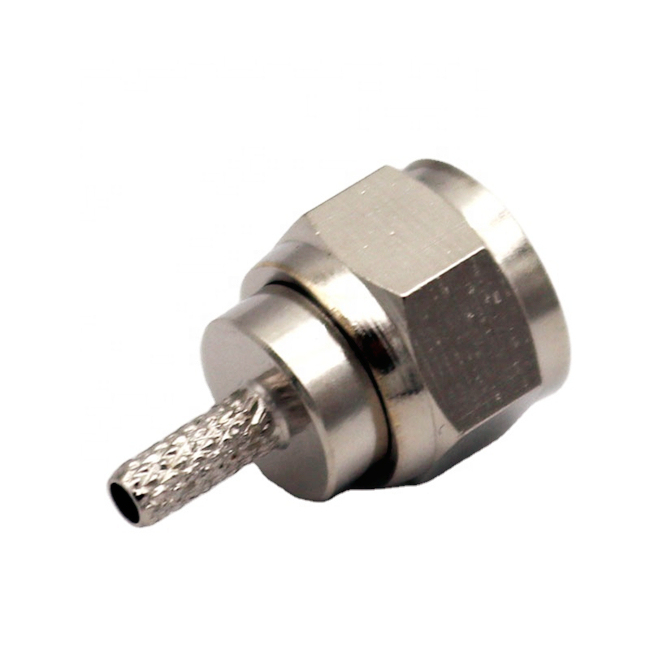

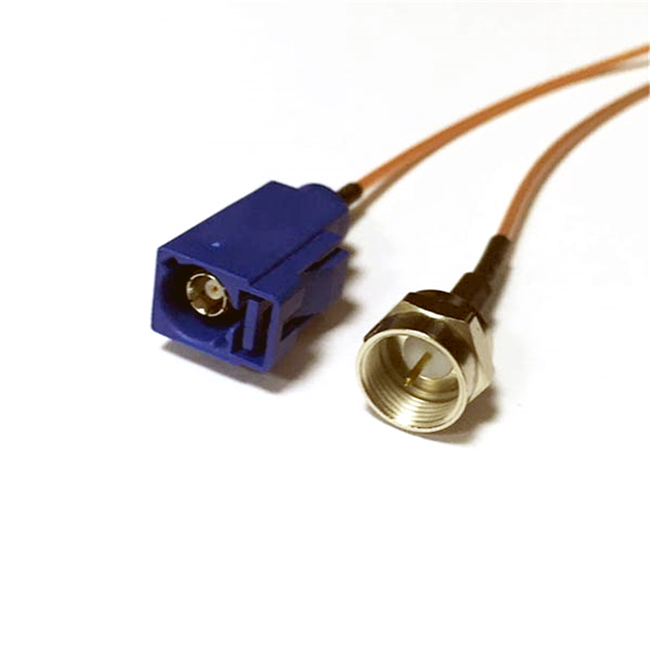

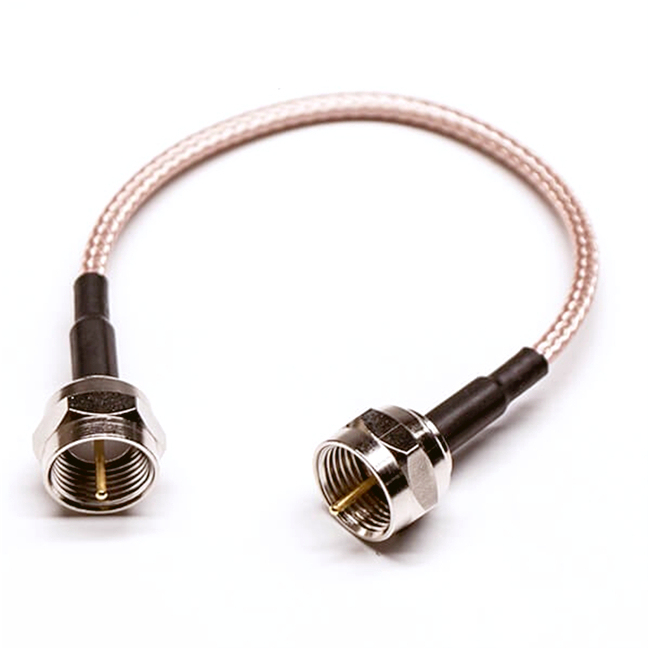

F Male Crimp Type RF Connector For RG174 RG179 RG316 RG58 LMR200 Coaxial Cable
|
Impedance |
|
75 Ω/50ohm |
|
Vibration |
|
100m/s (10-500Hz), 10g |
|
Temperature Range |
|
-55 to +155°C |
|
Frequency |
|
DC- 3GHZ |
|
Working Voltage |
|
1000V r.m.s |
|
Withstanding Voltage |
|
2500V r.m.s |
|
Contact Resistance |
Center contact |
≤1m Ω |
|
|
Outer contact |
≤1m Ω |
|
Insertion Loss |
|
≤0.24dB @ 6GHz |
|
Insulation resistance |
|
≥5000 M ohm |
|
Center Conductor Retention Force |
|
≥0.56N |
|
Voltage Standing Wave Ratio |
Straight |
≤1.15/6GHz |
|
|
Right angle |
≤1.25/6GHz |
|
Durability(mating) |
|
≥500cycles |
MATERIAL AND PLATING
|
Body |
Brass |
Nickel plated |
|
Pin Contact |
Brass |
|
|
Socket Contact |
Zinc Alloy Beryllium or tin bronze |
|
|
Resilient Contact |
Beryllium-copper |
|
|
Insulator |
PTFE |
|
|
Crimp Ferrule |
Copper alloy |
Nickel plated |
|
O-ring Sealing |
6146 silicon rubber |
|
