F-type connectors are RF connectors that we all come across in our daily lives and are widely used in areas such as cable TV, satellite TV, and the connection between cable TV modems and televisions. It can be used in situations with impedance matching requirements as well as in non-matching areas. Its features include threaded connection and convenient insertion. Stable performance. The price of F-type connectors is very low. Their characteristic impedance is 75 ohms, and the maximum frequency can generally be supported up to 1GHz or 2.4GHz.

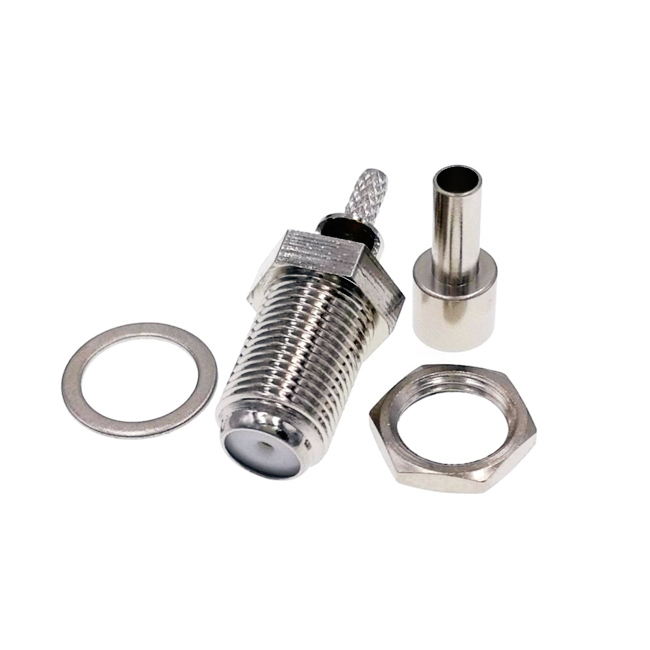

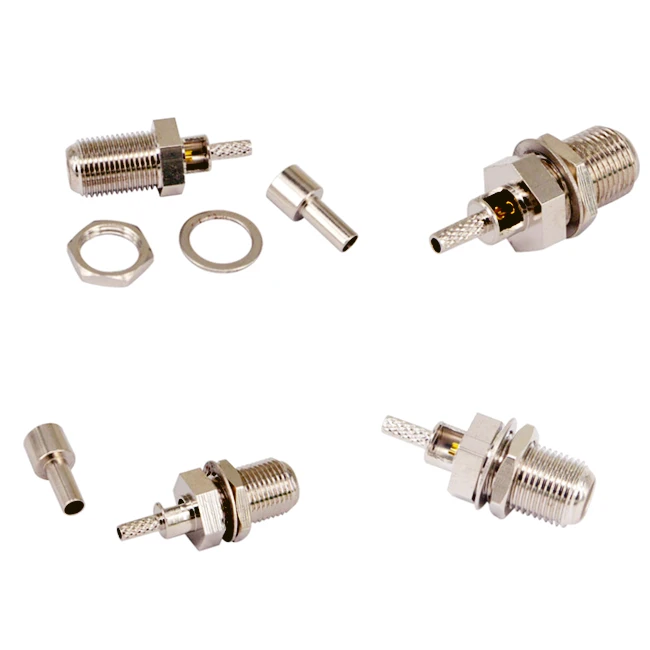

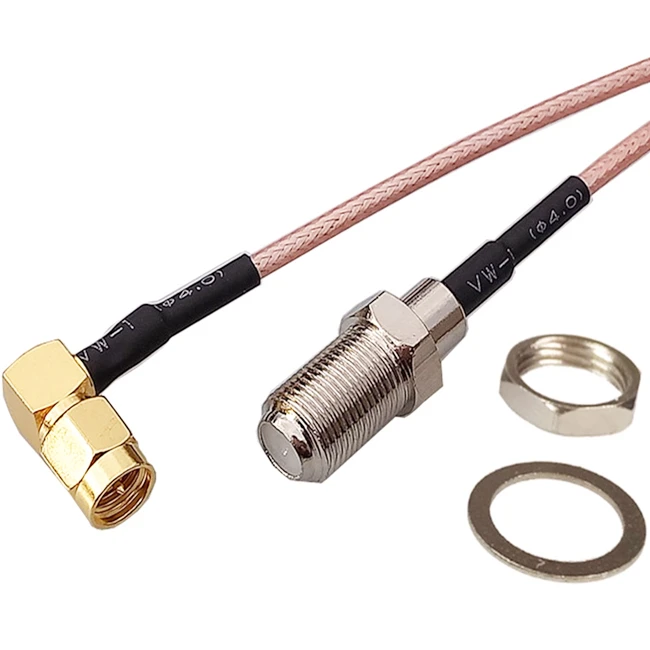

F female bulkhead straight crimp RG174 RG316 RG179 cable RF connector
|
Impedance |
|
75 Ω/50ohm |
|
Vibration |
|
100m/s (10-500Hz), 10g |
|
Temperature Range |
|
-55 to +155°C |
|
Frequency |
|
DC- 3GHZ |
|
Working Voltage |
|
1000V r.m.s |
|
Withstanding Voltage |
|
2500V r.m.s |
|
Contact Resistance |
Center contact |
≤1m Ω |
|
|
Outer contact |
≤1m Ω |
|
Insertion Loss |
|
≤0.24dB @ 6GHz |
|
Insulation resistance |
|
≥5000 M ohm |
|
Center Conductor Retention Force |
|
≥0.56N |
|
Voltage Standing Wave Ratio |
Straight |
≤1.15/6GHz |
|
|
Right angle |
≤1.25/6GHz |
|
Durability(mating) |
|
≥500cycles |
MATERIAL AND PLATING
|
Body |
Brass |
Nickel plated |
|
Pin Contact |
Brass |
|
|
Socket Contact |
Zinc Alloy Beryllium or tin bronze |
|
|
Resilient Contact |
Beryllium-copper |
|
|
Insulator |
PTFE |
|
|
Crimp Ferrule |
Copper alloy |
Nickel plated |
|
O-ring Sealing |
6146 silicon rubber |
|
