Excellent performance rf coaxial cable gsm antenna LMR195 coaxial cable

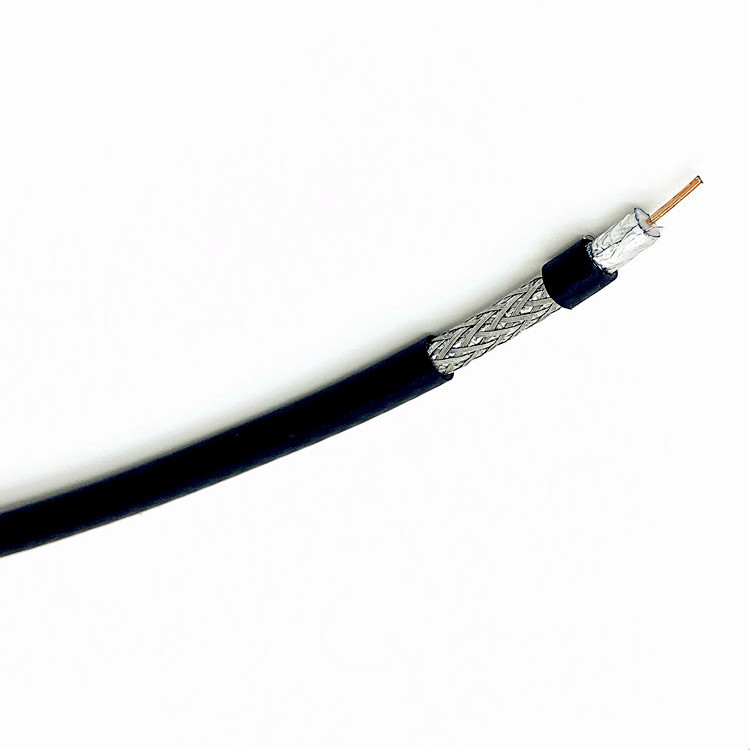

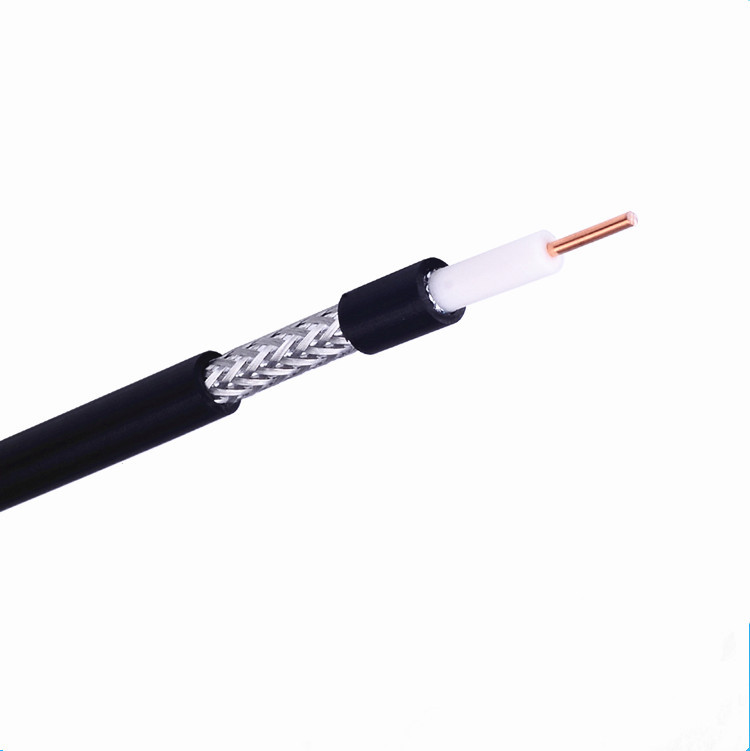

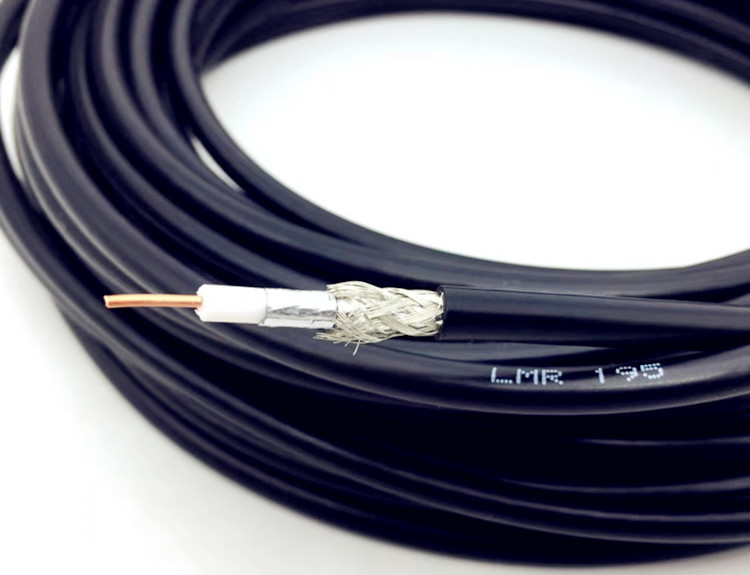

This is a coaxial cable with foam insulation. It has a good attenuation and shielding effectiveness.As a substitute for RG58 coaxial cable,it has been widely applied to radio transmission,base radio antenna station and other communication systems.
• 50 Ohm data signal transmission;
• The shielding layer composed of aluminum foil and braiding has a good shielding effectiveness;
• Excellent performance in high frequency,VSWR stability;
• Customized cable color , winding and connector, meet your different requirements;
• RoHS compliant;
Construction
|
Item
|
Material
|
Diameter(mm)
|
Remarks |
|
Inner Conductor
Dielectric
First Shield
Second Shield
Jacket
|
Bare Copper
Foam PE
Bonded Aluminum Foil
TC Wire Braid
PVC/LSZH
|
19*0.19 2.79 2.95 3.53 4.95
|
Per customer’s requirements:
Out conductor could be80,96 ,112 or 128 TC wires braiding;
Jacket could be PVC or LSZH; |
Electrical Characteristics
|
Impedance (Ω)
Capacitance (pF/m)
Velocity of Propagation (%)
Return Loss
Screening Effectiveness(db)
Voltage With Stand
Installation Temp(℃)
Operating Temp(℃)
|
50±3 83..3 80 ≥20 ≥90 1000.0 -30 to +70 -30 to +70
|
Attenuation (@200C)
|
Frequency(MHz)
|
Max Attenuation(dB/100m)
|
|
150 220 450 900 1500 1800 2000 2500 |
15.6 18.7 26.5 37.7 48.9 53.9 57.1 64.3 |

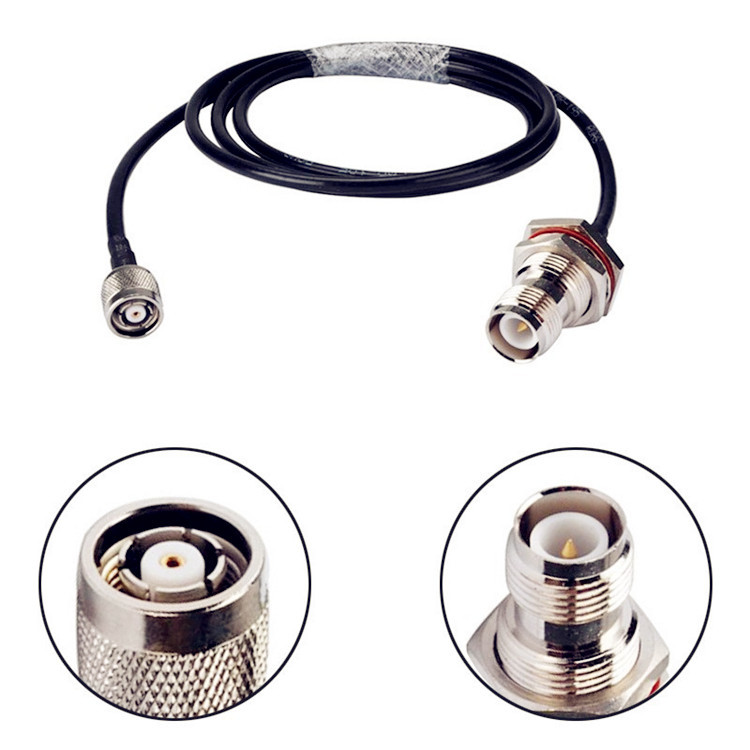

These 50 Ohm 195 series coaxial cables can be fixed kinds of connectors,such as SMA,N,BNC,TNC connectors.As a substitute for RG58 coaxial cable, these versatile cable assemblies with various lengths have been widely applied to CDMA,GSM radio transmission,base radio antenna station and other communication systems.
