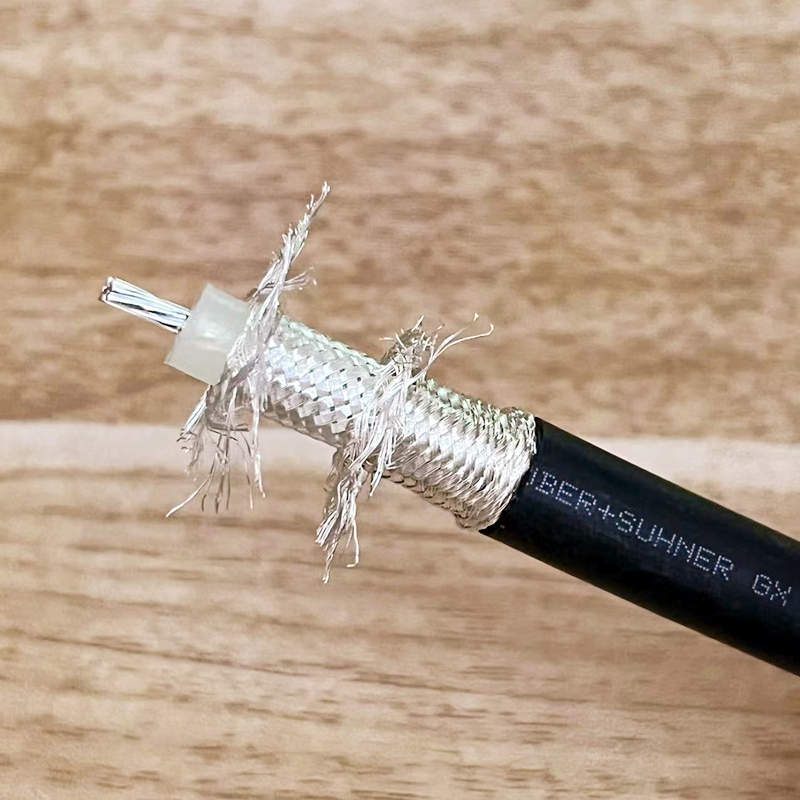

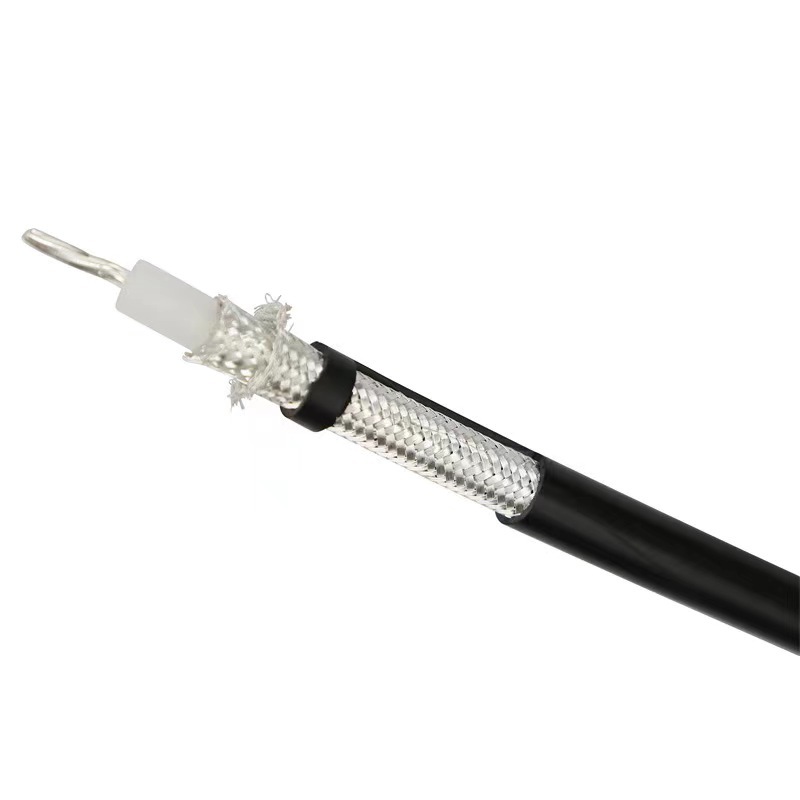

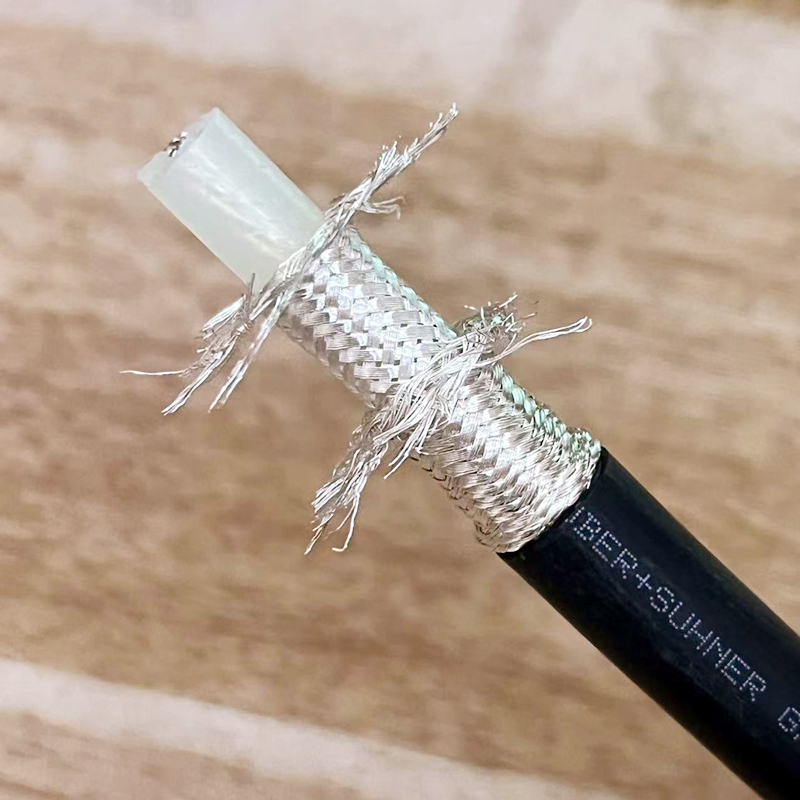

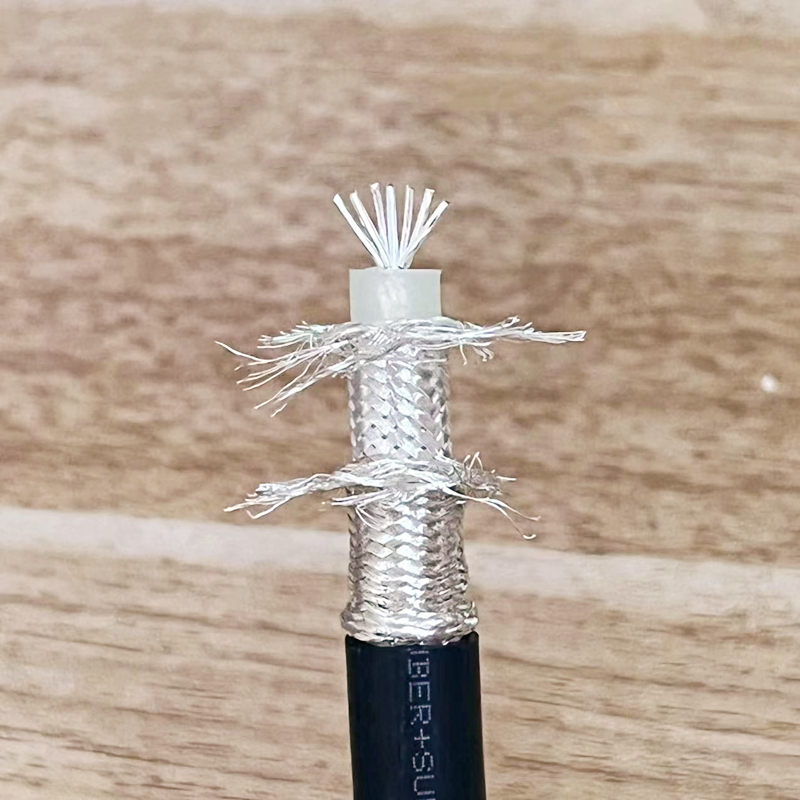

Double Shield 50ohm RG214 Coaxial Cable
Overview
This 50 Ohm RG214 cable is a multipurpose MIL-C-17 coaxial cable.It has good flexibility. These versatile cable assemblies with various lengths have been widely applied to communication systems.
Features
50 Ohm data signal transmission;
The inner conductor is stranded;
The insulation is solid PE;
The shield is double braids;
It has good flexibility;
Common size cable can be easily terminated;
Be in conformity with the European ROHS standard;
Assemblies & Application
This 50 Ohm RG214 coaxial cable can be fixed kinds of connectors,such as SMA,N,BNC,TNC connectors.These versatile cable assemblies with various lengths have been widely applied to CDMA,GSM and other communication systems.

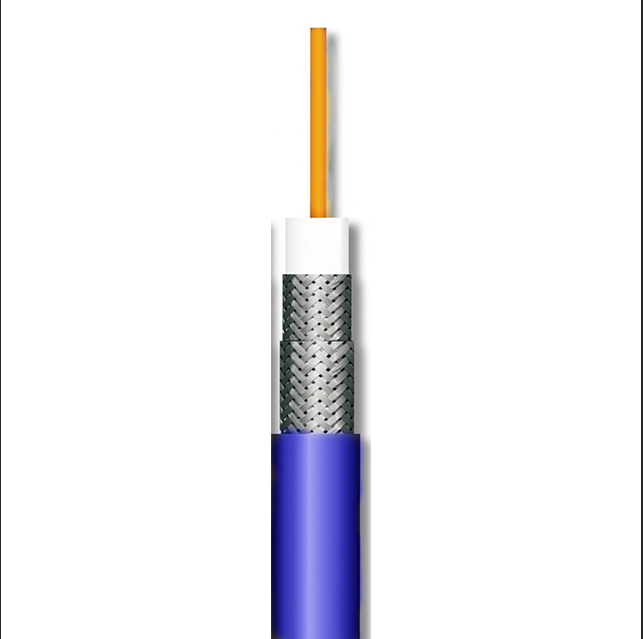

Construction
|
|
Material |
Diameter(mm) |
Remarks |
|
Inner Conductor Insulation Shield 1 Shield 2 Jacket |
Tinned Copper Solid PE Tinned Copper wire braid Tinned Copper wire braid PVC/TPE/TPU |
7*0.75 7.24 7.90 8.40 10.80 |
Per customer’s requirements: Out conductor could be 144,168,192 or 216 PC wires braiding;Jacket could be PVC,TPE or TPU; |
ElectricalCharacteristics
|
Capacitance (pF/m) Impedance (Ω) Velocity of Propagation (%) Max Operating Frequency (MHz) Max Operating Voltage(VRMS) Inner Conductor Resistance (Ω/kM) Return Loss (dB) Operating Temperature(0C) |
101.0 50.0 66.0 2000 1500.0 130 20 -30 to +70 |
Attenuation [@68oF (20oC)]
|
Frequency(MHz) |
|
Max Attenuation (dB/100m) |
|
100 400 1000 3000 |
|
6.8 14.5 25.0 50.0 |
