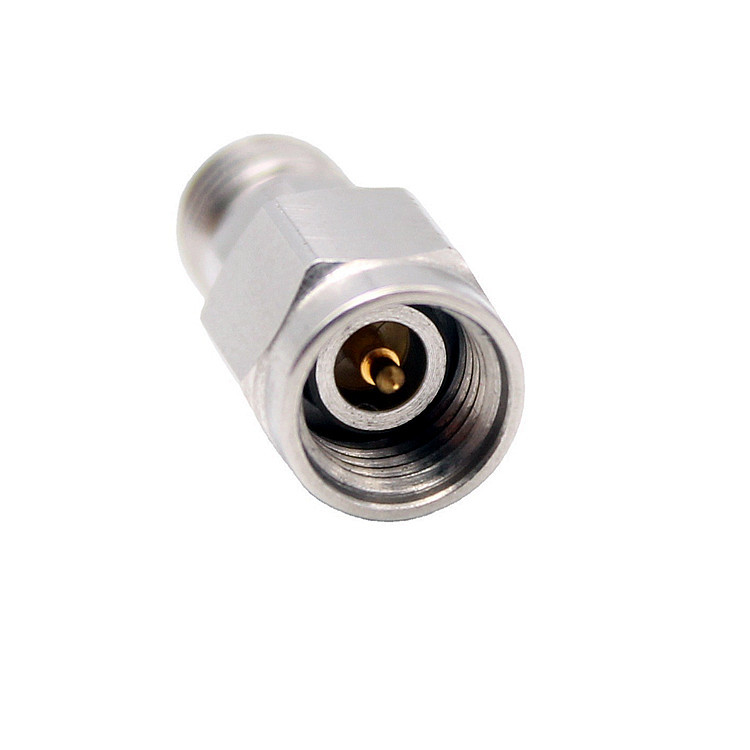

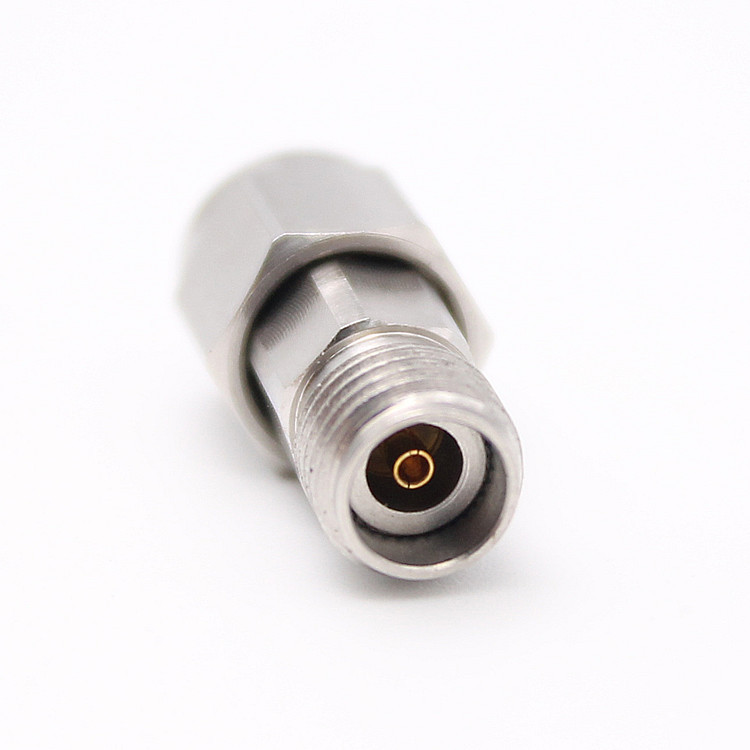

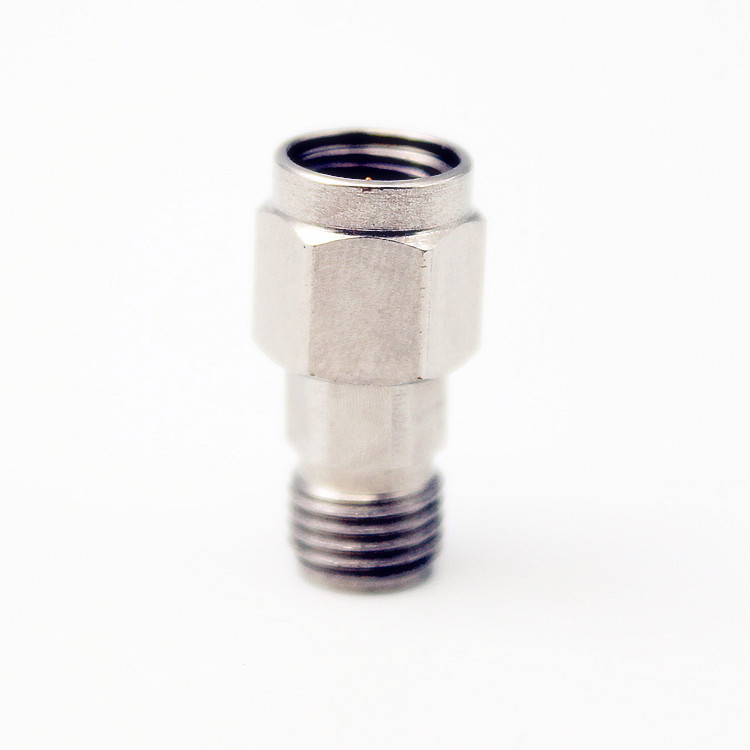

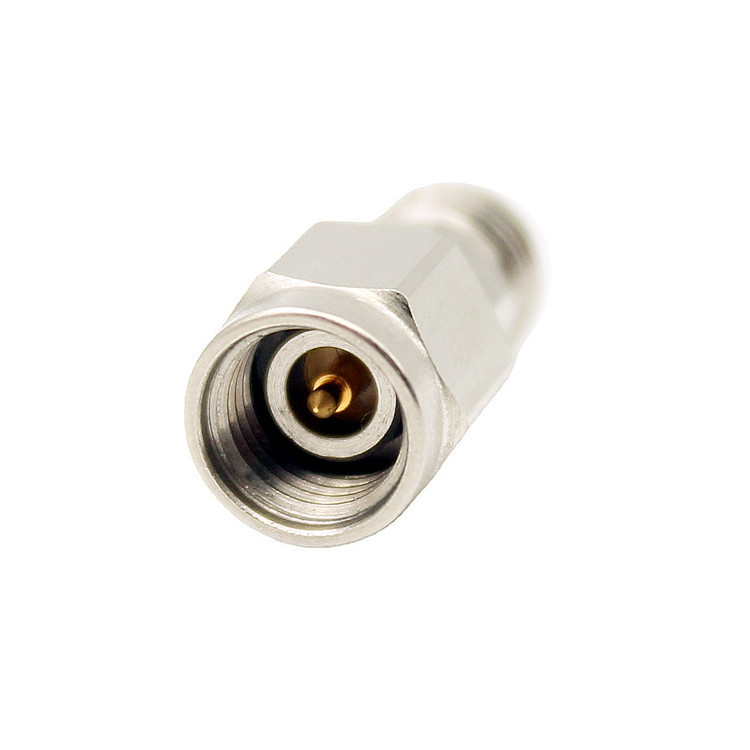

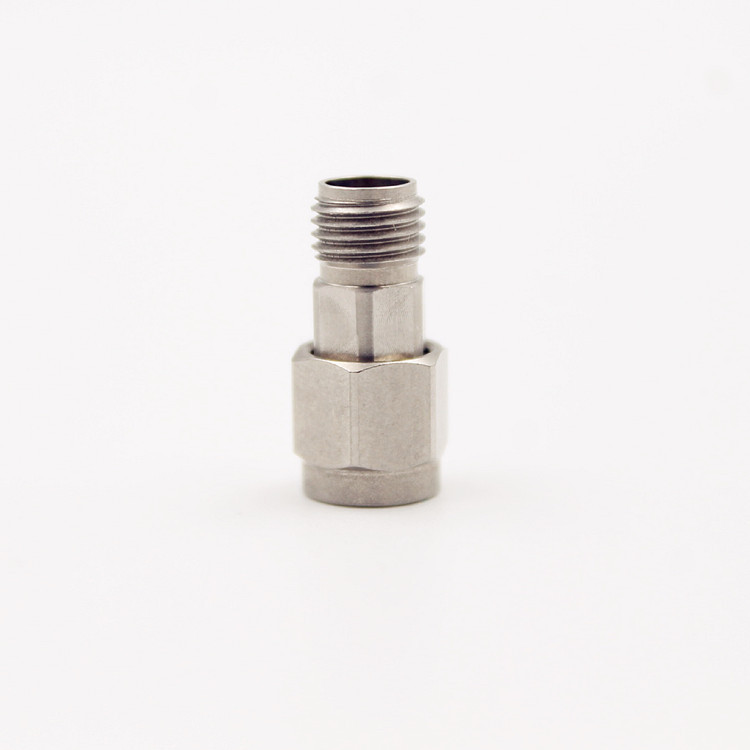

DC-40G Stainless Steel 2.92 Male to 2.92 Female 2W 1-30db RF Fixed Attenuator

No.2.92-JK-40G-2W
DC-40G Stainless Steel 2.92 Male to 2.92 Female 2W 1-30db RF Fixed Attenuator
  • DC-40G Stainless Steel 2.92 Male to 2.92 Female 2W 1-30db RF Fixed Attenuator
  • DC-40G Stainless Steel 2.92 Male to 2.92 Female 2W 1-30db RF Fixed Attenuator
  • DC-40G Stainless Steel 2.92 Male to 2.92 Female 2W 1-30db RF Fixed Attenuator
  • DC-40G Stainless Steel 2.92 Male to 2.92 Female 2W 1-30db RF Fixed Attenuator
  • DC-40G Stainless Steel 2.92 Male to 2.92 Female 2W 1-30db RF Fixed Attenuator

Description

DC-40G Stainless Steel 2.92 Male to 2.92 Female 2W1-30db RF Fixed Attenuator

Application

2.92-JK Attenuator
* 2.92-JK RF 3G/4G/6G Attenuator is widely used in below fileds:
* Mobile Communication Network Optimization and In-door distribution system.
* Cluster communication, satellite communication, shortwave communication and hopping radio.
* Radar, electronic navigation and electronic confrontation.
* Aerospace equipment systems


Specification
Model
2.92-JK Attenuator
Power
2W
Connector
2.92-JK
Frequency Range
DC-40GHz
Attenuation
1,2,3,5,6,10,15,20,30dB available, and 1-9dB.±0.8dB,10-30dB±1dB,
VSWR (MAX)
1.40:1@30db
Impendance
50Ω
Temperature Range
-55°C to +125°C
Insulation Resistance

  5000MΩ

Dielectric withstand voltage
1000V

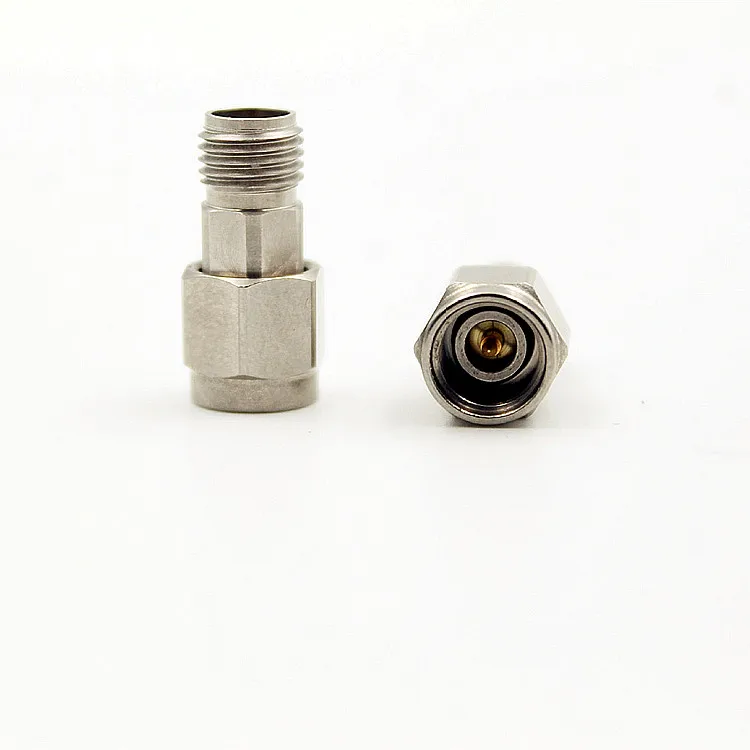

1676597922745.png2.92MF-2-40-30dB.jpg2 (8).jpg

productspacking
