Description

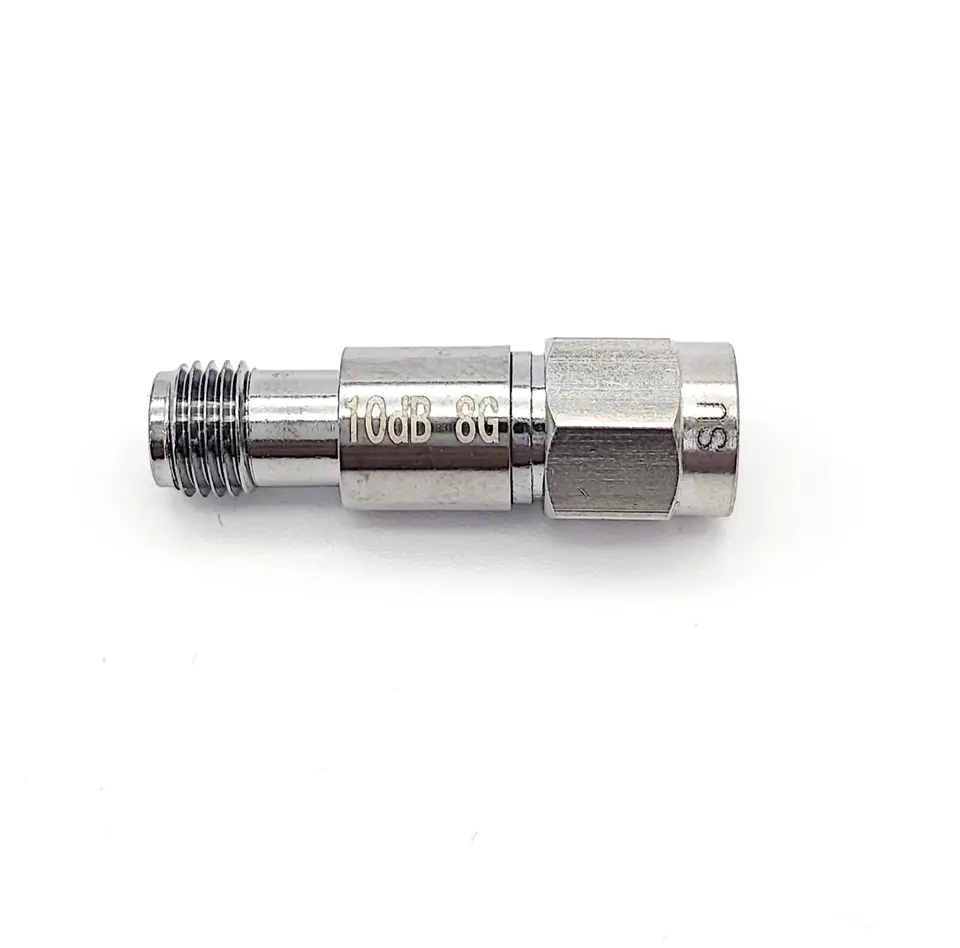

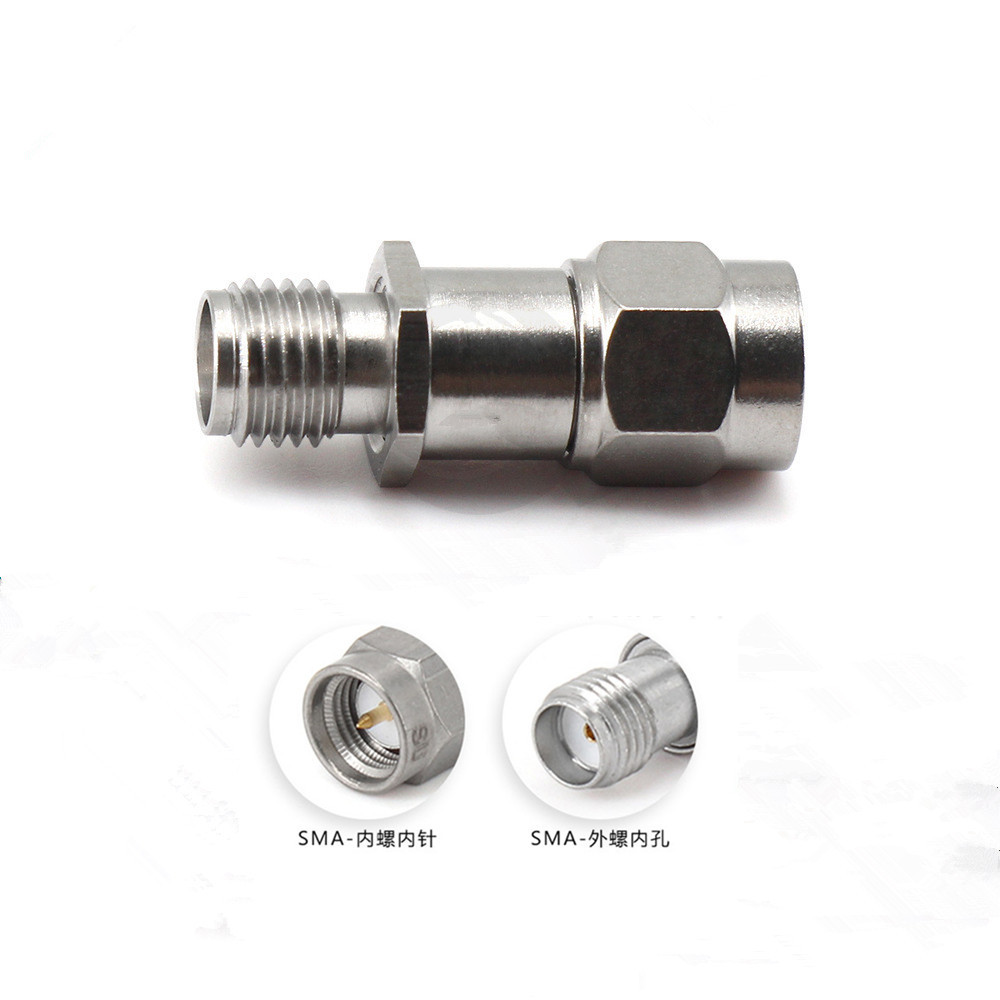

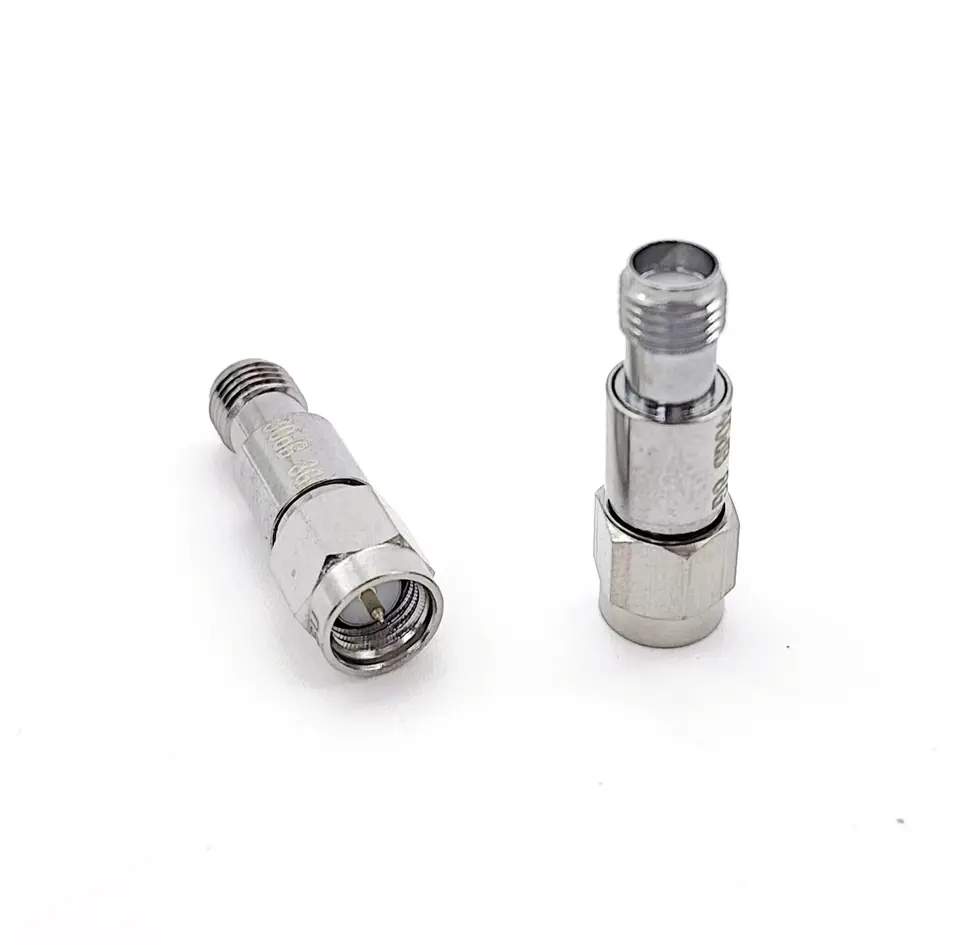

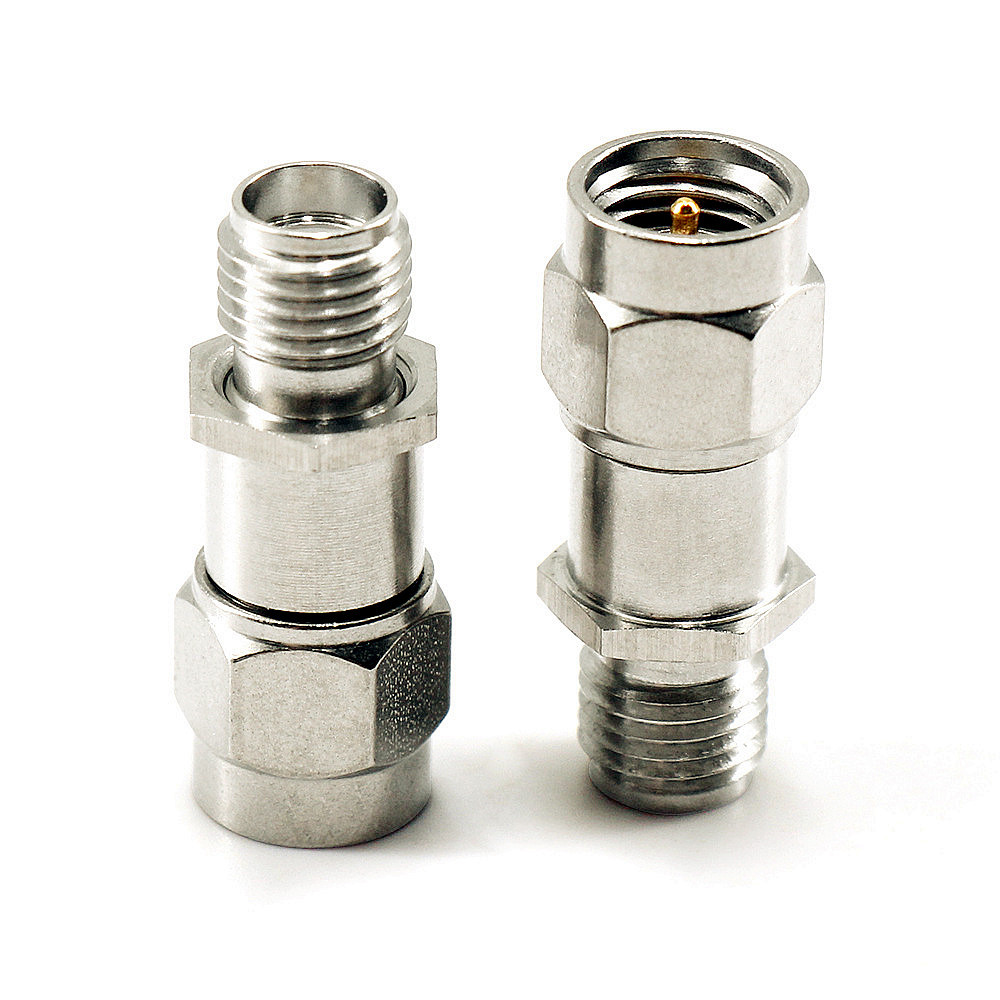

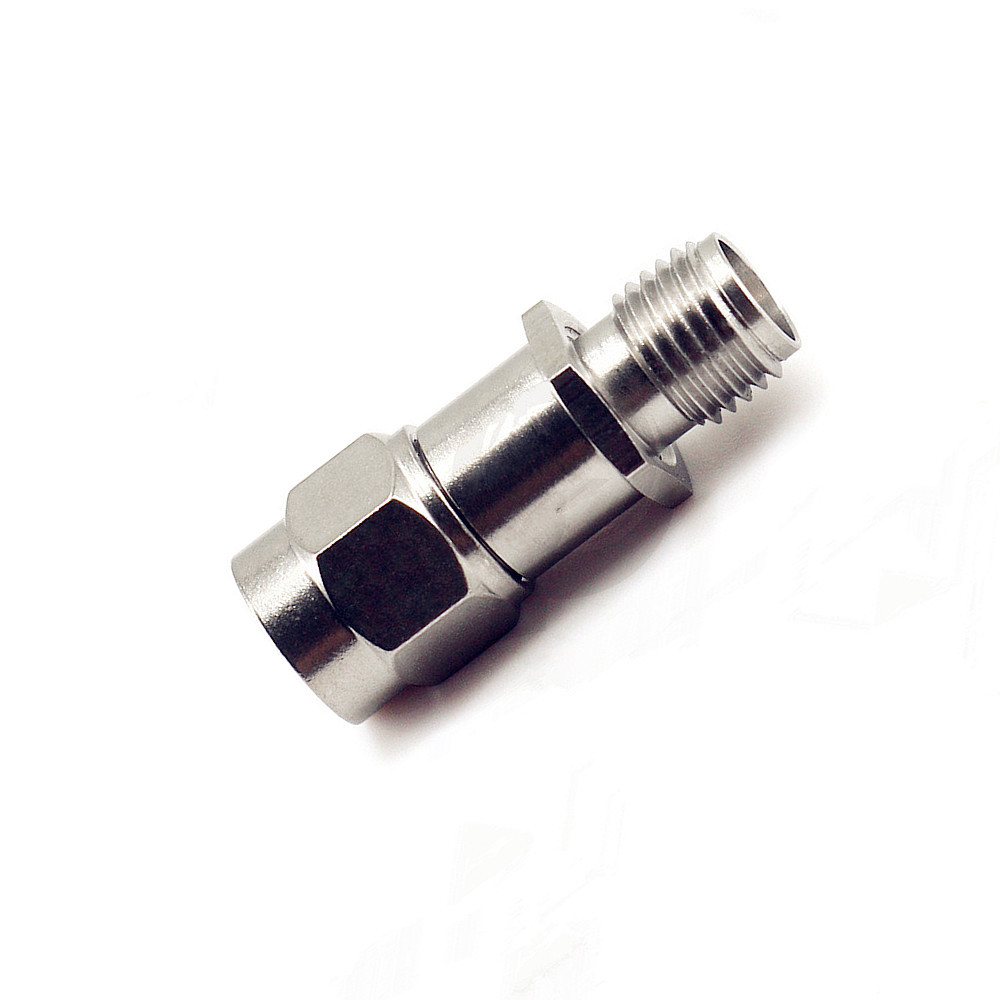

DC-12G Stainless Steel SMA male to SMA female 2W RF Fixed Attenuator 1-40db

Application

SMA-JK Attenuator
* N-JK RF 3G/4G/6G Attenuator is widely used in below fileds:
* Mobile Communication Network Optimization and In-door distribution system.
* Cluster communication, satellite communication, shortwave communication and hopping radio.
* Radar, electronic navigation and electronic confrontation.
* Aerospace equipment systems


Specification
Model
SMA-JK Attenuator
Power
2W
Connector
SMA-JK
Frequency Range
DC-12GHz
Attenuation
1,2,3,5,6,10,15,20,30,40dB available, and 1-10dB.±0.5dB,15-40dB±1dB,50dB±1.2dB
VSWR (MAX)
1.45:1@40db
Impendance
50Ω
Temperature Range
-55°C to +125°C
Insulation Resistance

  5000MΩ

Dielectric withstand voltage
1000V

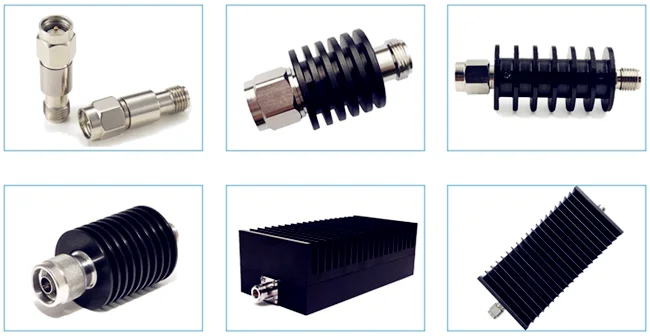

productspacking
